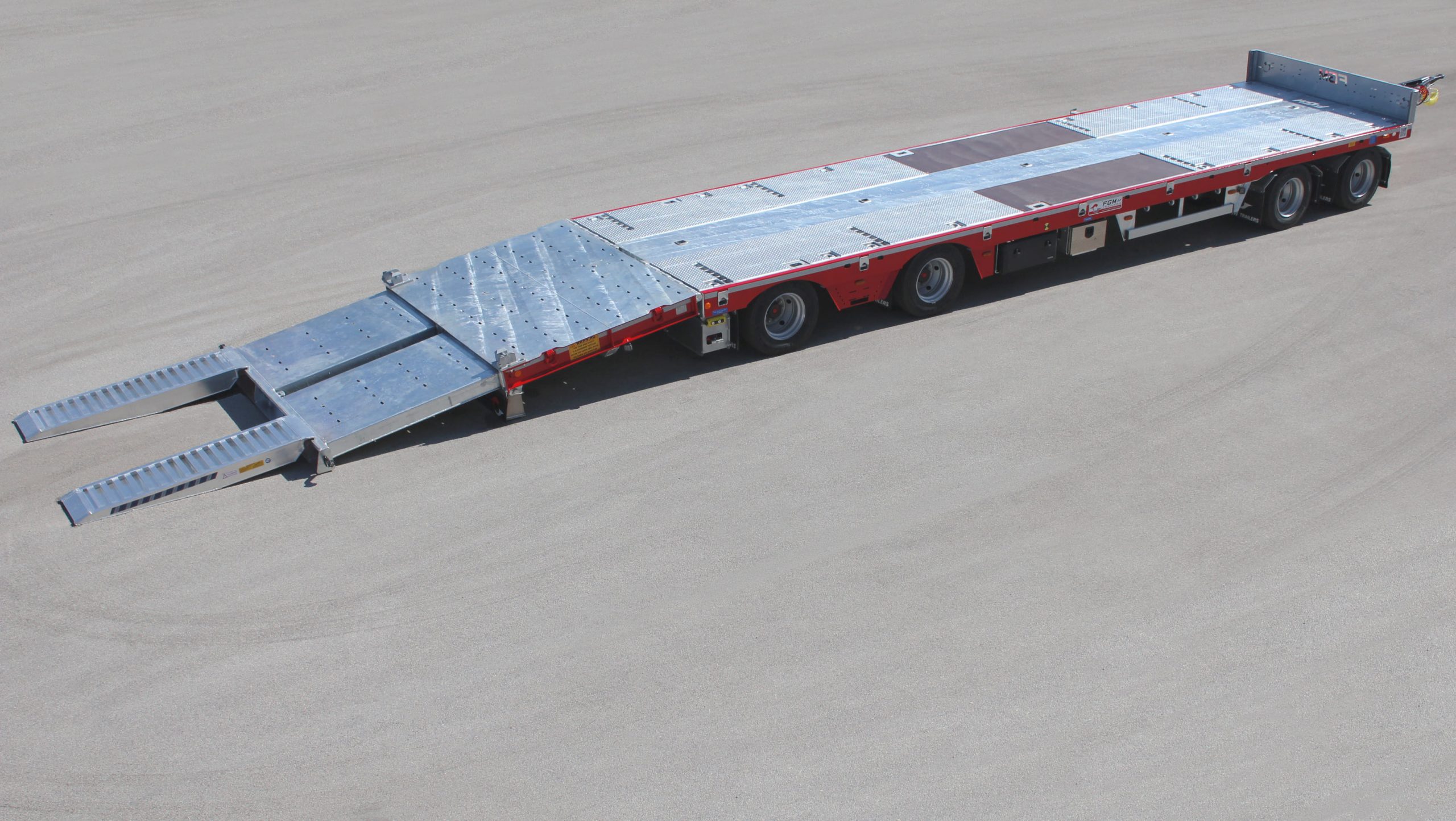

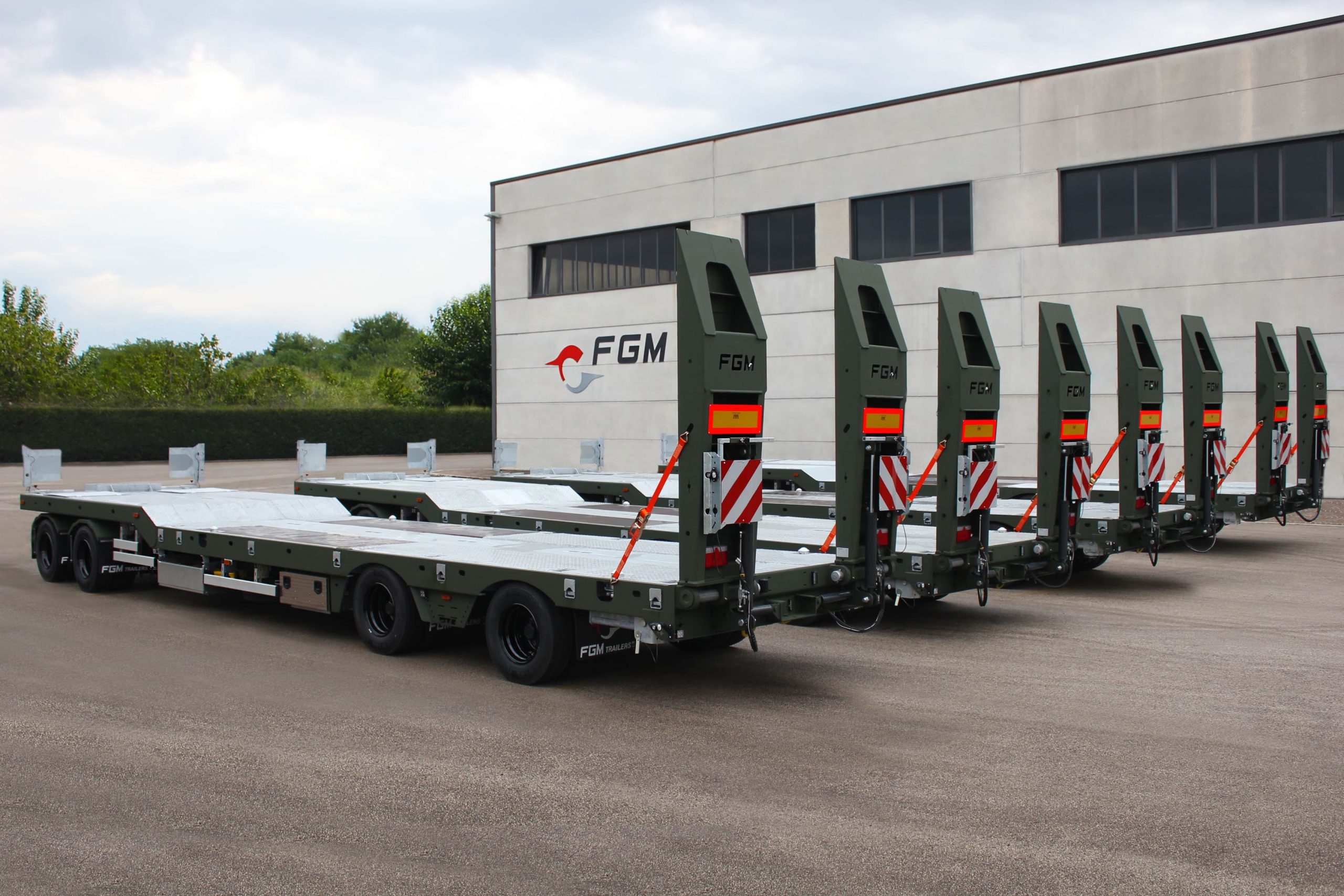

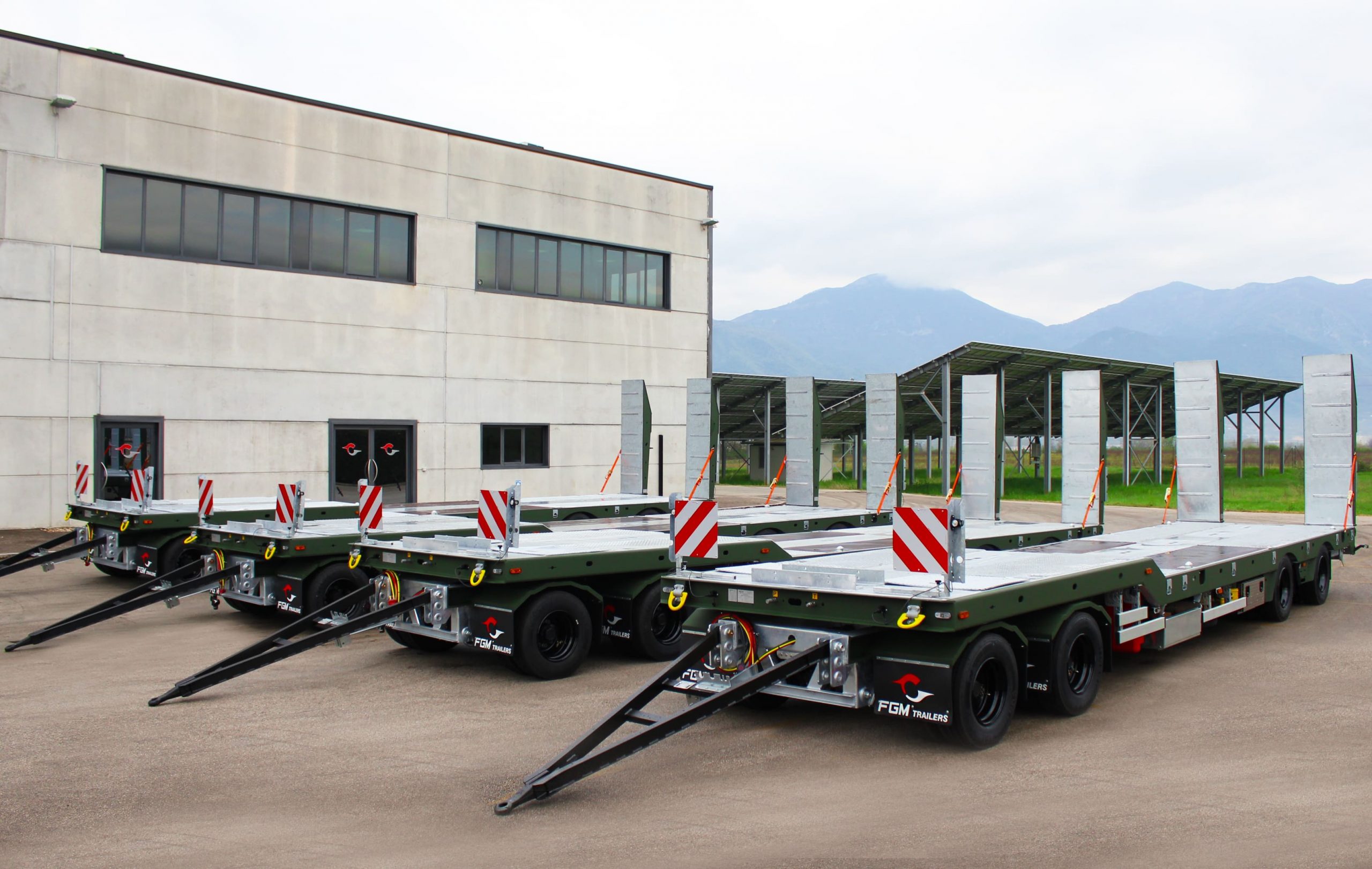

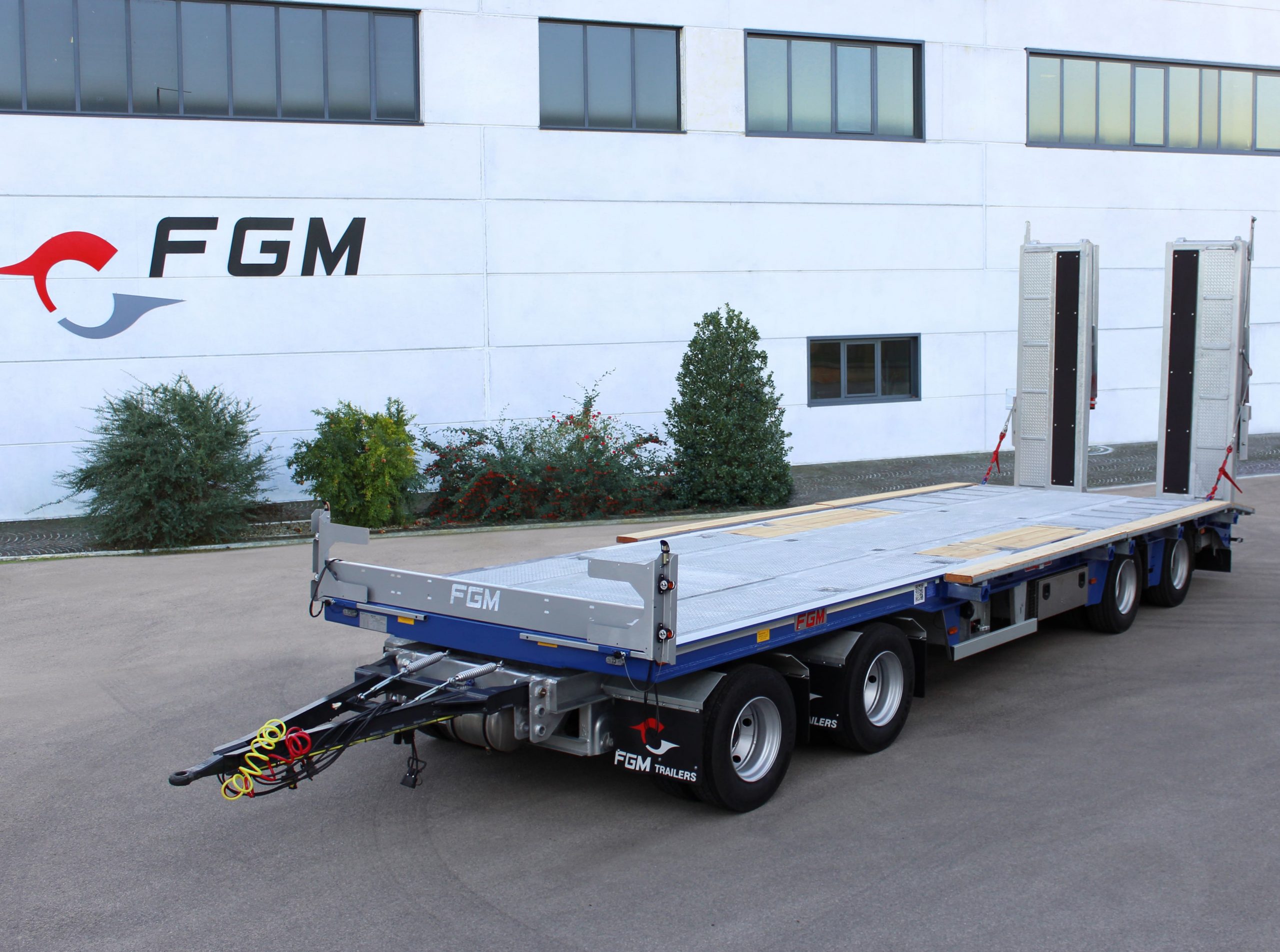

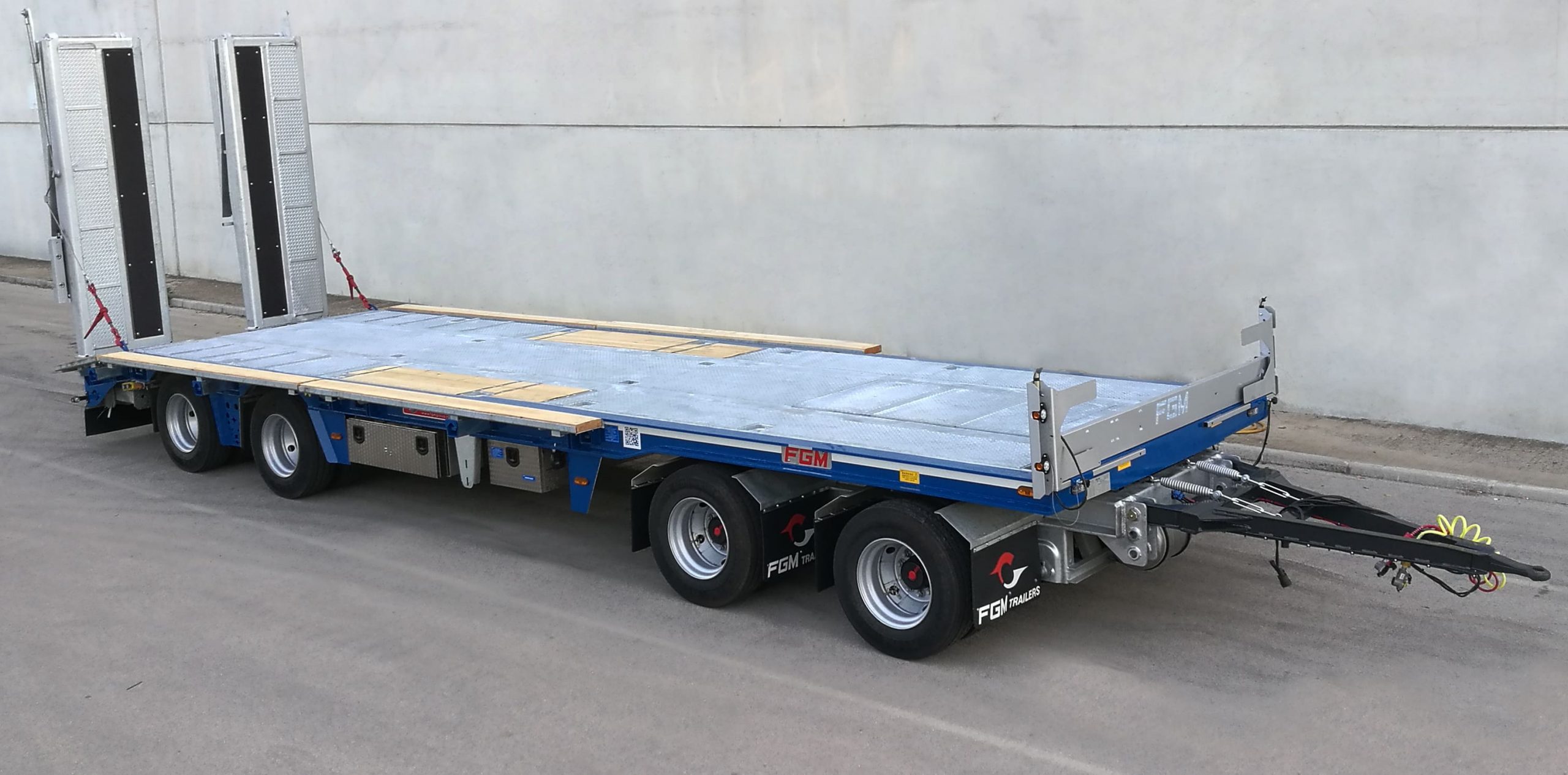

Designed with a combination of 2+2-axle, the FGM 44 achieves a payload of 32 tons. The trailer is available in different configurations and accessories which include the customization of chassis structure, flooring and ramp design. The model is particularly suitable for transporting machinery and military equipment.
Loading platform 8.000-10.000 mm
Loading height 870 mm
Tires 235/75 r 17.5
Tire load 10.300 kg at 100 km/h
N.4 Axle SAF, 12-ton, drum brakes
Braking system Knorr Bremse
LED Electric system Aspoek
Customizable length
Certified lashing rings
Stainless steel toolbox

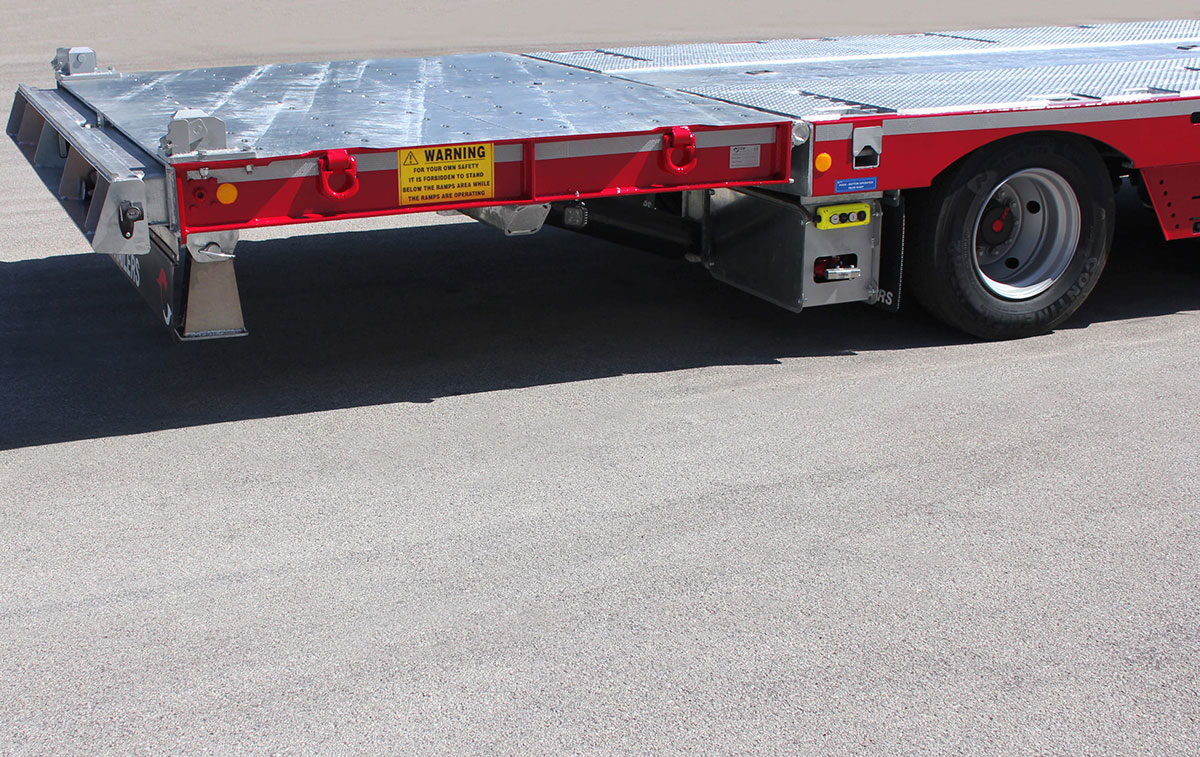

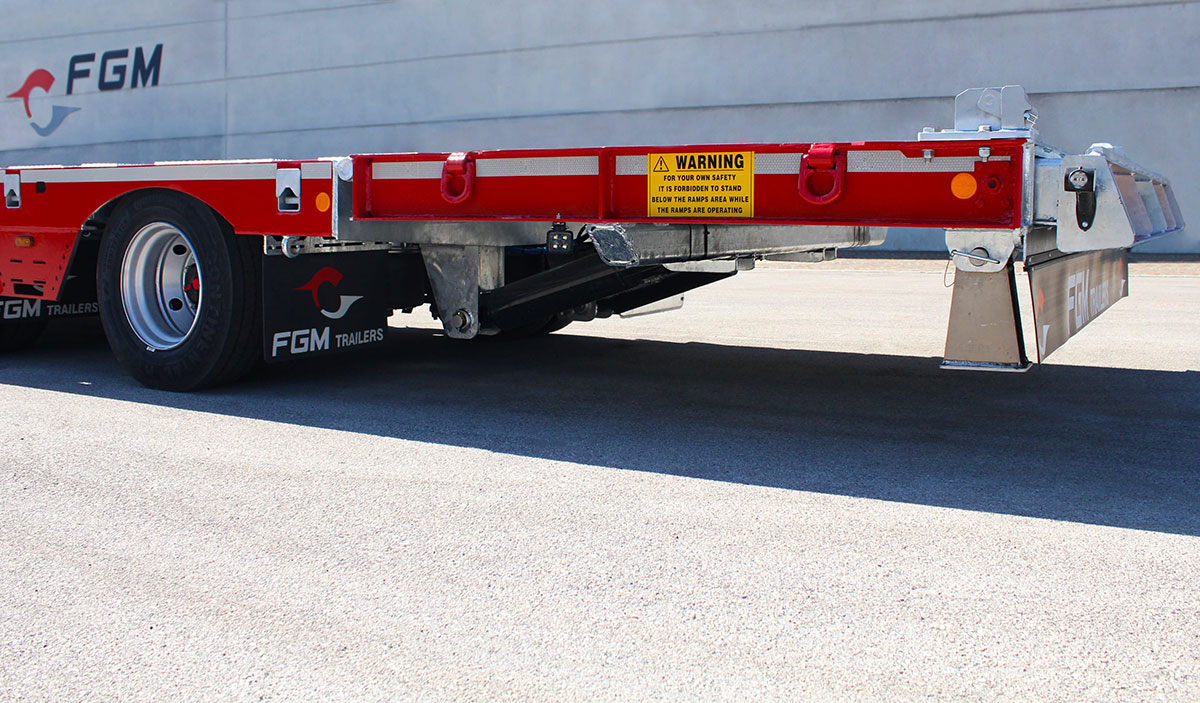

Strenx 700 rear ramps
Jost drawbar
| Available Accessories | Alcoa Dura Bright Aluminum Rims, Certified Lashing rings, payload 8.000 Kg, Excavator boogie, Extra tire Kit, FGM Toolbox, L 1000x H 300 x W 500 mm, Lateral outriggers Kit, LED Working light, N. 4 Certified Ship hooks, N.3 Rows of Bewola Holes, N.4 Wide load signs, 423×423 mm, Orange Flashing Beacon, Rubber inserts, Semitrailer with customized dimensions, Speedline Aluminum Rims, Twist locks, JOST, VIME Hydraulic winch, 8.000 Kg, Wheel recess Kit |
|---|---|
| Axles | 12-ton ROR, drum brakes, SAF 12-ton, drum brakes |

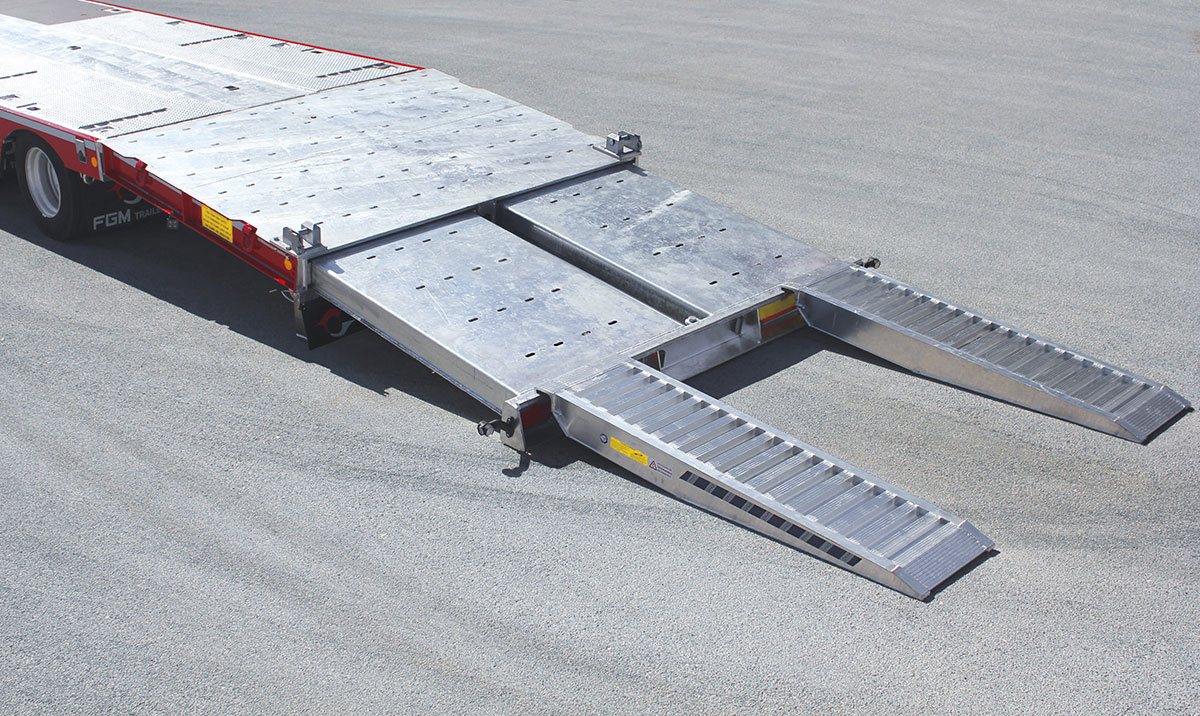

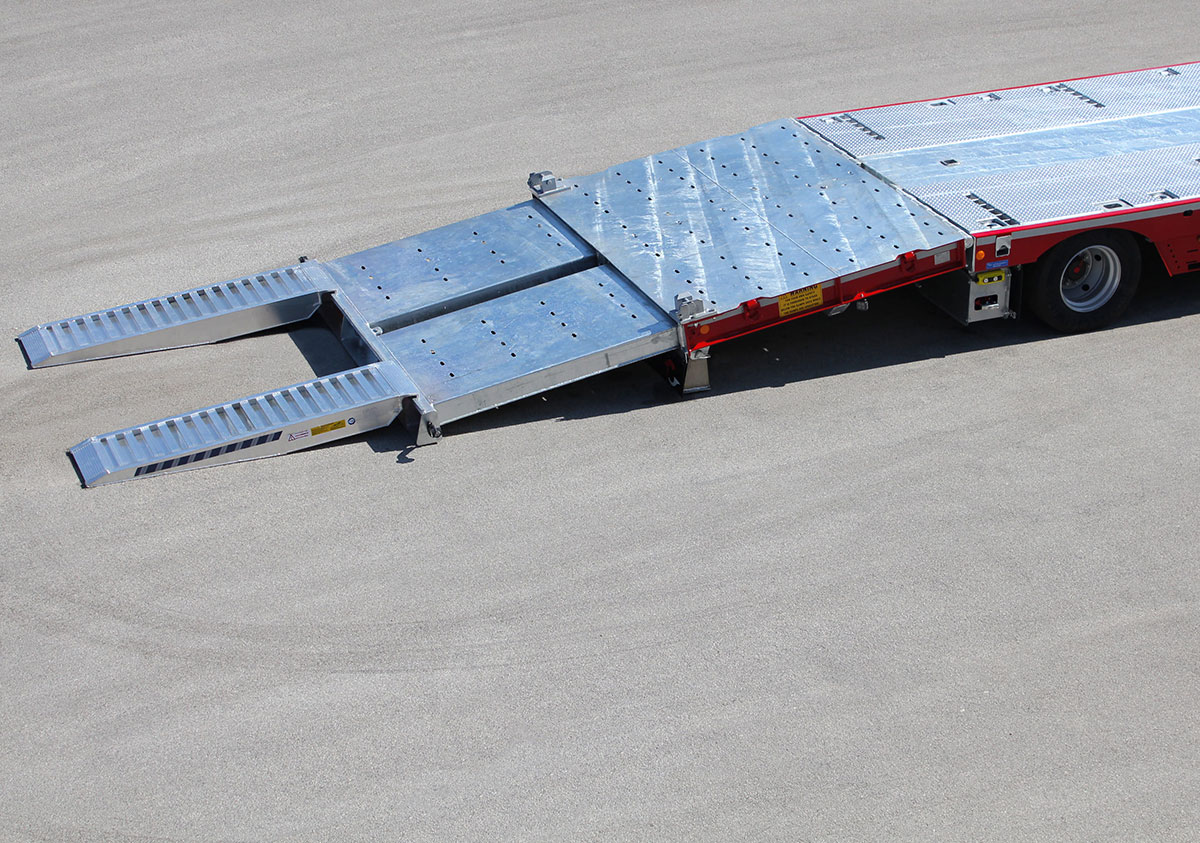

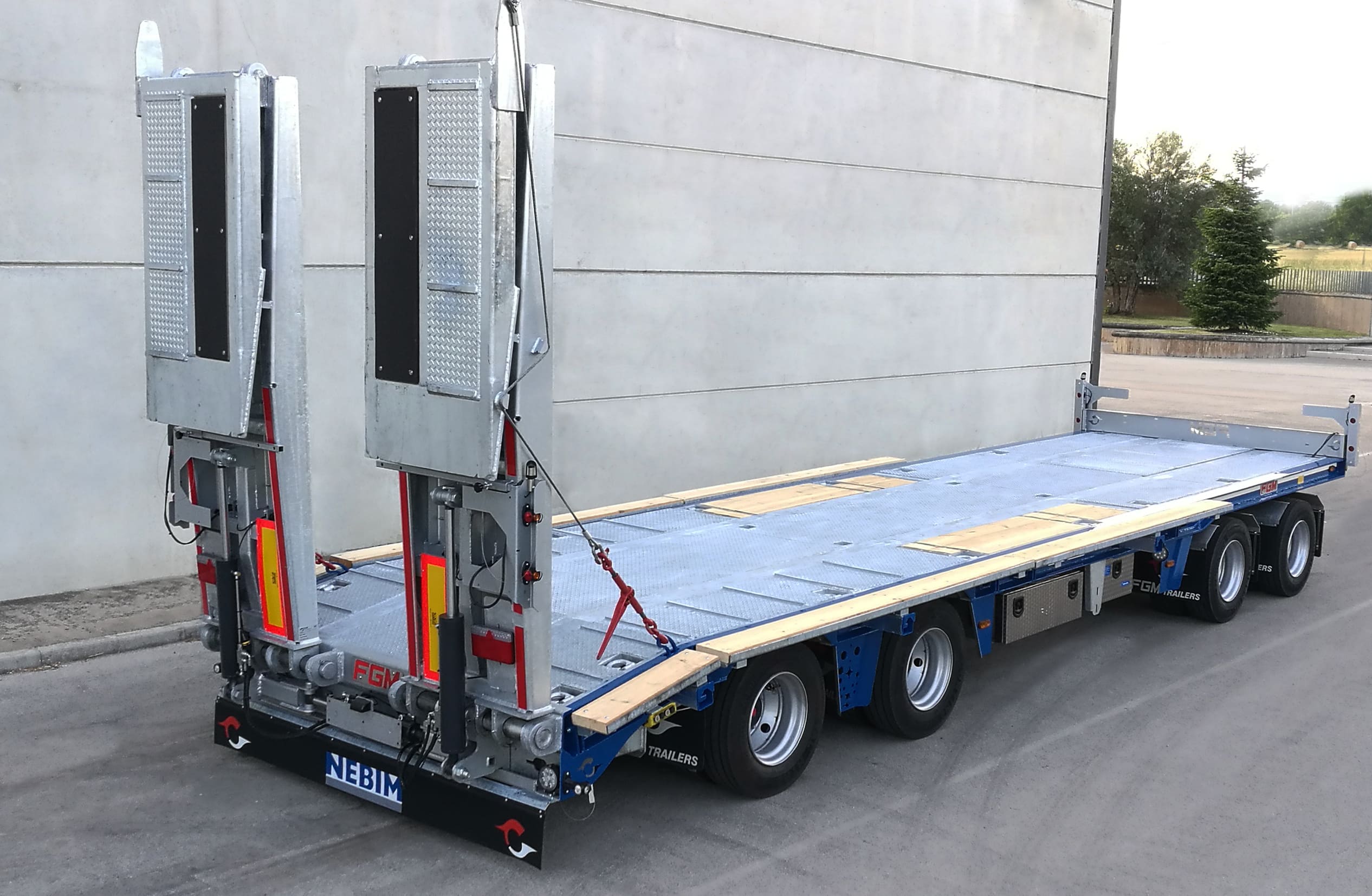

| Ramp type | Rear hydraulic ramps, hot-dip galvanized, 4.000 x 800 mm, Rear KELLER ramps, hot-dip galvanized, 4.000 x 1.230 mm, Rear manual aluminum ramps, 2.400 x 450 mm, Rear ramps, hot-dip galvanized, mm 2.400 x 650, Rear Scandinavian type ramps, hot-dip galvanized, 2.900 x W 800 mm, Rear Telescopic tail Kit |
| Chassis | Extendable chassis, Fixed chassis |
| Surface Treatment | Hot-dip galvanized chassis, Painting job in RAL color requested, included |
