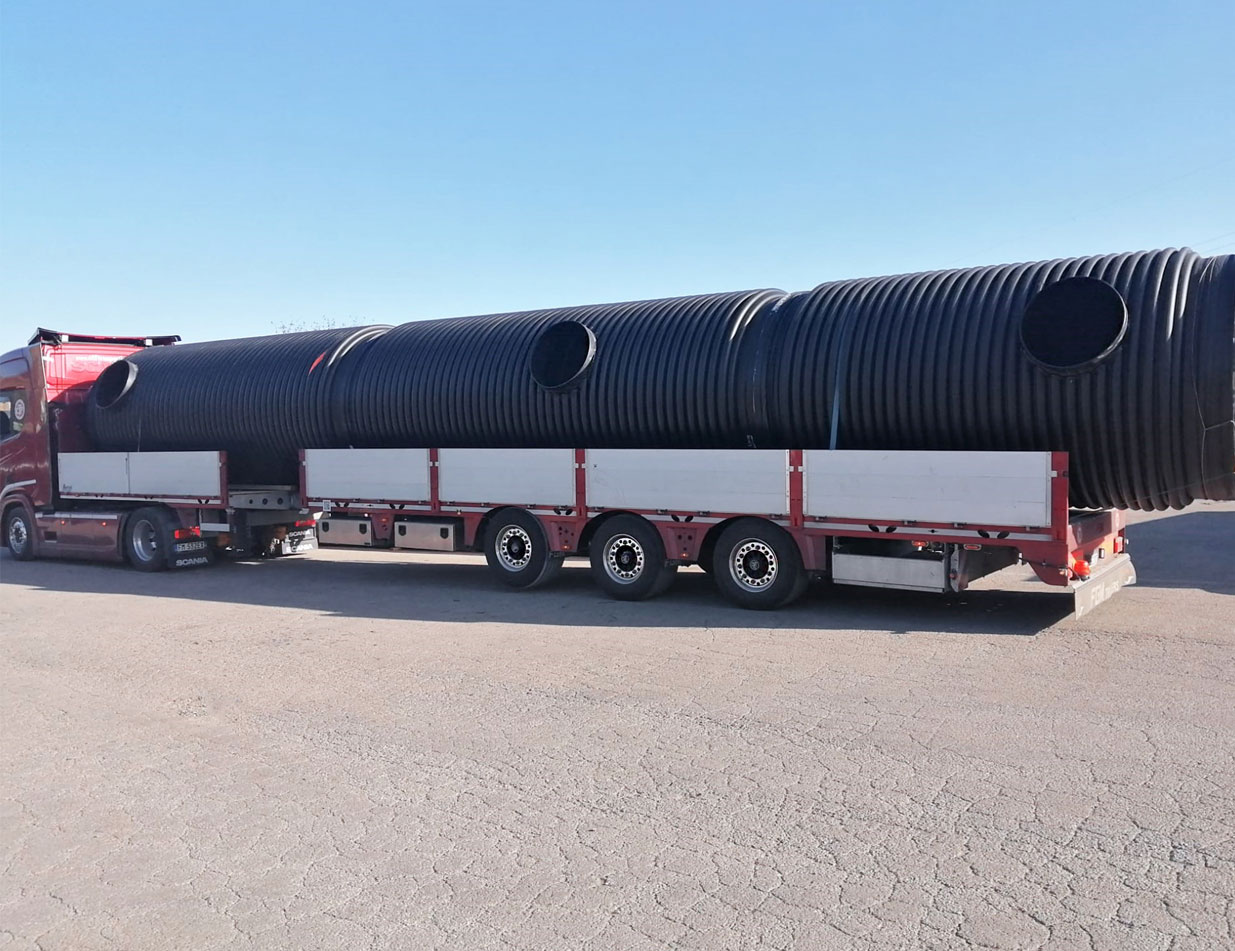

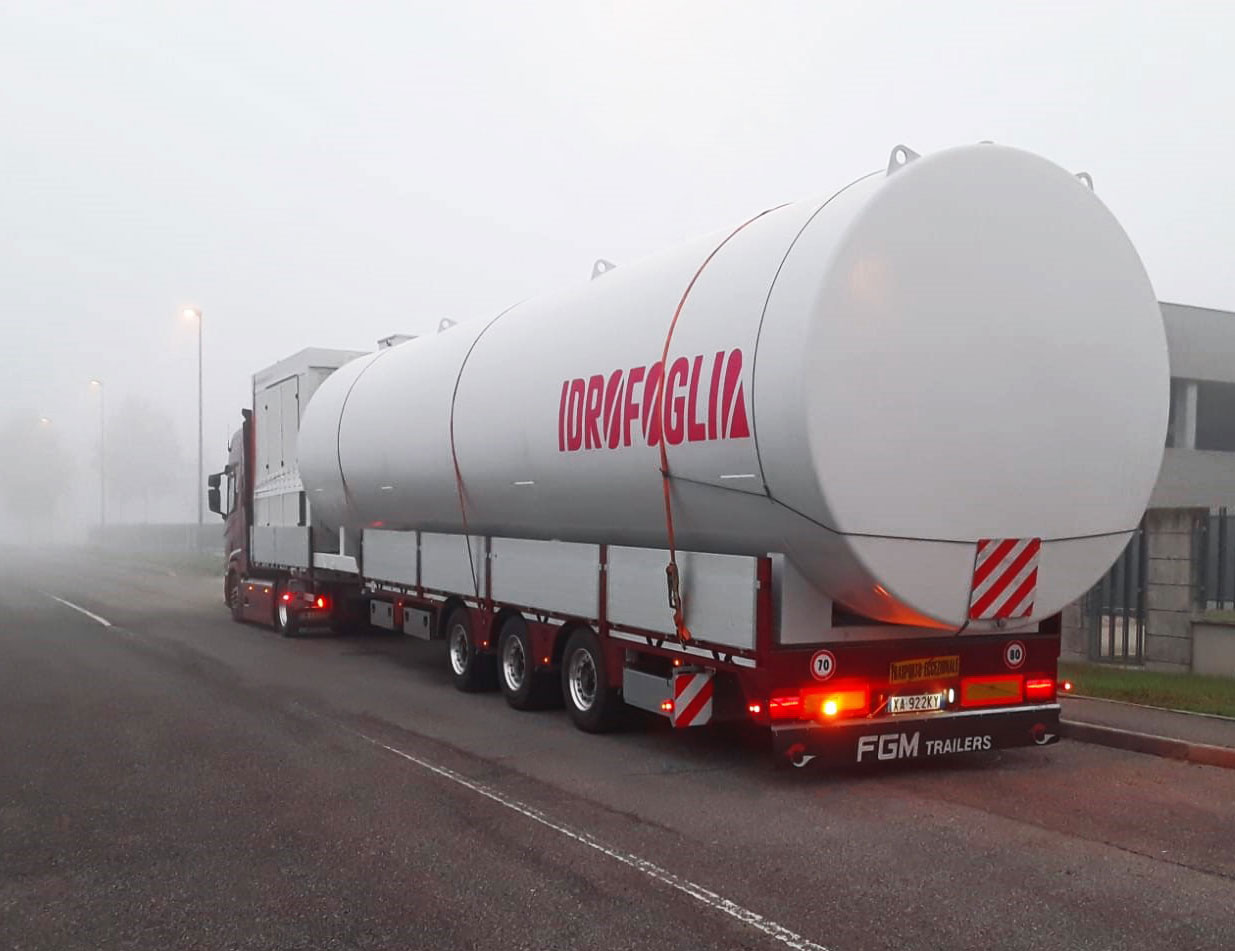

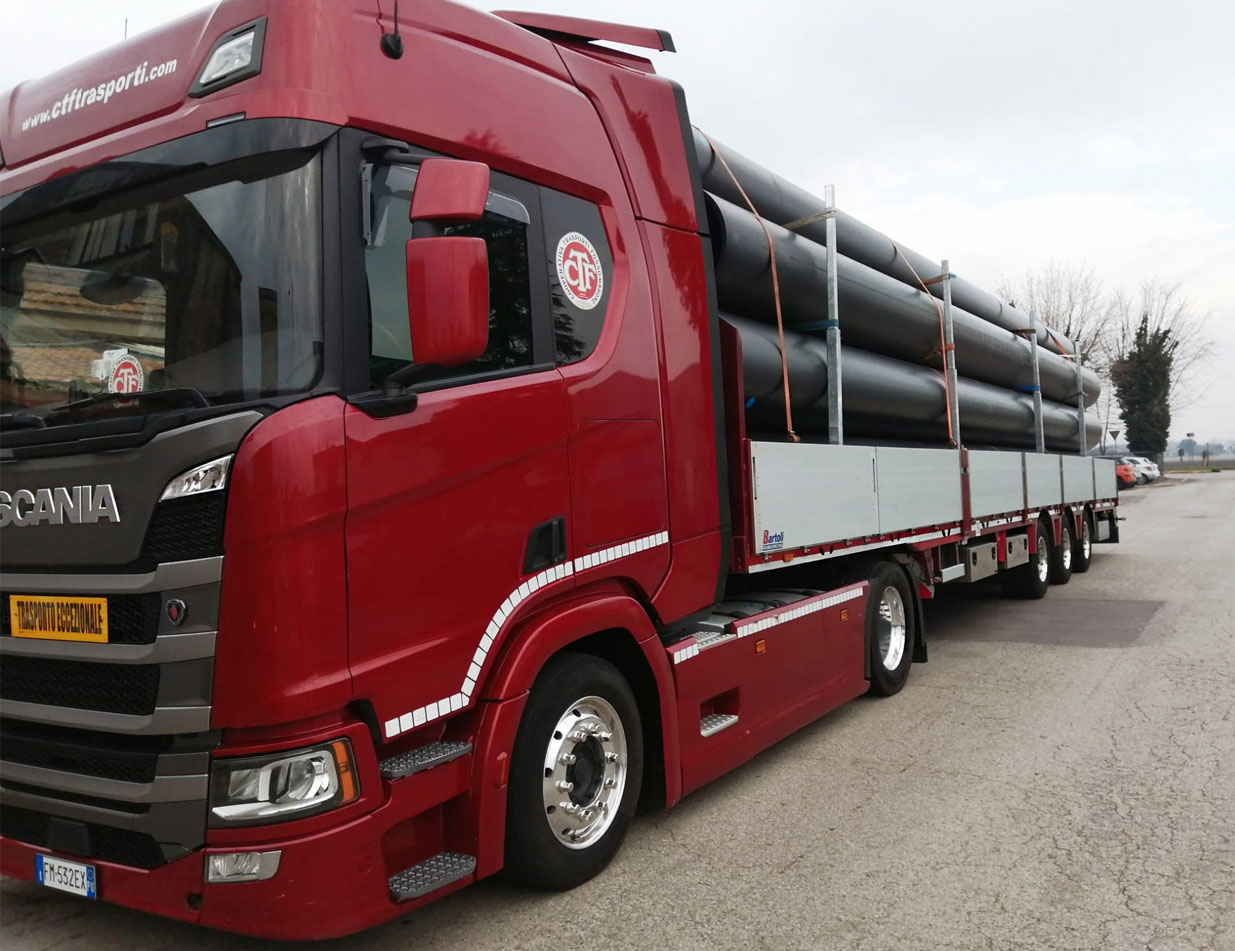

The model is designed for those companies in need of an all-round trailer capable of transporting heavy equipment with diametrically opposite characteristics. Available in fixed as well as 6000 mm telescopic chassis, the FGM 3 is adaptable for the transport of industrial components, long goods, prefabricated parts and heavy-duty equipment. Featuring maximized legal payload as result of the chassis constructed using high-strength performance steel, the FGM 3 is the platform trailer you need to boost your daily operations.
Maximum fifth wheel load: 18.000 kg
Loading height: 980 mm
Tires 435/50 r 19.5
Tire load: 9.000 kg at 100 km/h

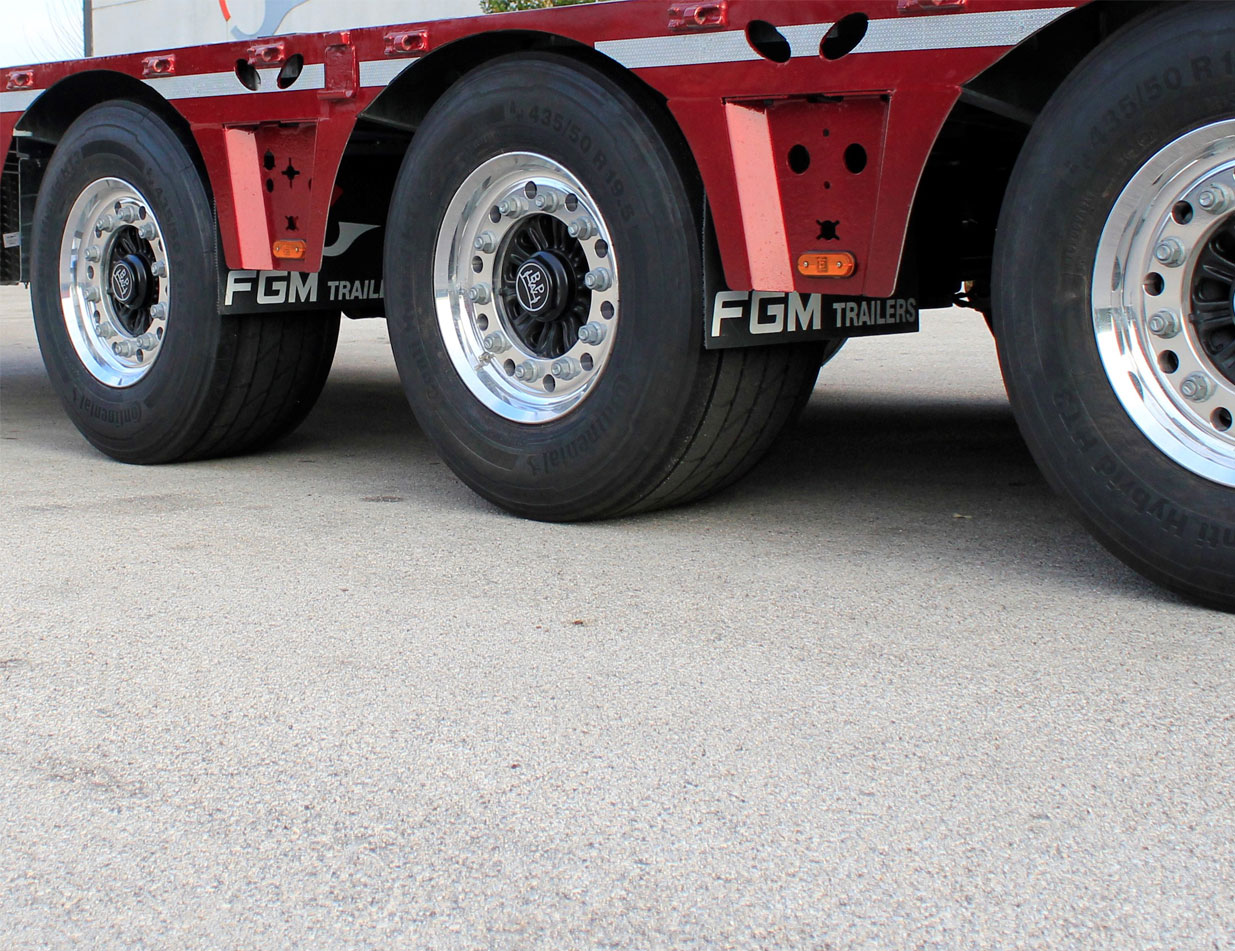

N.3 Axle BPW, 12-ton, disk brakes
Braking system Knorr Bremse
LED Electric system Aspoek
STENX 700 steel chassis
Hot-dip galvanizing surface treatment

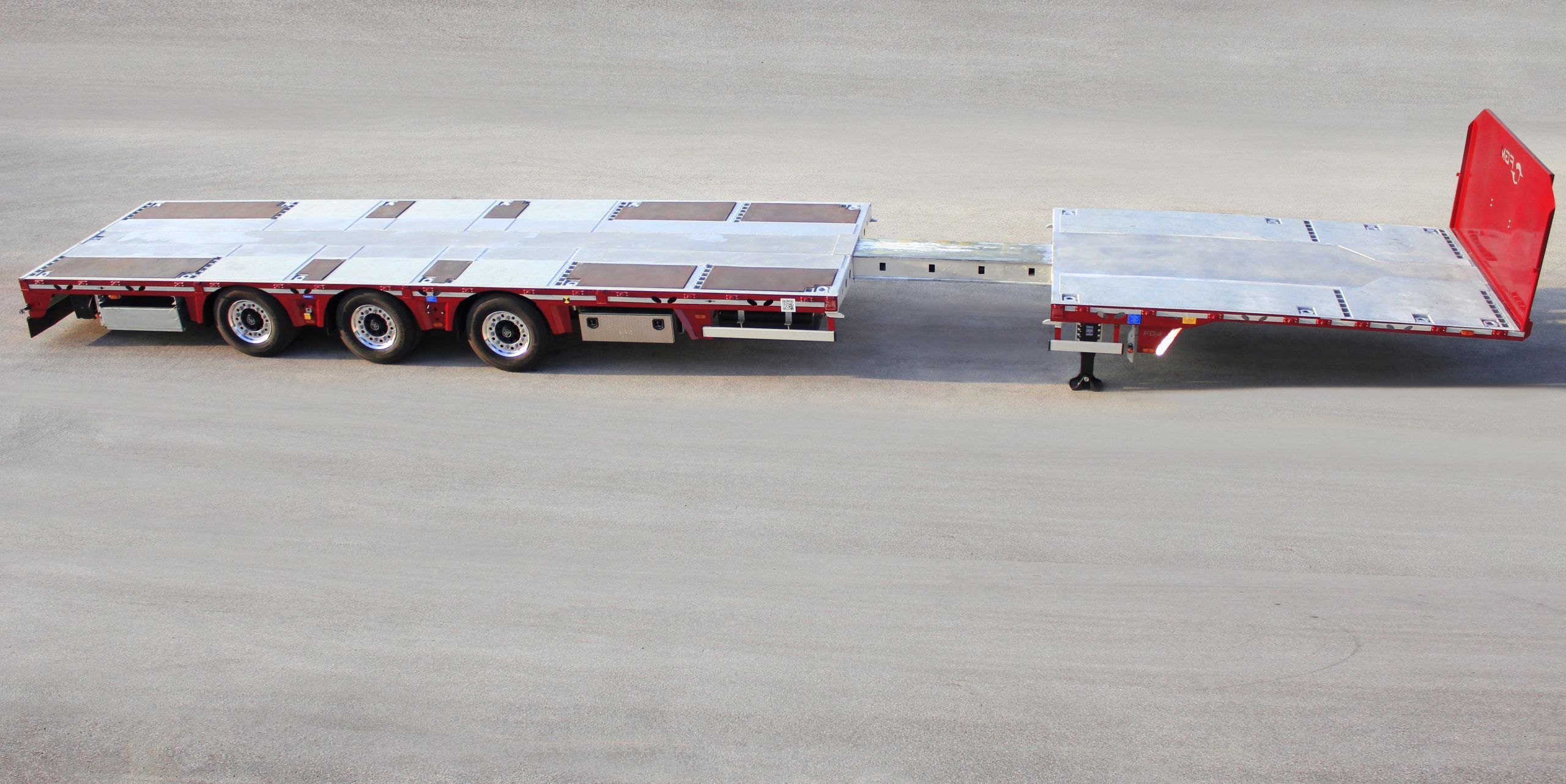

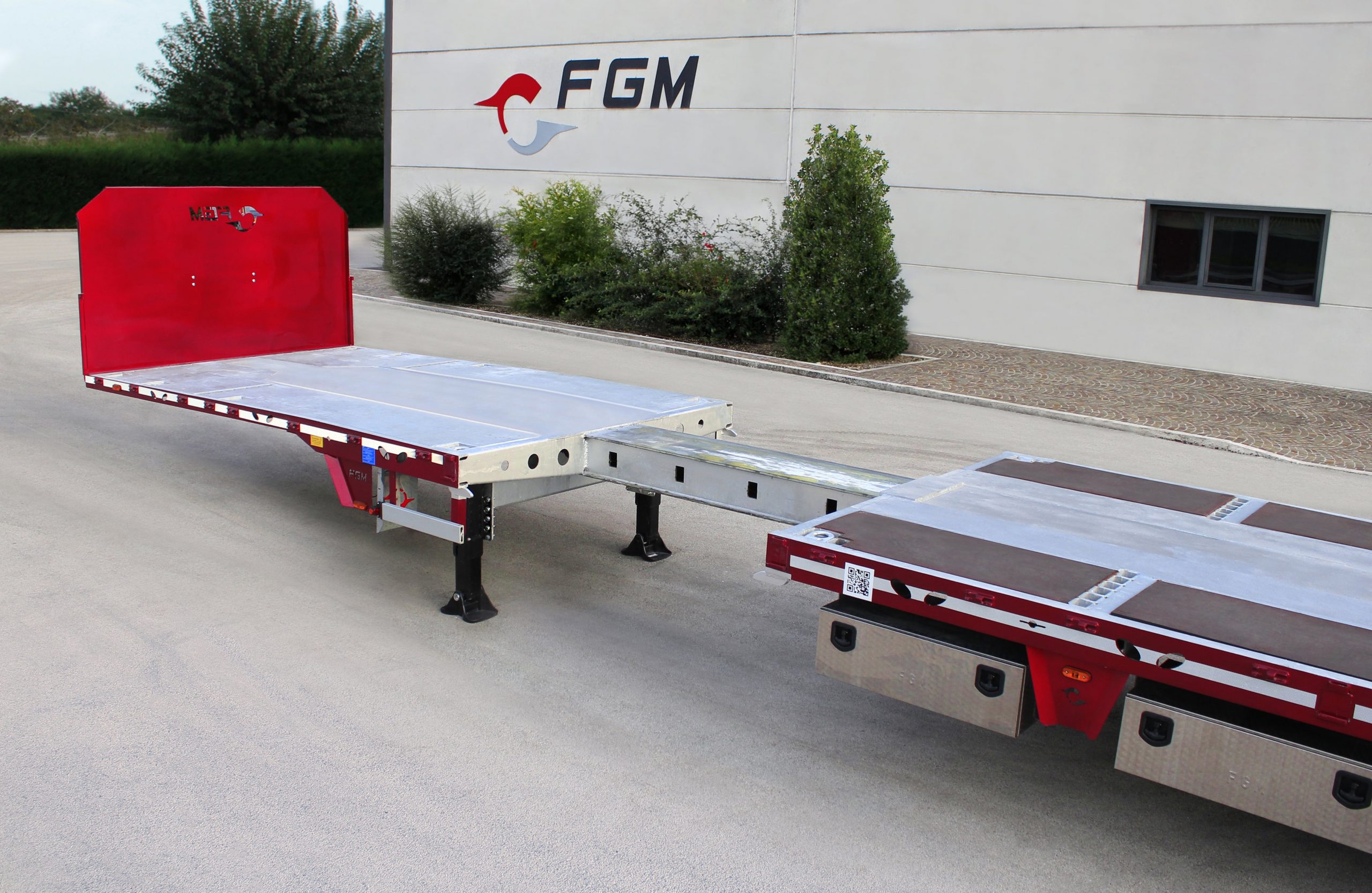

6000 mm telescopic chassis

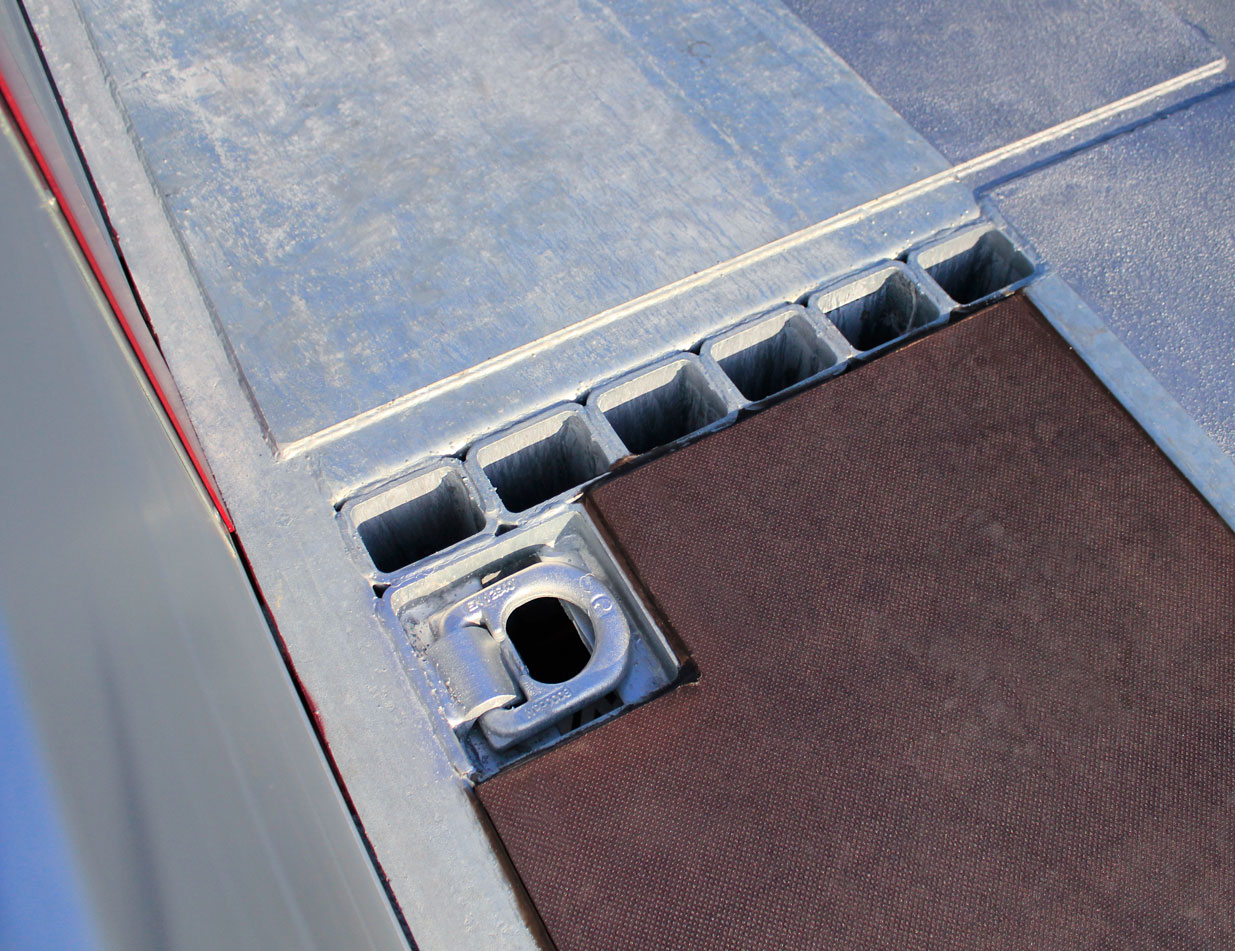

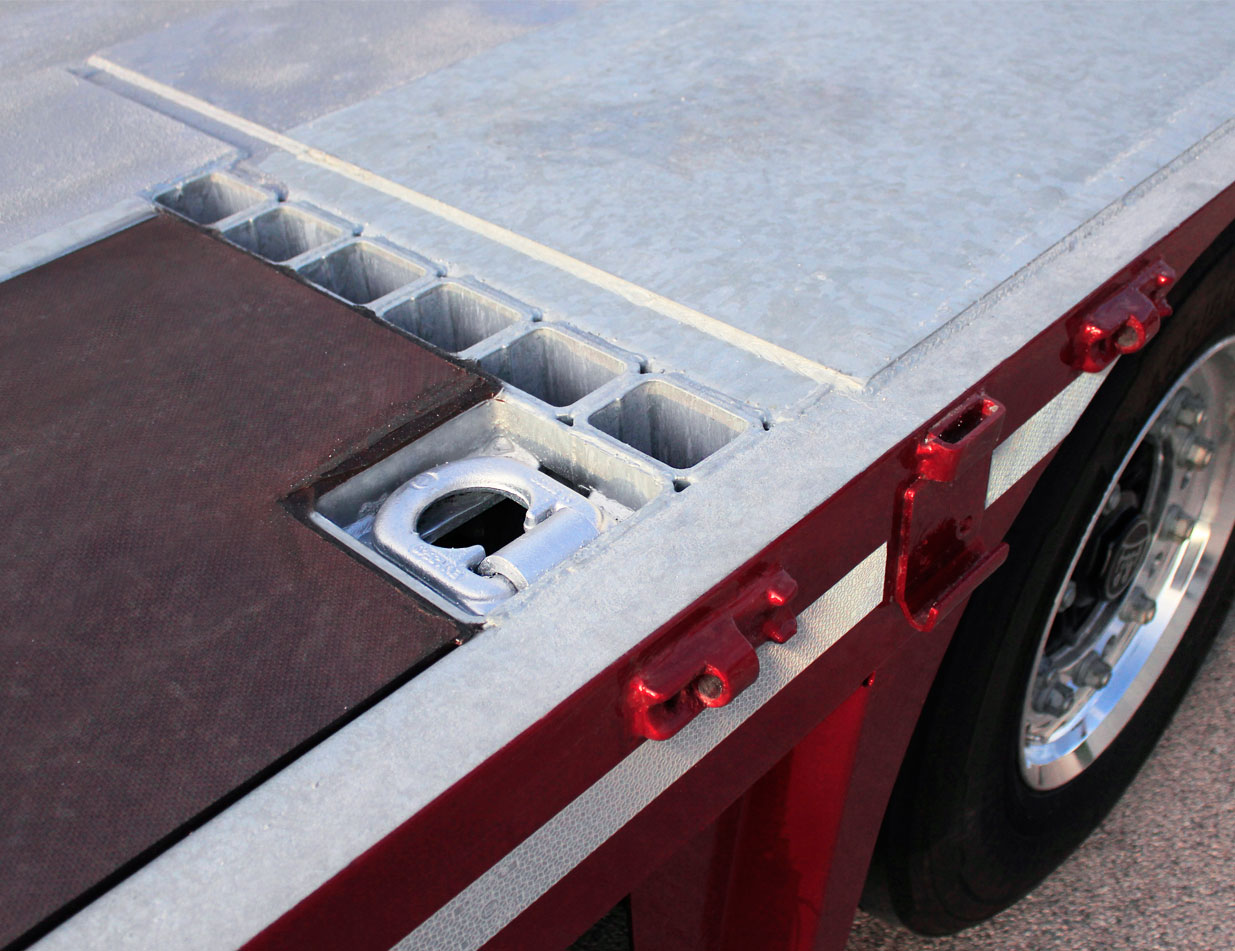

Certified lashing rings/ stake pockets

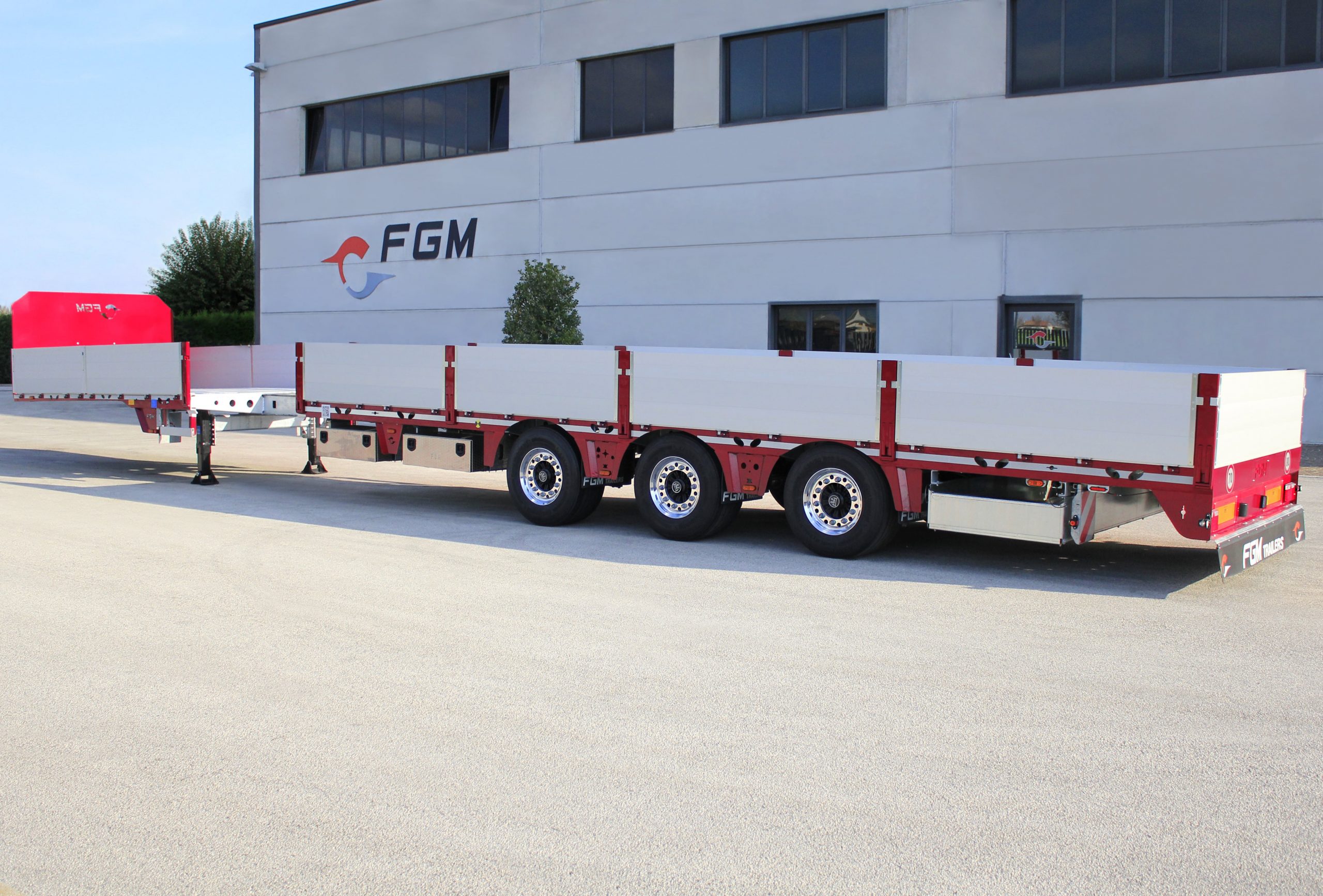

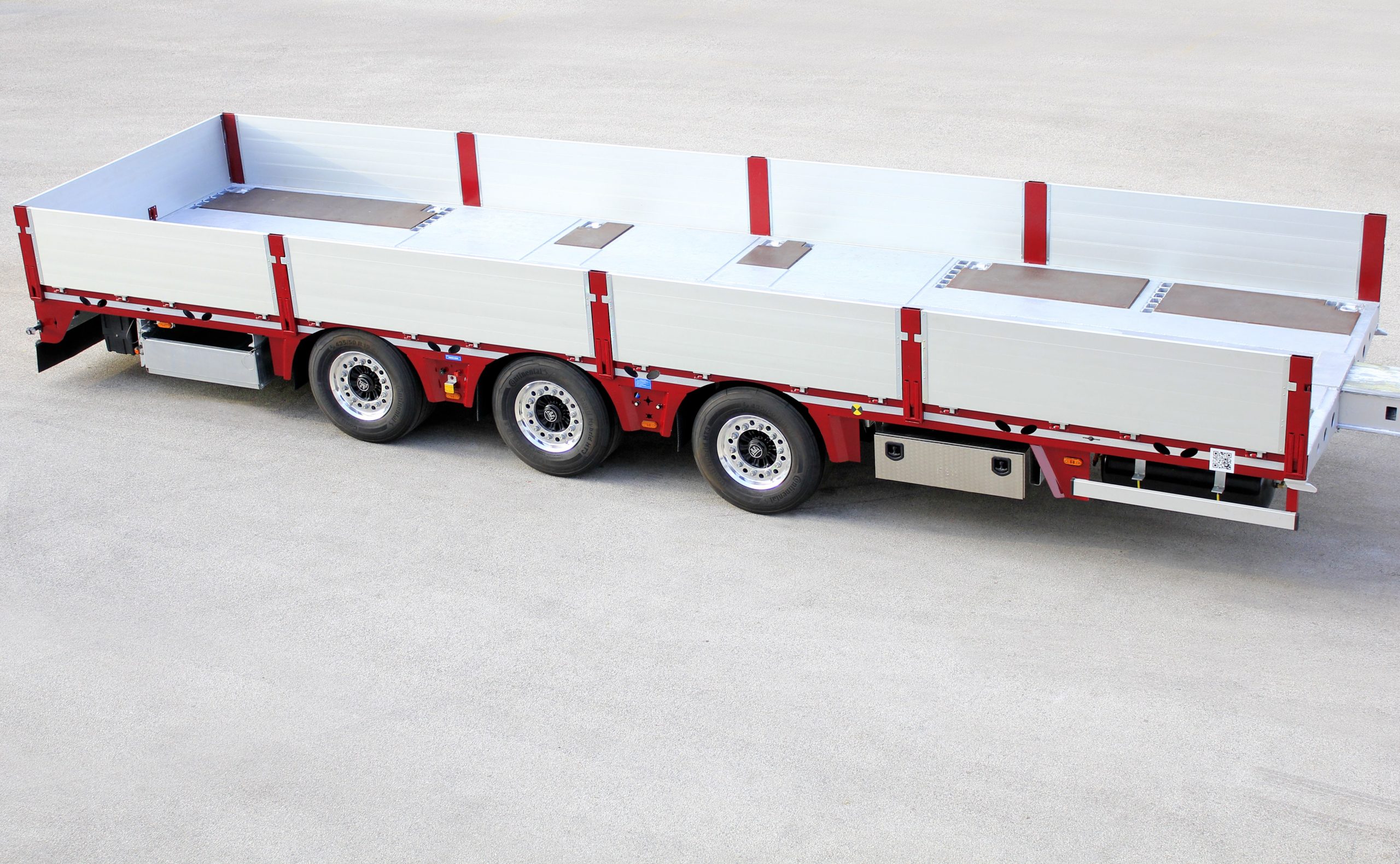

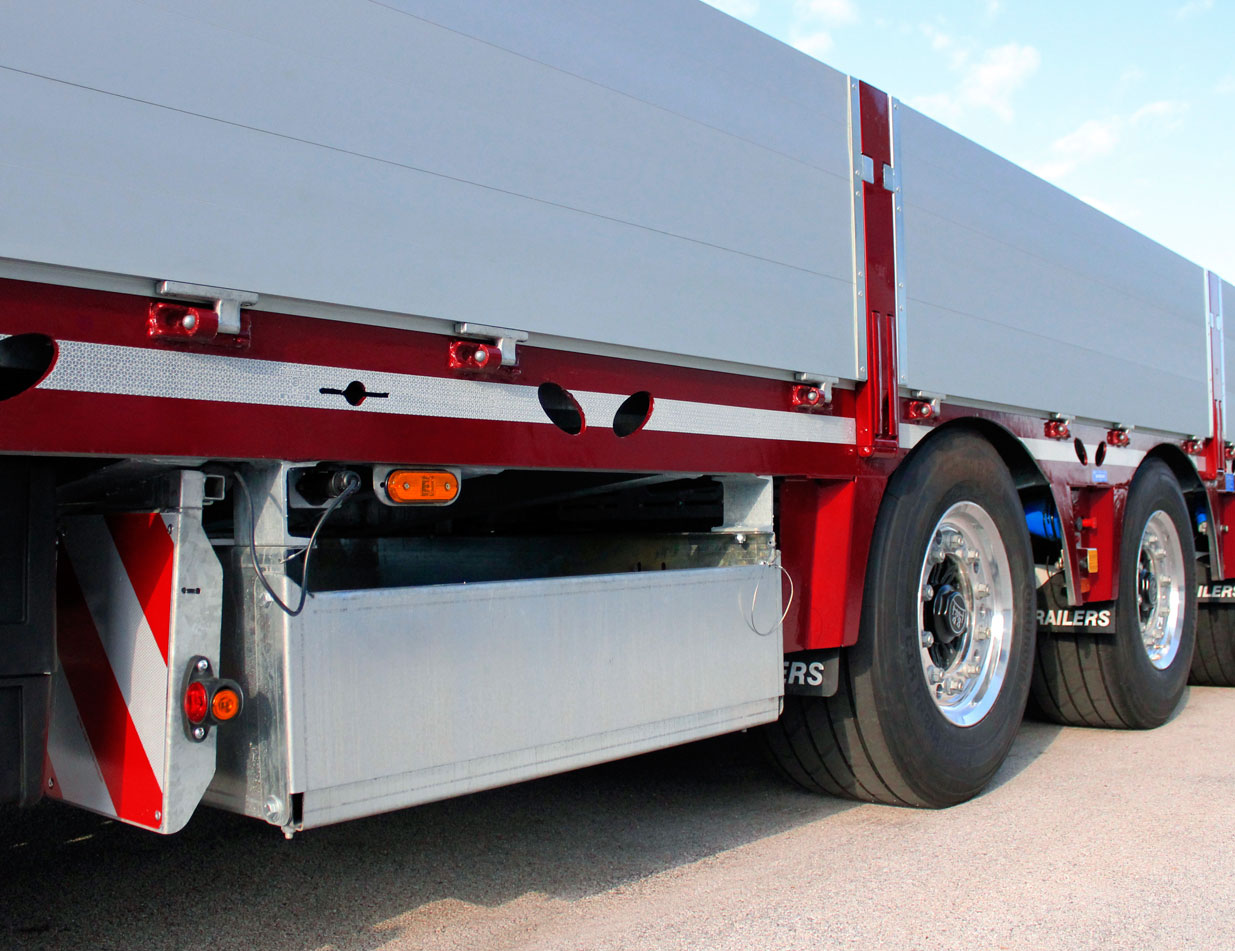

Aluminum sideboards
| Available Accessories | Alcoa Dura Bright Aluminum Rims, Aluminum sideboards H 600 mm, Axles Manual greasing system, Extra tire Kit, FGM Toolbox, L 1000x H 300 x W 500 mm, FGM Toolbox, L 600 x H 250 x W 2.500 mm, LED Working light, N. 4 Certified Ship hooks, N.1 Toolbox, L500 x H 410 x W 2550 mm, N.3 Rows of Bewola Holes, N.4 Wide load signs, 423×423 mm, Orange Flashing Beacon, Rubber inserts, Semitrailer with customized dimensions, Speedline Aluminum Rims, Steering system TRIDEC TRITRONIC, TIM, KNORR BREMSE, Twist locks, JOST |
|---|---|
| Axles | BPW, 12-ton, disc brakes, ROR 12-ton, drum brakes, SAF 12-ton, drum brakes |
| Ramp type | Manual aluminum ramps, dim. 2.400 x 450 mm, No ramps |
| Chassis | Extendable chassis, Fixed |
| Surface Treatment | Hot-dip galvanized chassis treatment, Painting job in RAL color requested, included |
