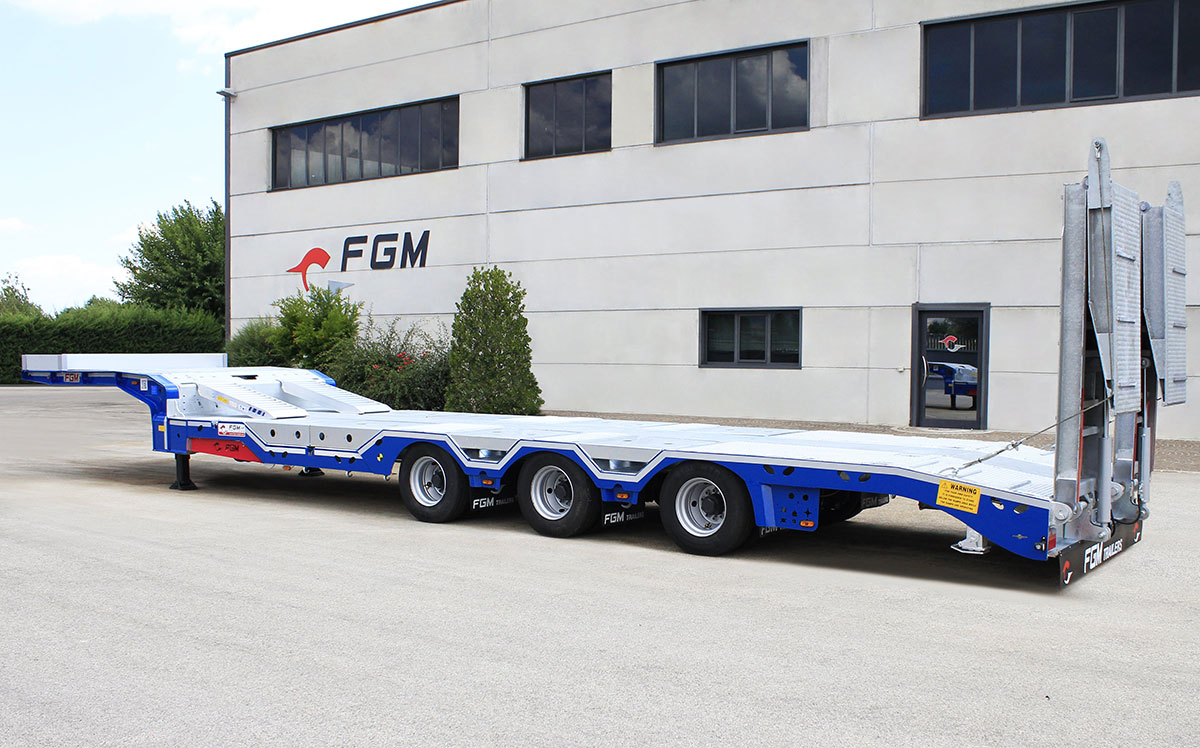

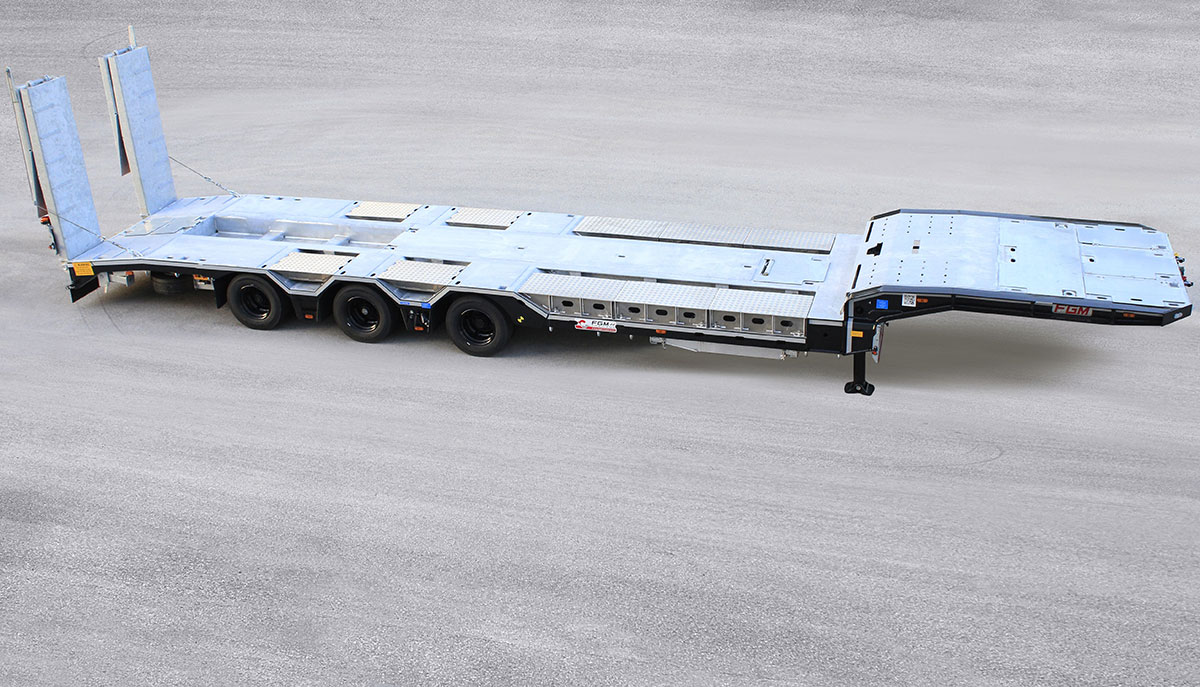

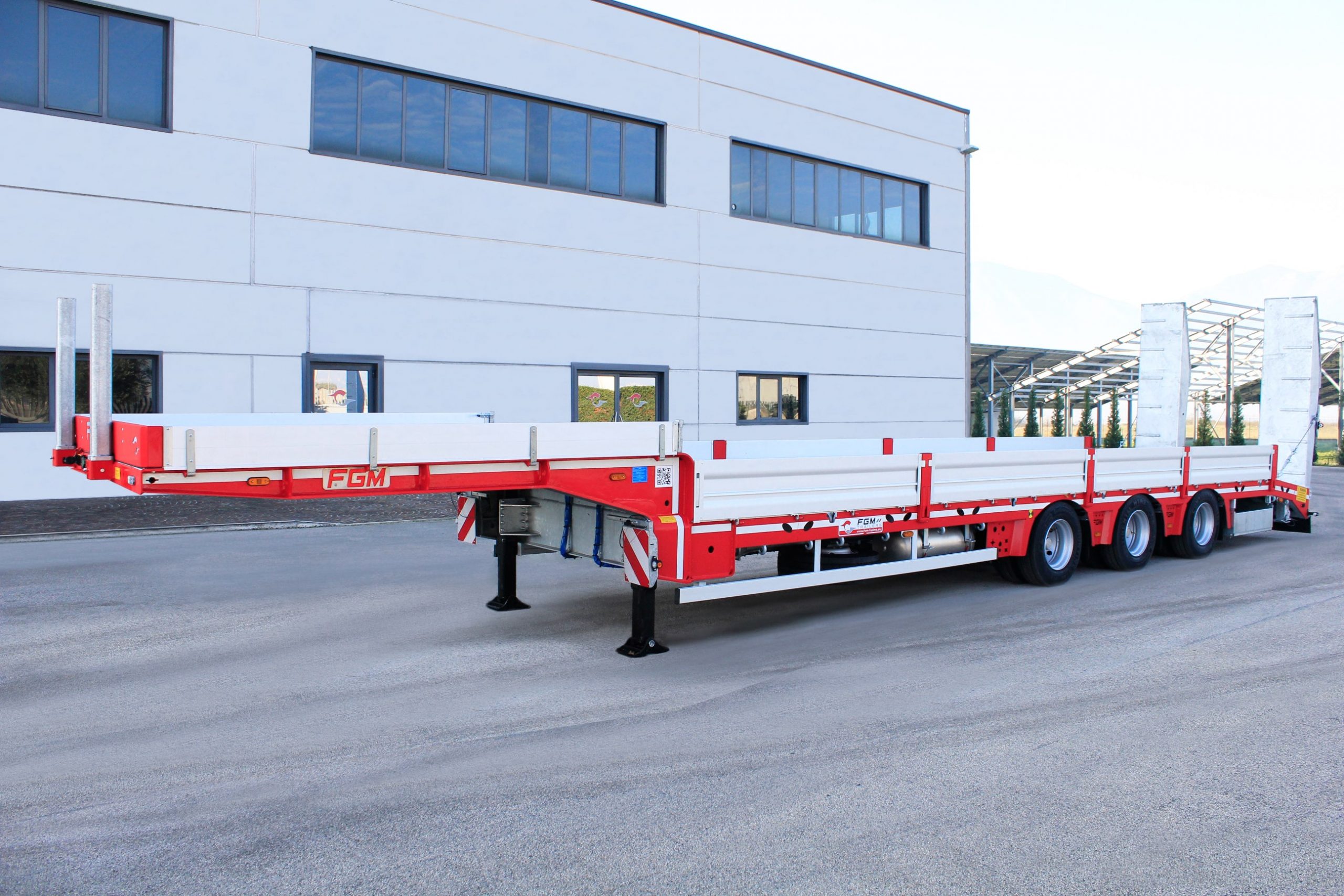

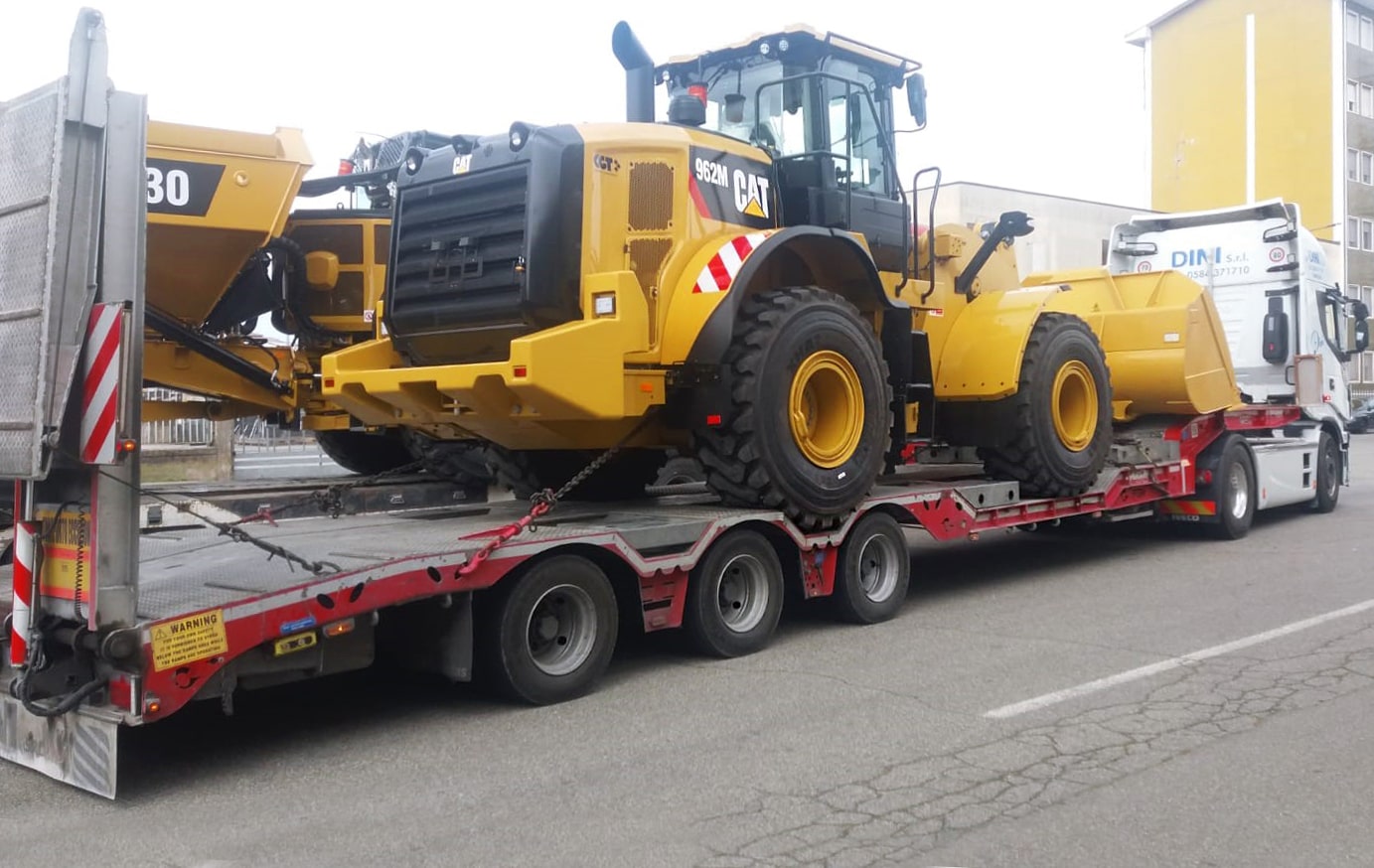

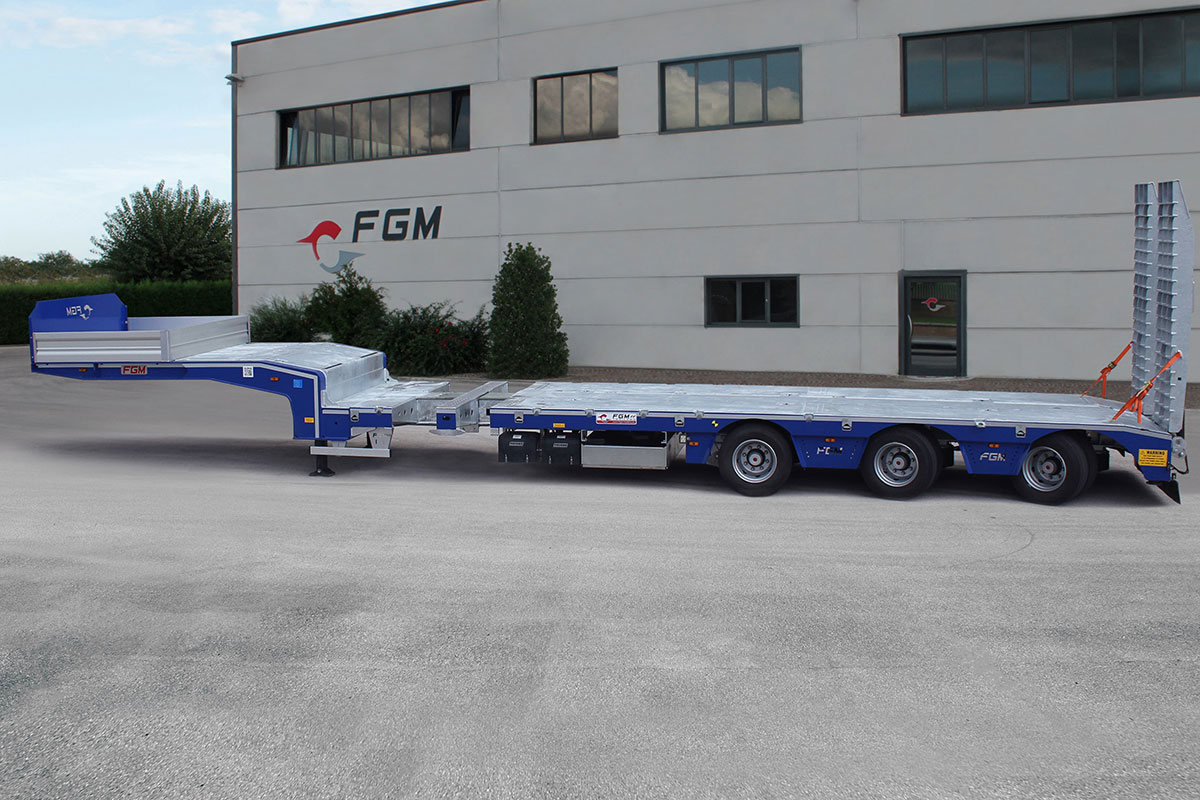

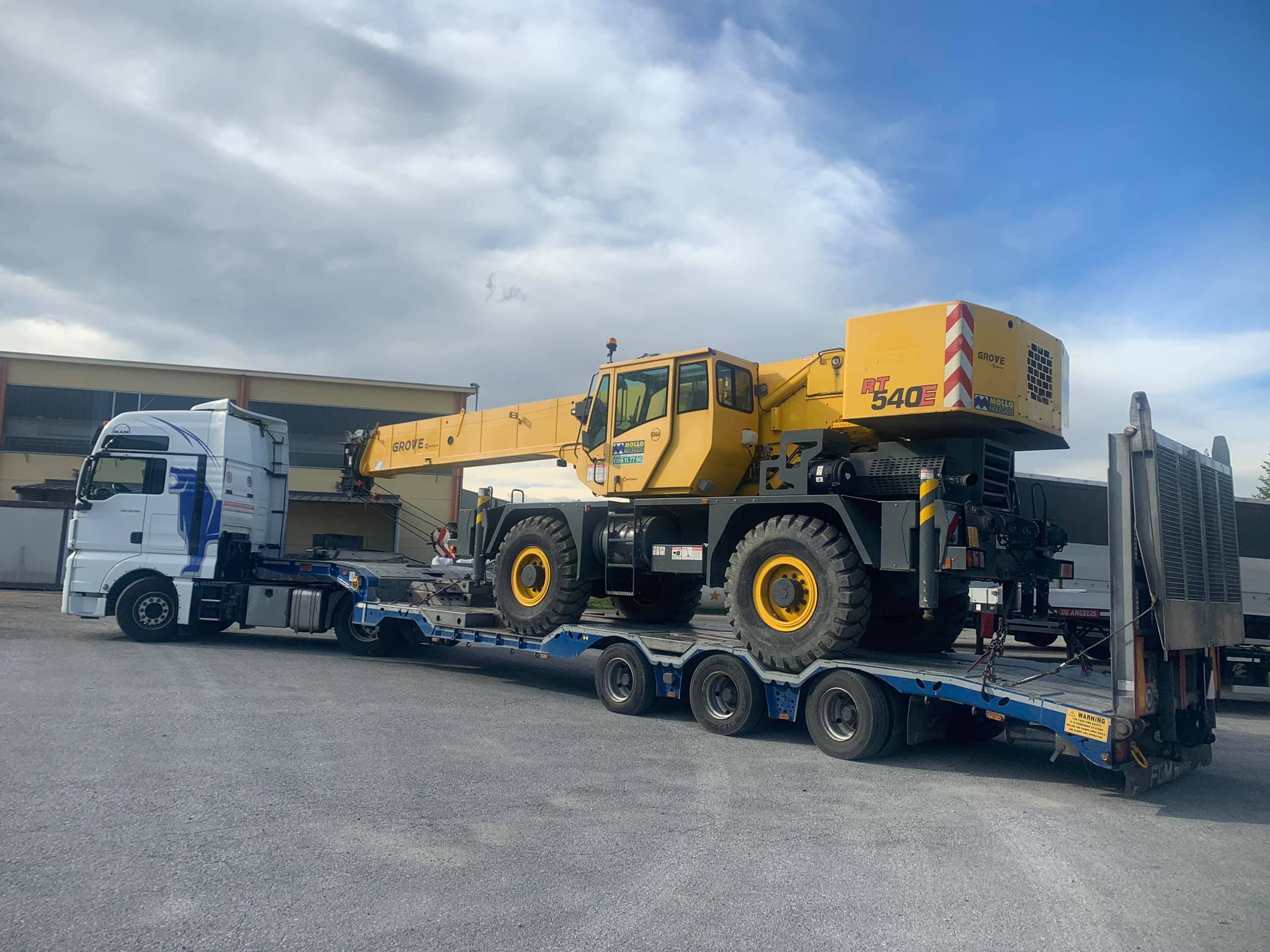

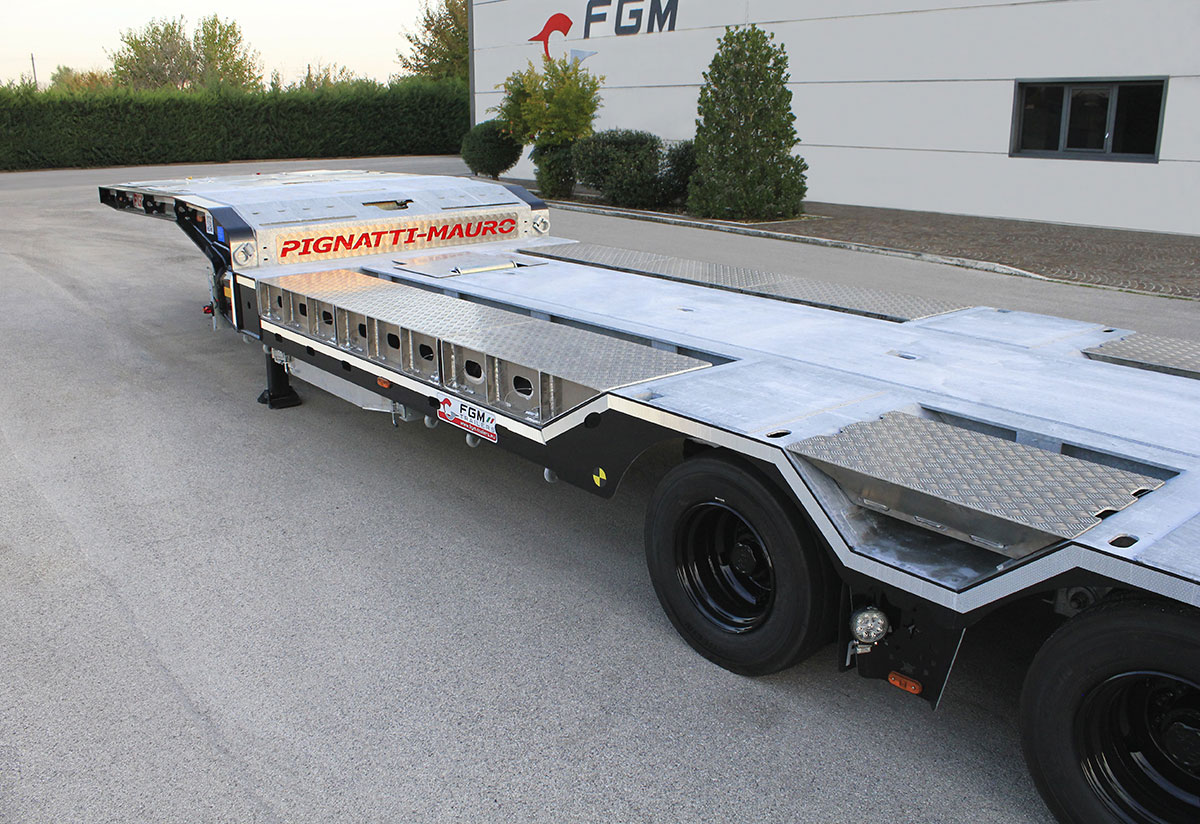

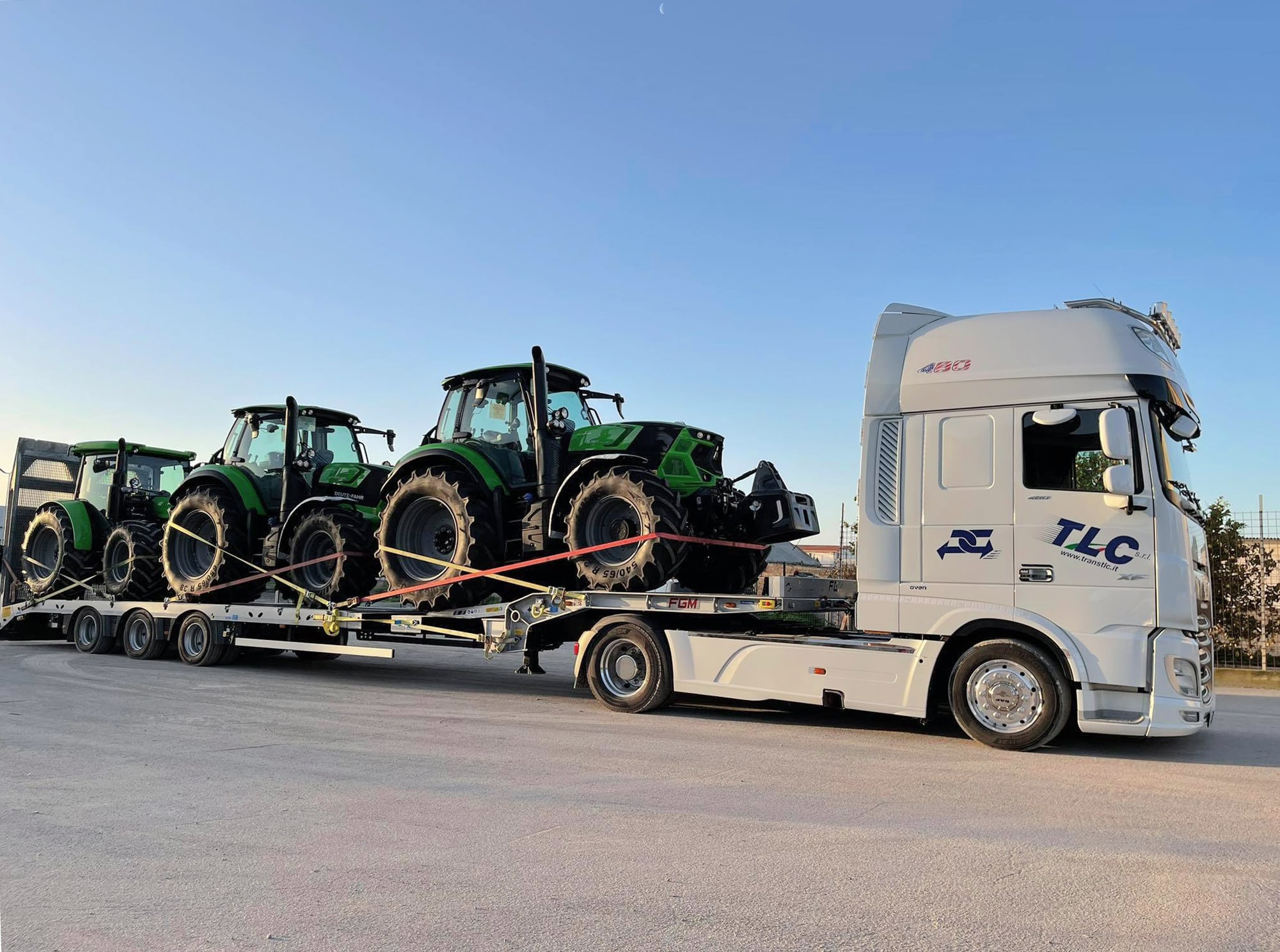

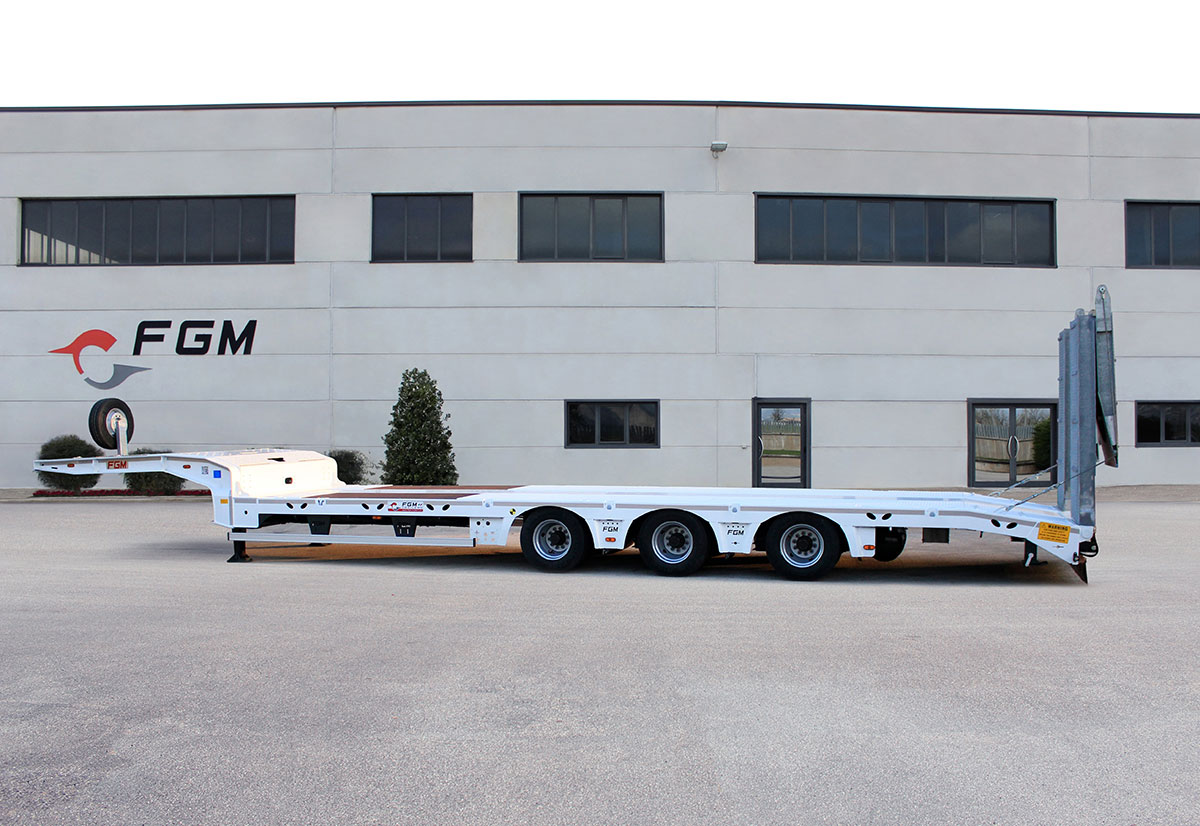

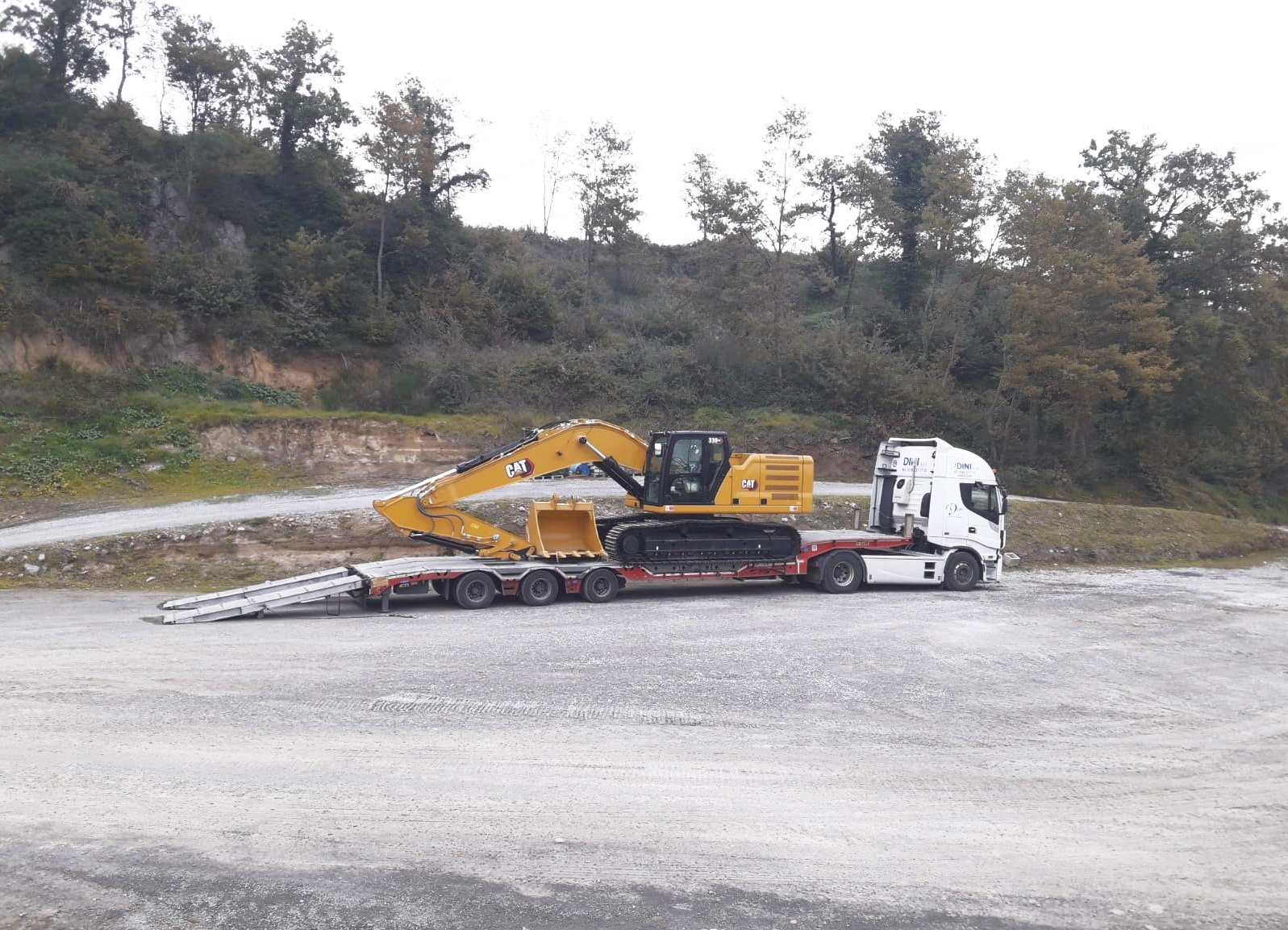

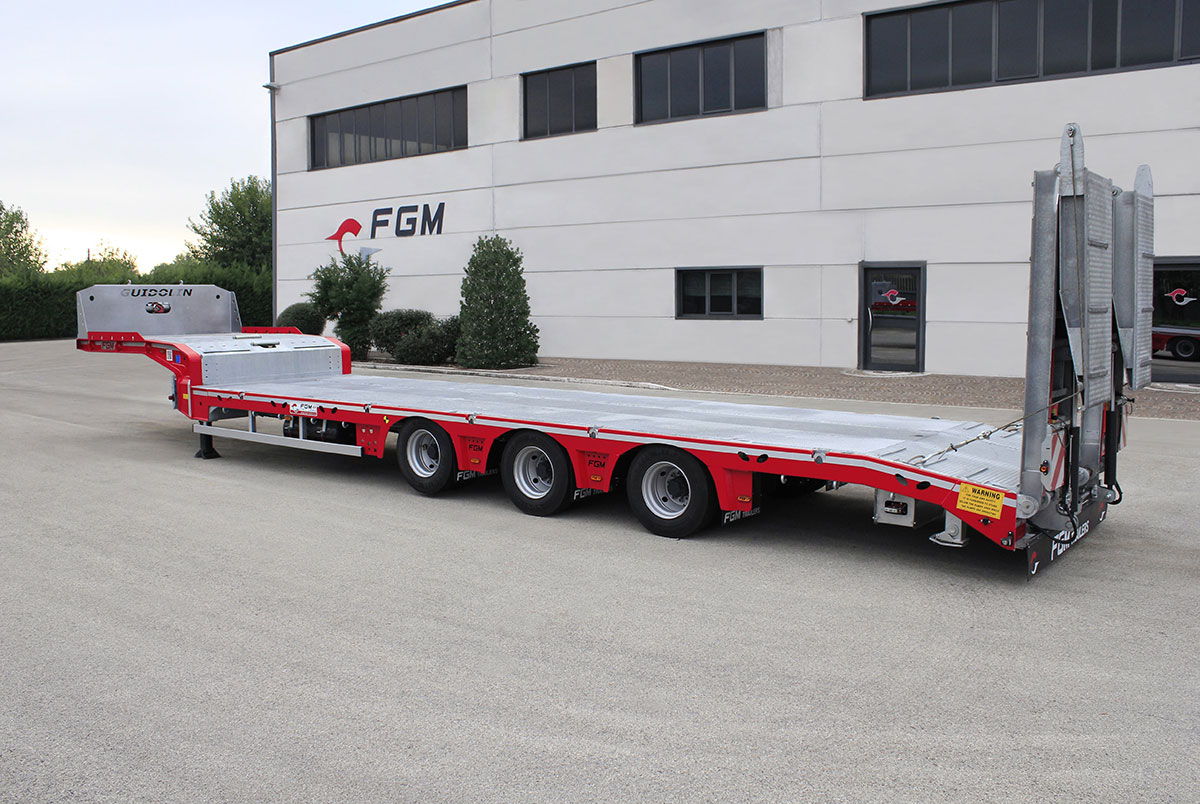

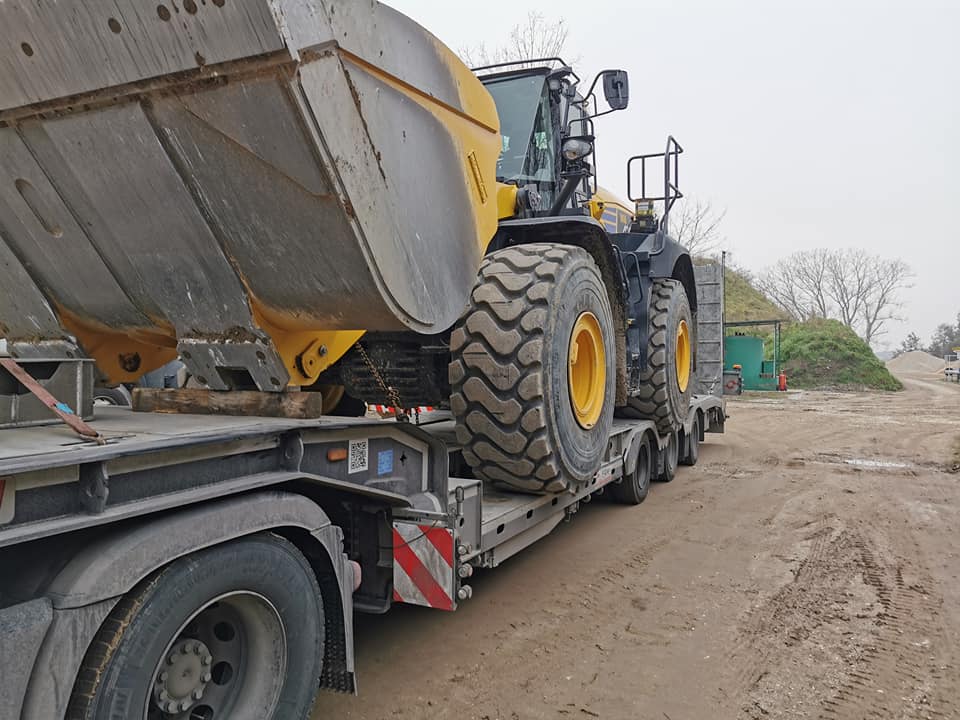

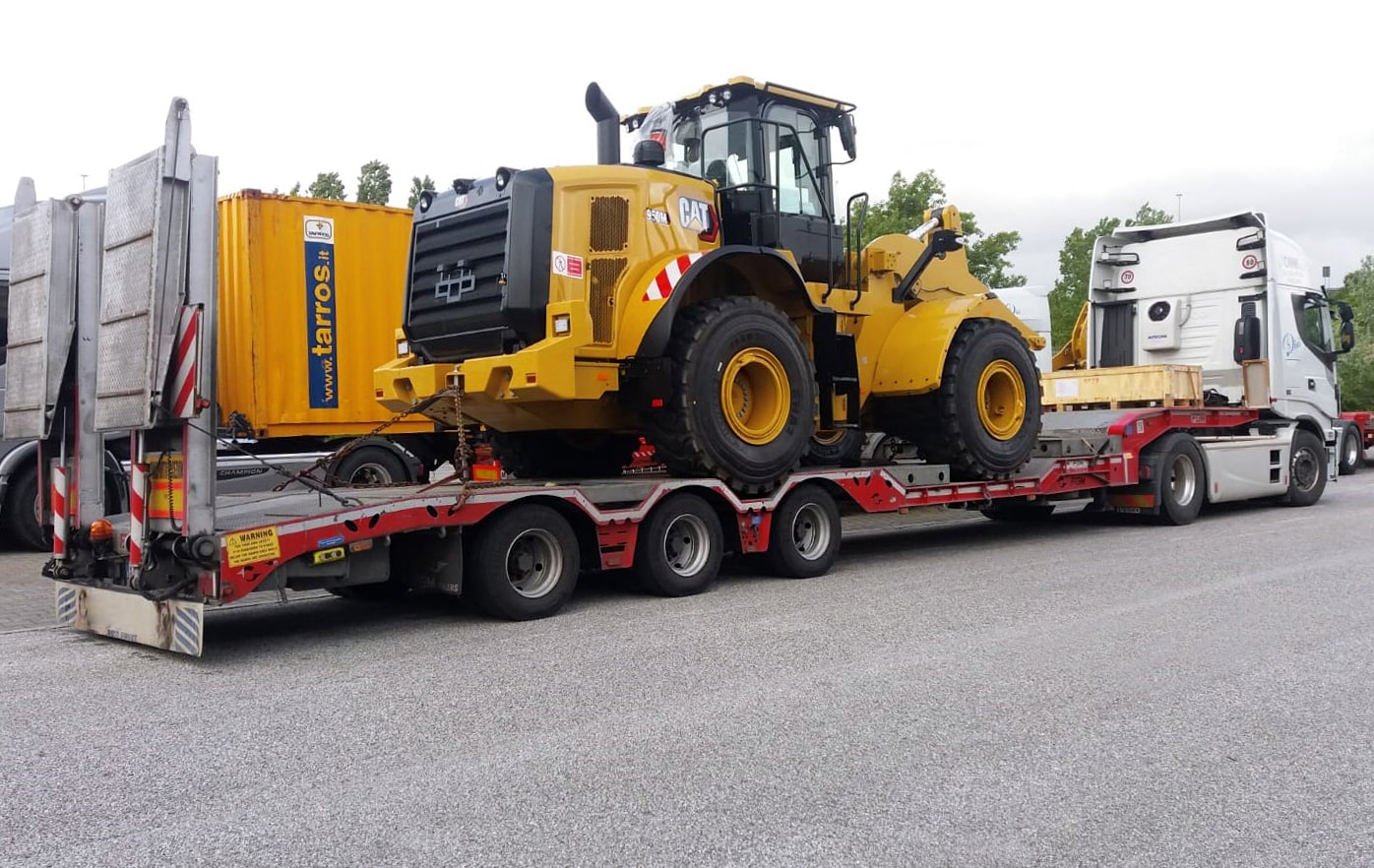

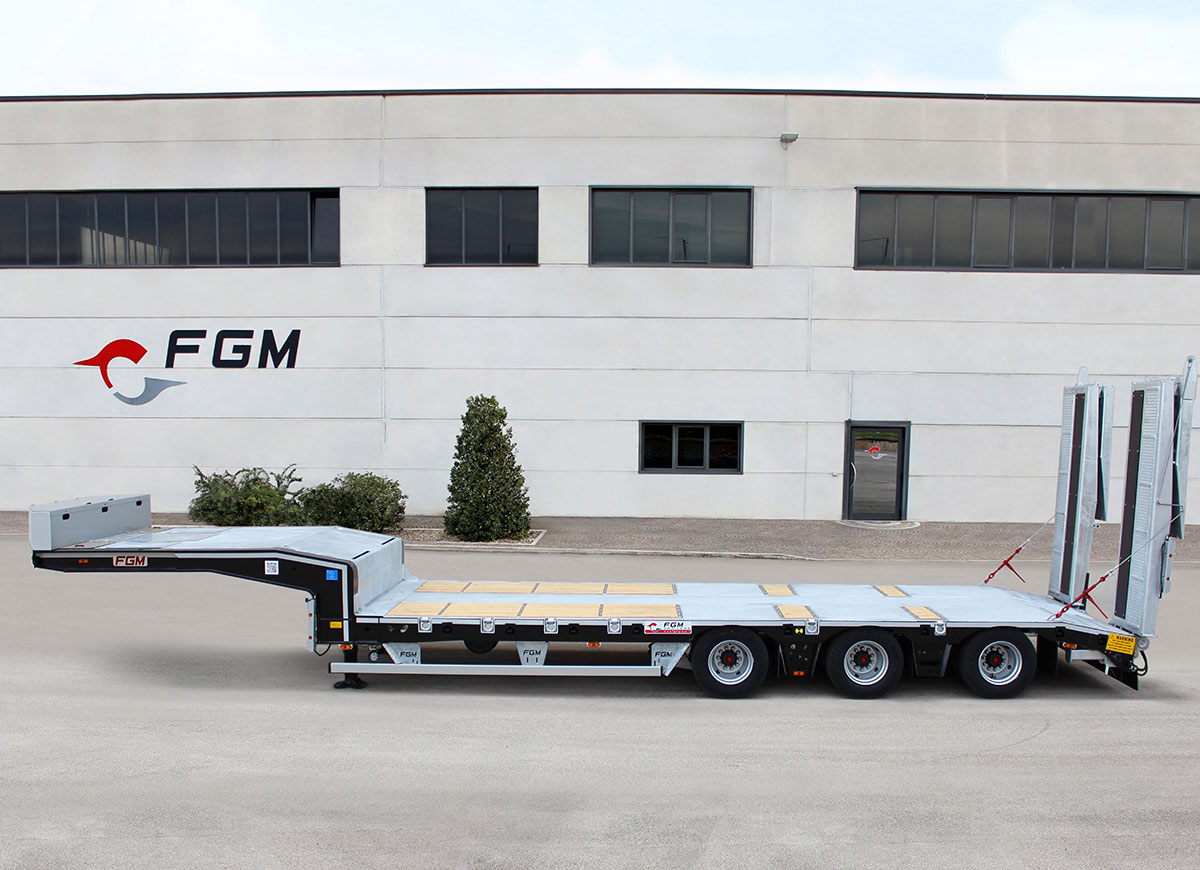

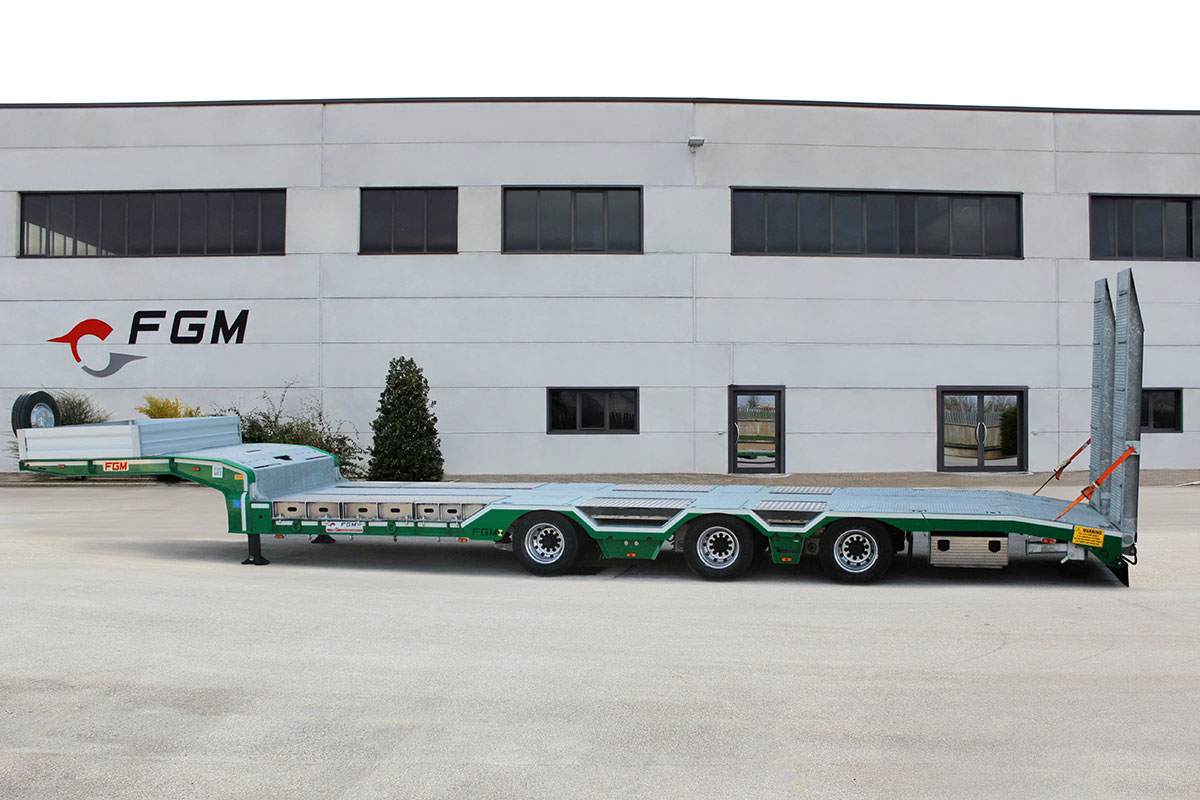

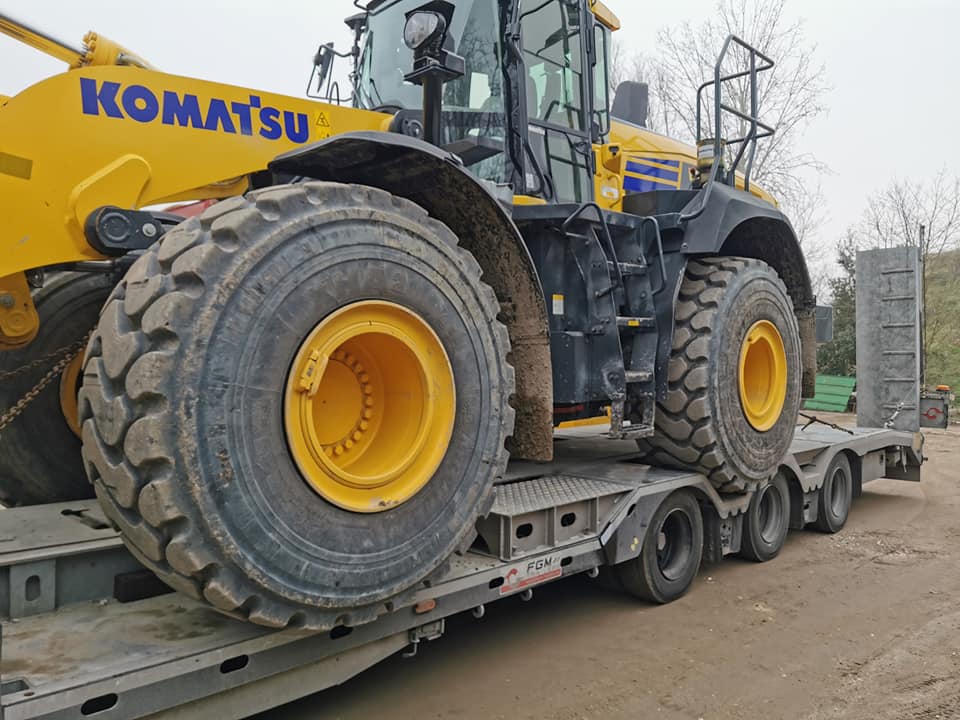

Conceived for your daily operations, the FGM 37 is a multifunctional low loader which offers the optimal economic and technical solution for transporting a large variety of: construction machines, farming machines, lifting vehicles, industrial parts and much more. Manufactured using raw materials and components from top brands in the sector, the FGM 37 offers quality and efficiency you can rely on. The model can be configured with an extensive range of accessories to address your transport needs.
Maximum fifth wheel load: 18.000 kg
Loading height: 870 mm
Tires: 235/75 r 17.5
Tire load: 10.300 kg at 100 km/h
N.3 Axle ROR/SAF, 12-ton, drum brakes
Braking system Knorr Bremse
LED Electric system Aspoek
STENX 700 steel chassis

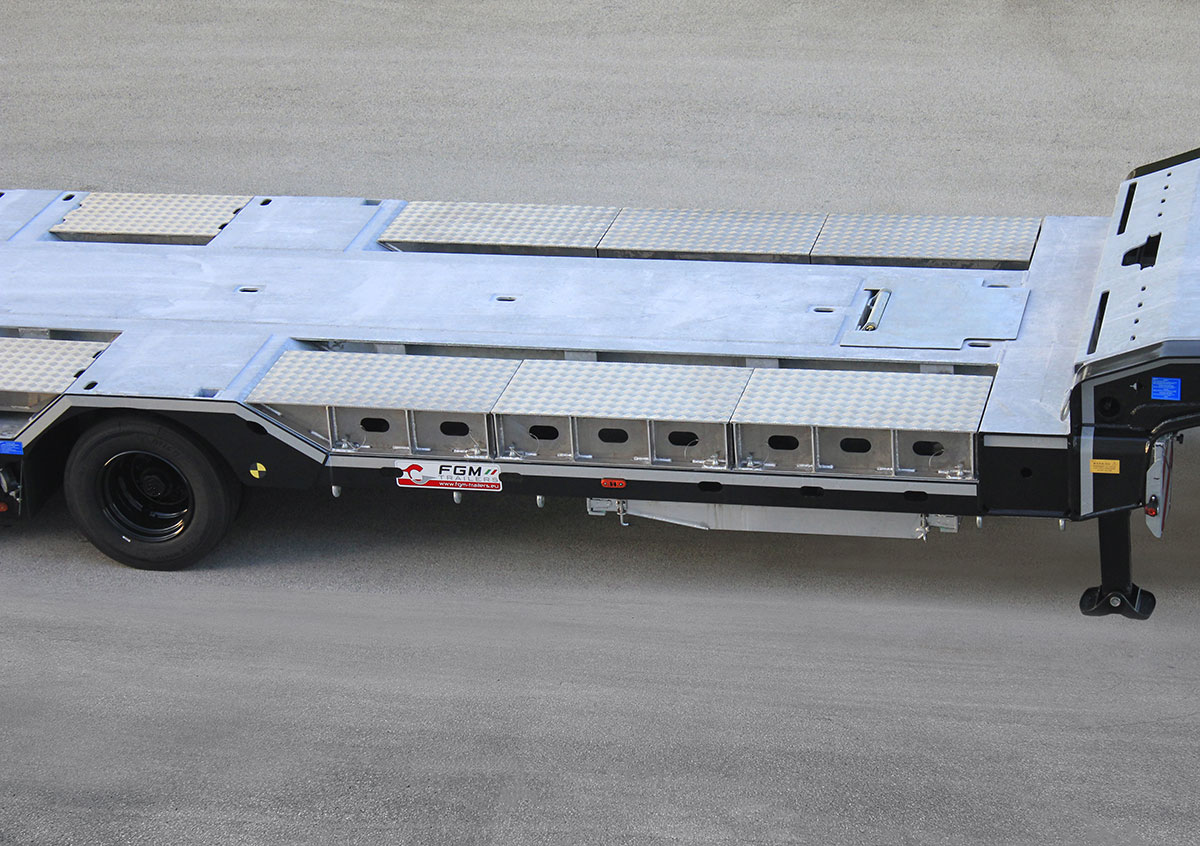

Recessed front toolboxes

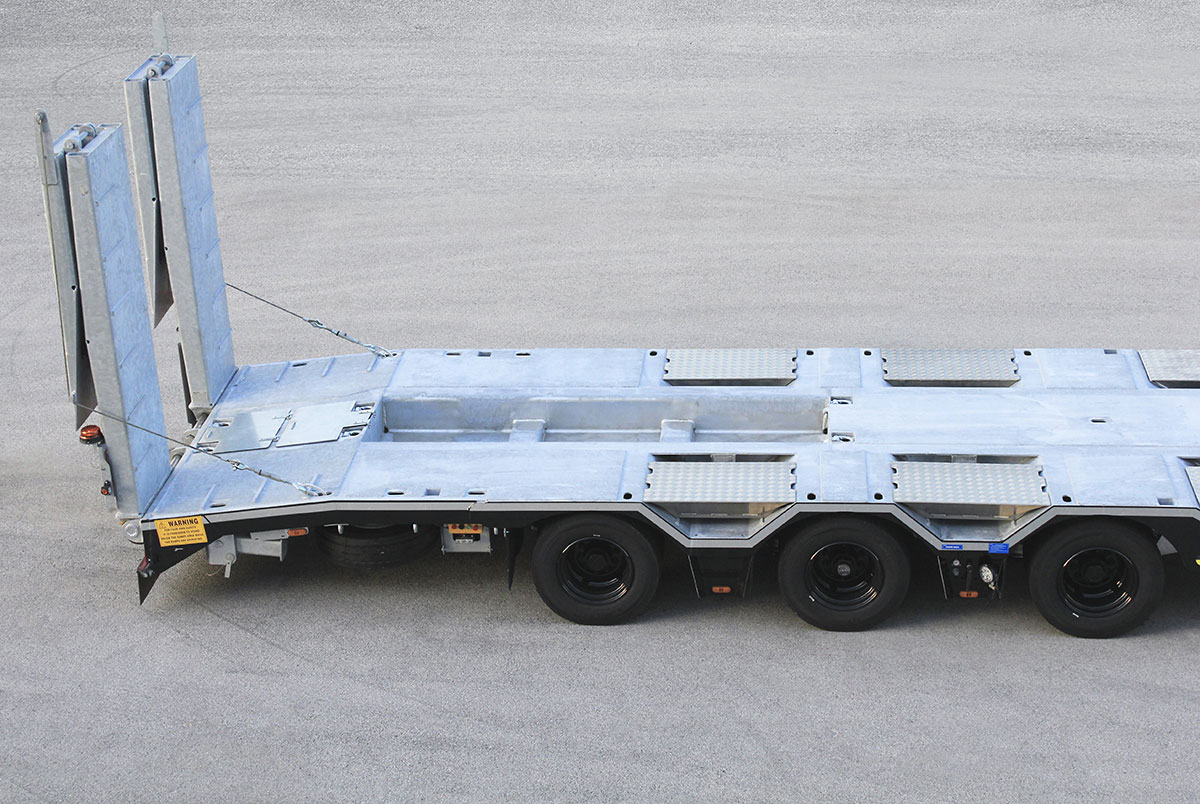

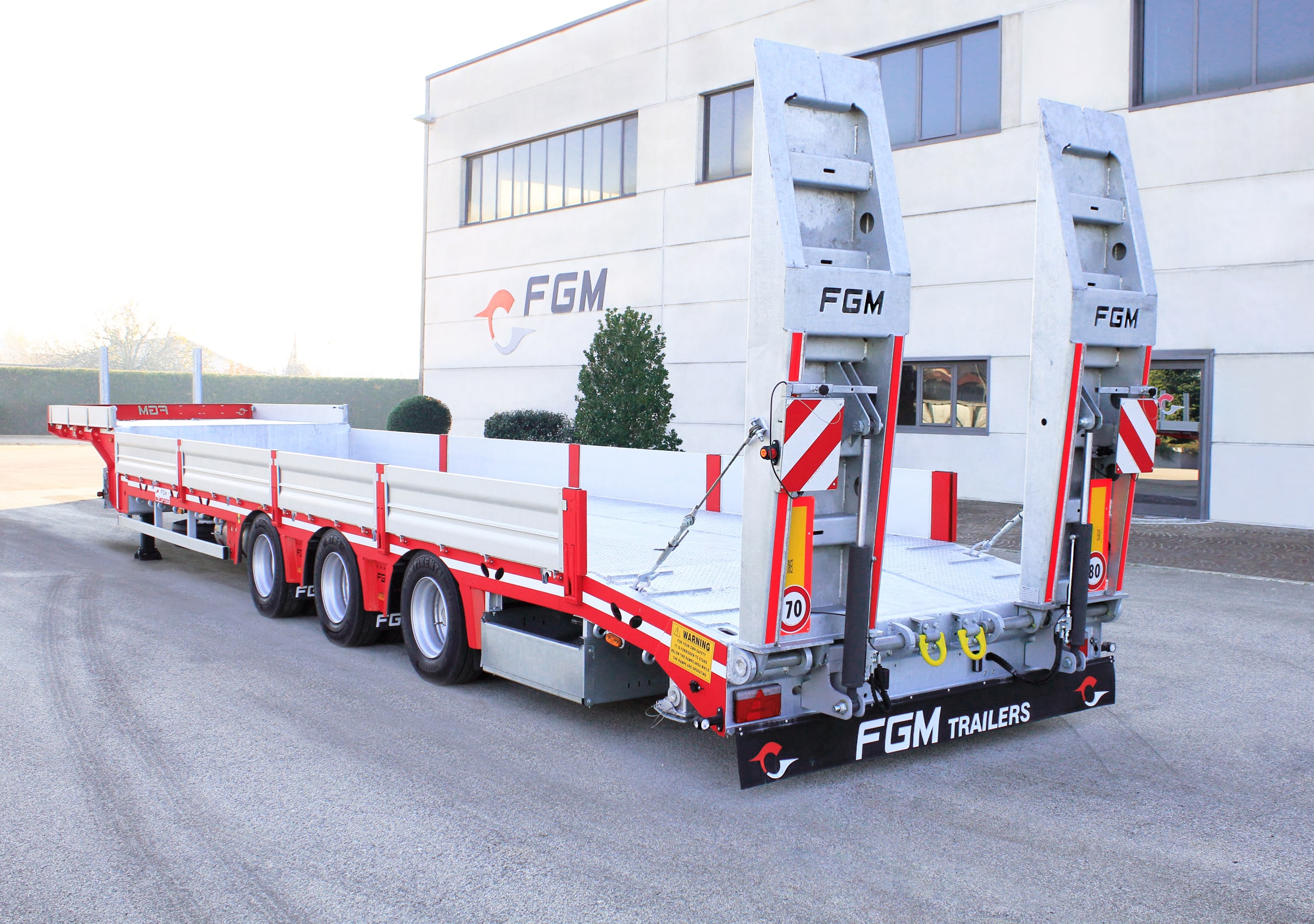

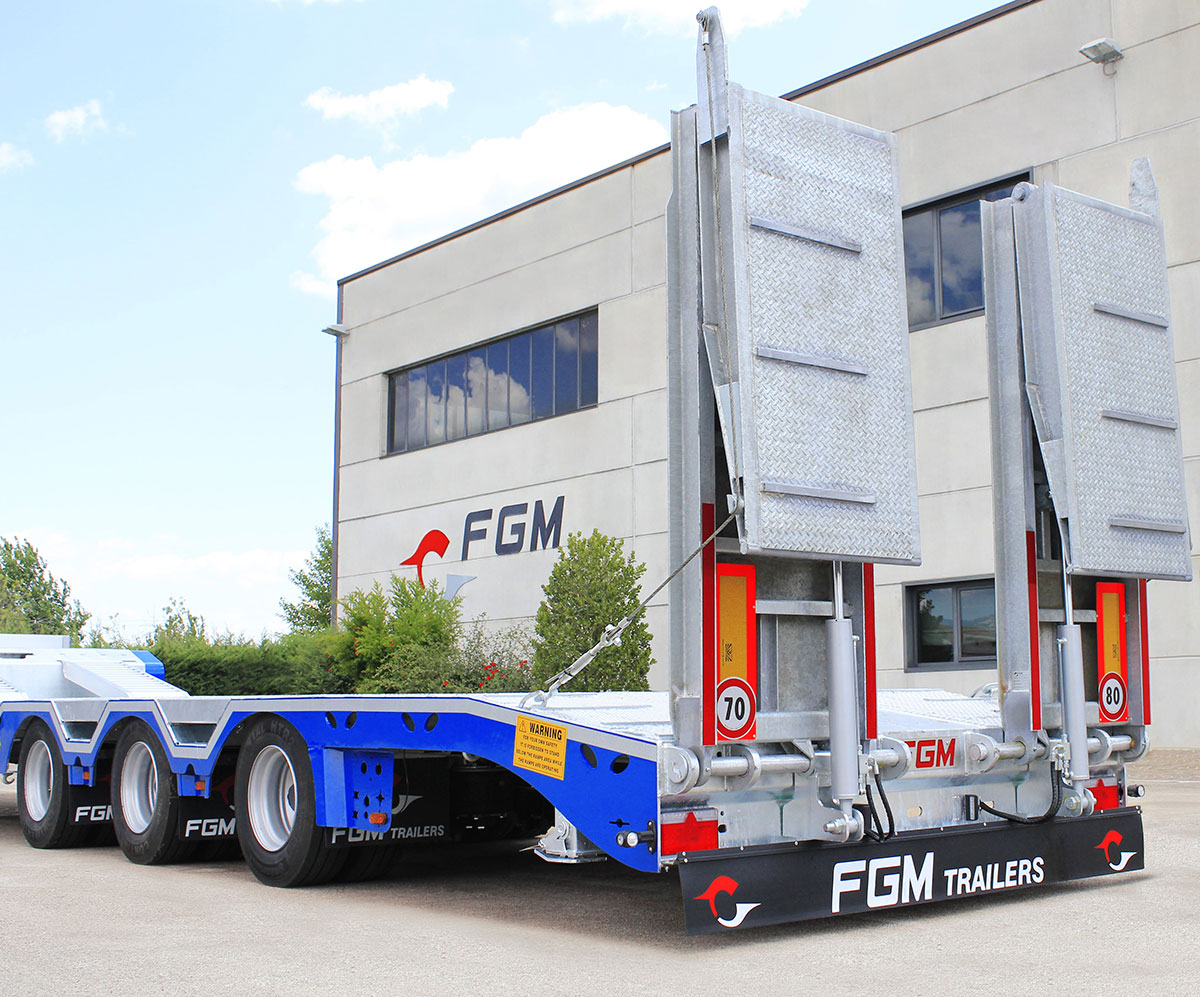

Hot-dip galvanized rear ramps
Jost, double speed, landing gear
Predisposition for winch/ aluminum ramps

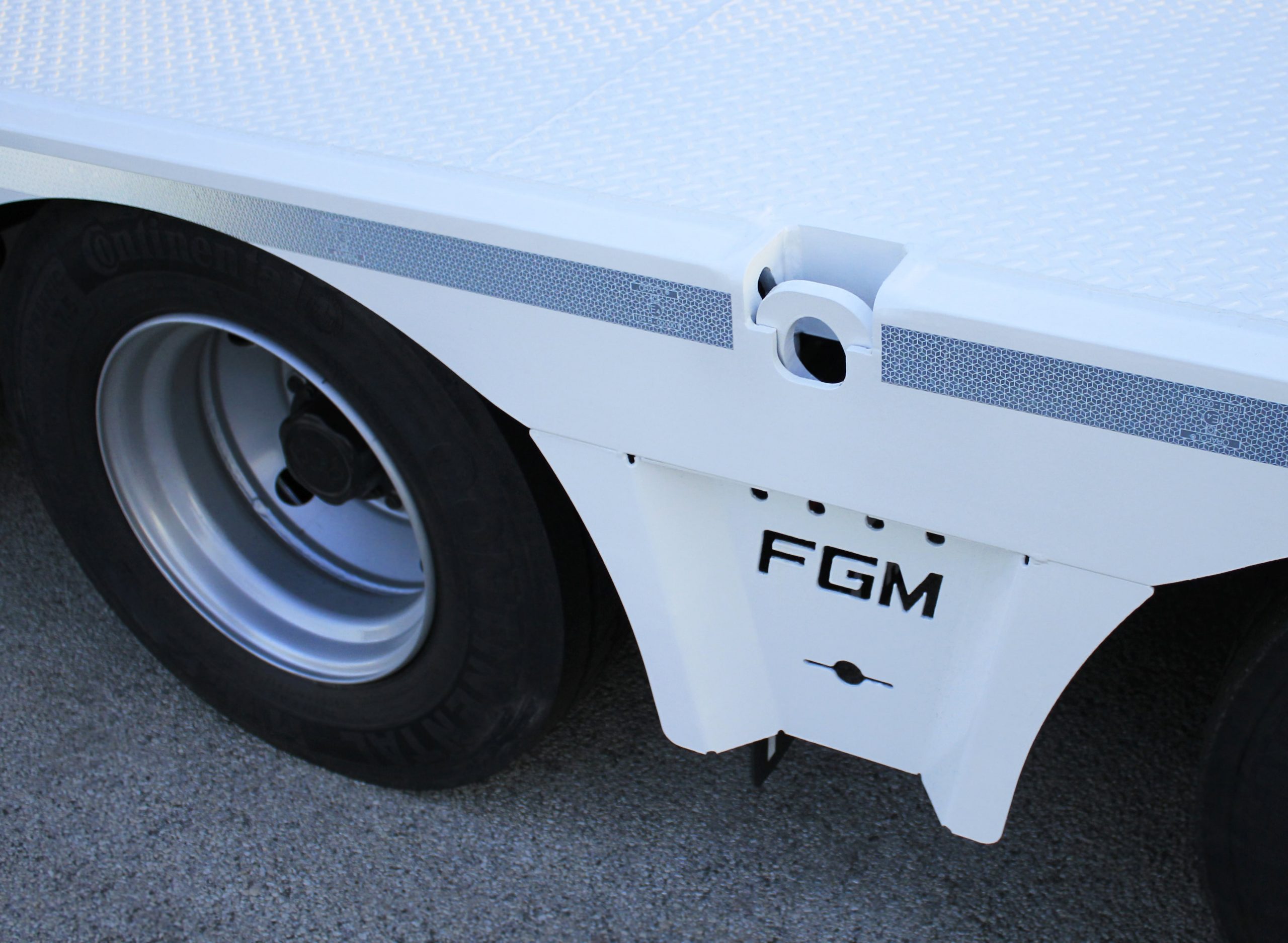

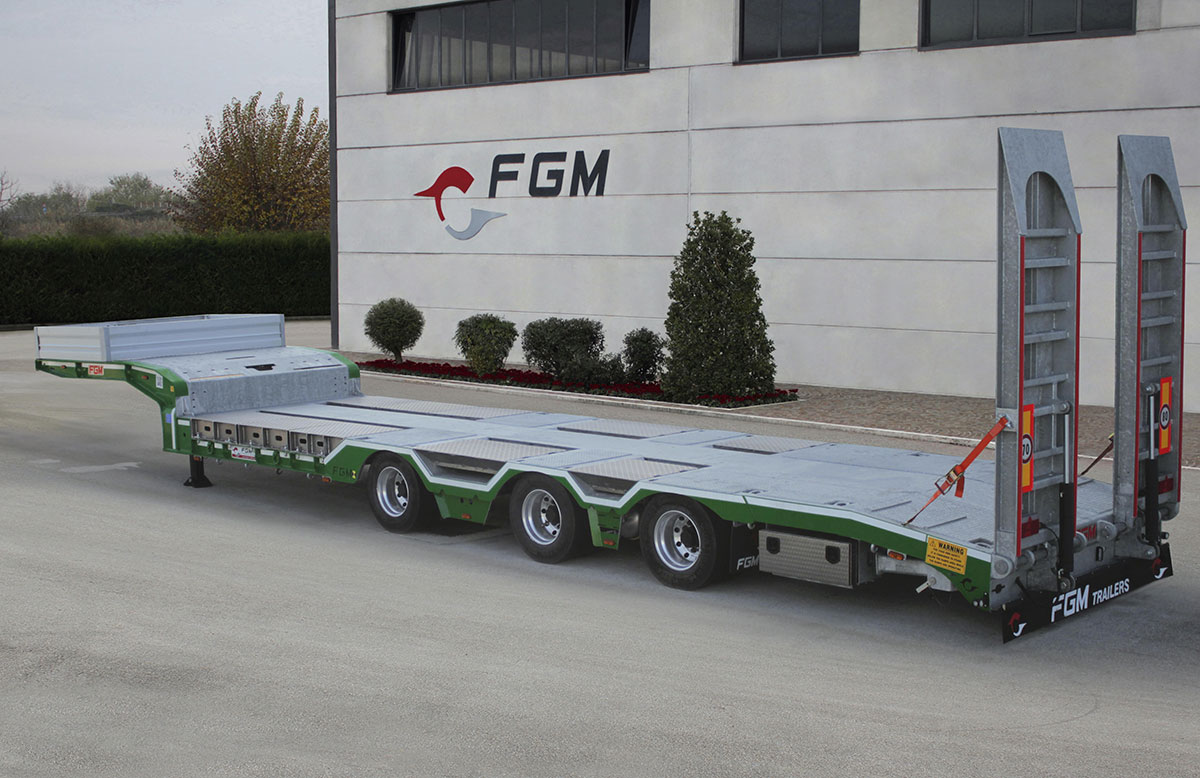

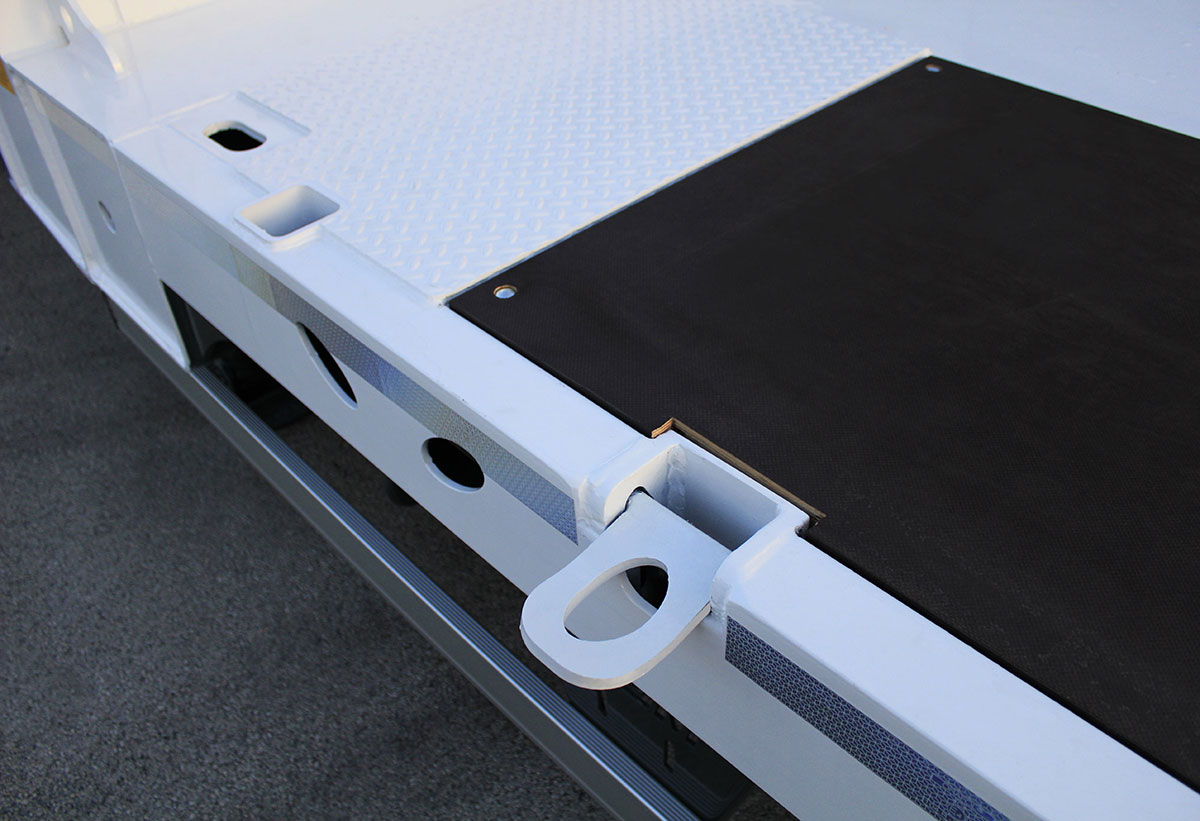

| Available Accessories | Alcoa Dura Bright Aluminum Rims, Certified Lashing rings, payload 8.000 Kg, Excavator boogie, Extra tire Kit, FGM Toolbox, L 1000x H 300 x W 500 mm, Lateral outriggers Kit, LED Working light, N. 4 Certified Ship hooks, N.3 Rows of Bewola Holes, N.4 Wide load signs, 423×423 mm, Orange Flashing Beacon, Rubber inserts, Semitrailer with customized dimensions, Speedline Aluminum Rims, Twist locks, JOST, VIME Hydraulic winch, 8.000 Kg, Wheel recess Kit |
|---|---|
| Axles | 12-ton ROR, drum brakes, SAF 12-ton, drum brakes |

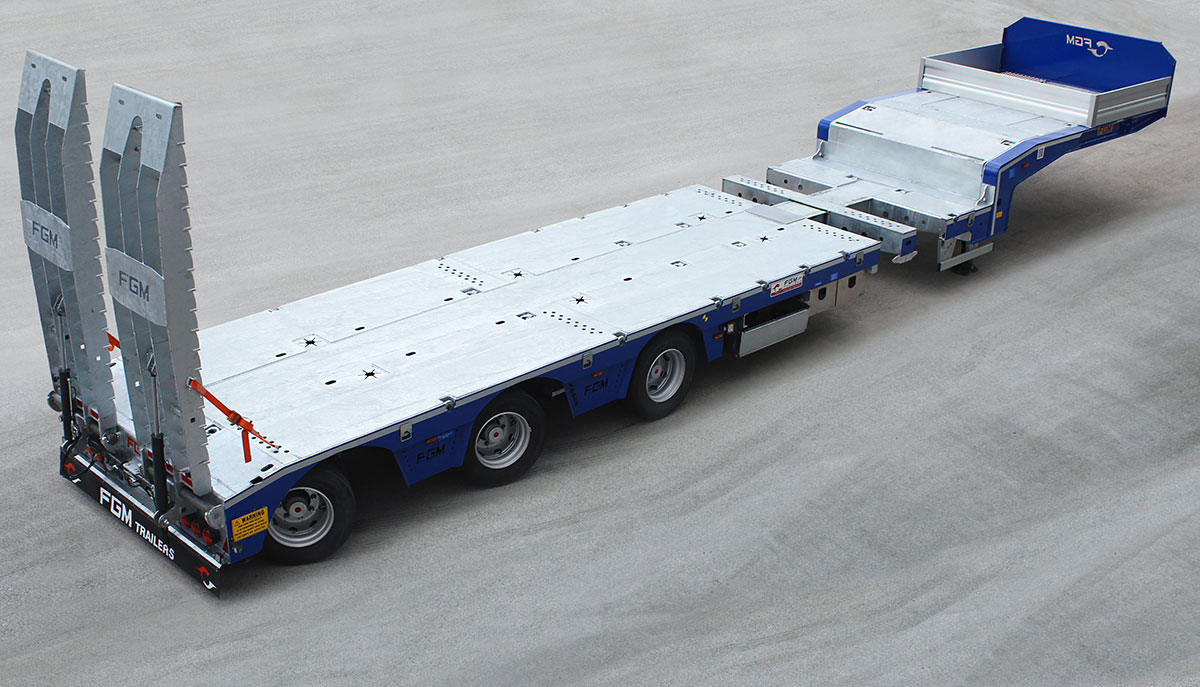

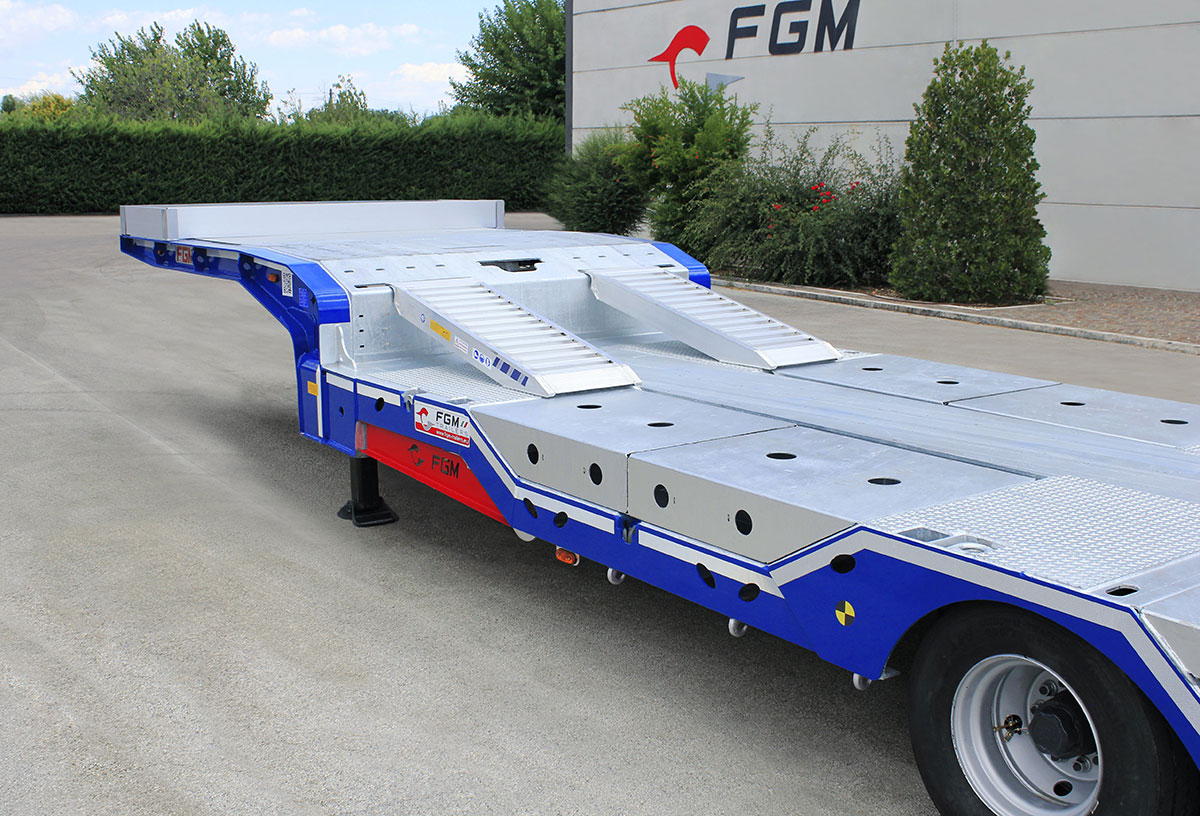

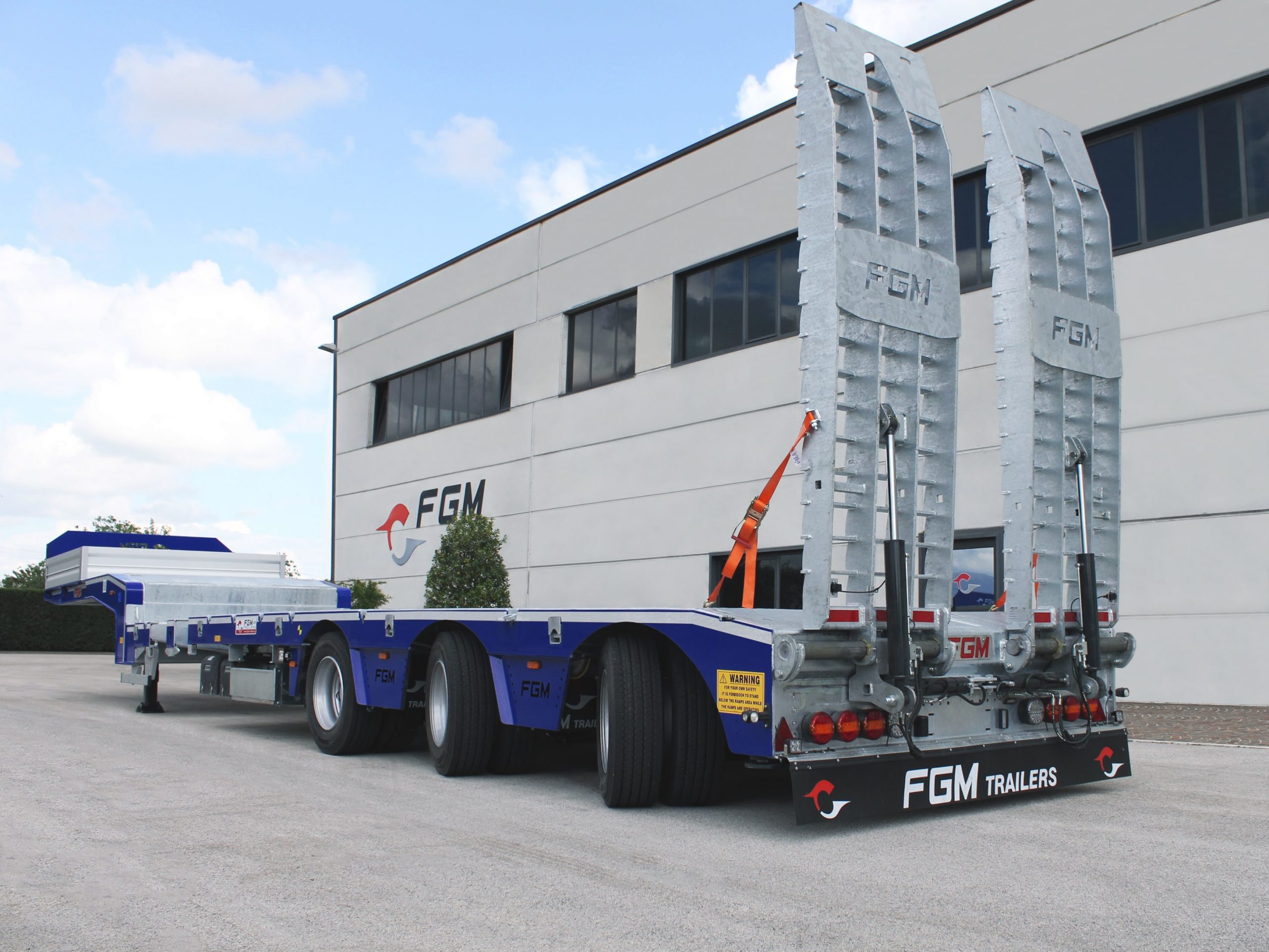

| Ramp type | Rear hydraulic ramps, hot-dip galvanized, 4.000 x 800 mm, Rear KELLER ramps, hot-dip galvanized, 4.000 x 1.230 mm, Rear manual aluminum ramps, 2.400 x 450 mm, Rear ramps, hot-dip galvanized, mm 2.400 x 650, Rear Scandinavian type ramps, hot-dip galvanized, 2.900 x W 800 mm, Rear Telescopic tail Kit |

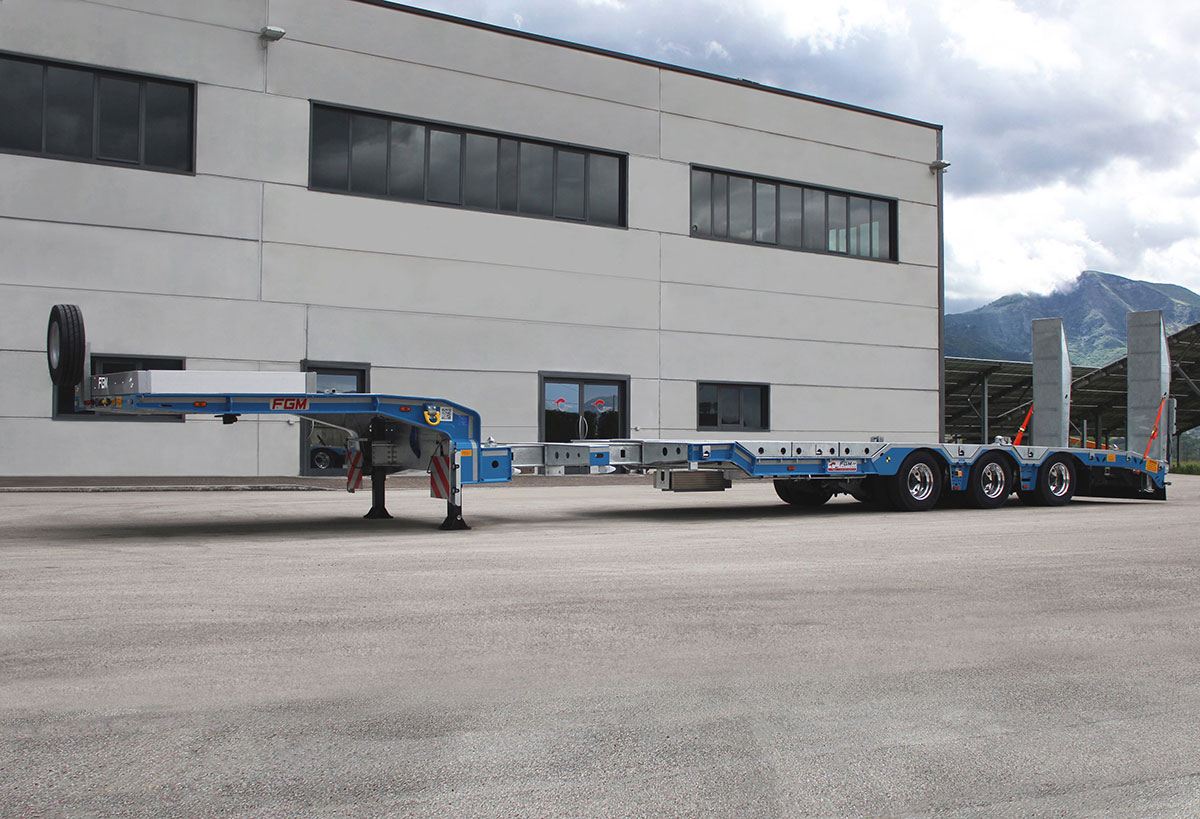

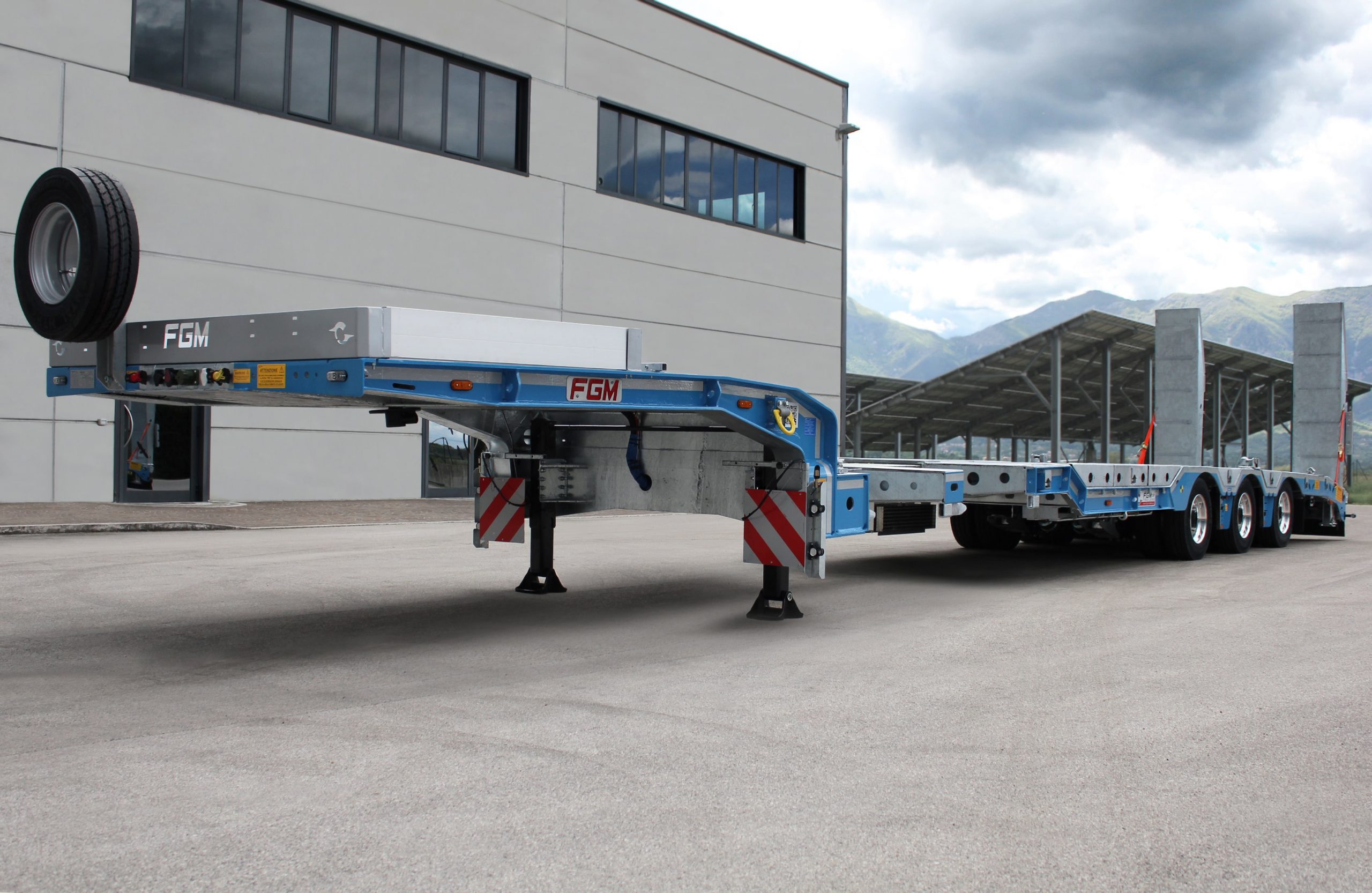

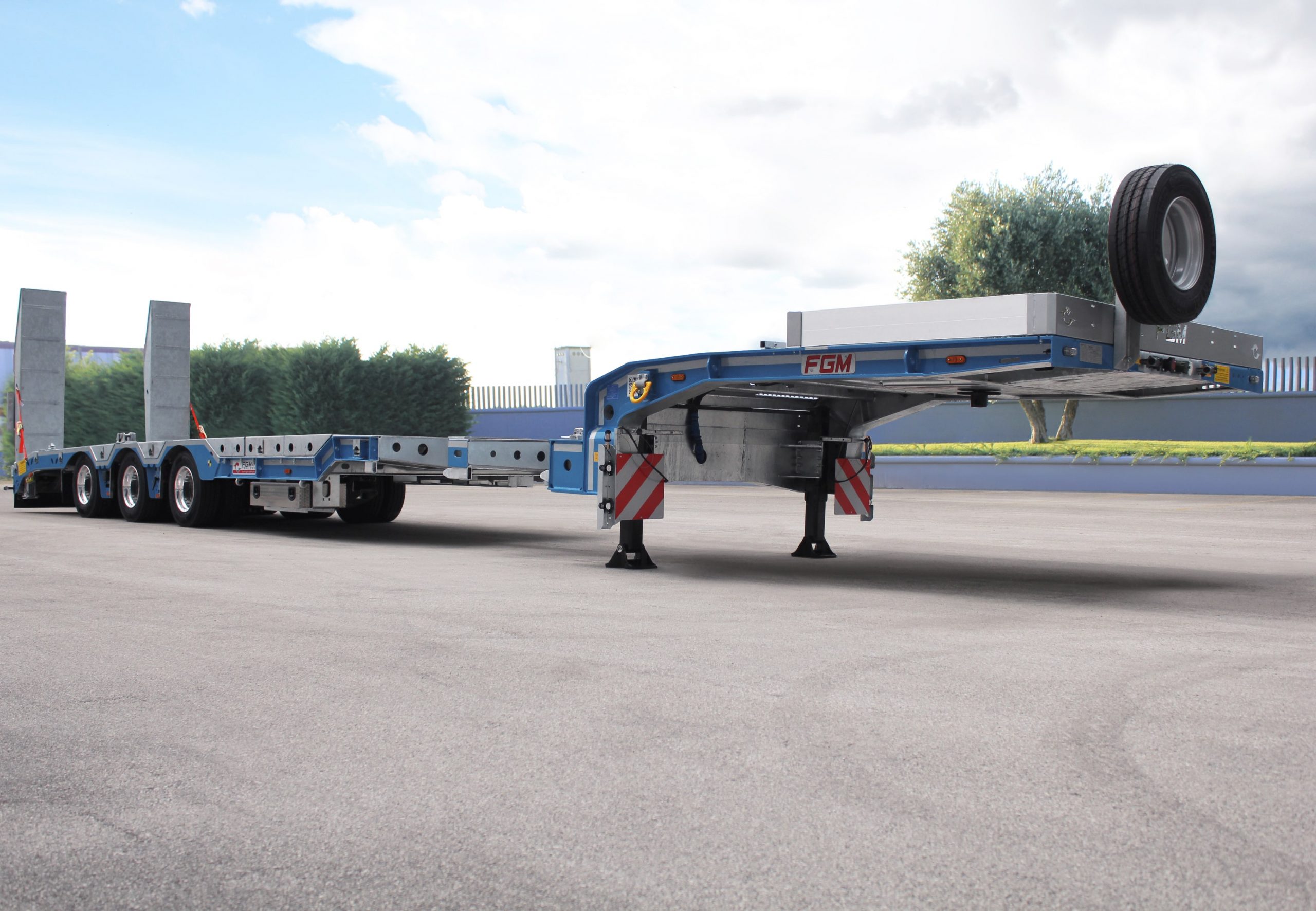

| Chassis | Extendable chassis, Fixed chassis |
| Surface Treatment | Hot-dip galvanized chassis, Painting job in RAL color requested, included |
