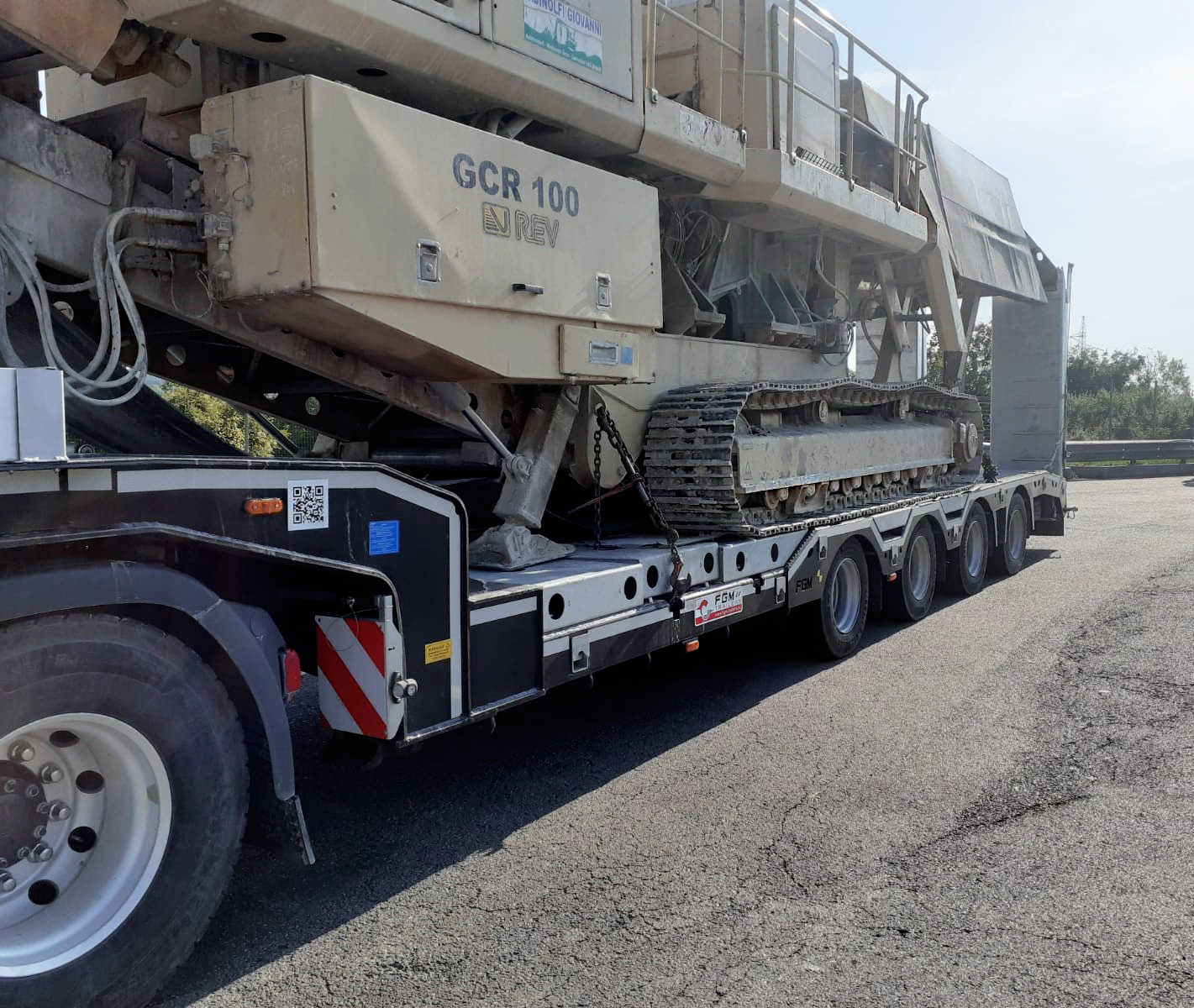

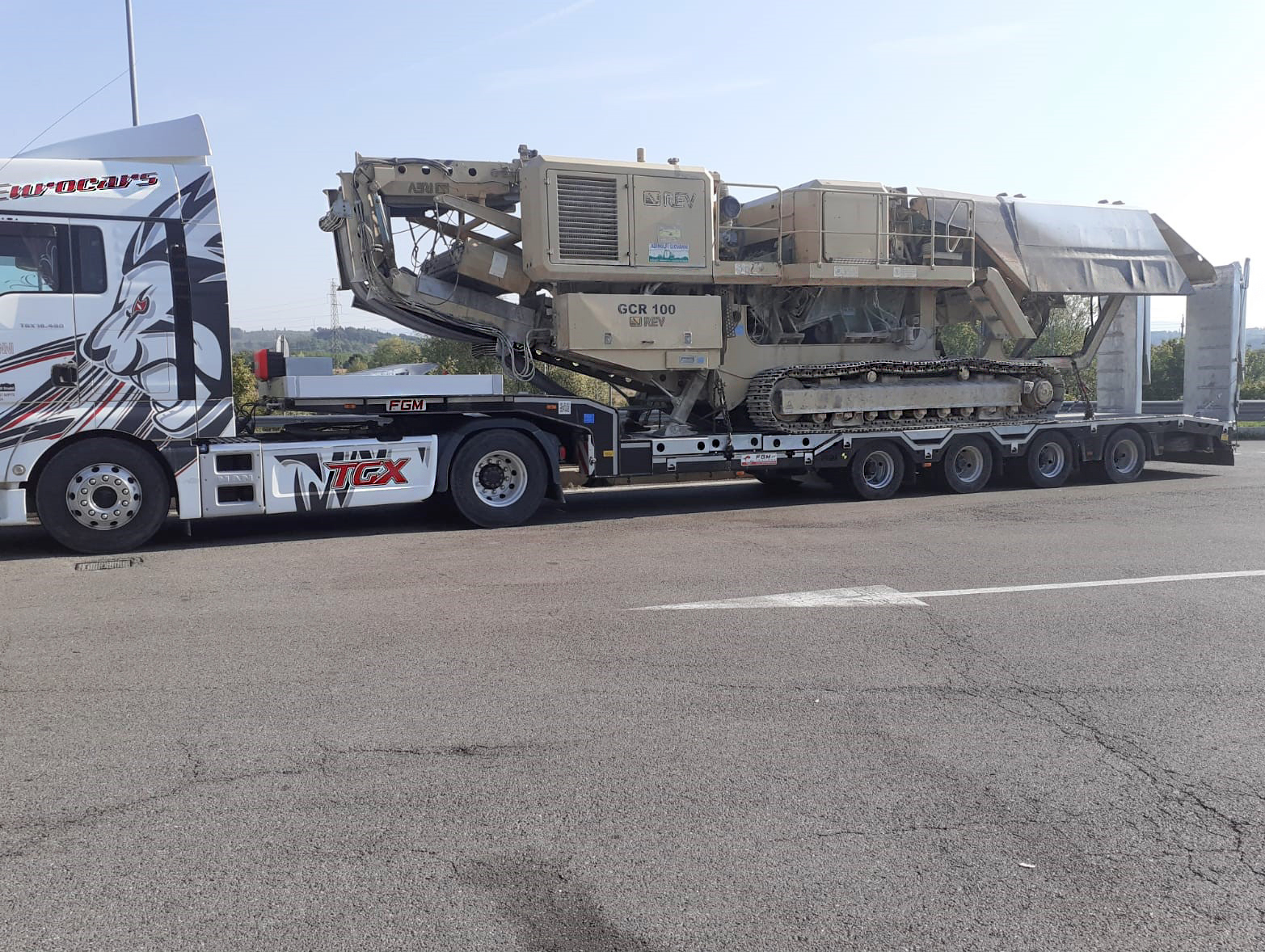

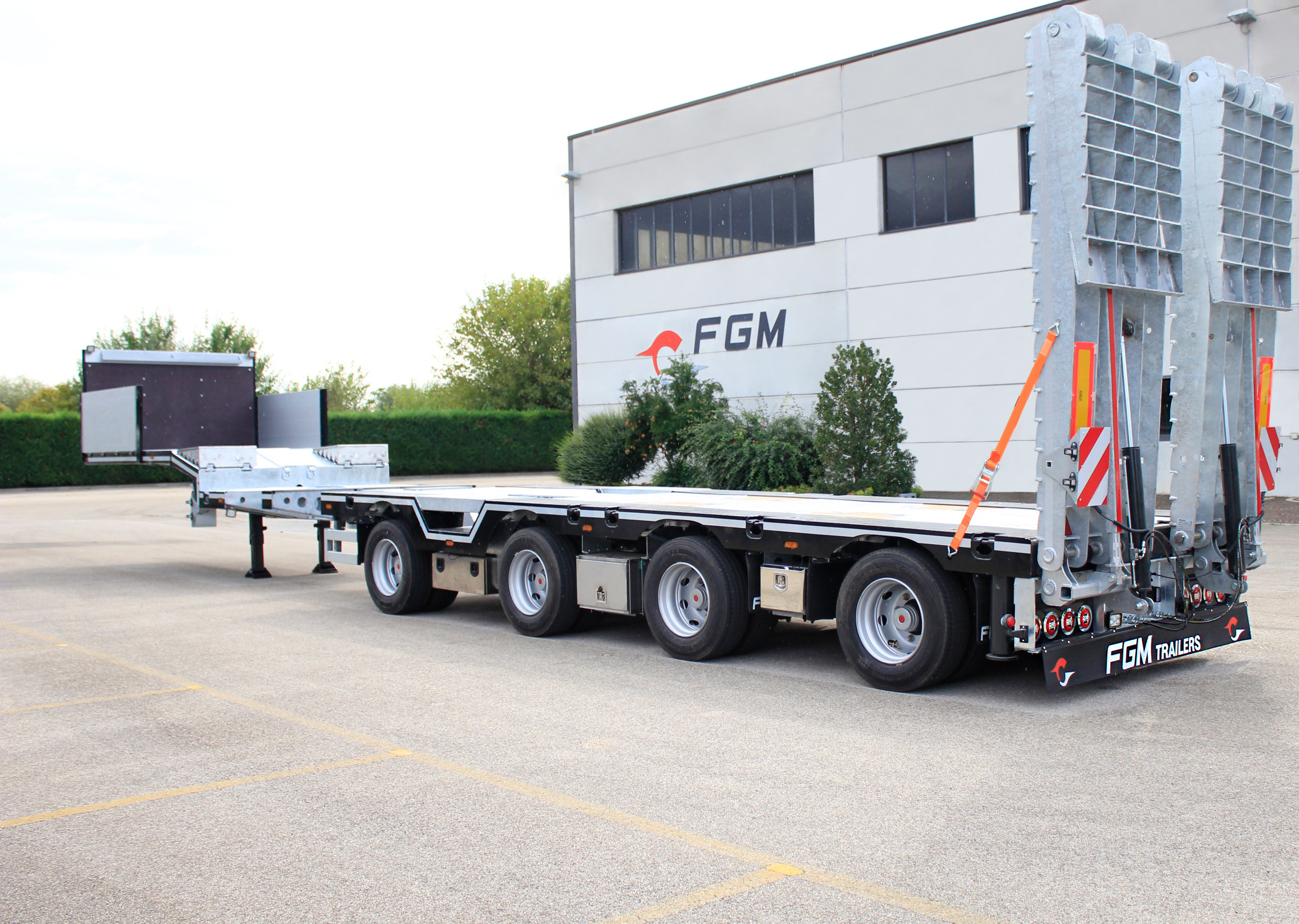

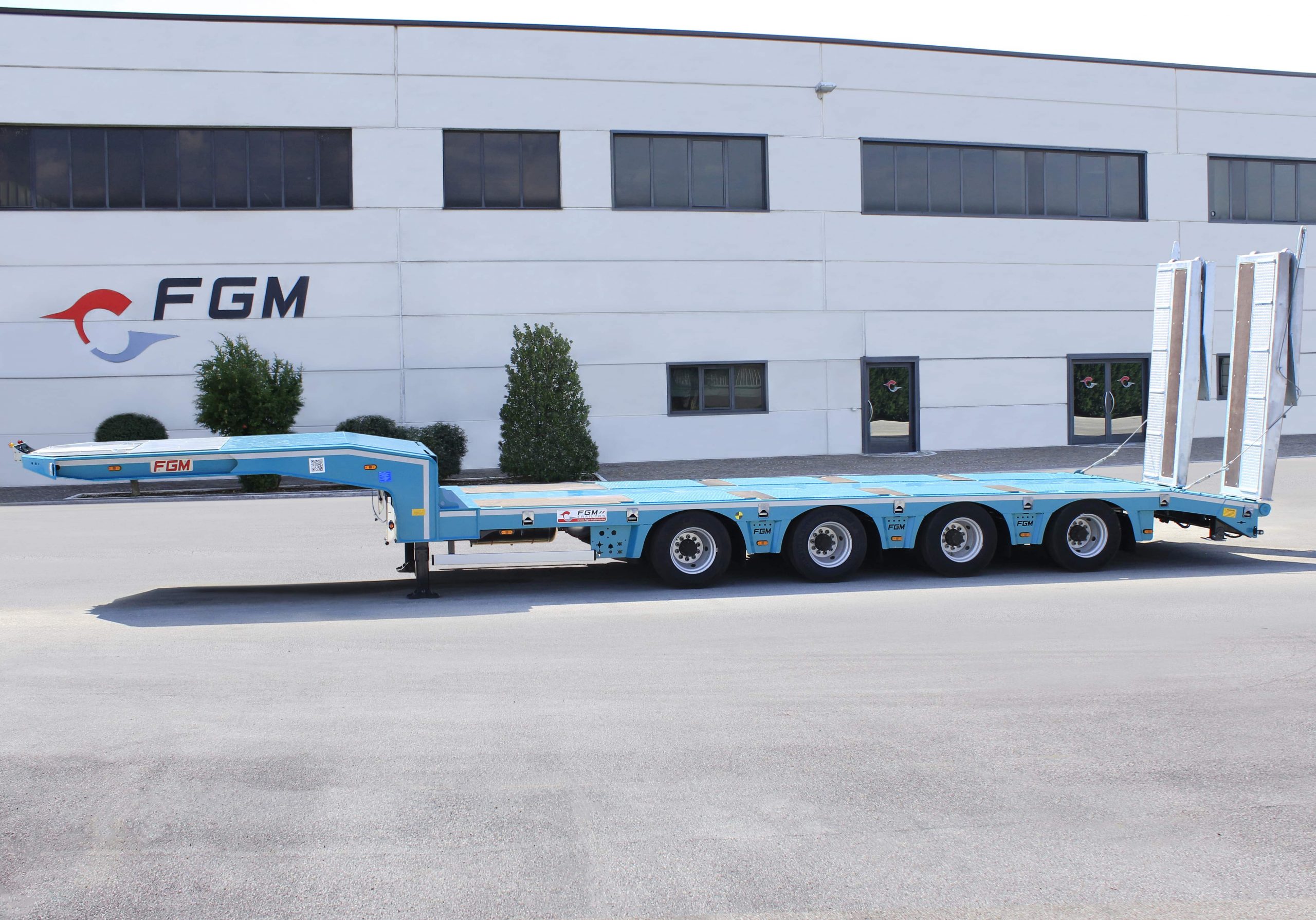

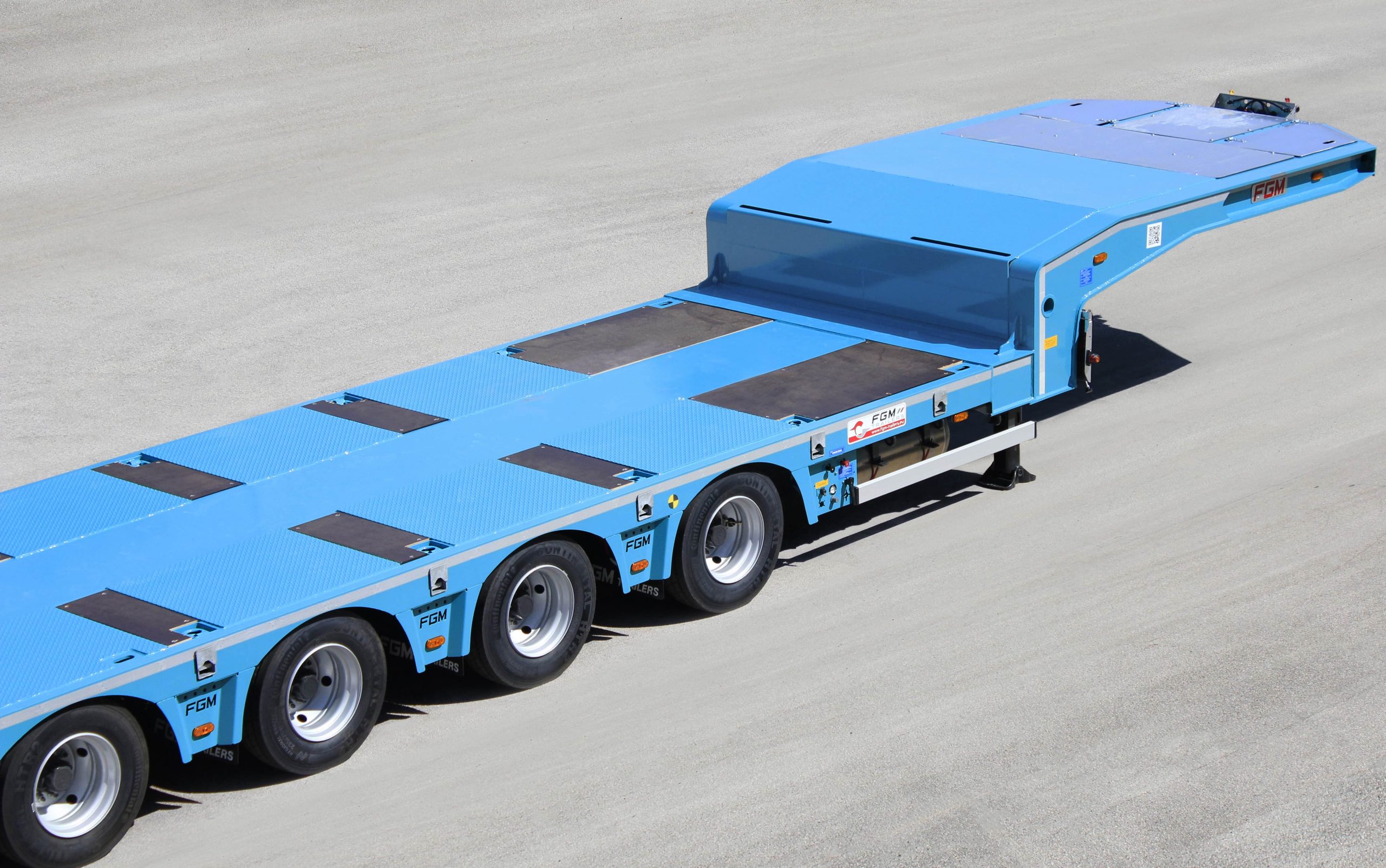

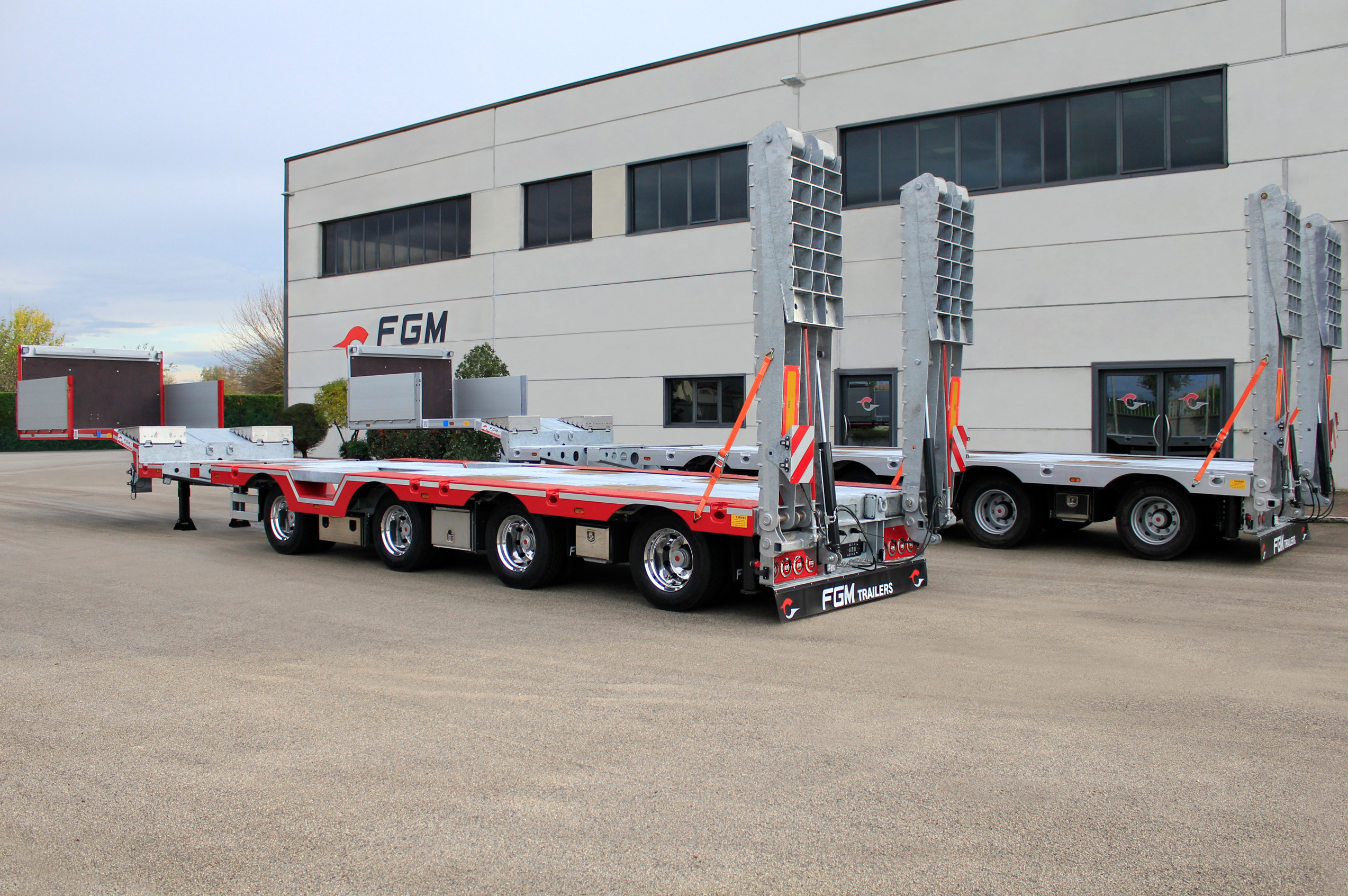

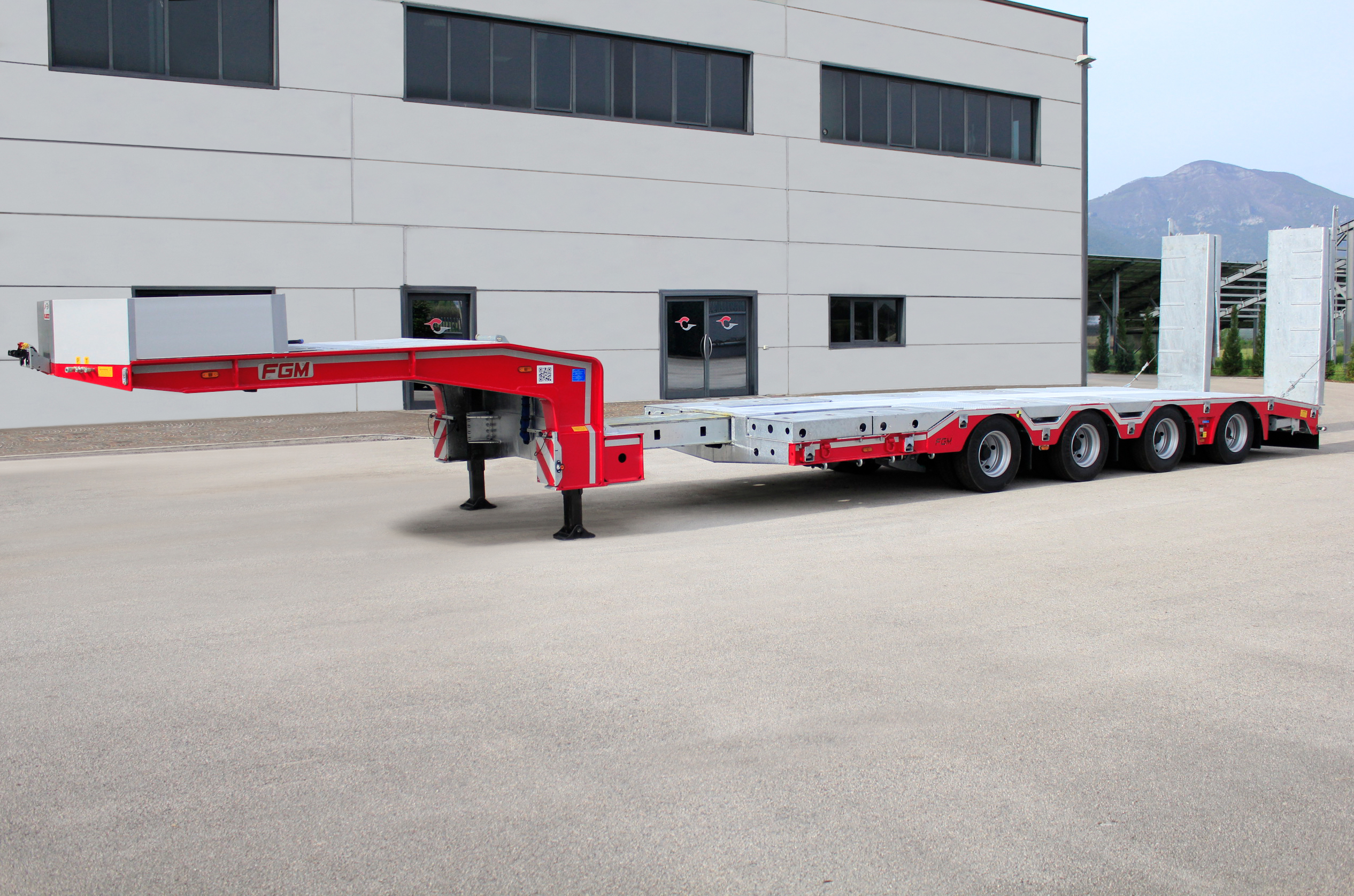

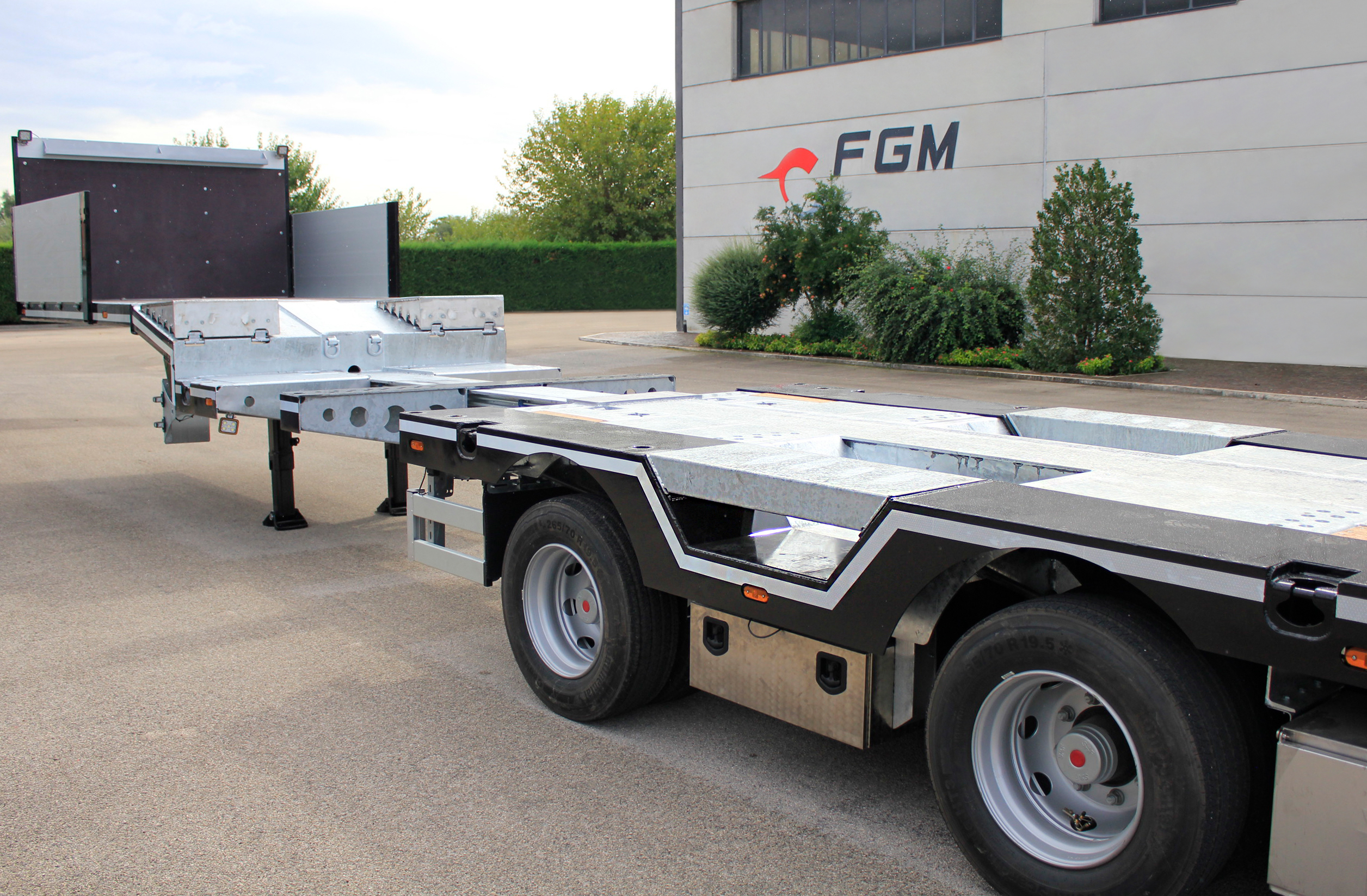

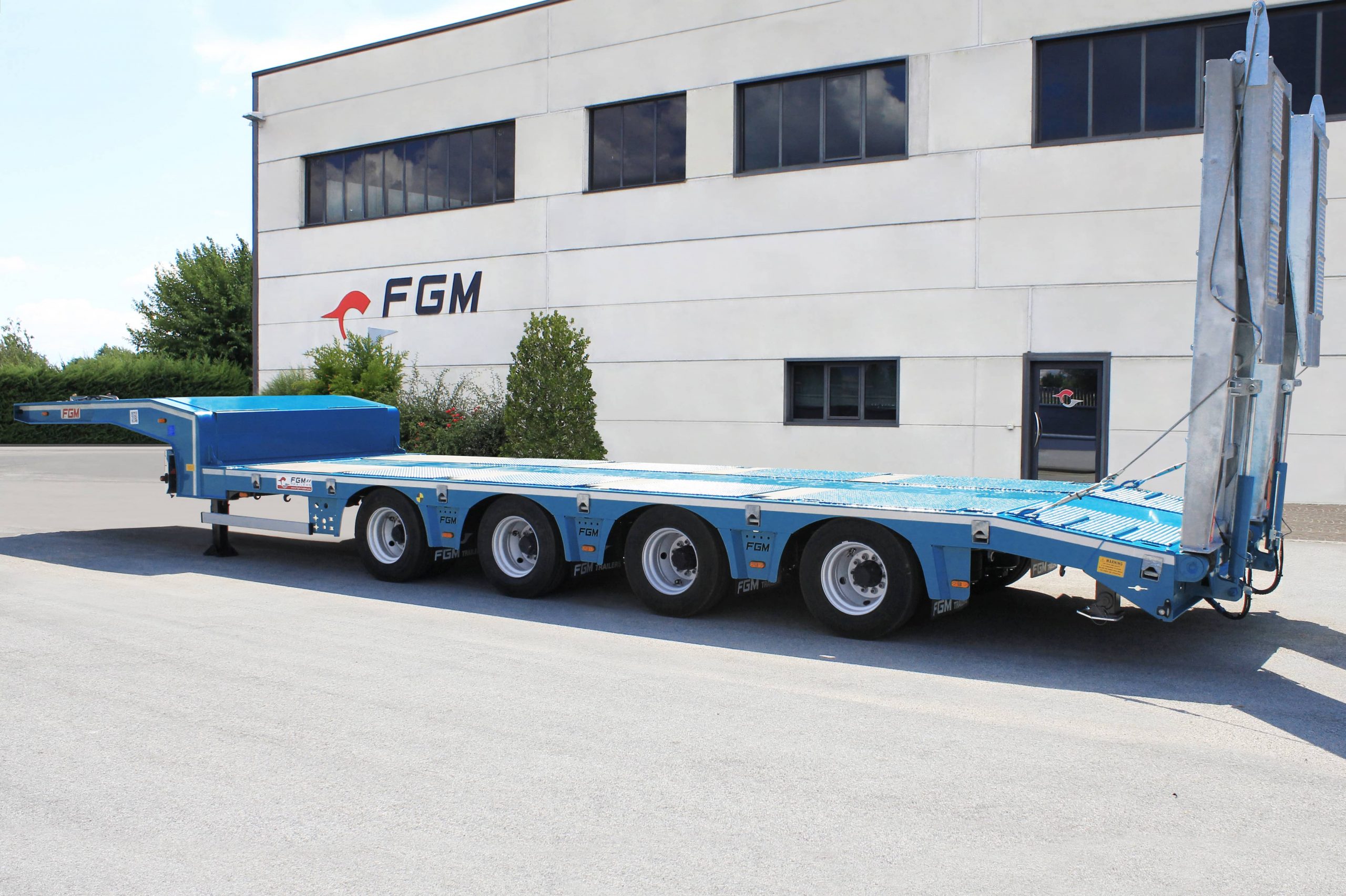

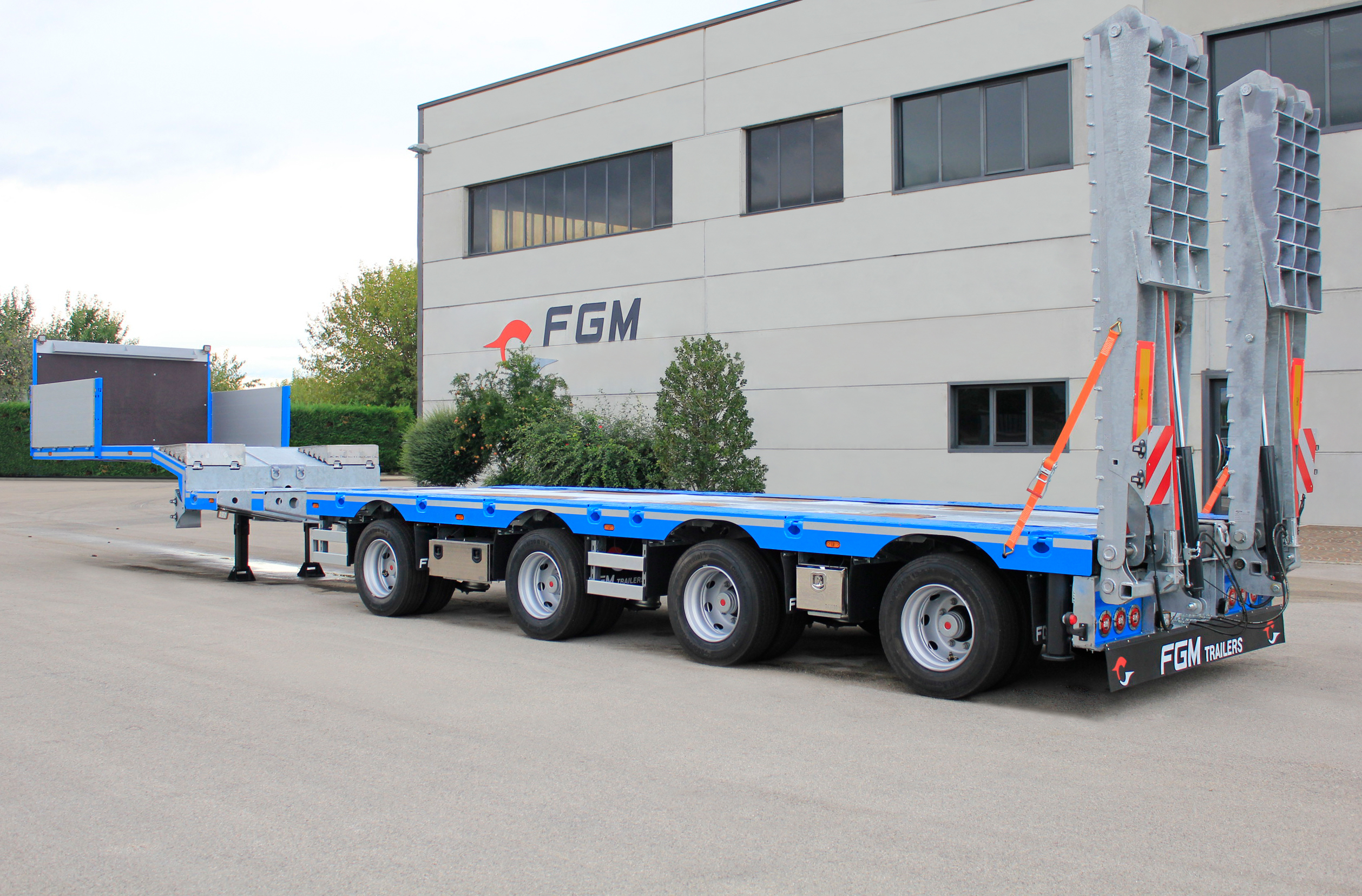

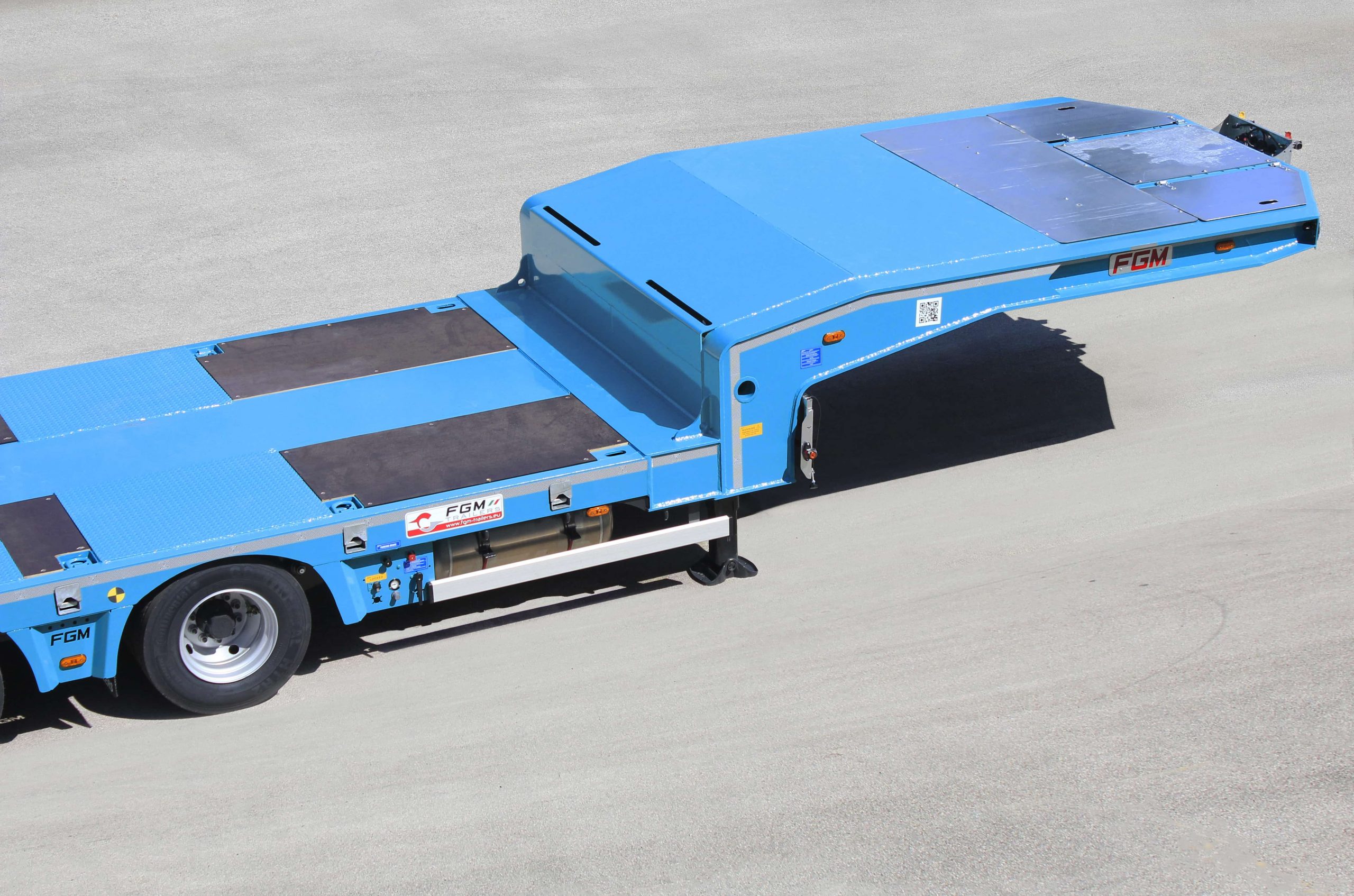

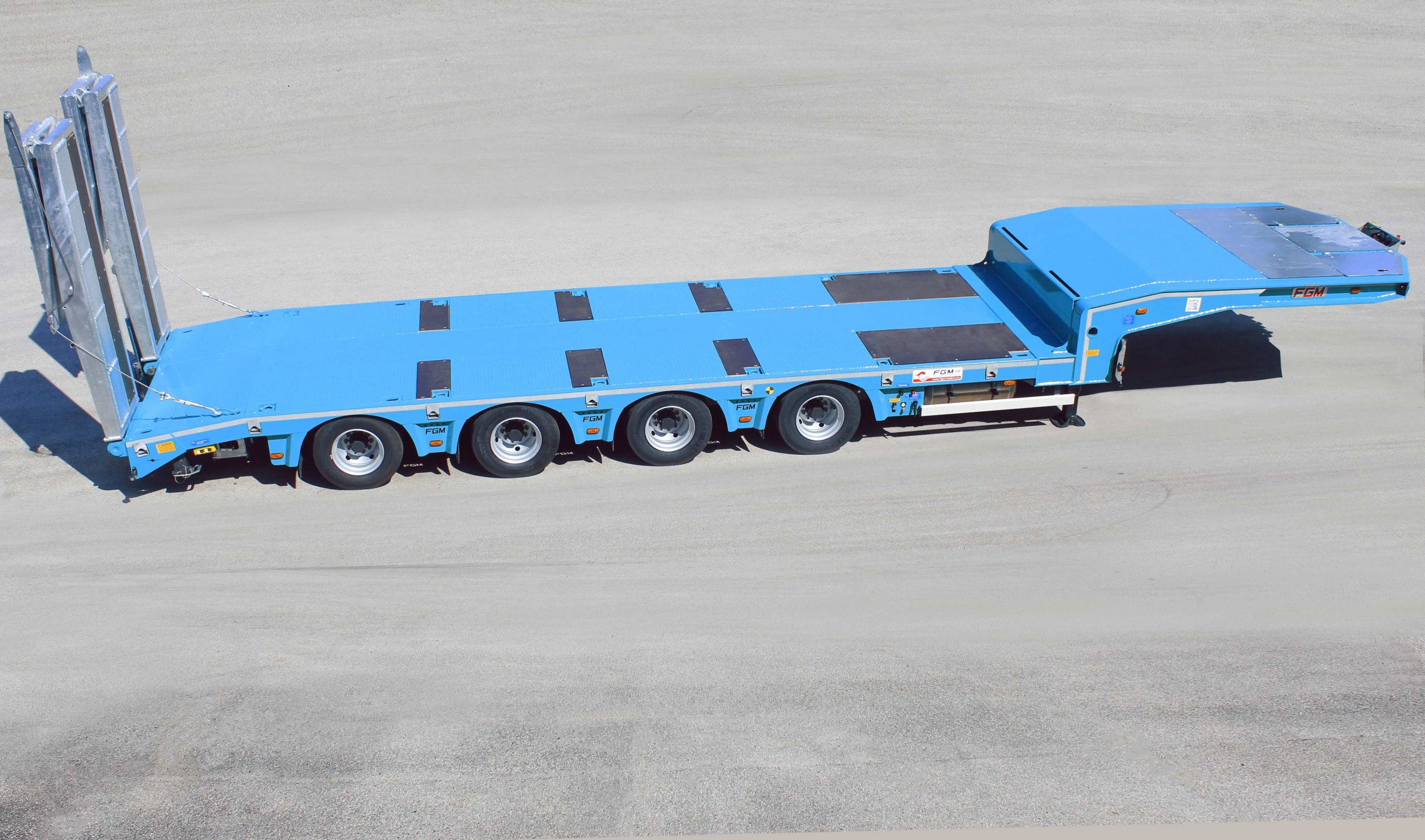

The FGM 56 is a heavy duty 4-axle semitrailer built to offer increased payload. The trailer chassis is designed to carry heavy concentrated loads, up to 63 tons. Available in different configurations and accessories, the model is extremely versatile and resilient which makes it particularly suitable for the transport of drilling machines, mobile crushing and screening equipment.
Maximum fifth wheel load 26.000 kg
Loading height 870 mm
Tires 235/75 r 17.5
Tire load 10.300 kg at 100 km/h
N.4 Axle ROR/SAF, 12-ton, drum brakes
Braking system Knorr Bremse
LED Electric system Aspoek
STENX 700 steel chassis
Certified lashing rings
Oversize transport kit
Hot-dip galvanized ramps
Jost, double speed, landing gear
| Available Accessories | Alcoa Dura Bright Aluminum Rims, Certified Lashing rings, payload 8.000 Kg, Excavator boogie, Extra tire Kit, FGM Toolbox, L 1000x H 300 x W 500 mm, Lateral outriggers Kit, LED Working light, N. 4 Certified Ship hooks, N.3 Rows of Bewola Holes, Orange Flashing Beacon, Railway guides Kit, Rubber inserts, Semitrailer with customized dimensions, Speedline Aluminum Rims, Twist locks, JOST, VIME Hydraulic winch, 15.000 Kg, Wheel recess Kit |
|---|---|
| Axles | 12-ton ROR, drum brakes, SAF 12-ton, drum brakes |

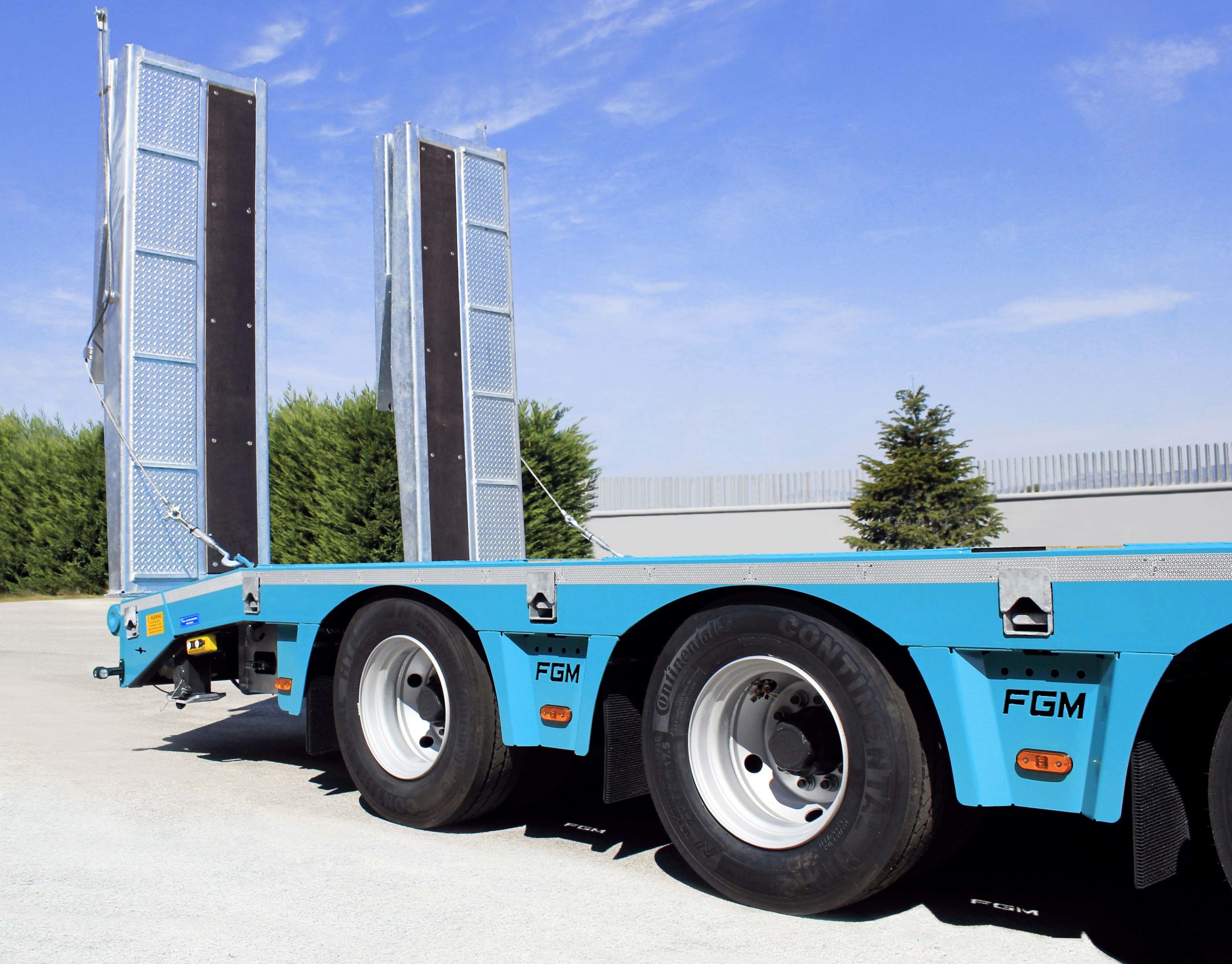

| Ramp type | Rear hydraulic ramps, hot-dip galvanized, 4.000 x 800 mm, Rear KELLER ramps, hot-dip galvanized, 4.000 x 1.230 mm, Rear ramps, hot-dip galvanized, mm 2.400 x 650, Rear Scandinavian type ramps, hot-dip galvanized, 2.900 x W 800 mm |

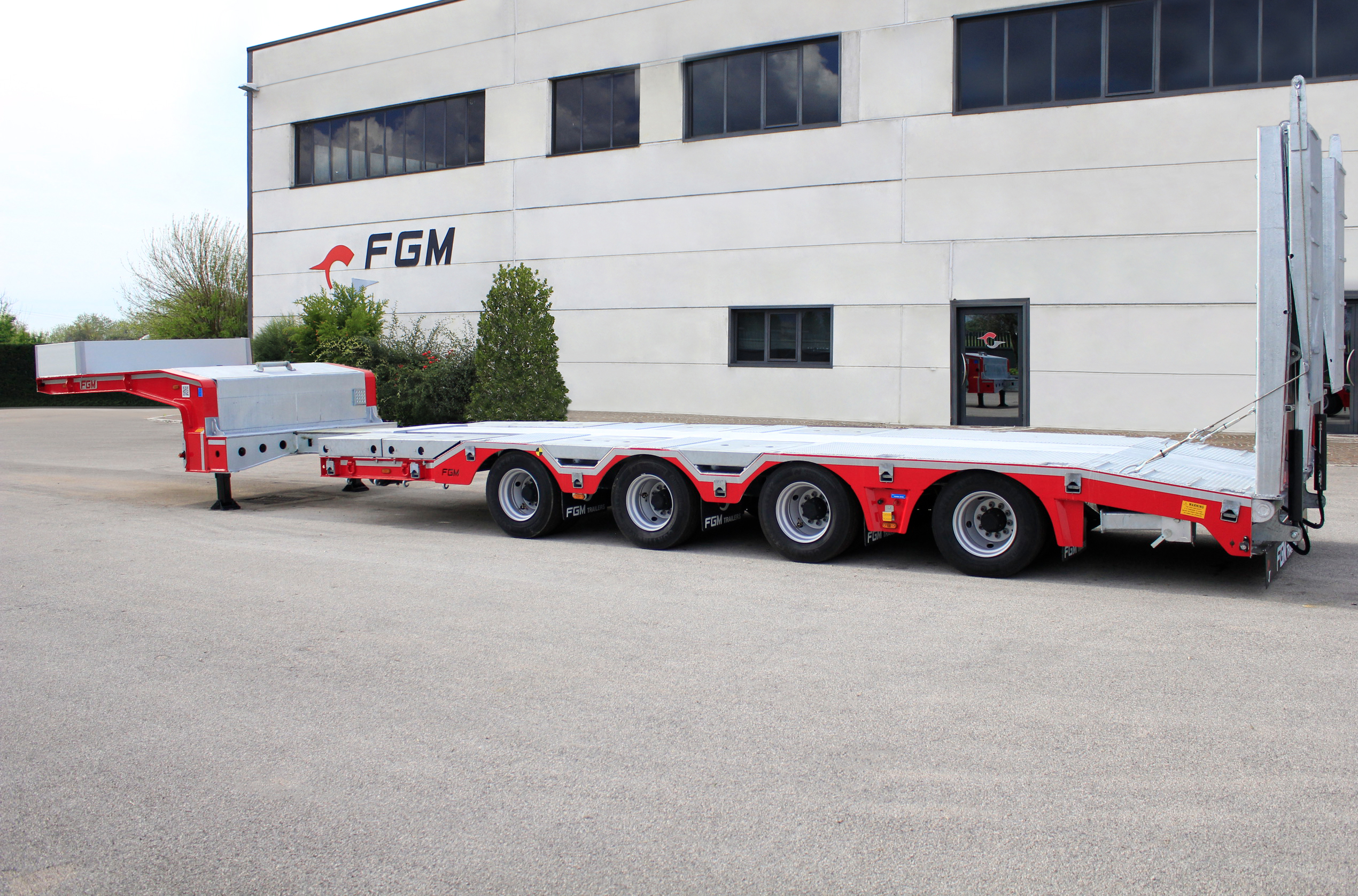

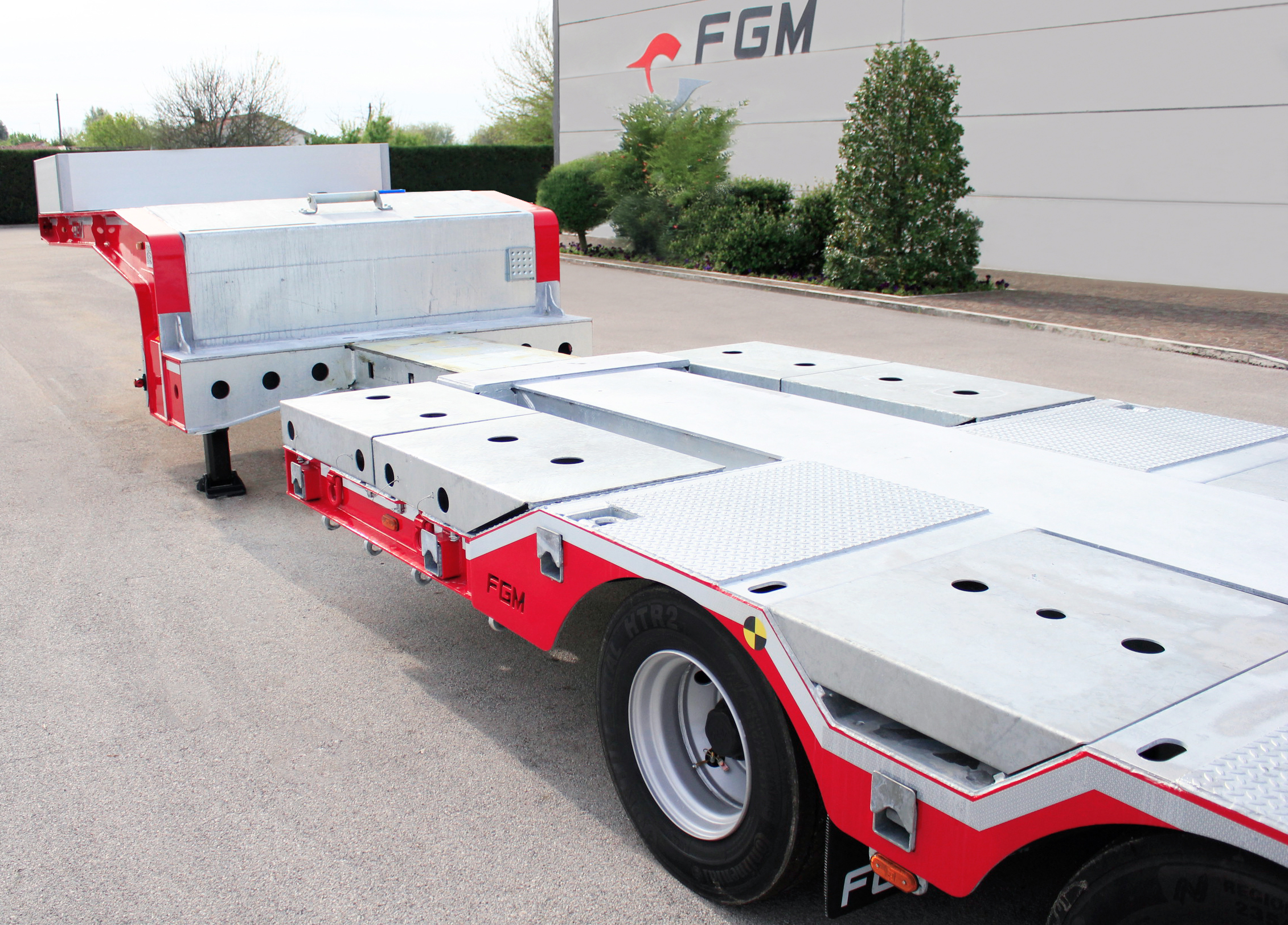

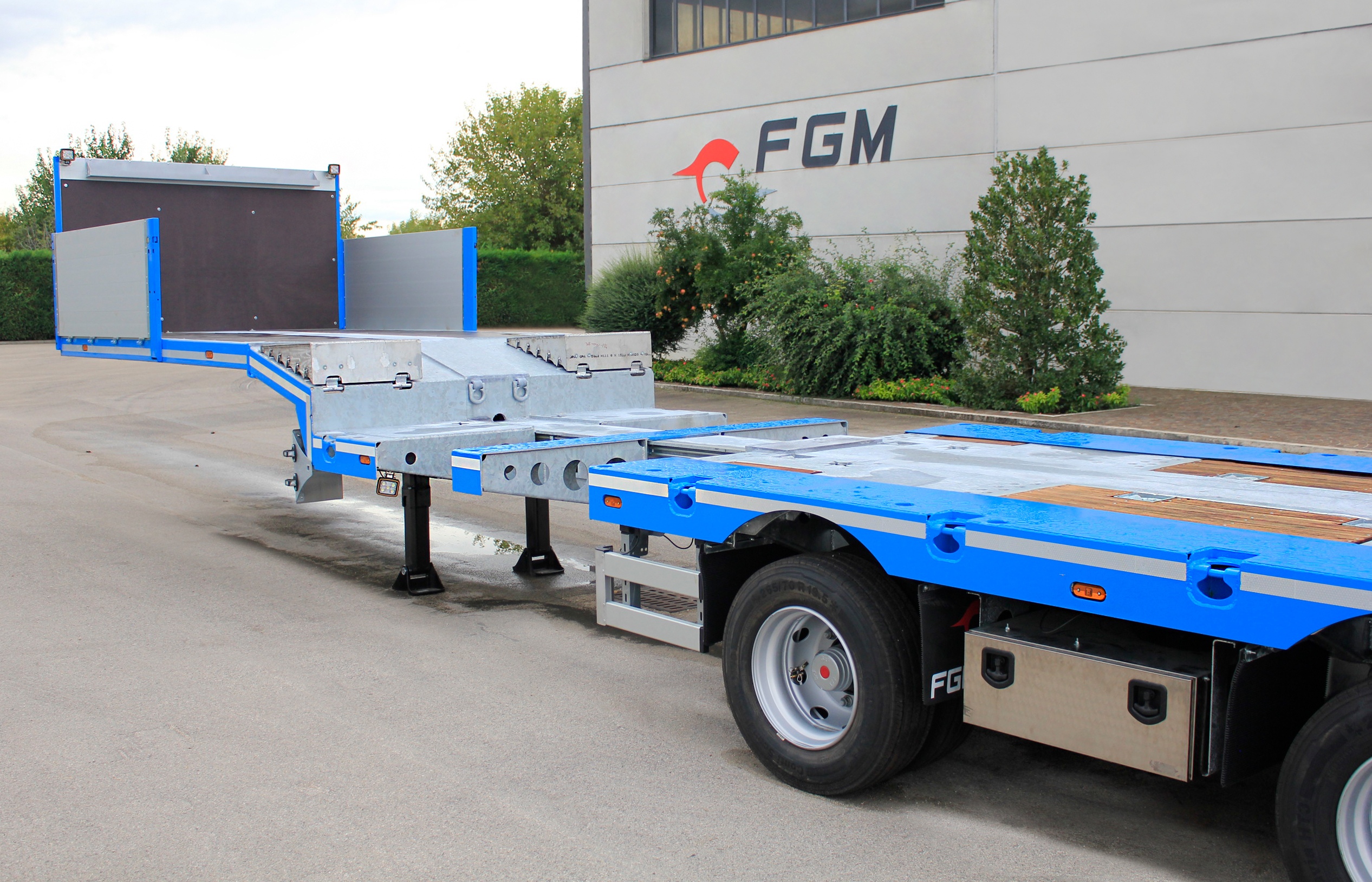

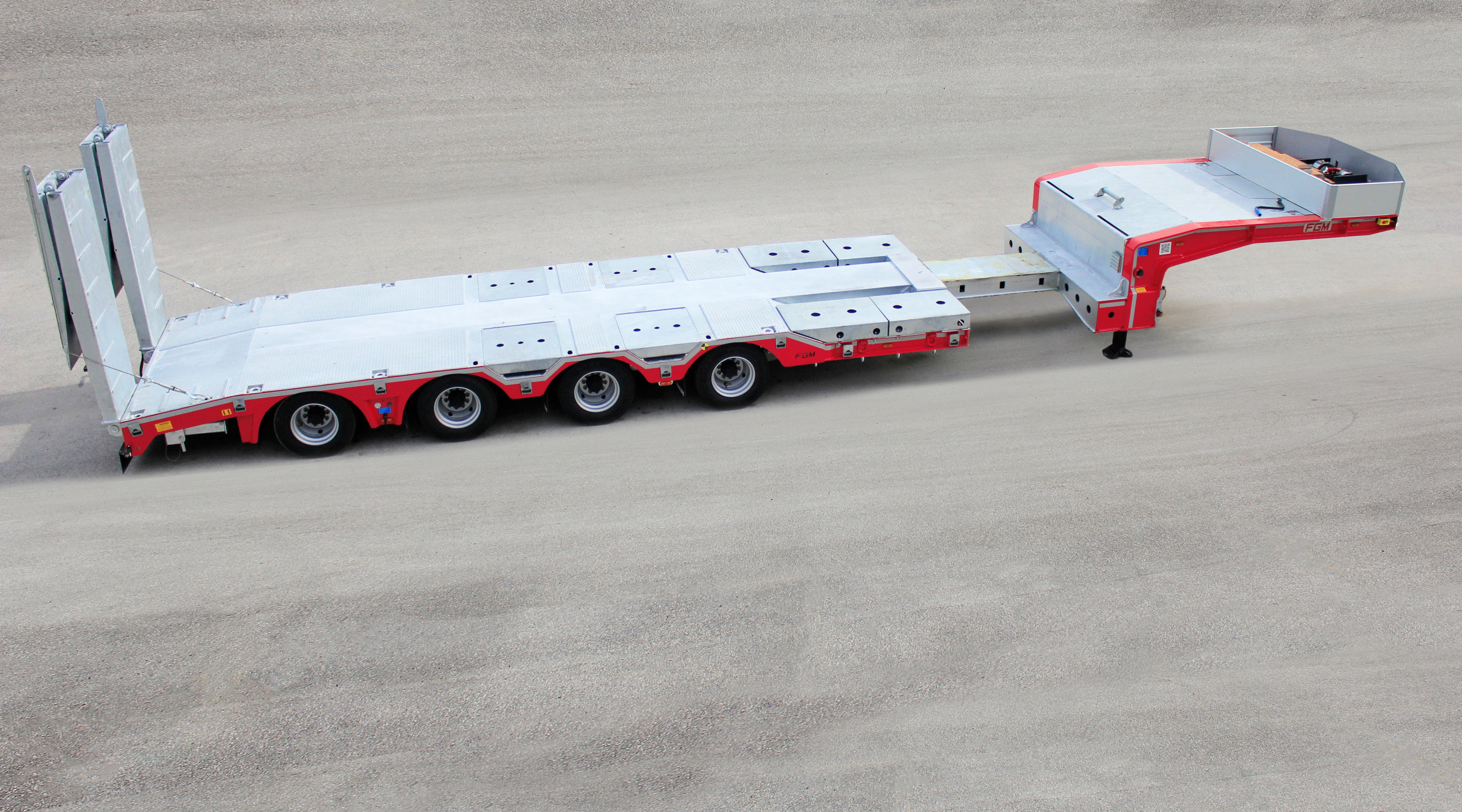

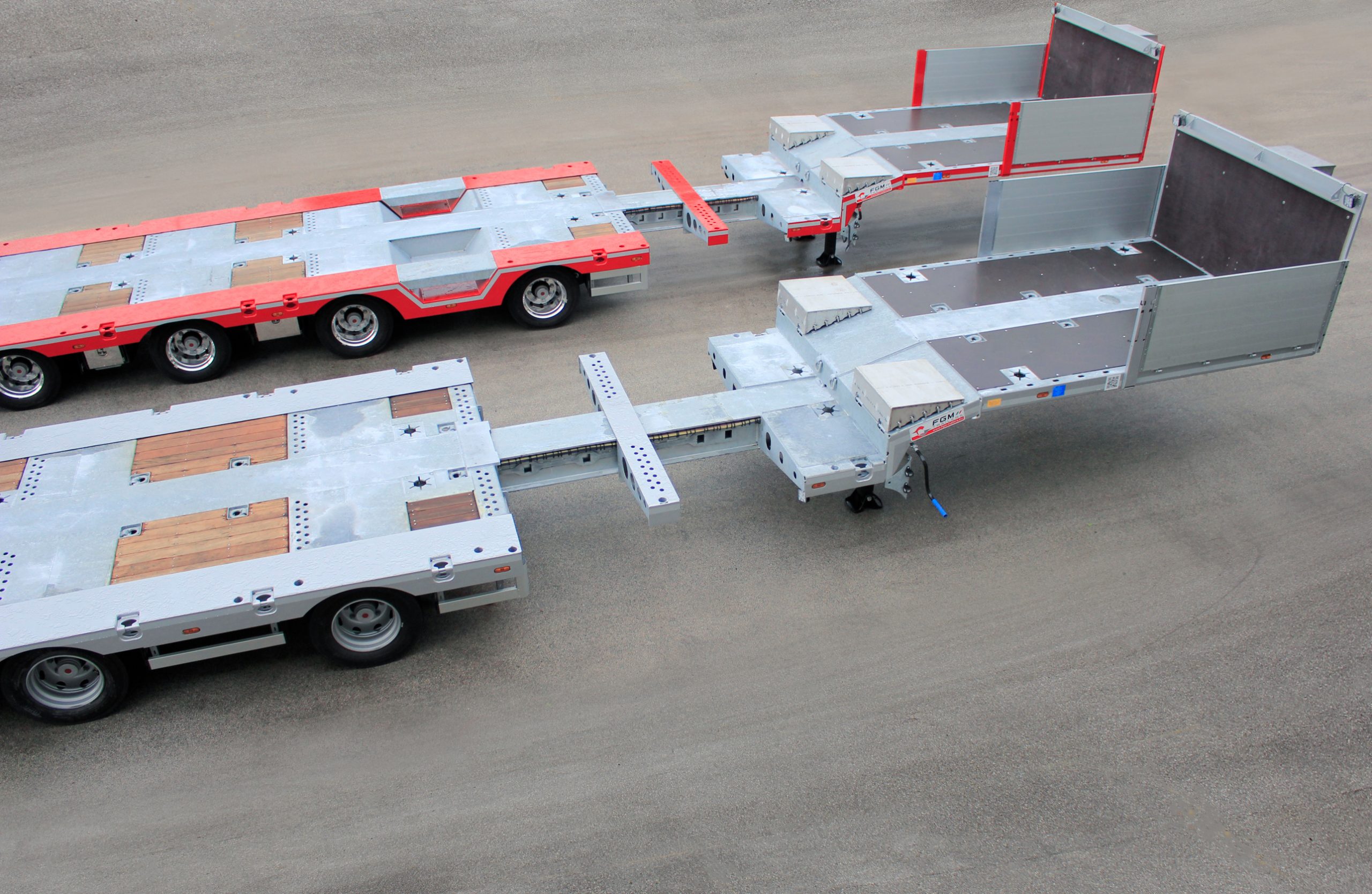

| Chassis | Extendable chassis, Fixed chassis |
| Surface Treatment | Hot-dip galvanized chassis, Painting job in RAL color requested, included |
