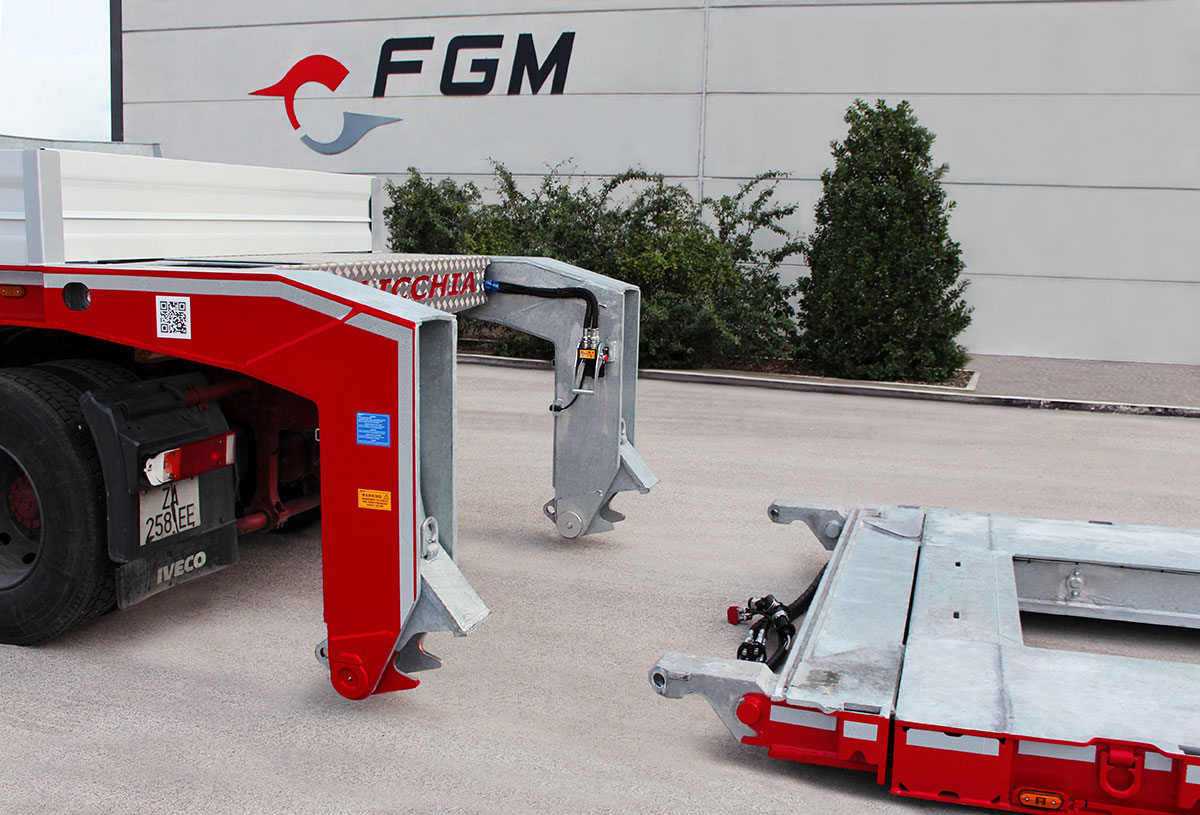

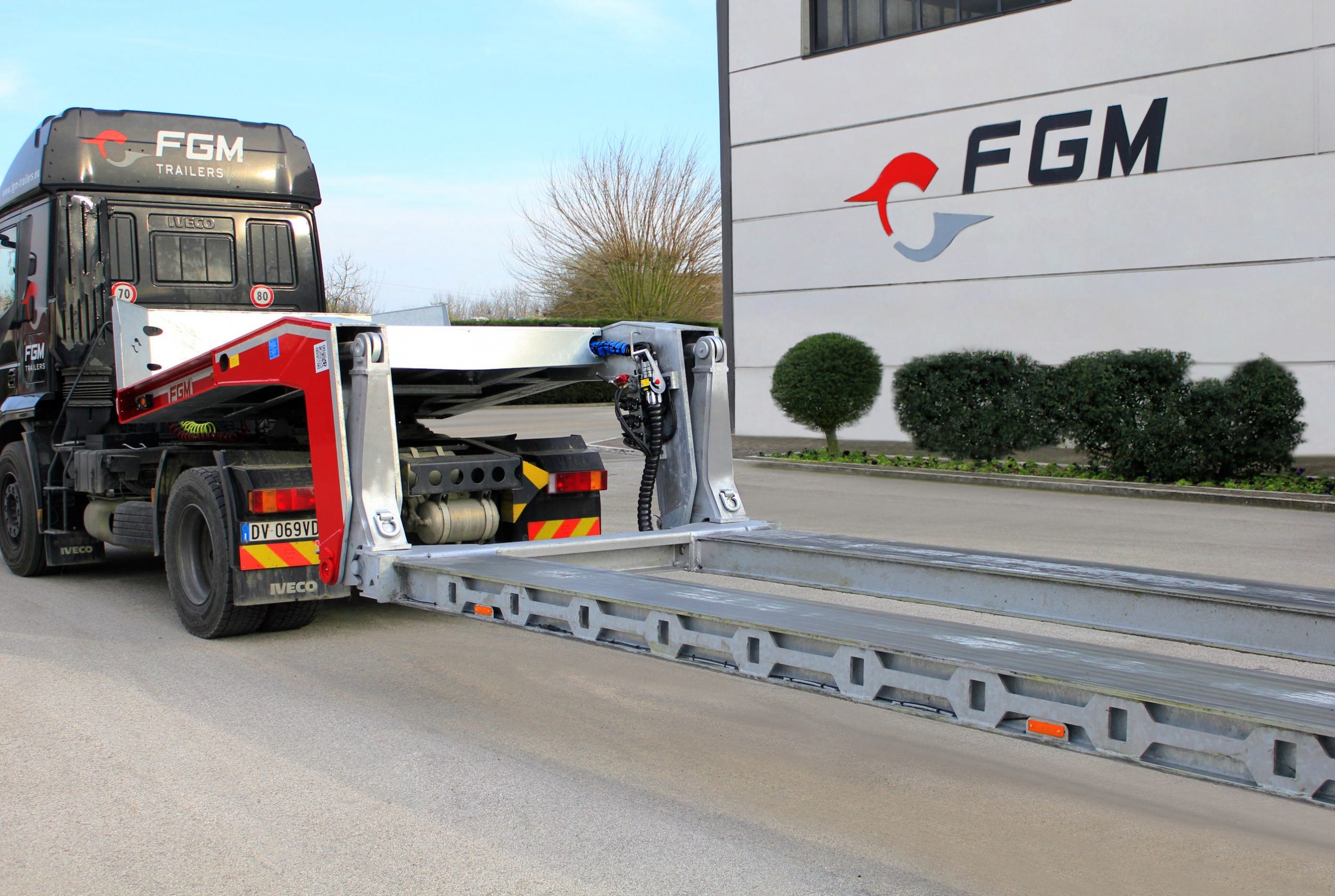

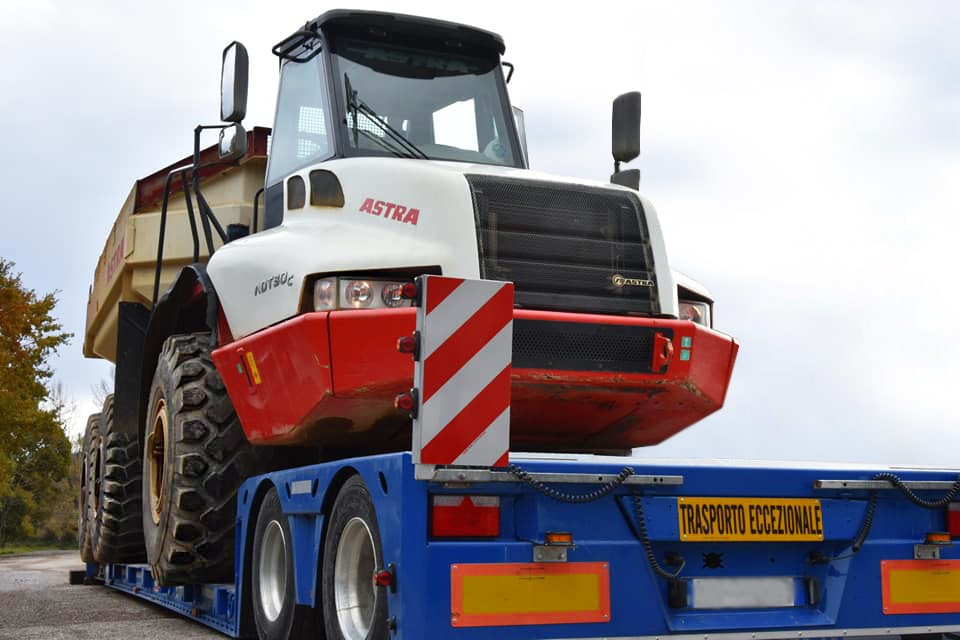

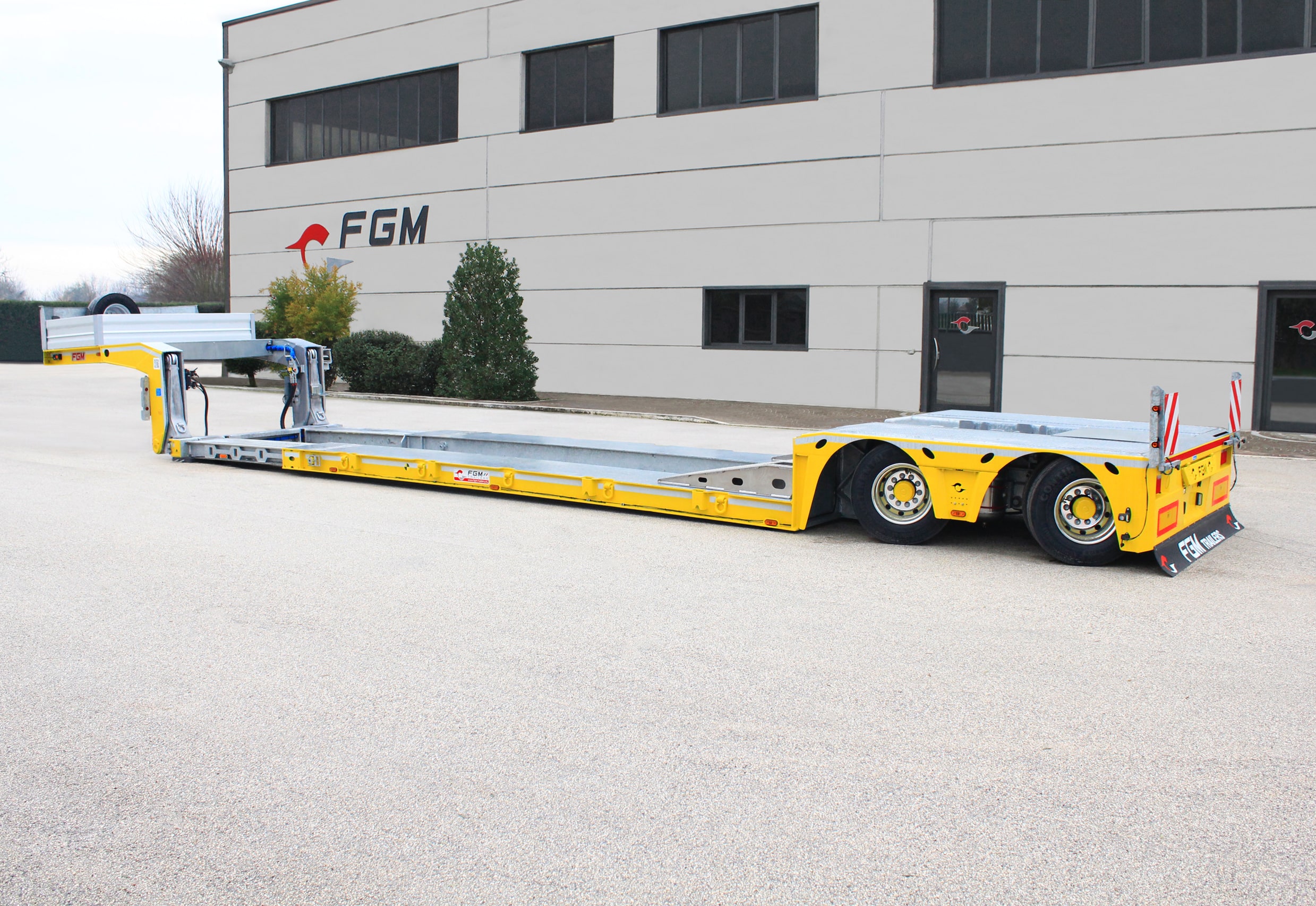

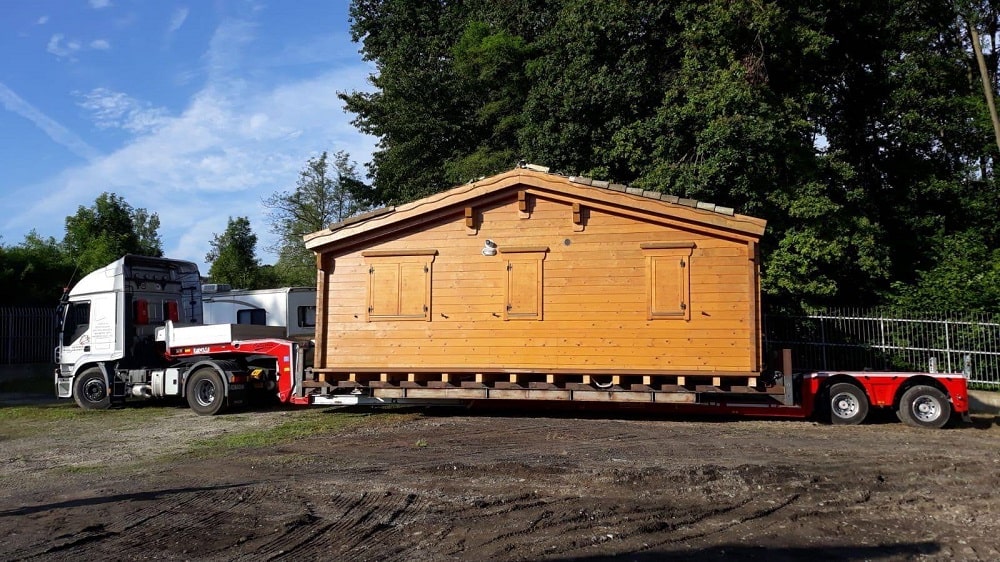

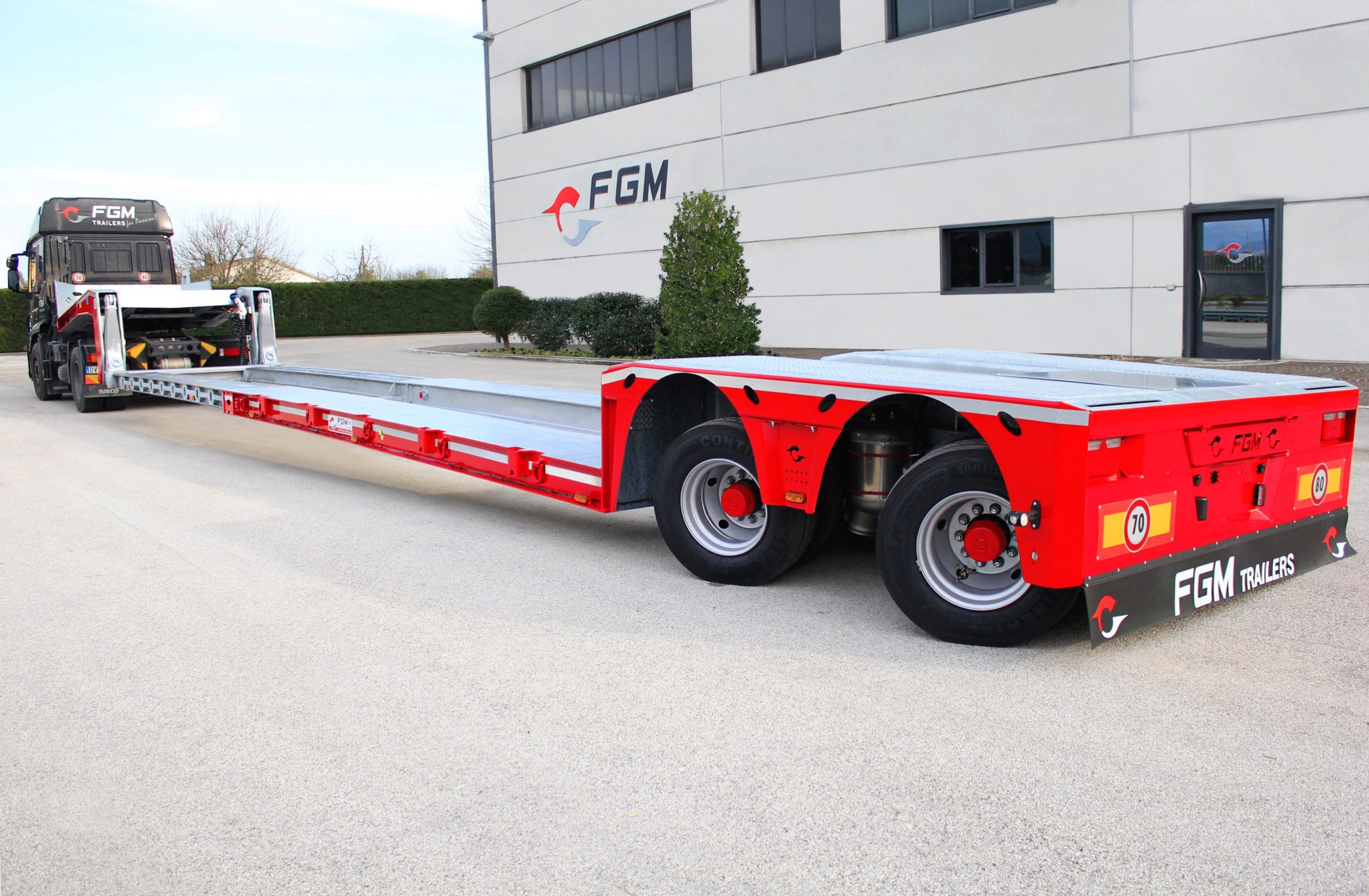

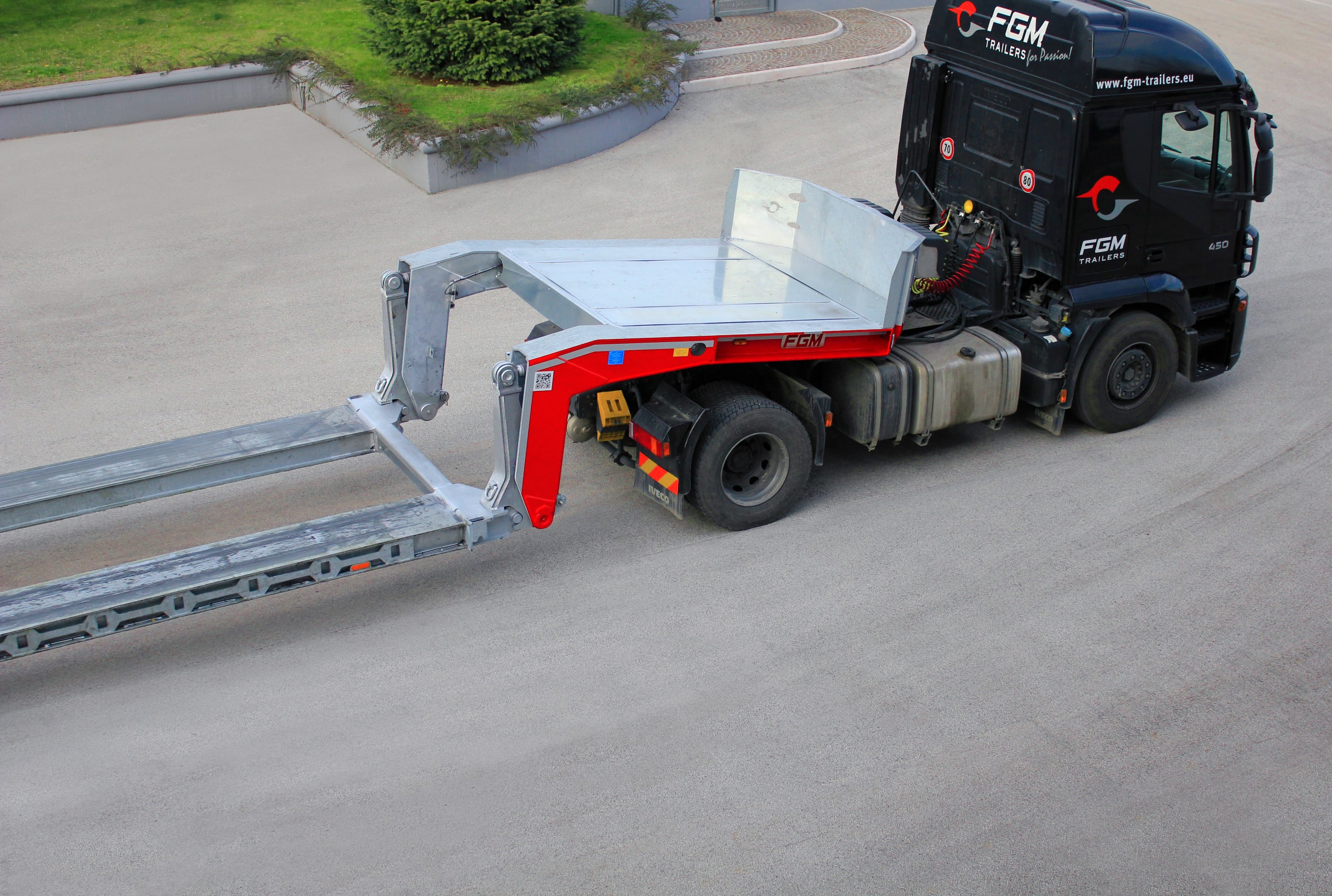

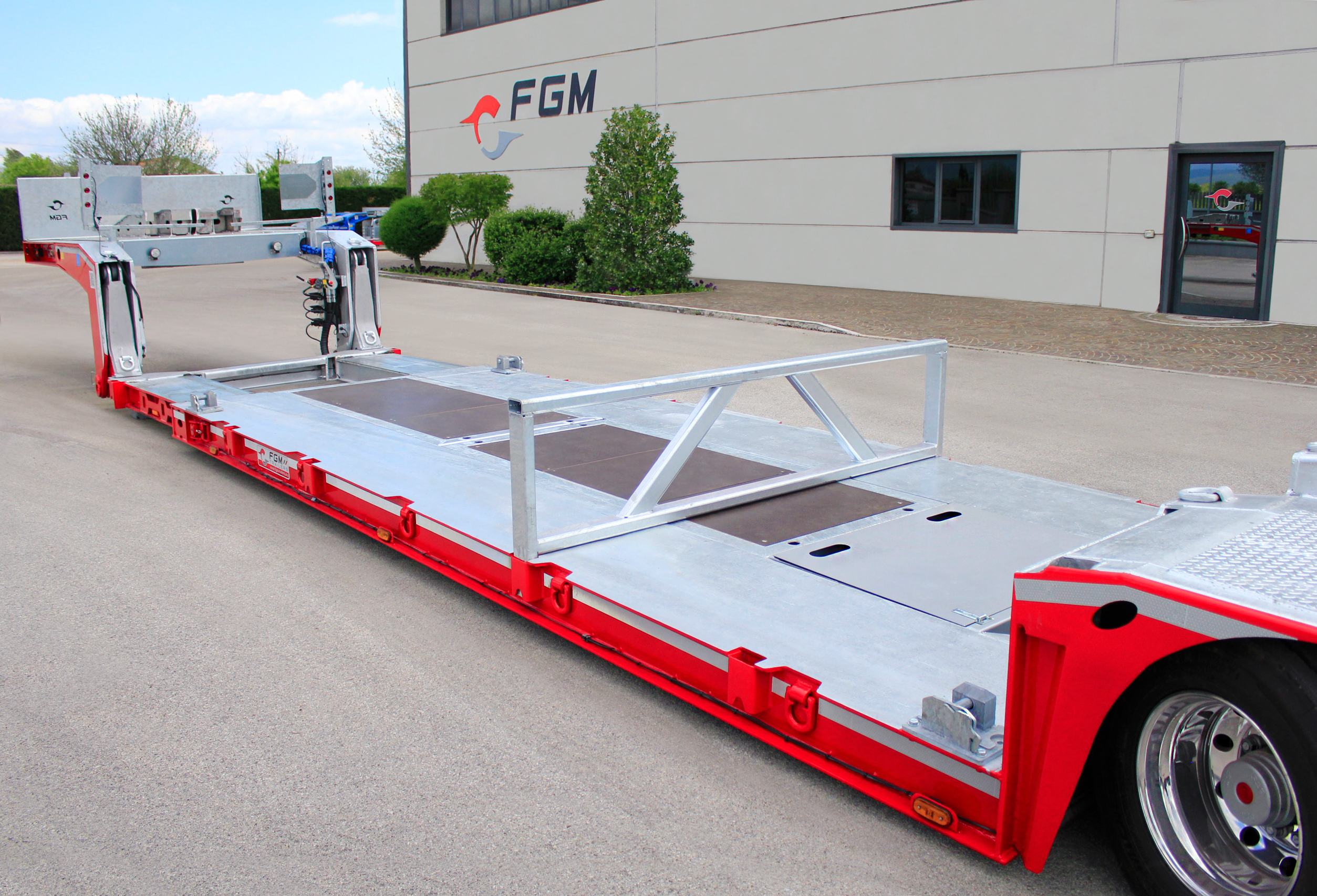

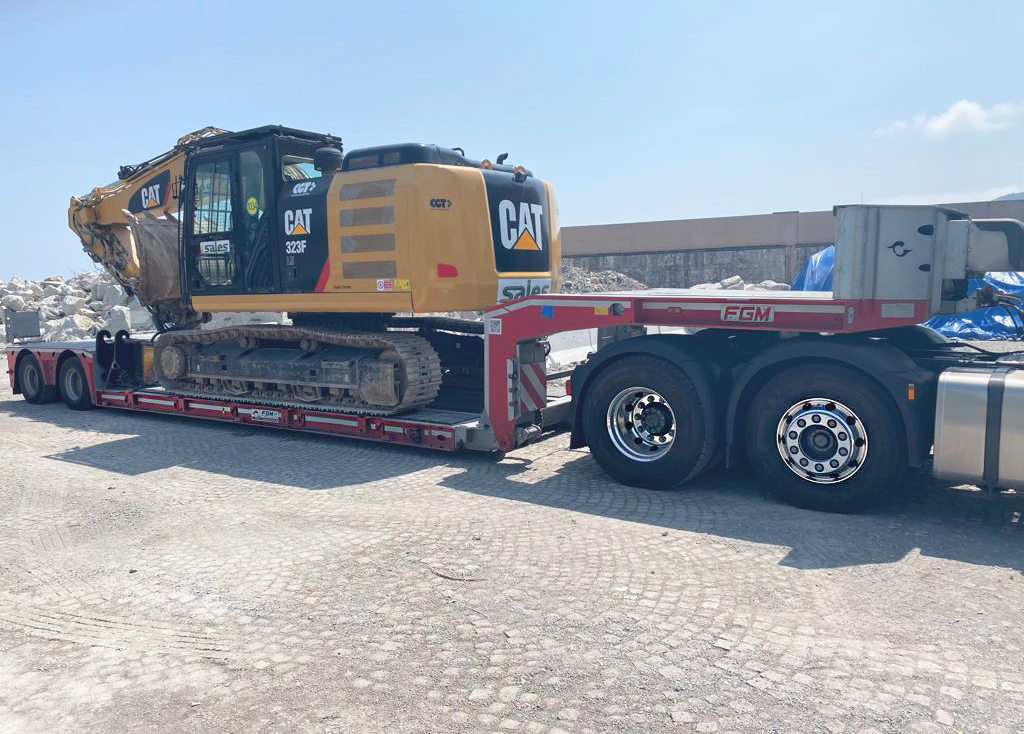

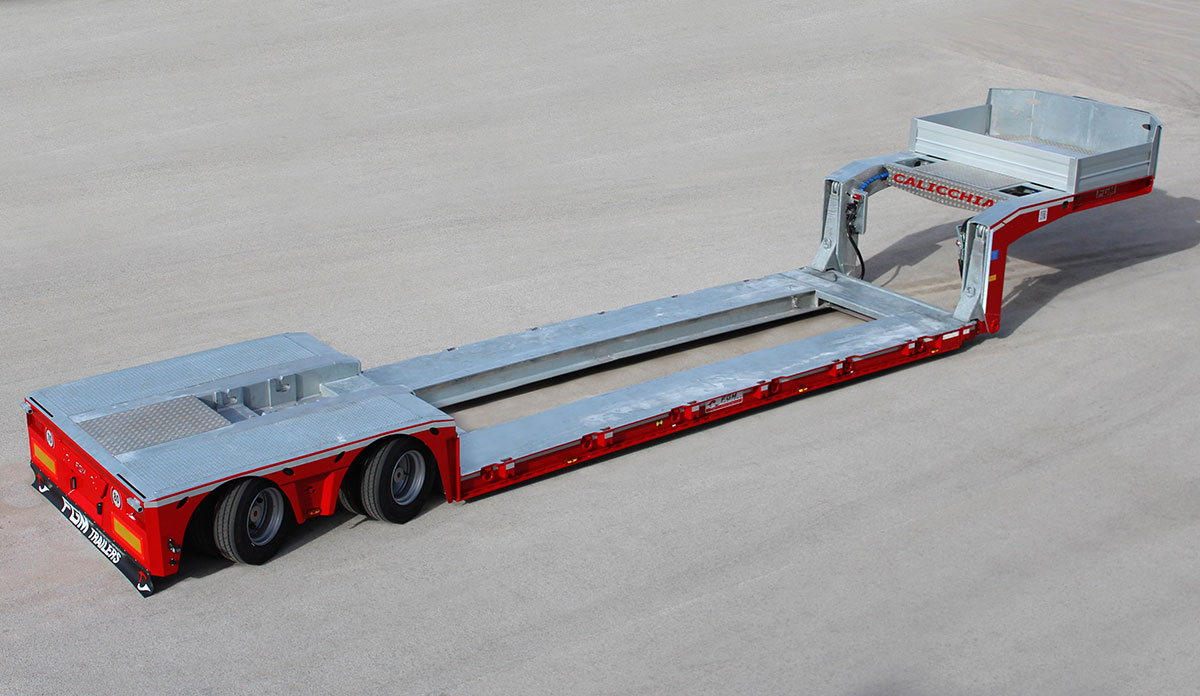

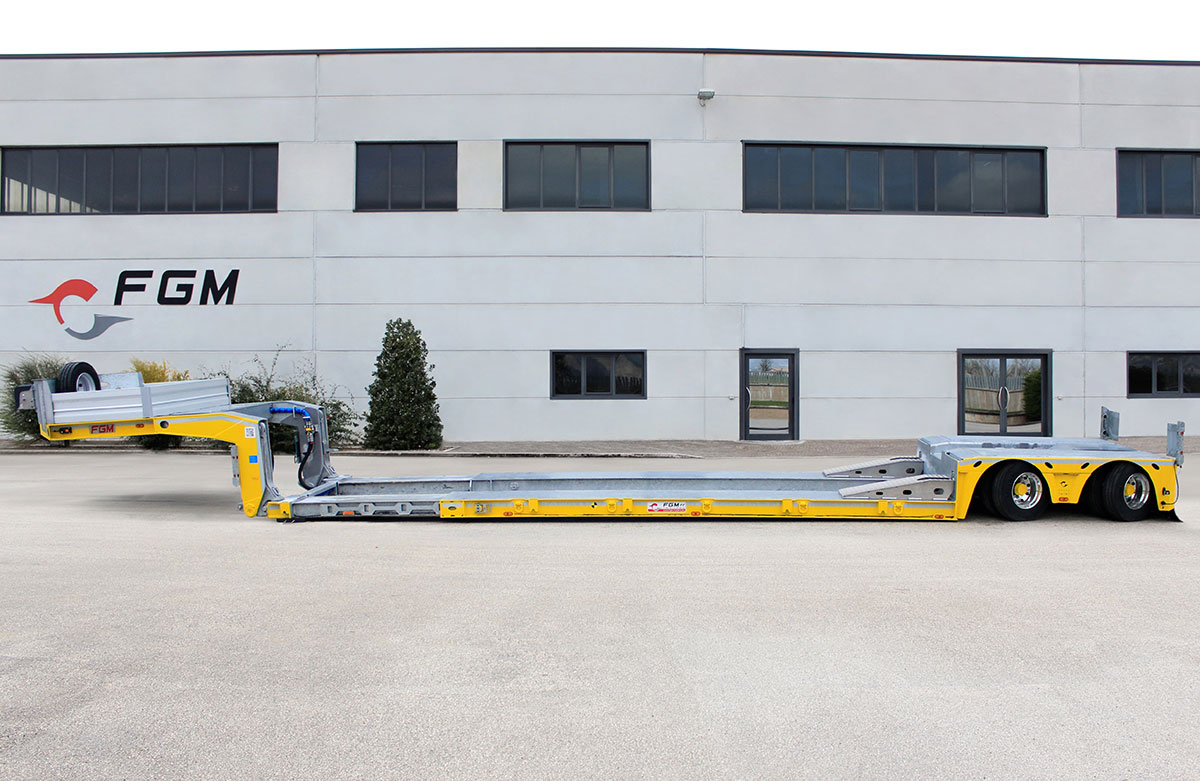

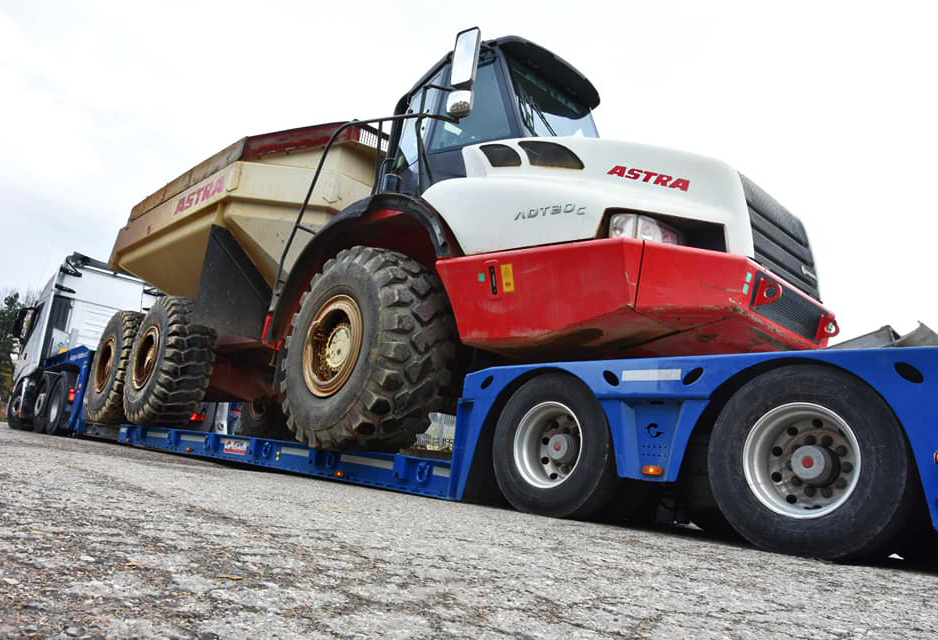

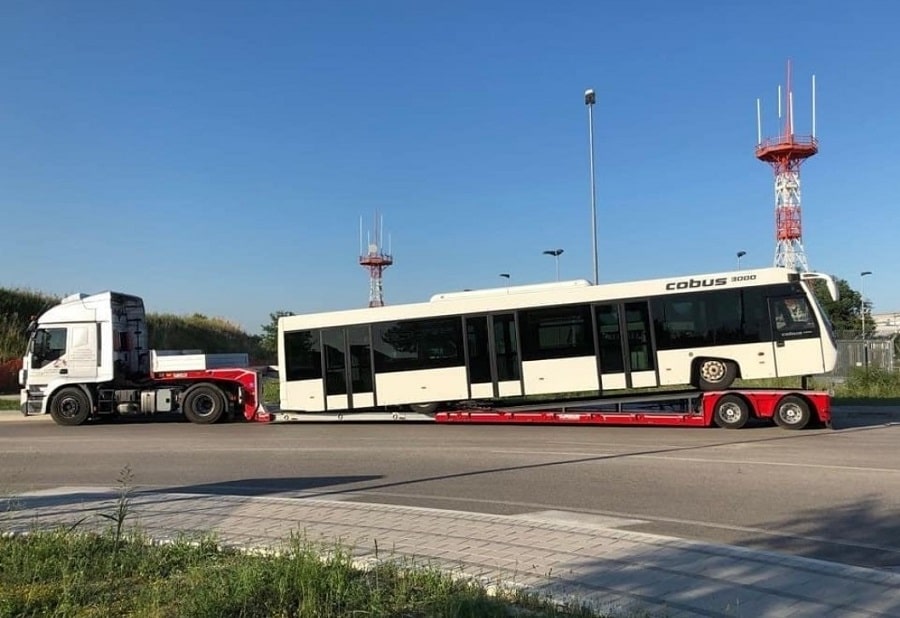

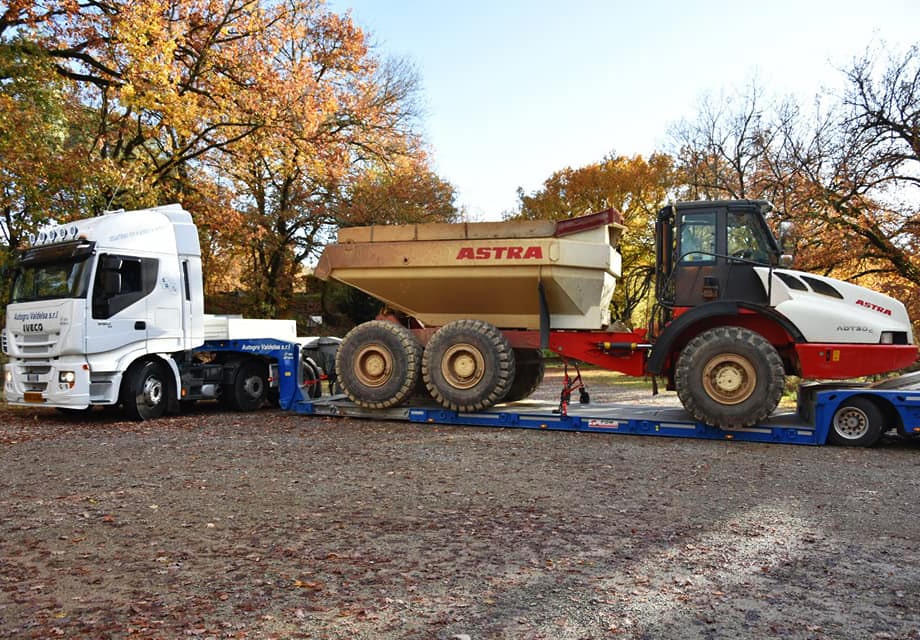

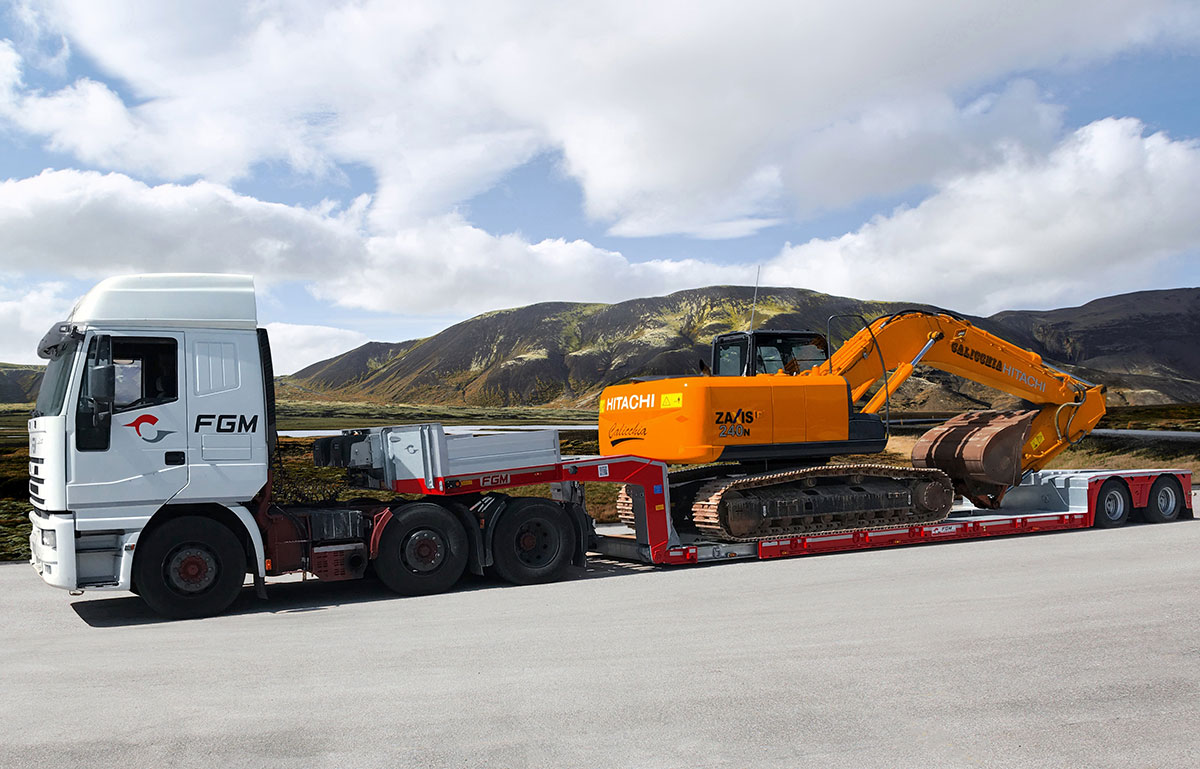

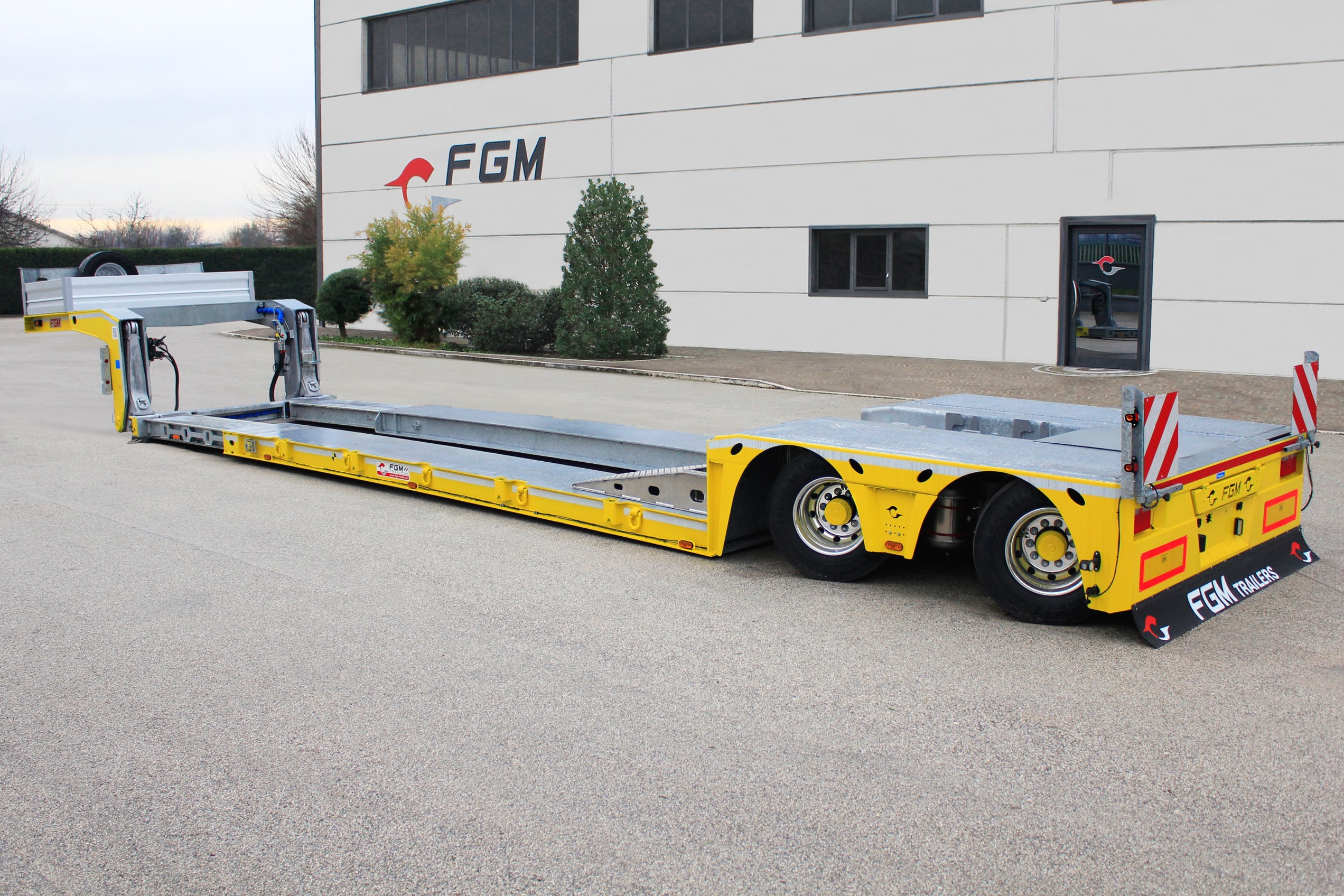

The FGM 35 AF is the perfect solution for the transport of heavy machinery and earthmoving equipment. The model main characteristics are: detachable gooseneck, telescopic chassis and Tridec Tritronic hydraulic steering system facilitated by remote control. The trailer is available in different configurations all designed for a wide range of transport tasks such as the transport of: boats and industrial components.
Maximum fifth wheel load: 18.000 kg
Loading height: 310 mm
Tires: 245/70 r 17.5
Tire load: 10.300 kg at 100 km/h

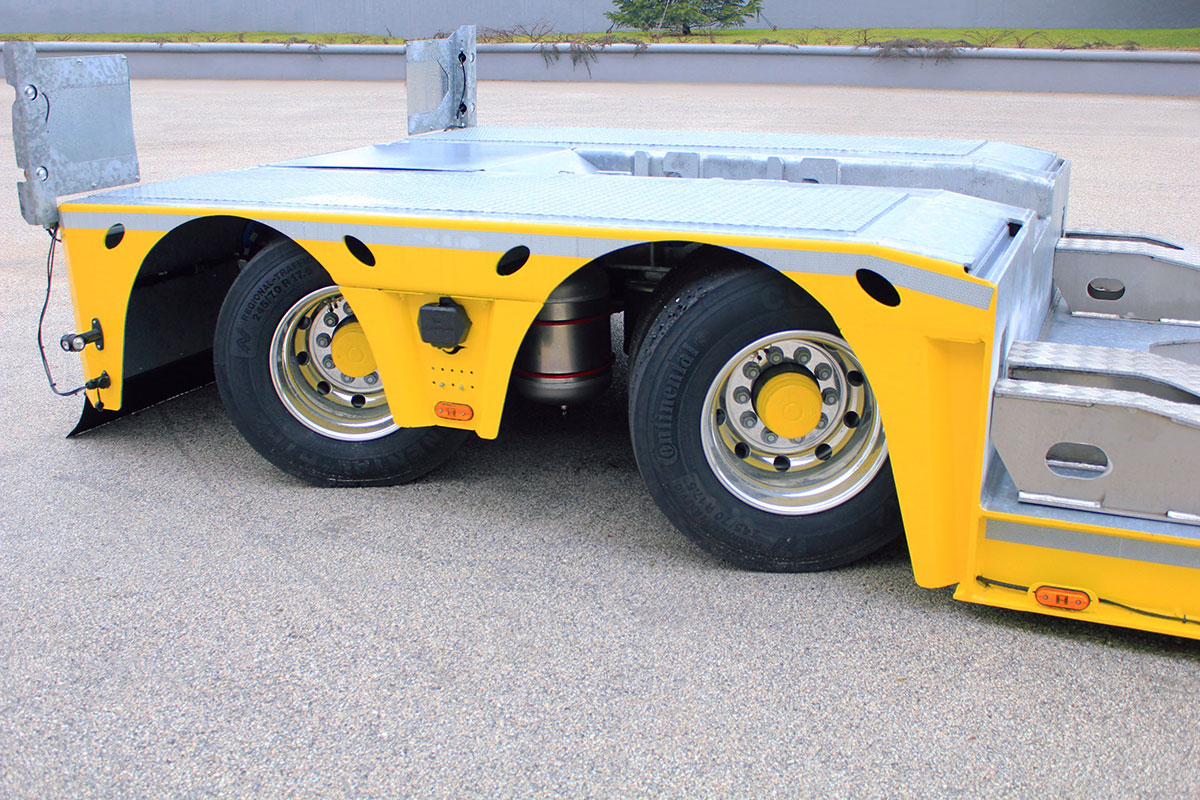

N.2 Axle SAF, 12-ton, drum brakes

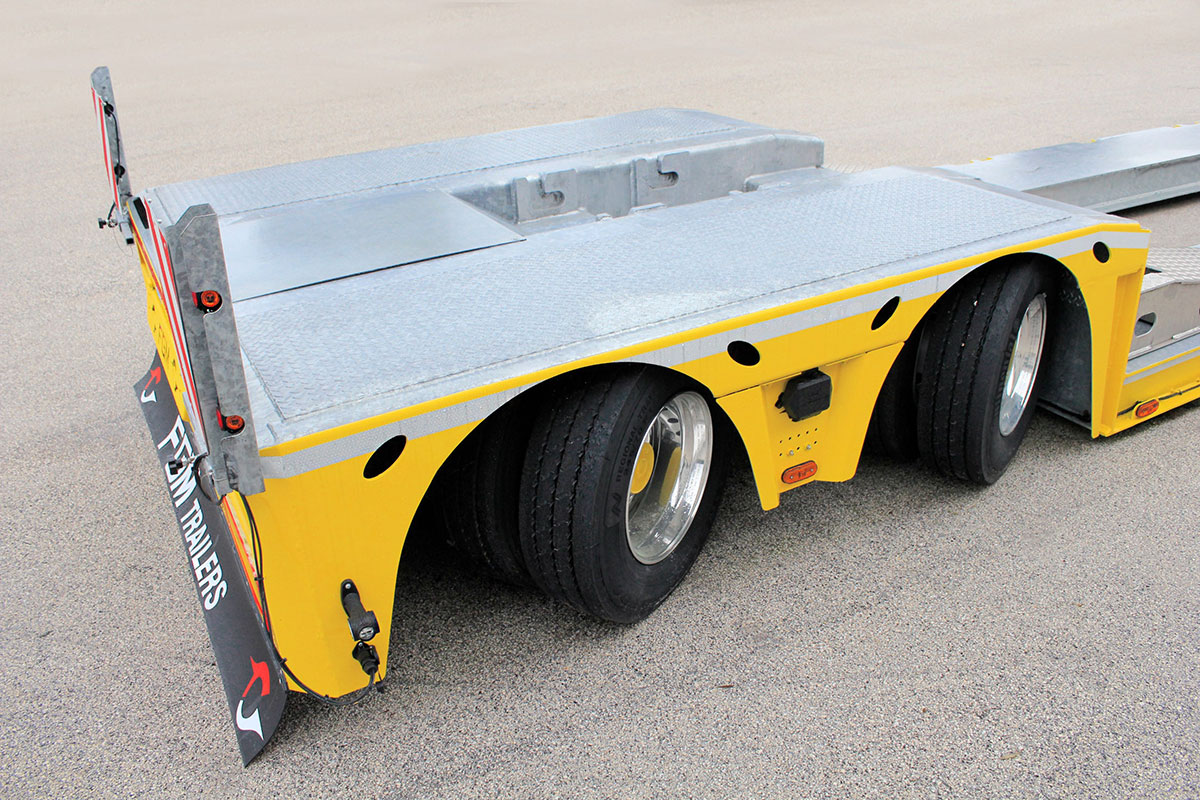

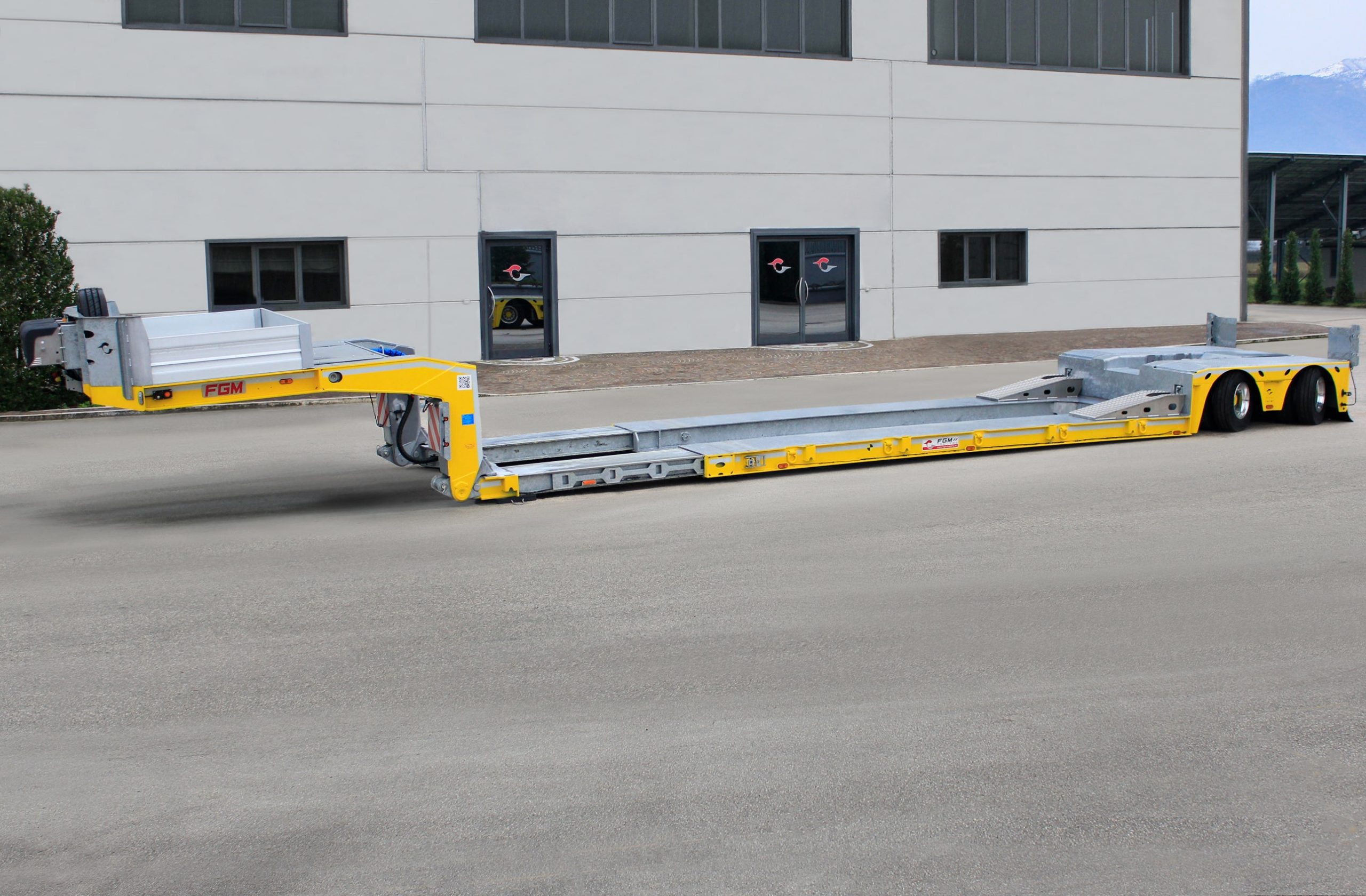

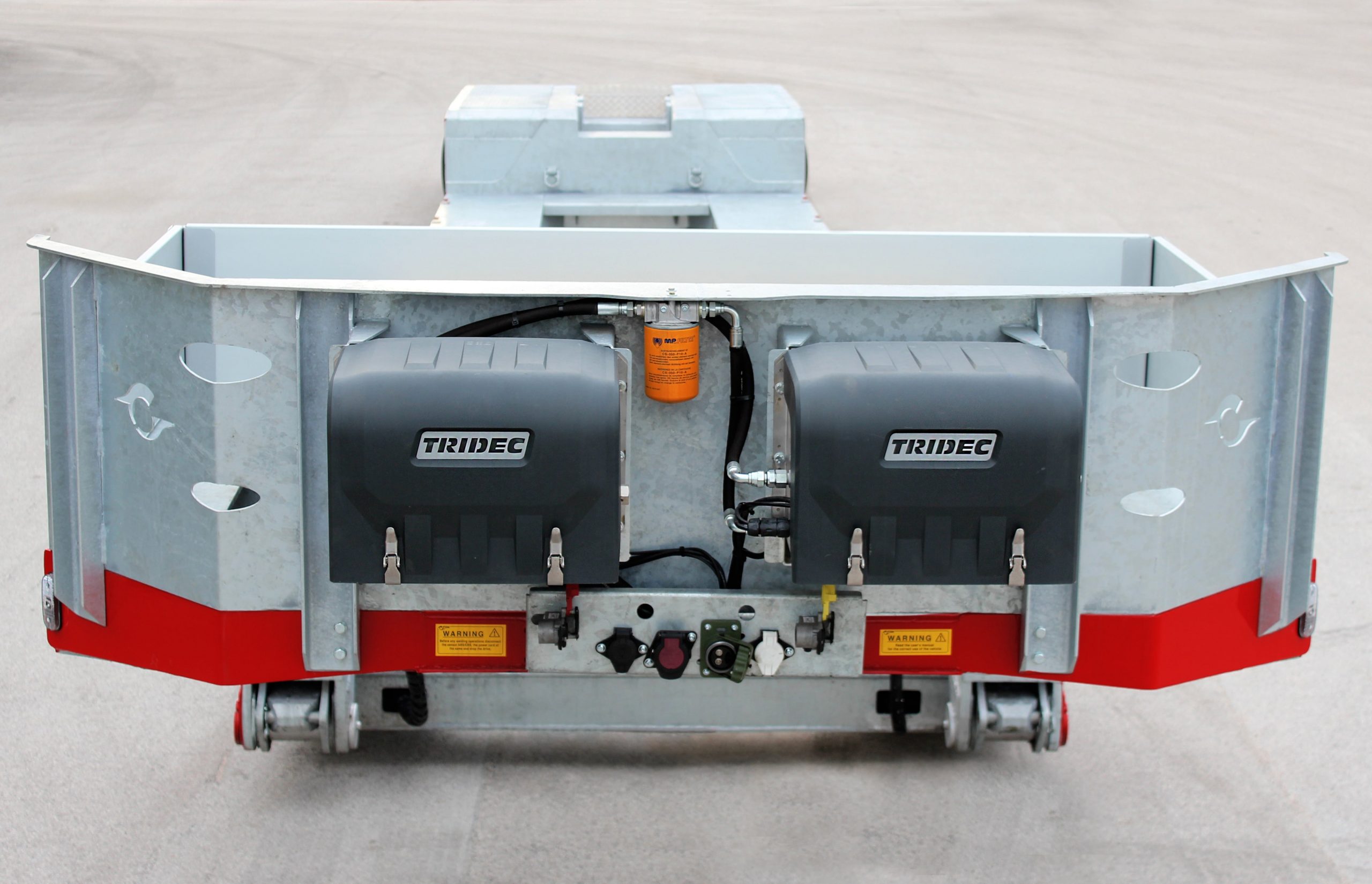

Tridec Tritronic KIT
Braking system Knorr Bremse
LED Electric system Aspoek
STENX 700 steel chassis
Hot-dip galvanizing surface treatment

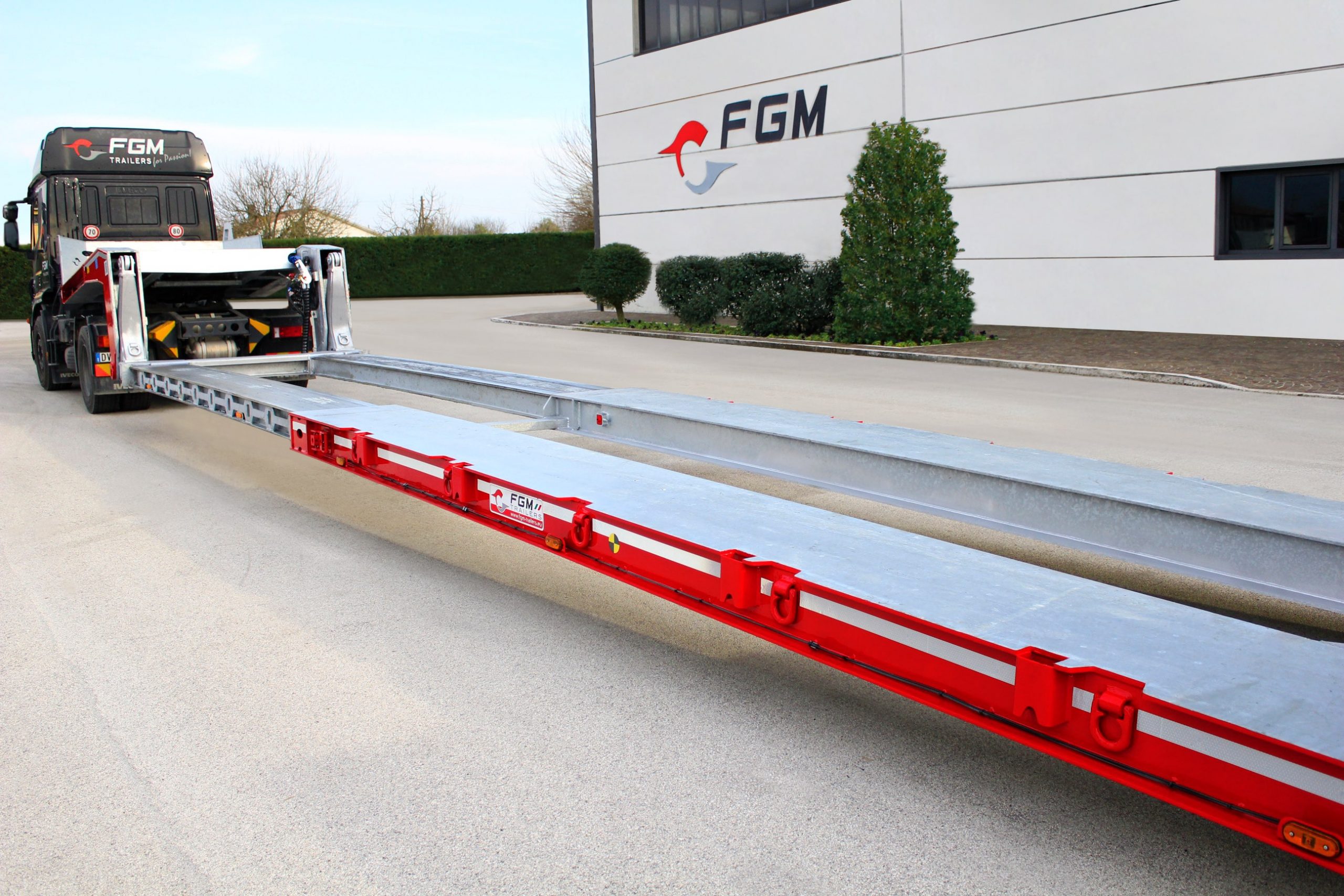

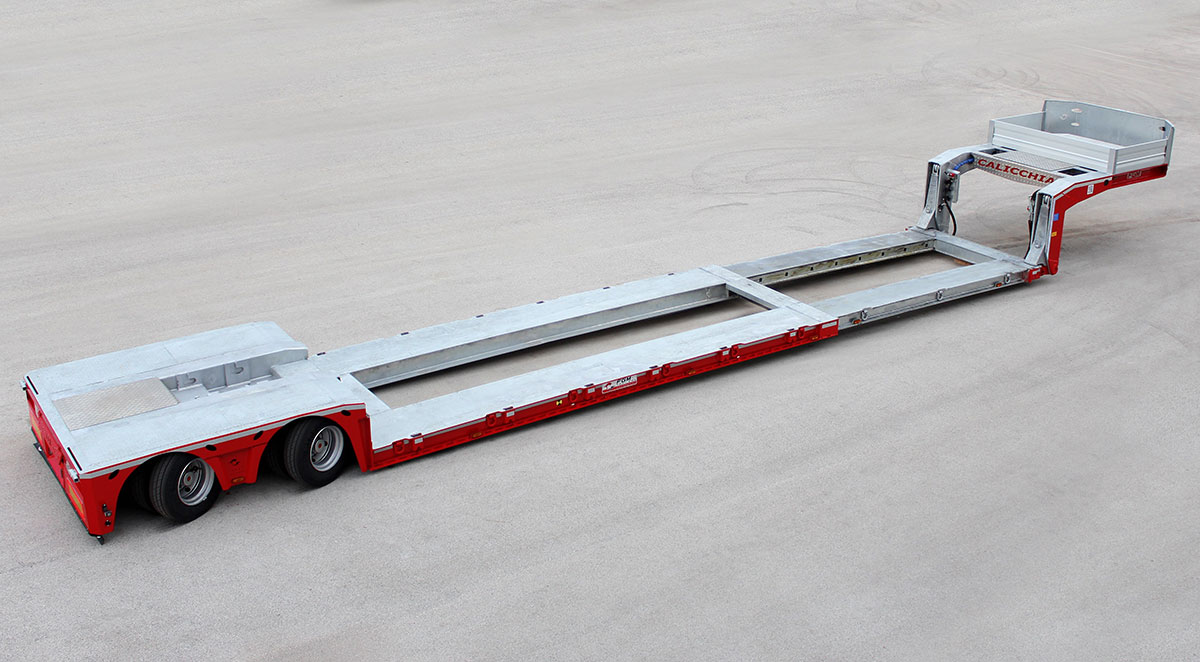

55000 mm telescopic chassis
Certified lashing rings

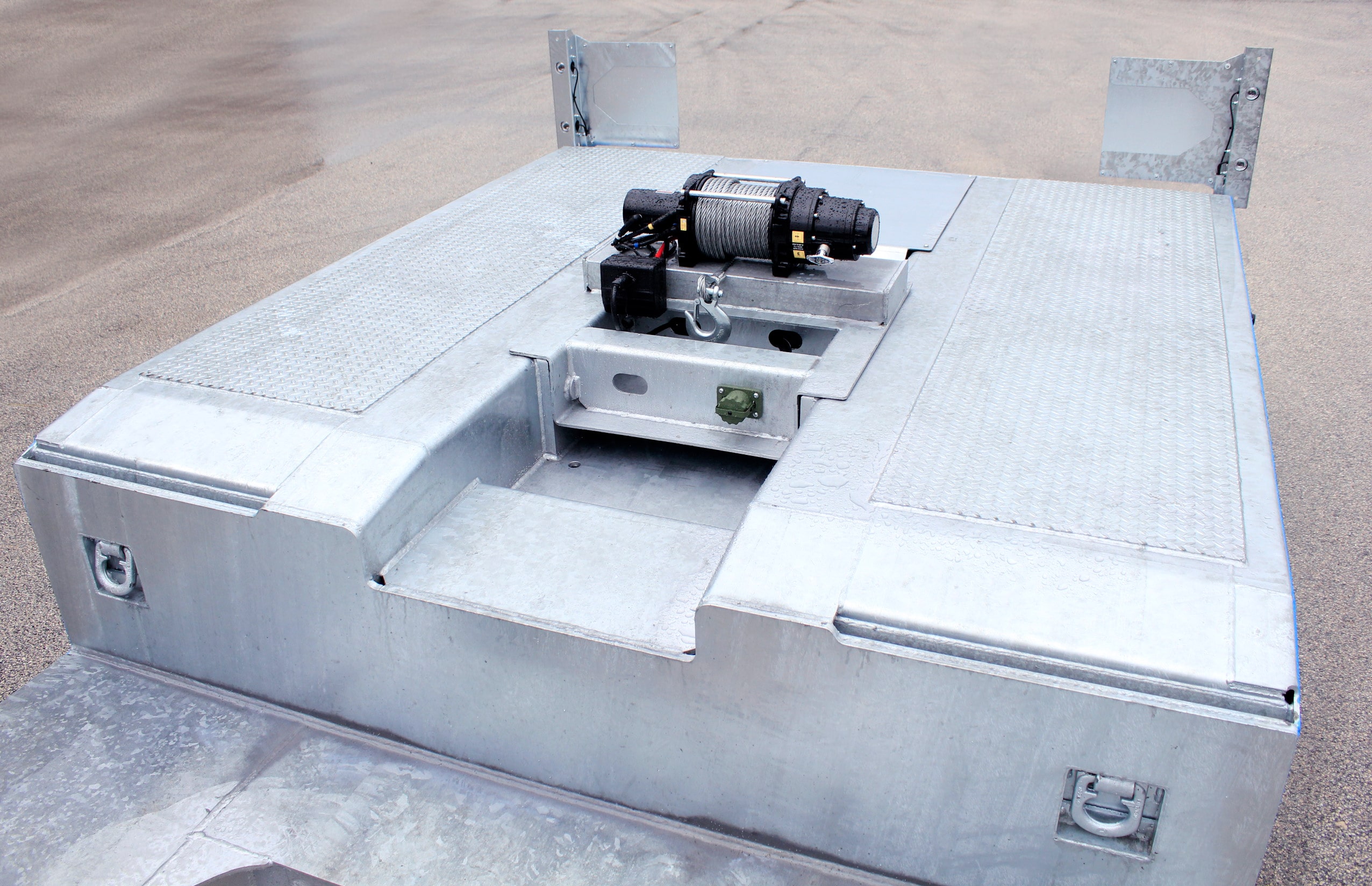

| Available Accessories | Alcoa Dura Bright Aluminum Rims, Electric winch, 8.000 Kg, Extra tire Kit, Lateral outriggers Kit, LED Working light, Orange Flashing Beacon, Semitrailer with customized dimensions, Speedline Aluminum Rims |
|---|---|
| Axles | 11-ton SAF, drum brakes |

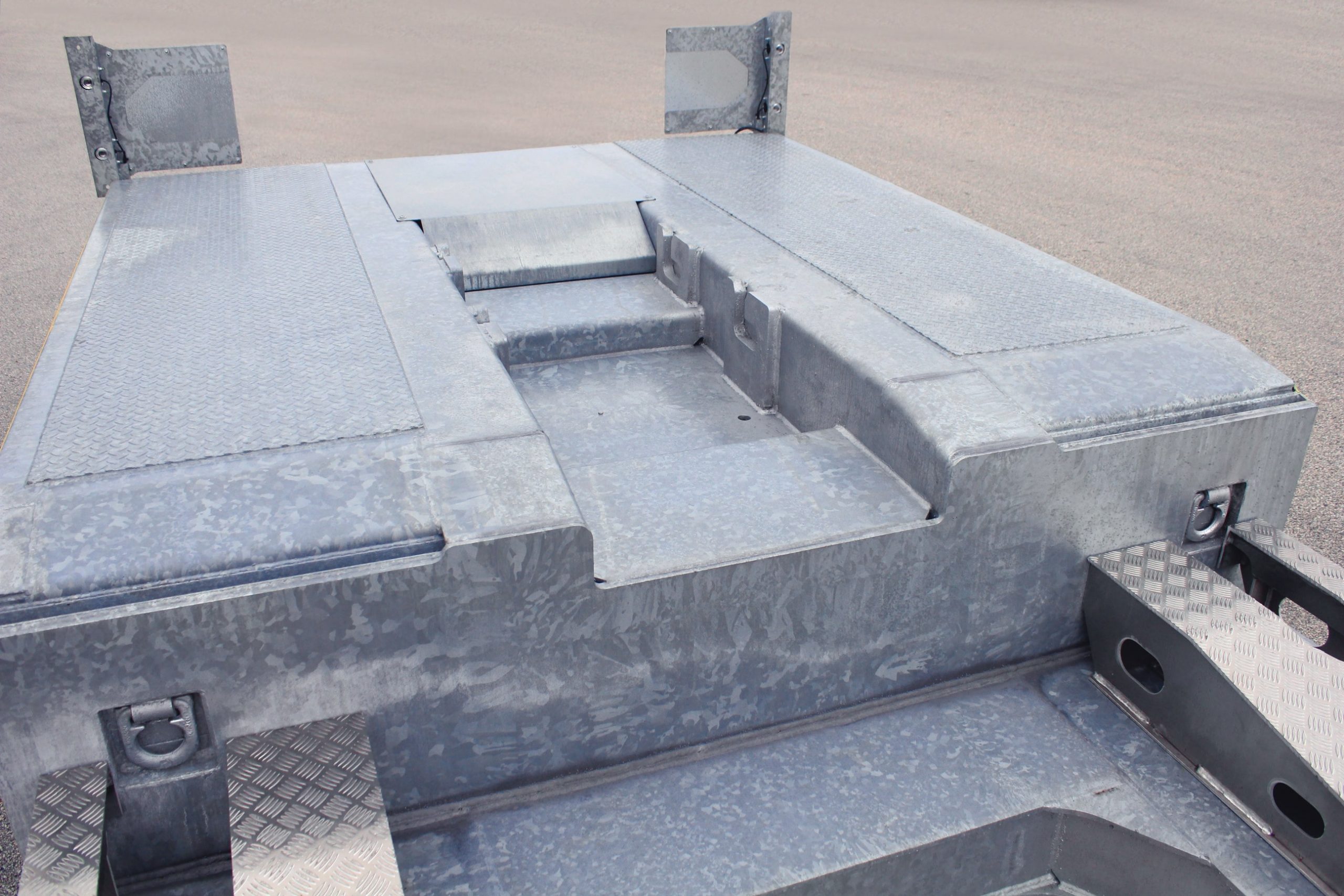

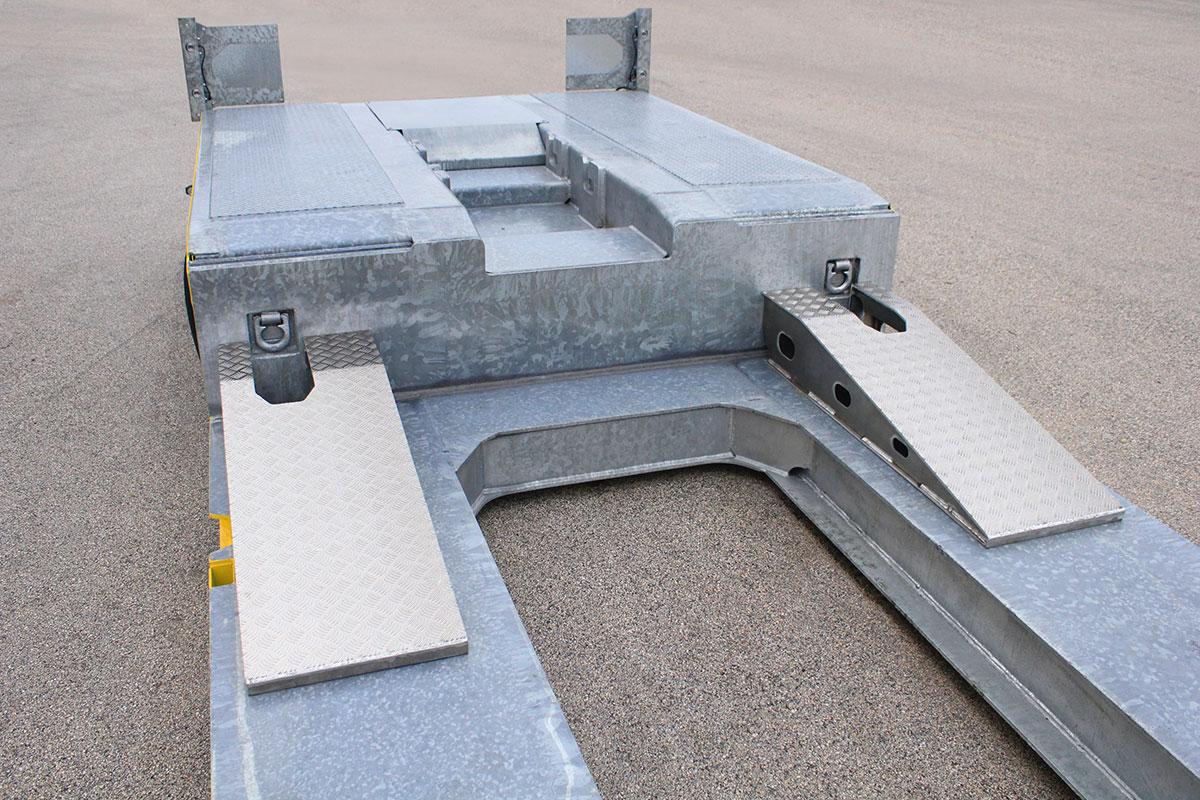

| Ramp type | Aluminum manual ramps |

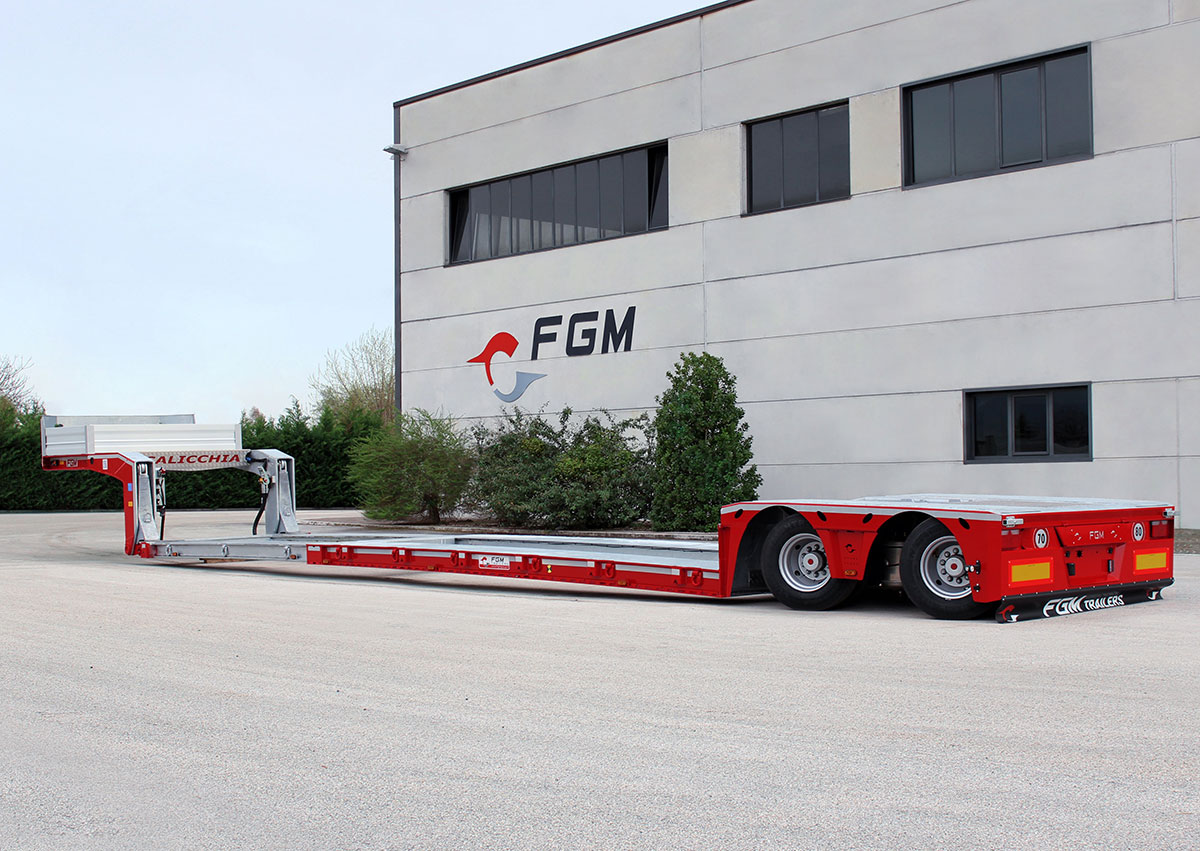

| Chassis | 5.580 mm telescopic extension, Additional extension of 3500 mm |
| Surface Treatment | Hot-dip galvanized chassis treatment, Painting job in RAL color requested, included |
