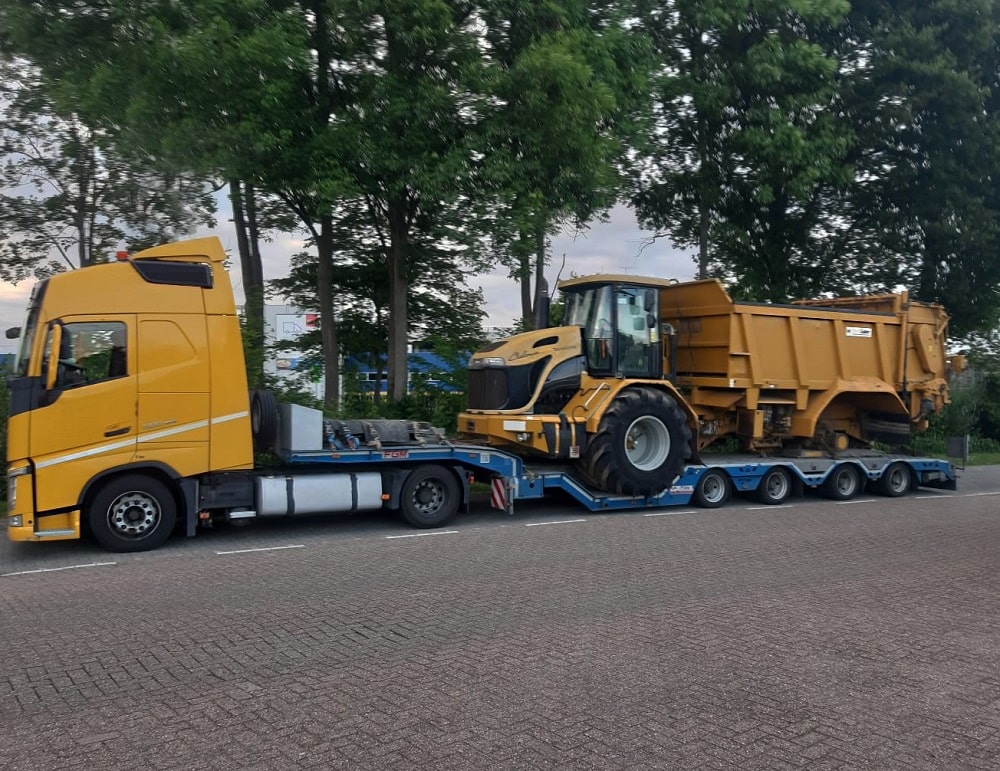

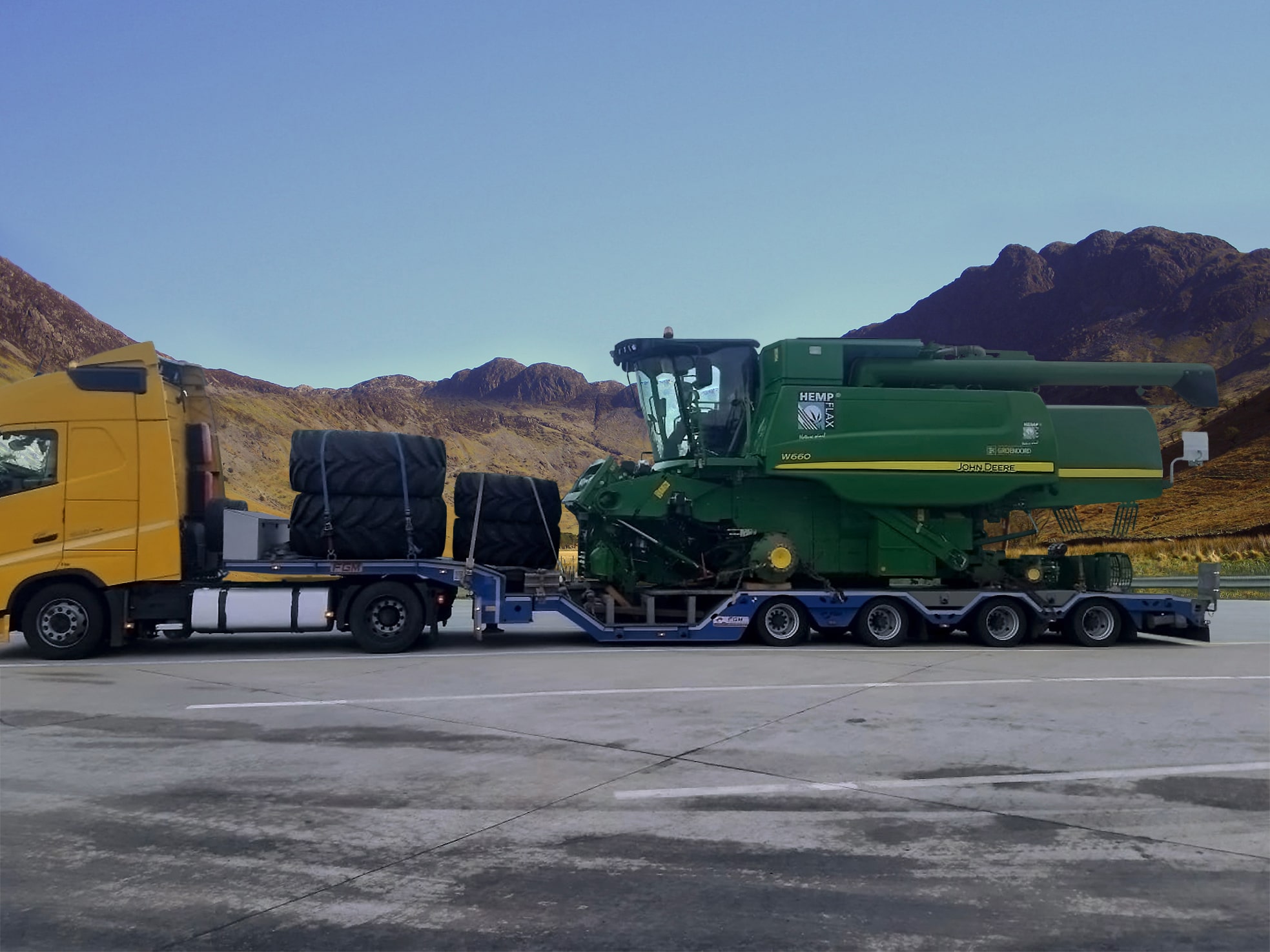

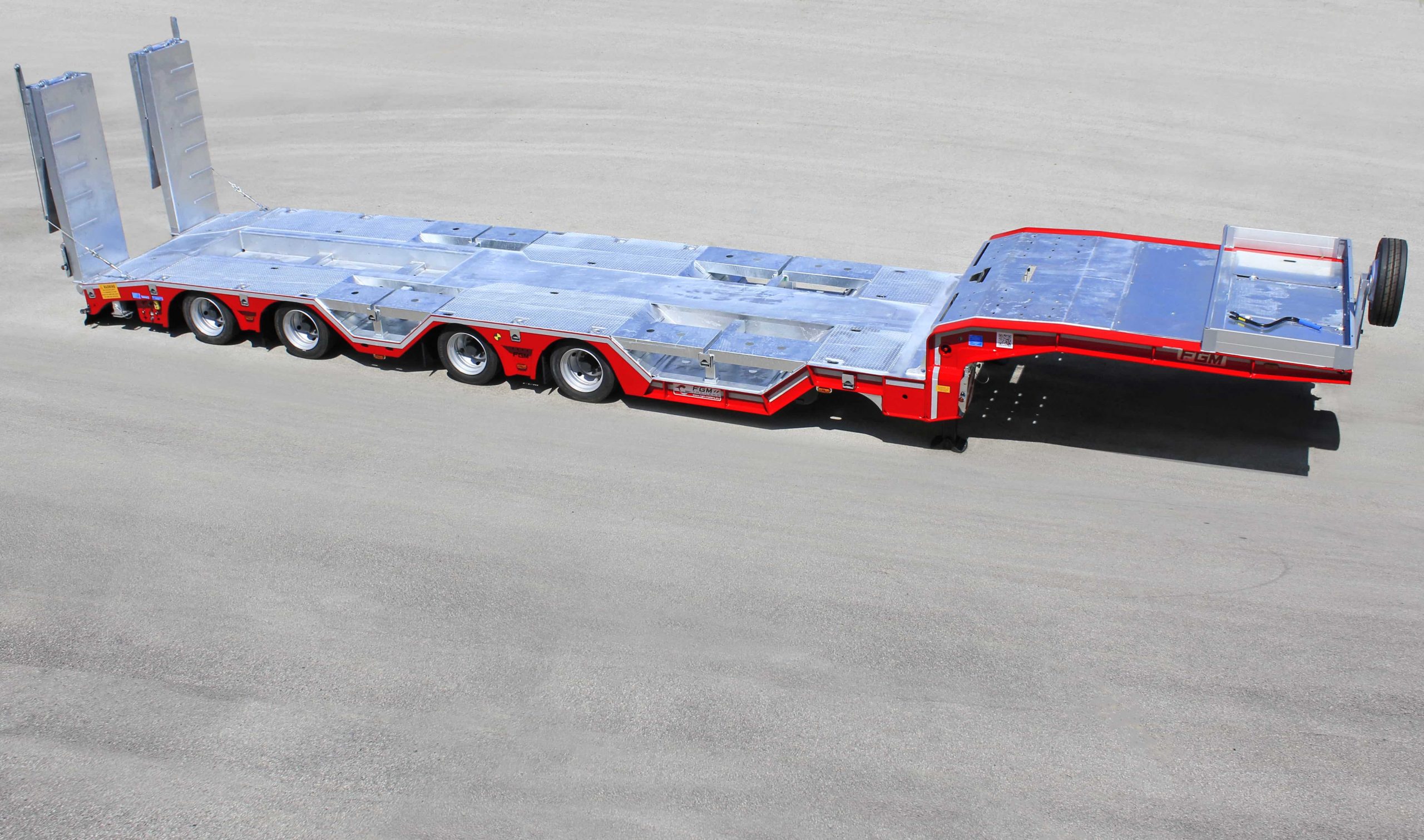

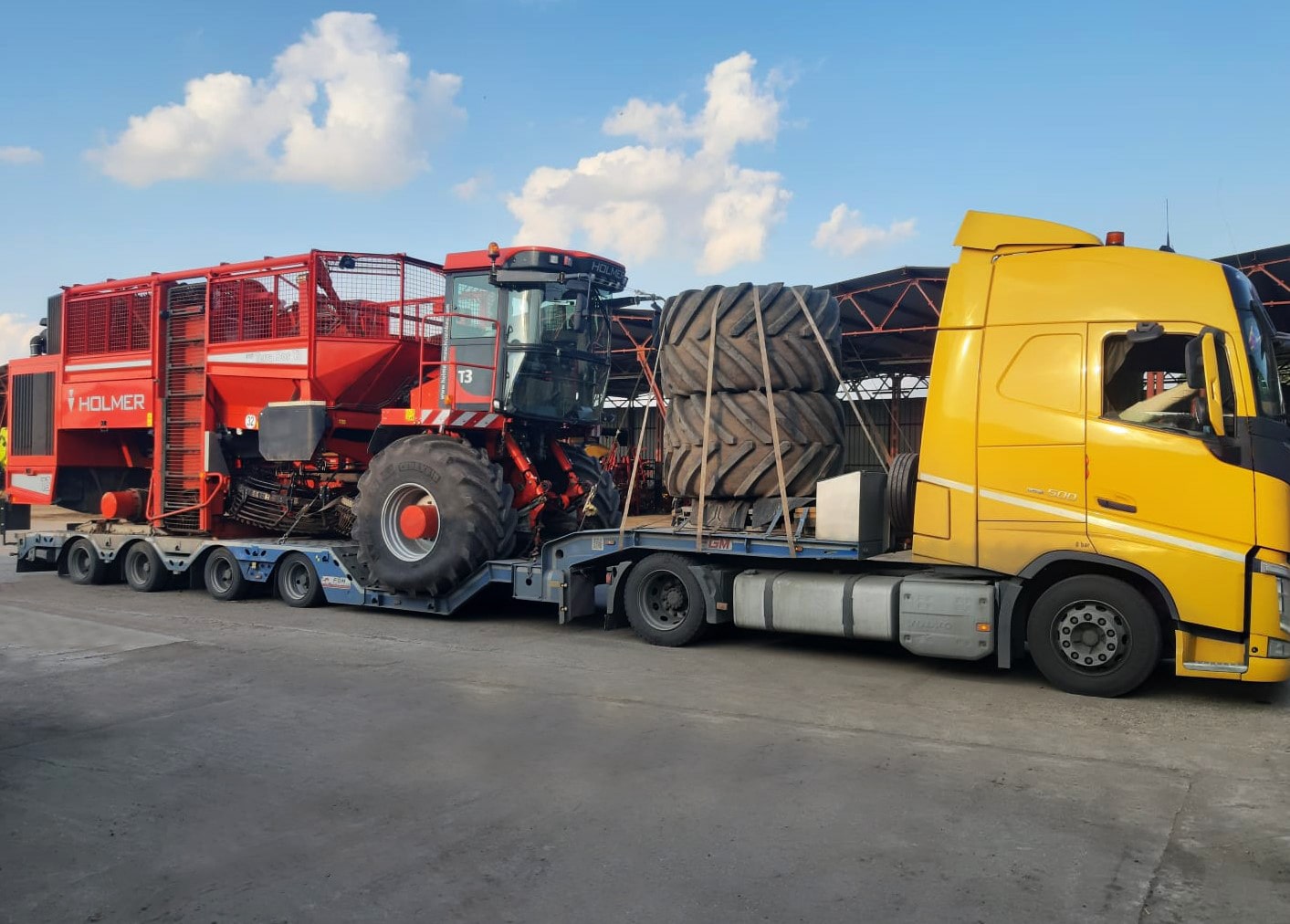

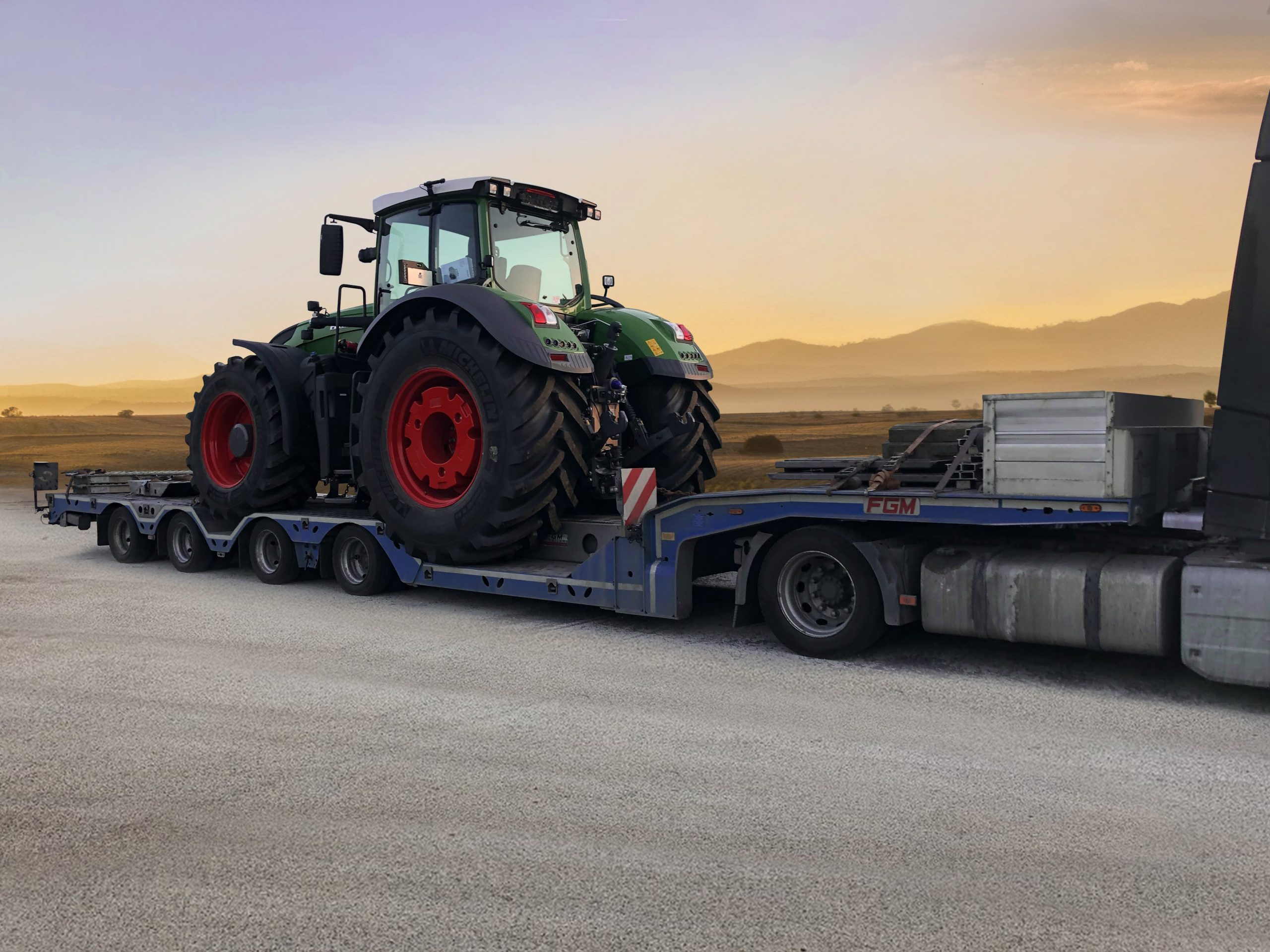

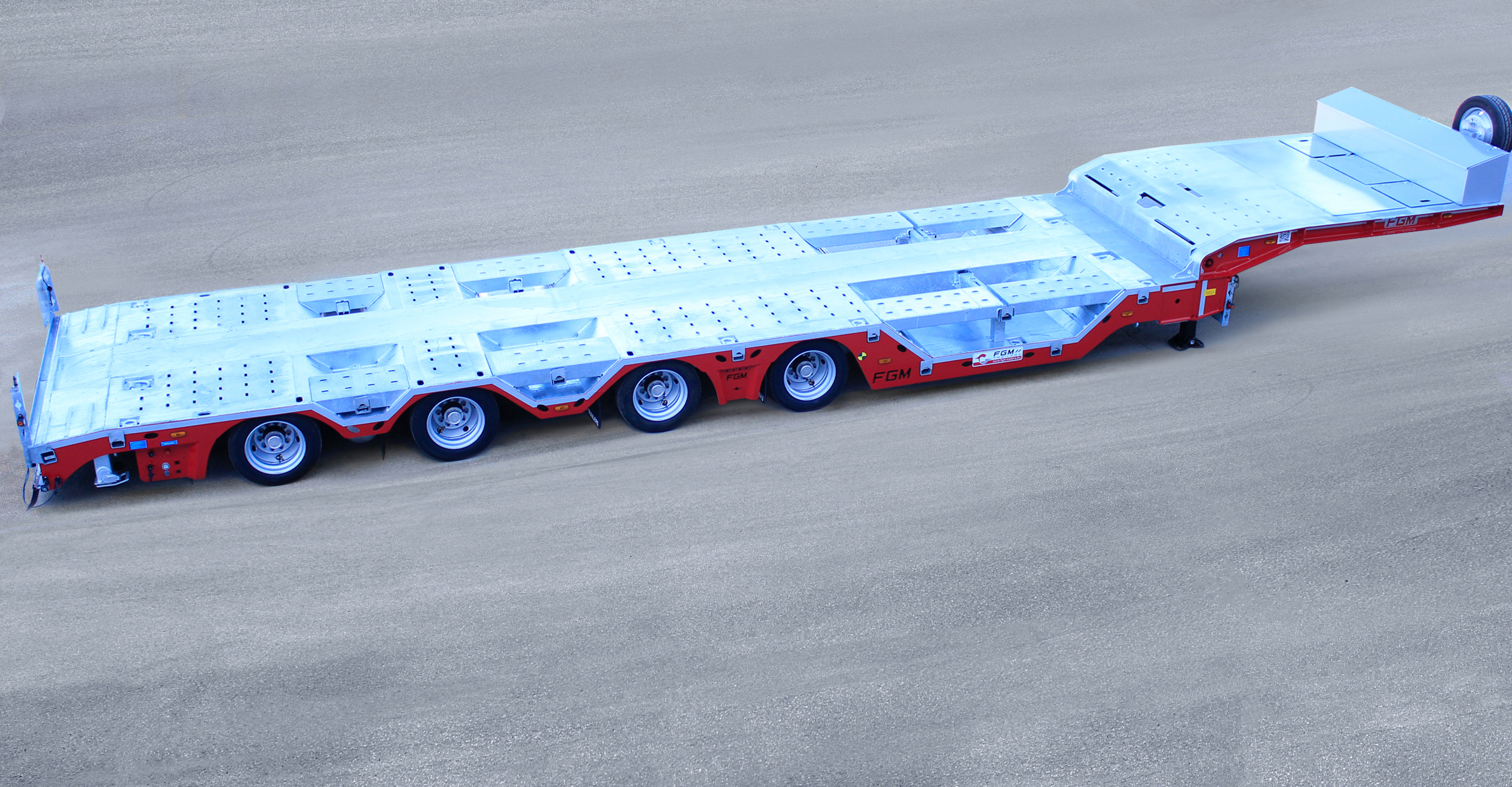

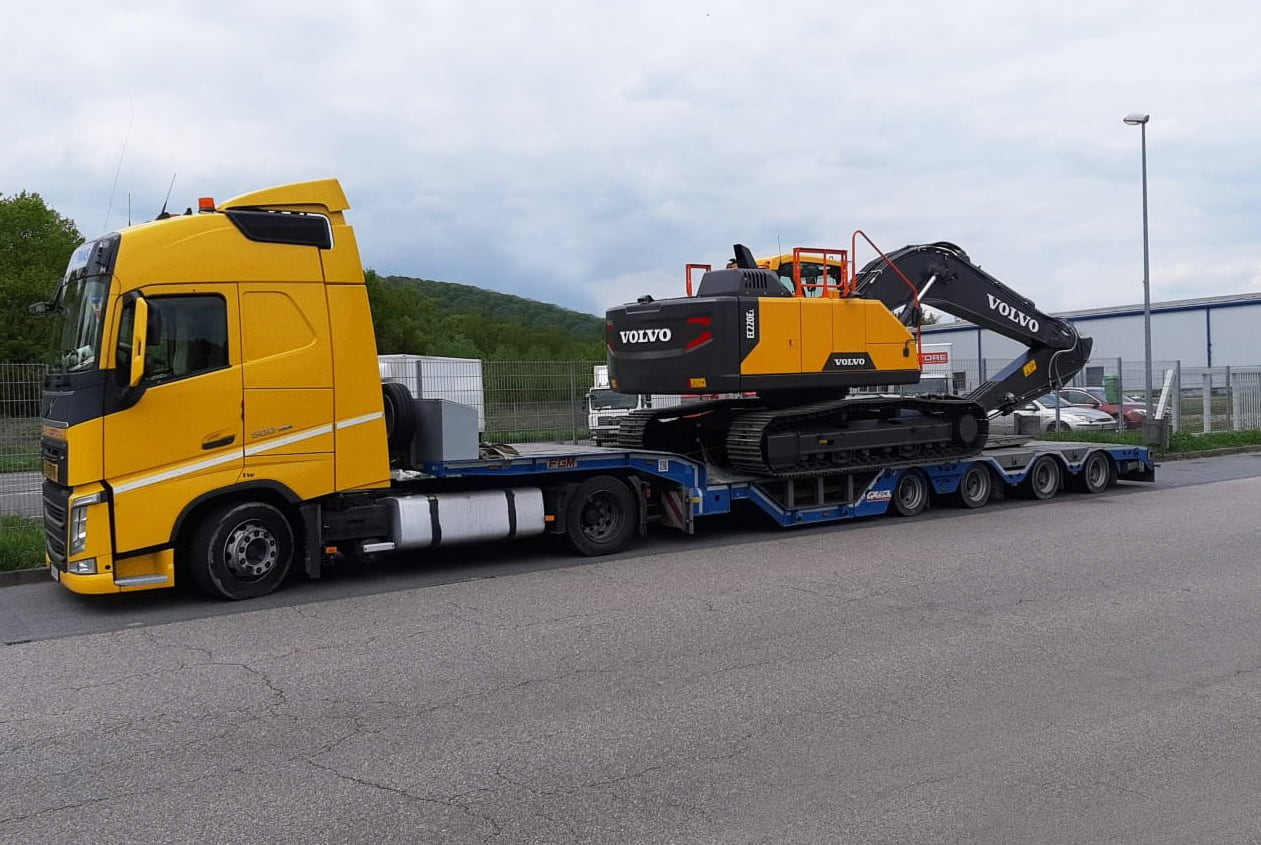

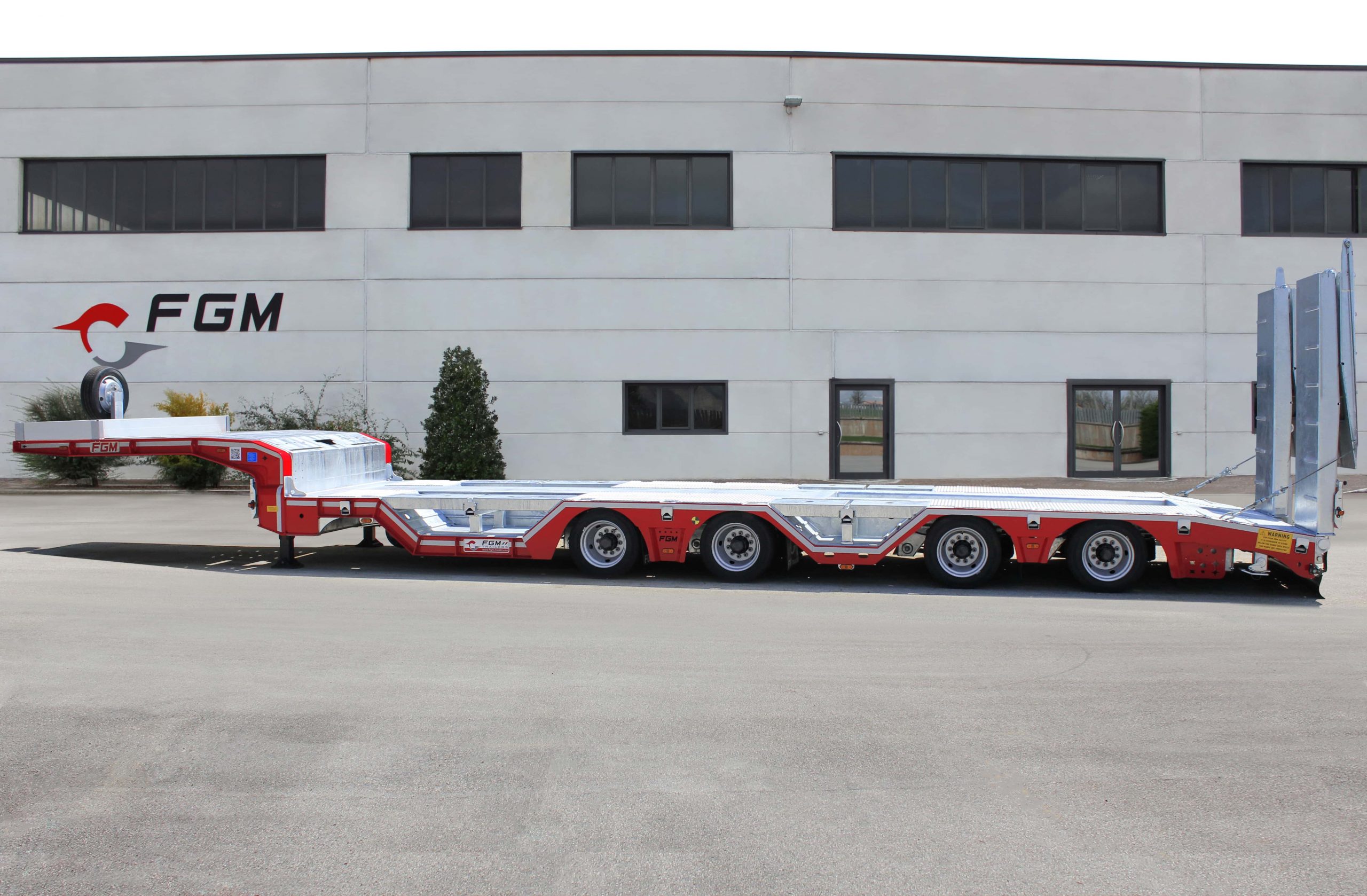

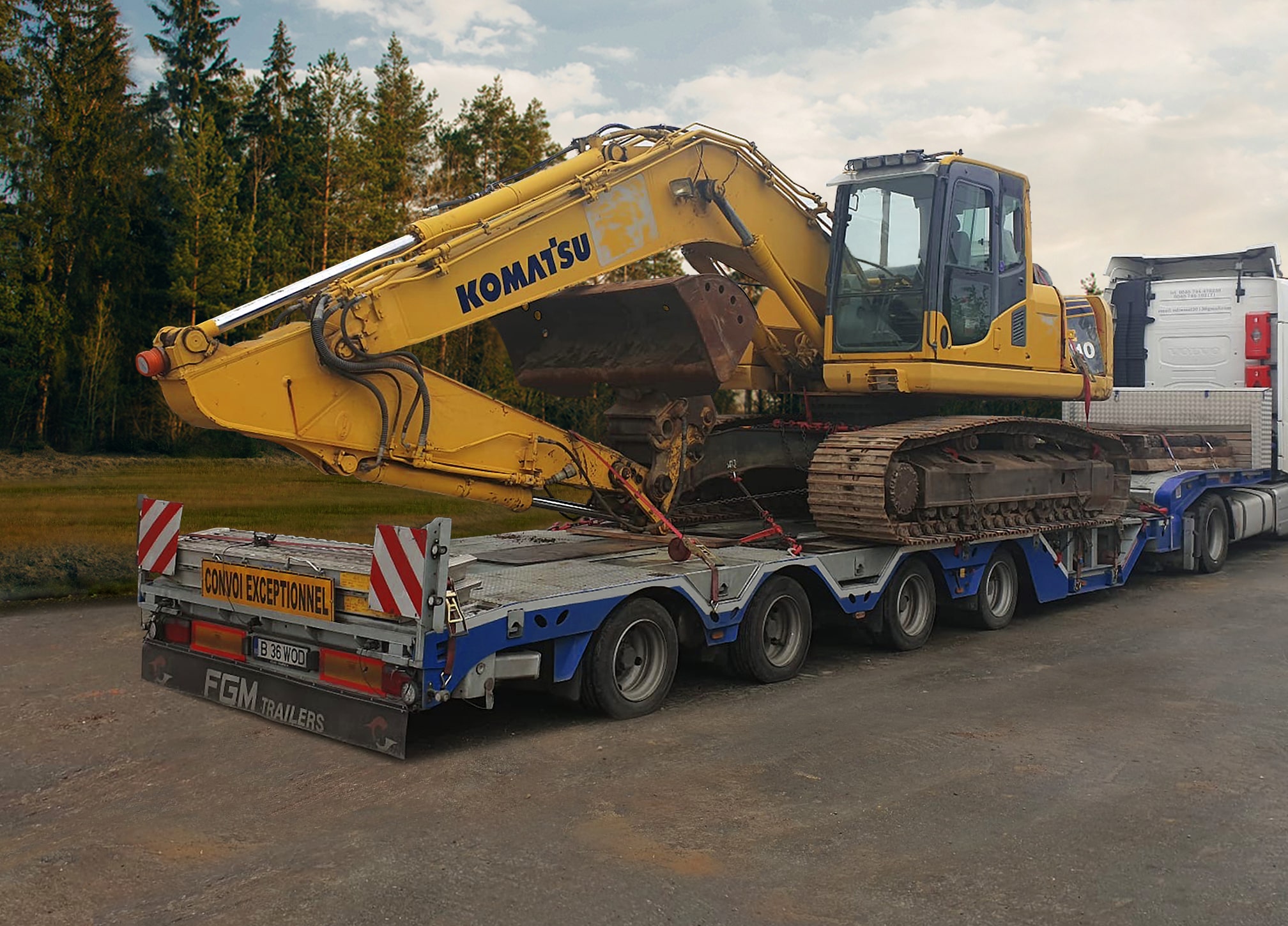

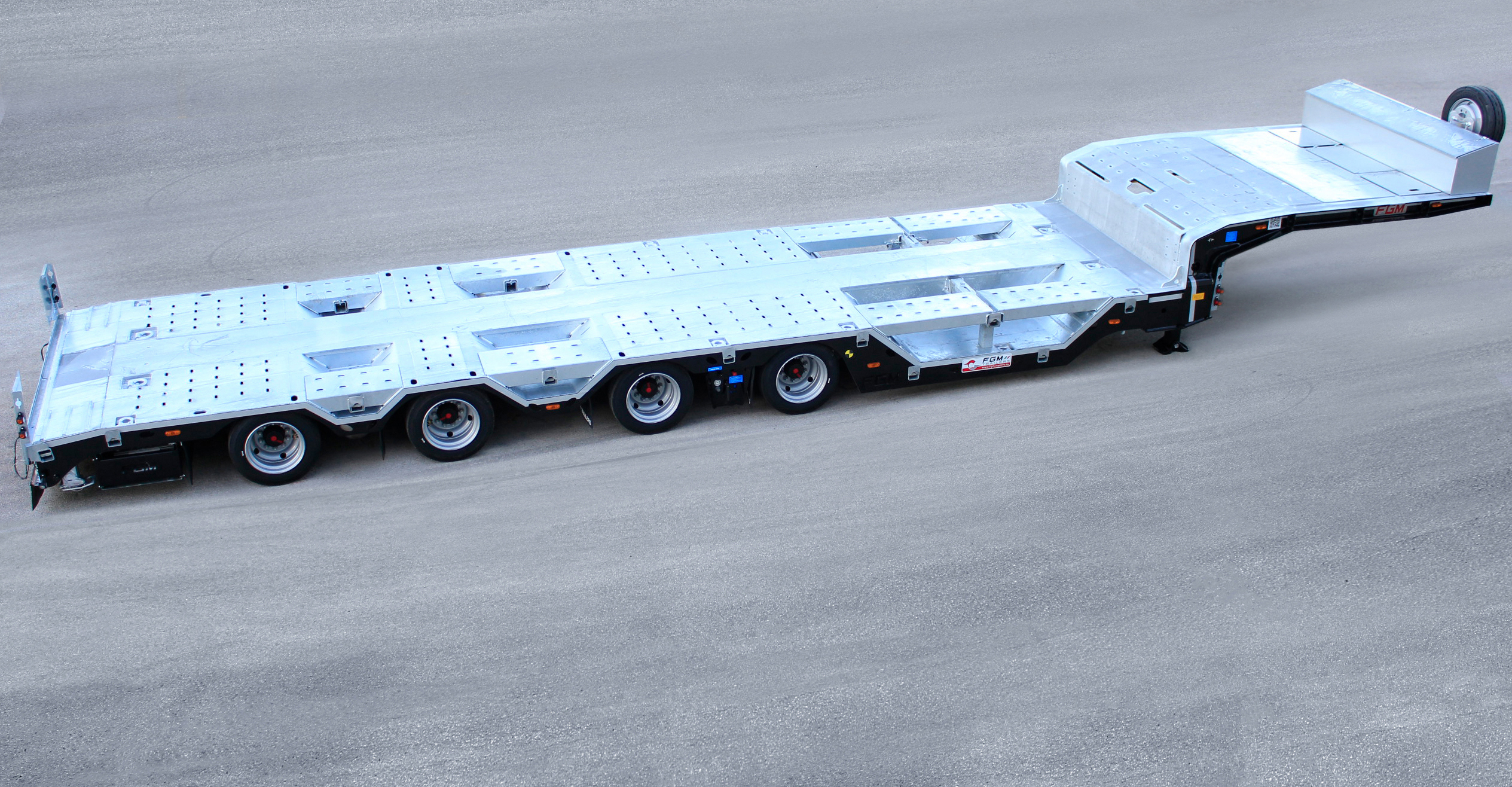

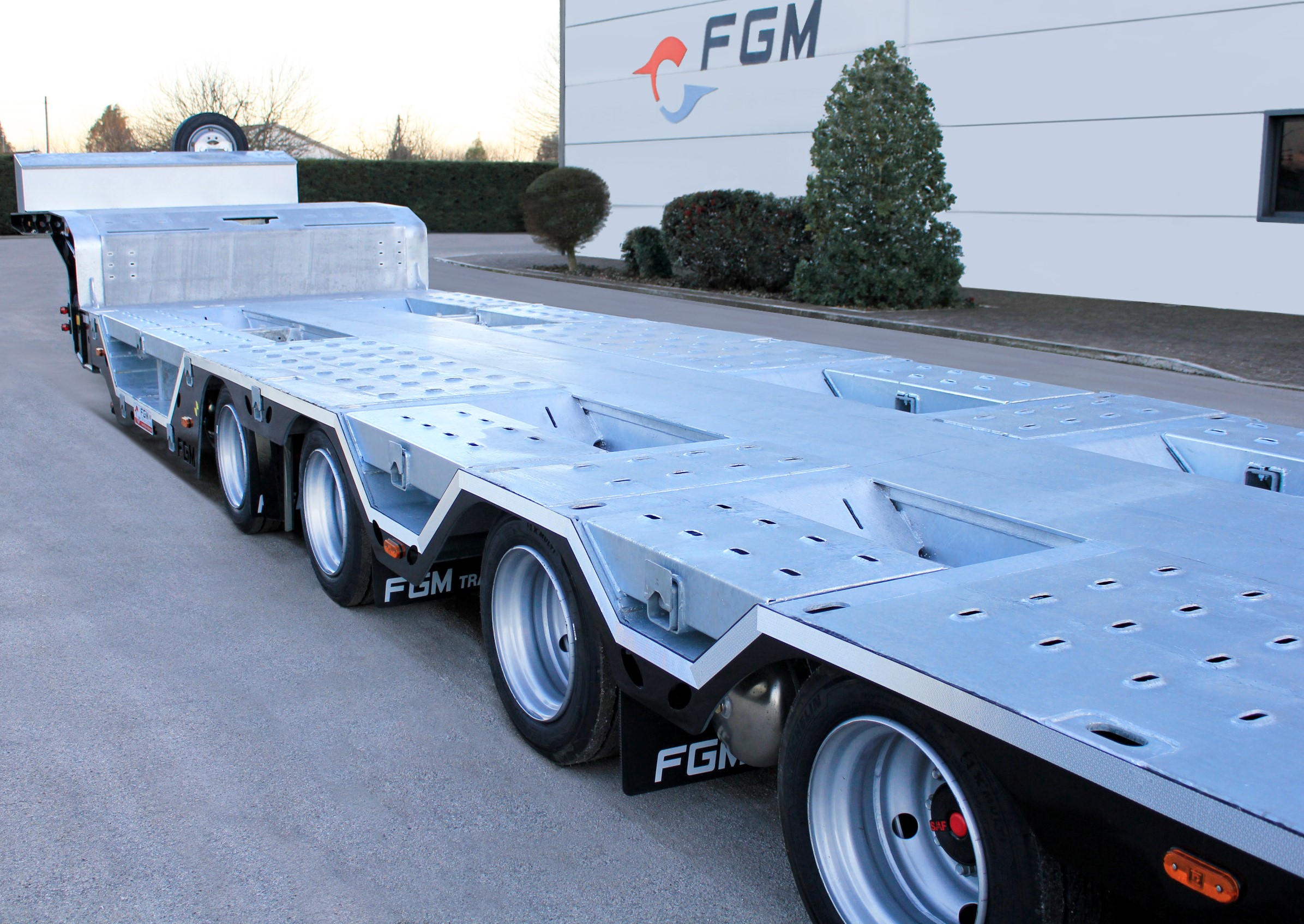

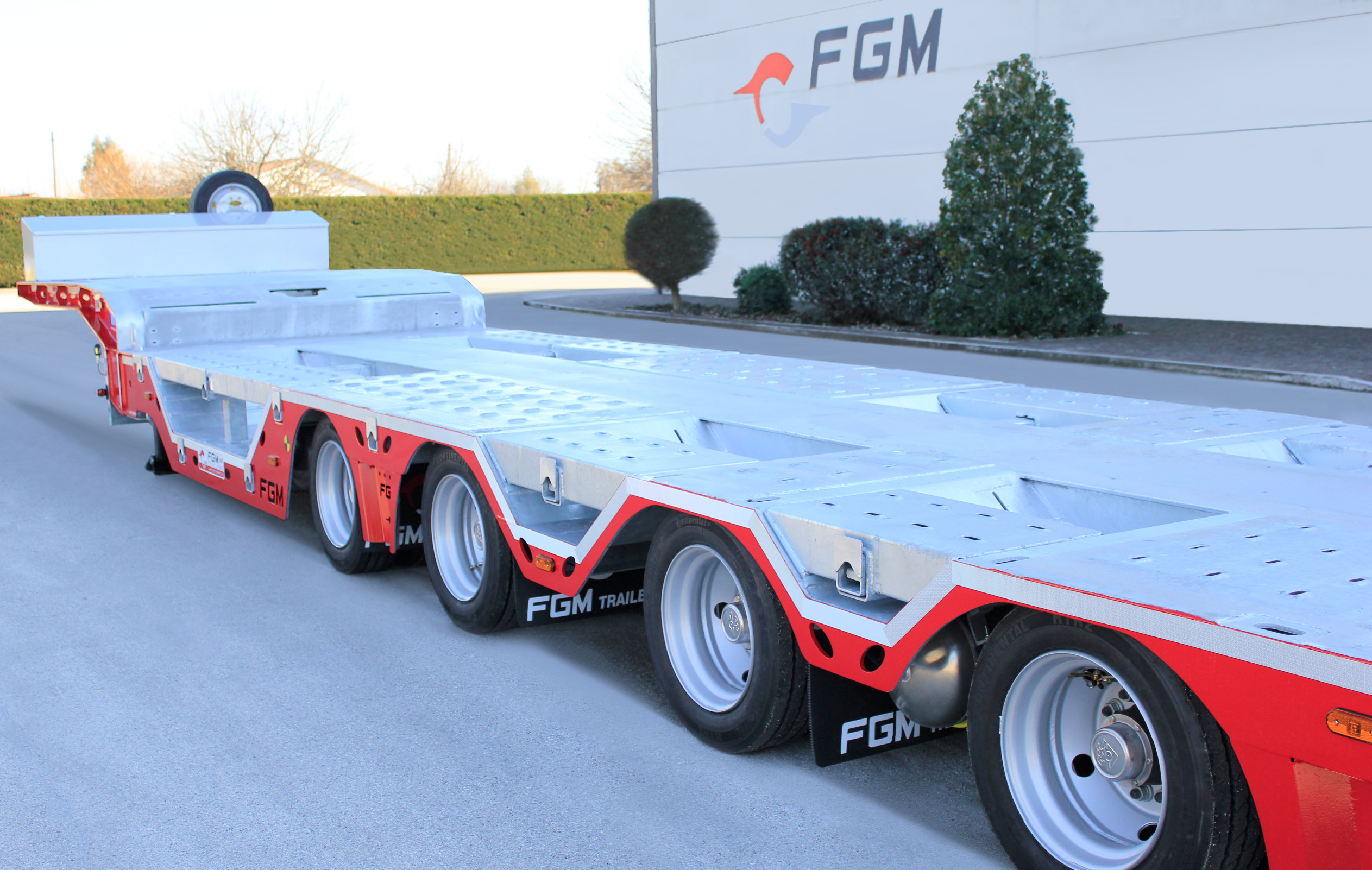

The WL- Wheel Loader configuration is conceived to meet the needs of companies specializing in the transport of wheeled agricultural machinery and tracked earthmoving equipment. The FGM 38 WL is extremely solid and versatile being configured with wheel recess series that adapt to any makes and types of wheel loaders while the lateral outriggers available in dual position enable the load of both oversized tracked vehicles and wheel loaders. This four-axle low loader is able to transport different types of machinery and equipment while remaining within the legal height limit in force on the road
Maximum fifth wheel load 18.000 kg
Loading height 770 mm
Tires 205/65 r 17.5
Tire load 8.000 kg at 100 km/h
N.4 Axle ROR/SAF, 12-ton, drum brakes
Braking system Knorr Bremse
LED Electric system Aspoek
STENX 700 steel chassis

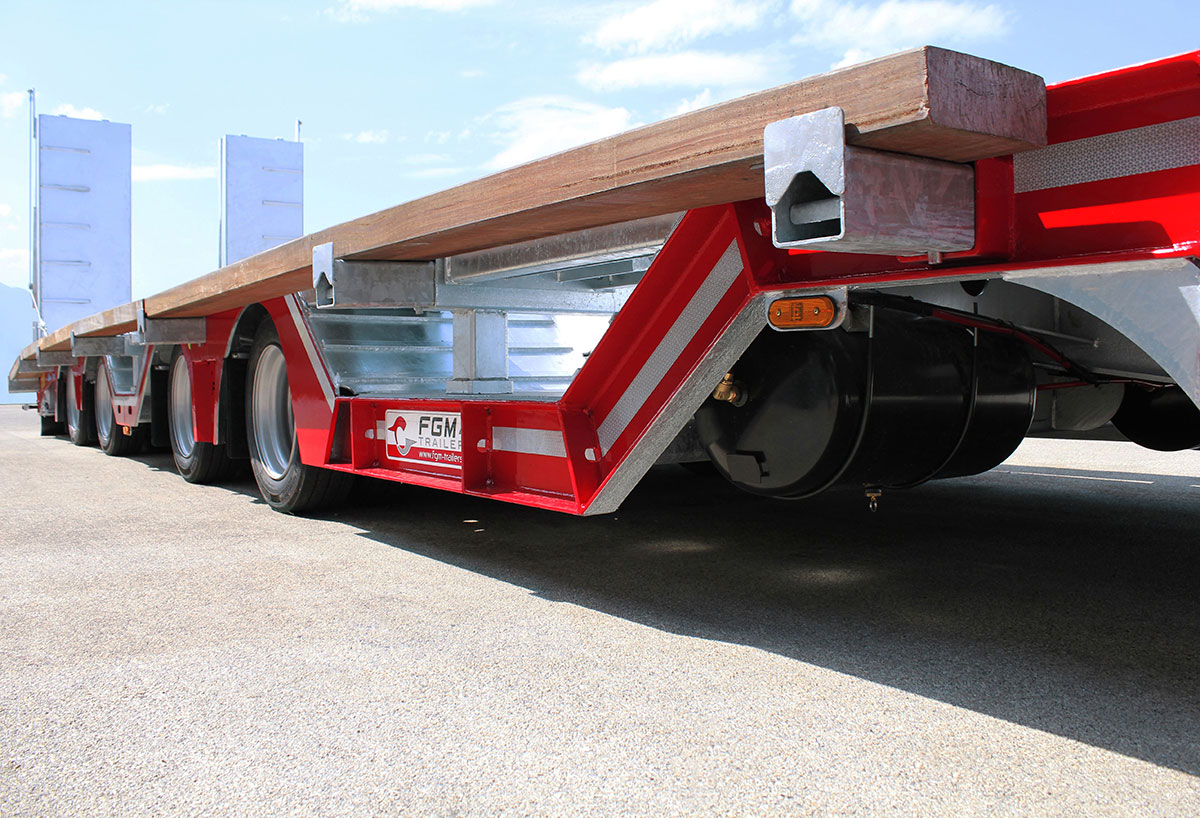

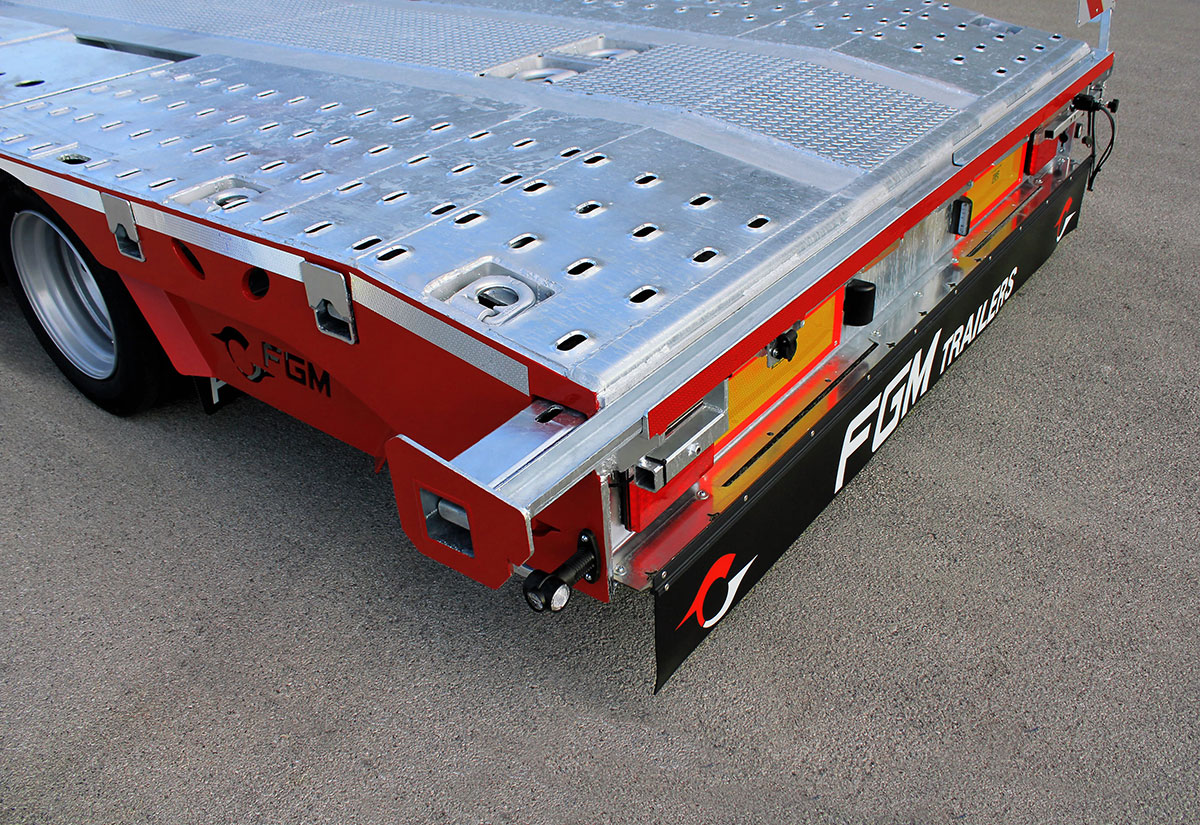

Retractable outriggers

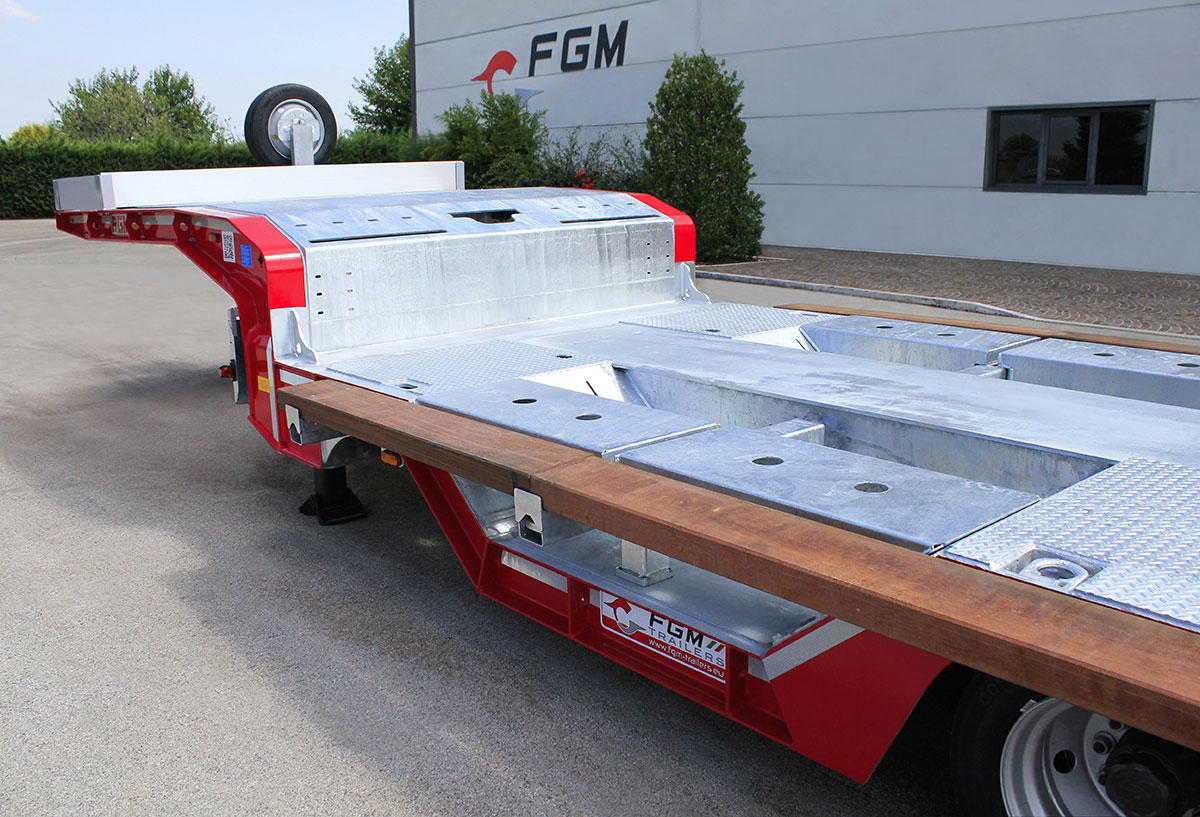

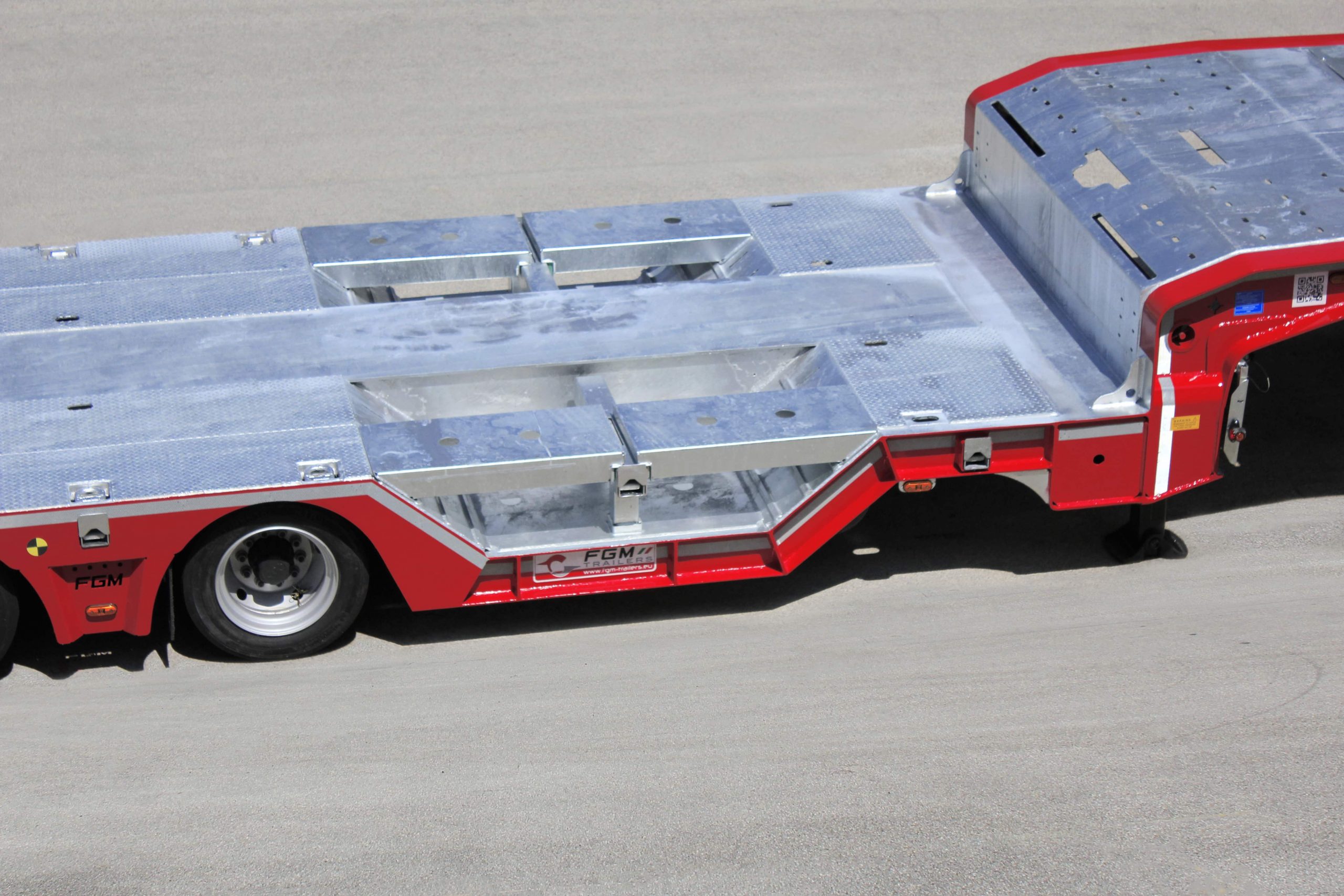

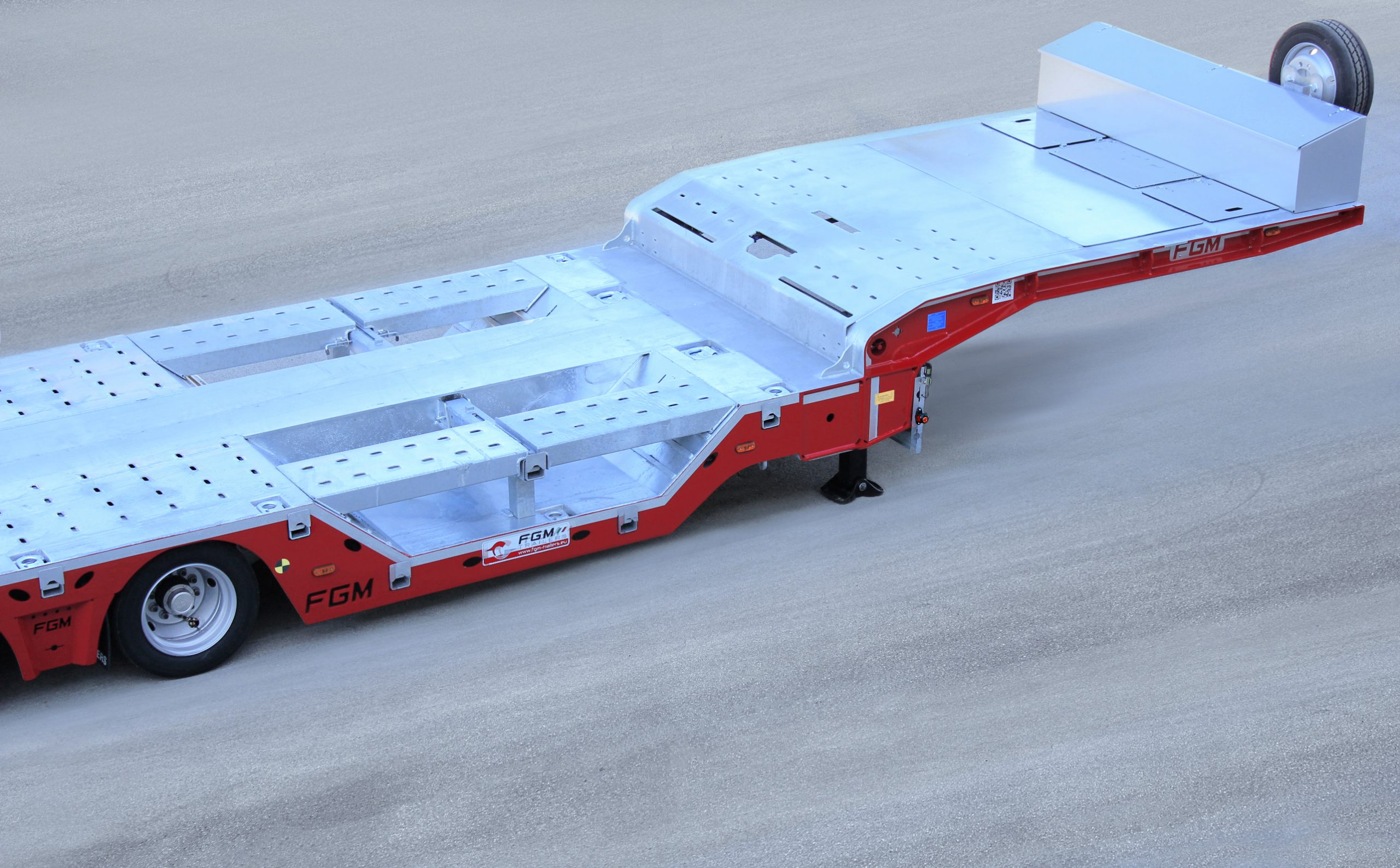

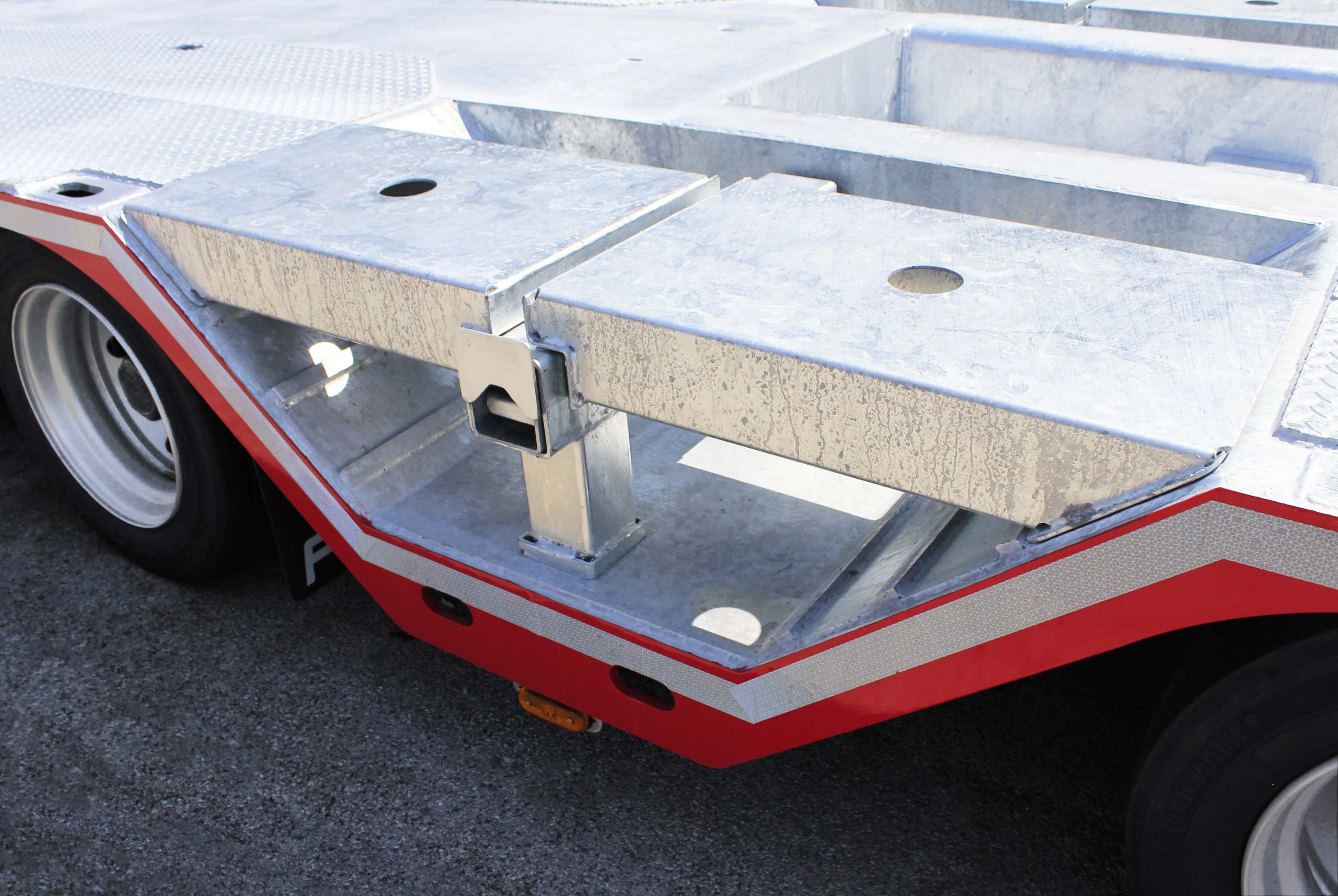

420 mm wheel recess series

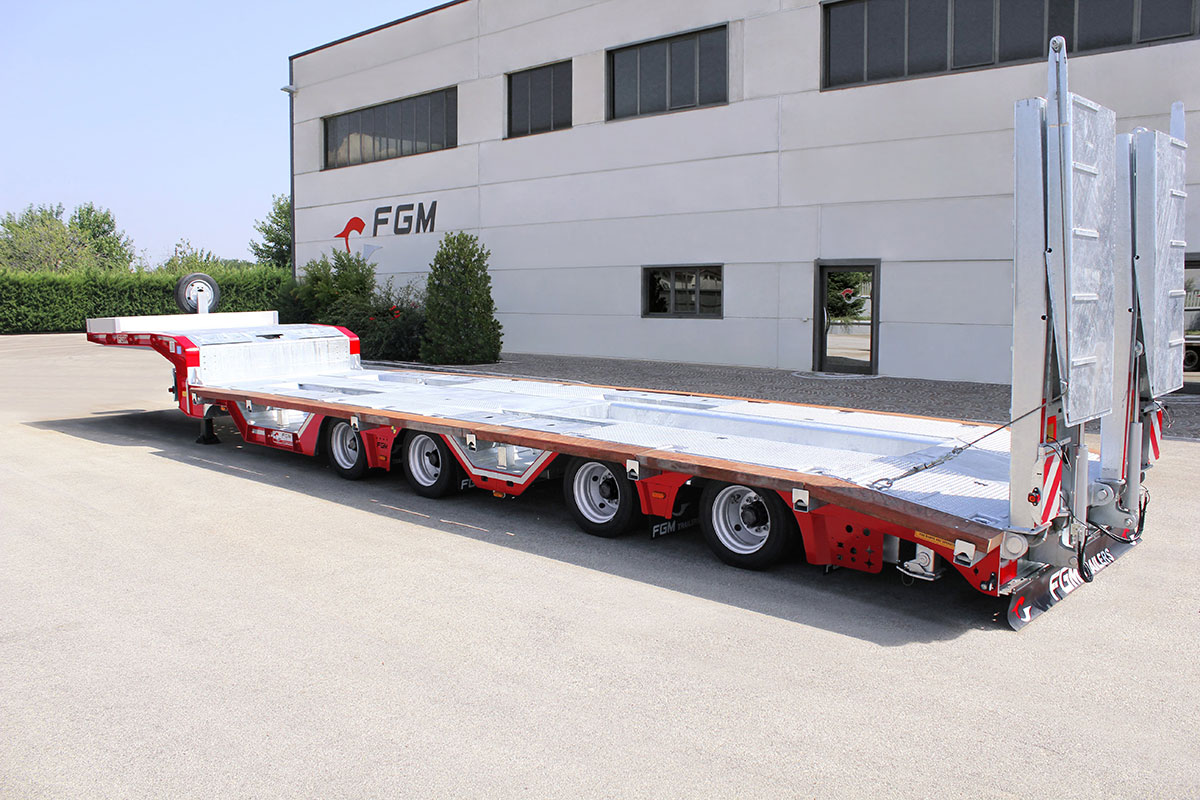

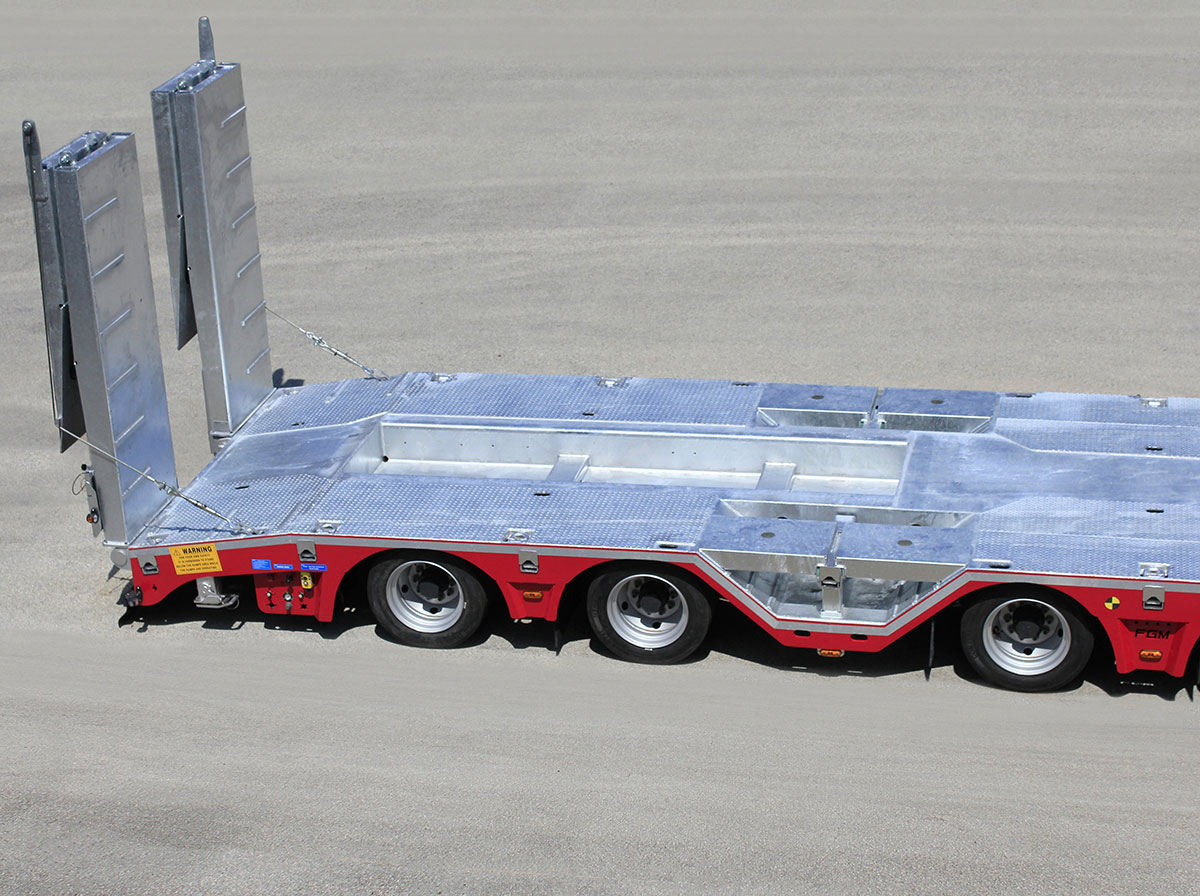

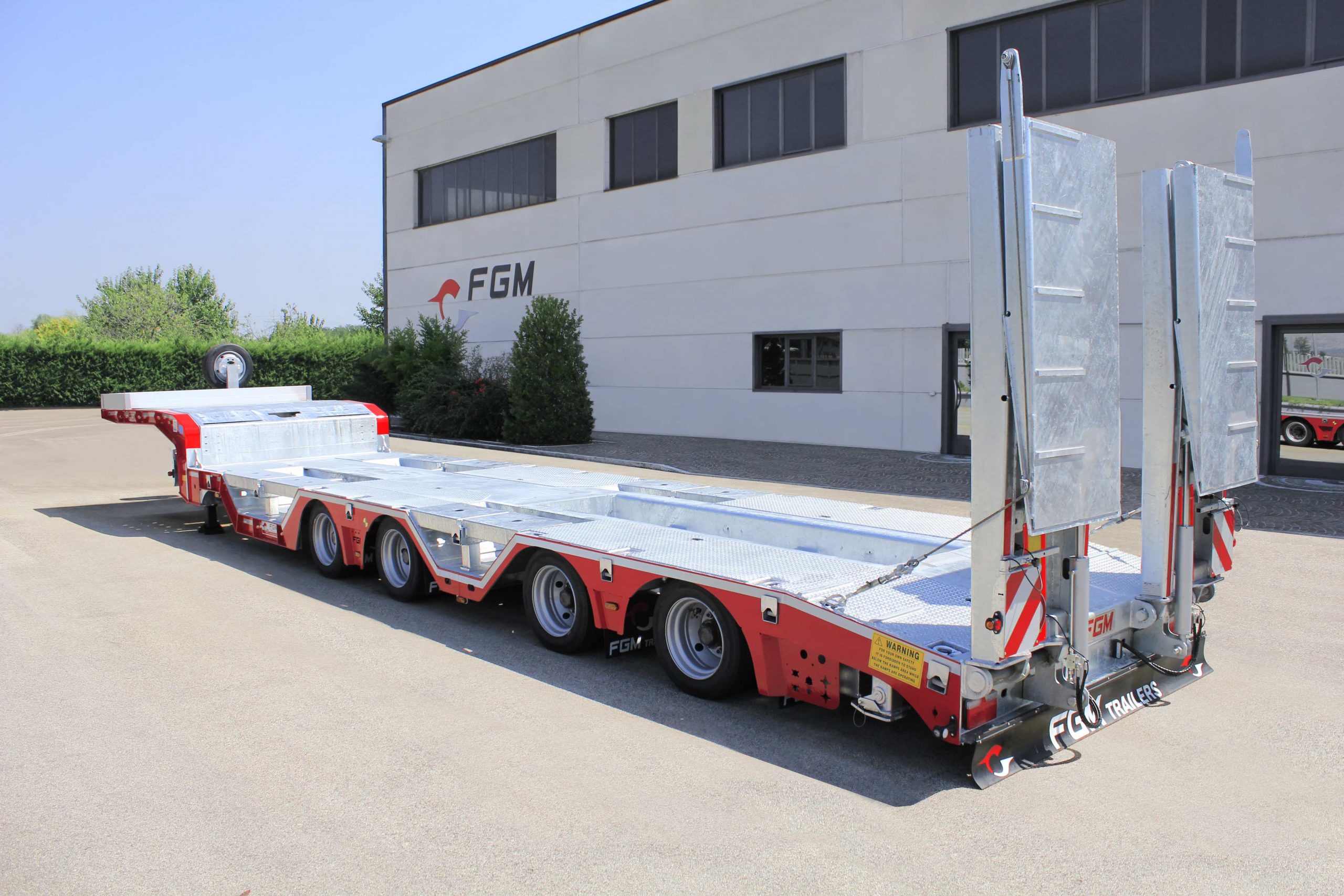

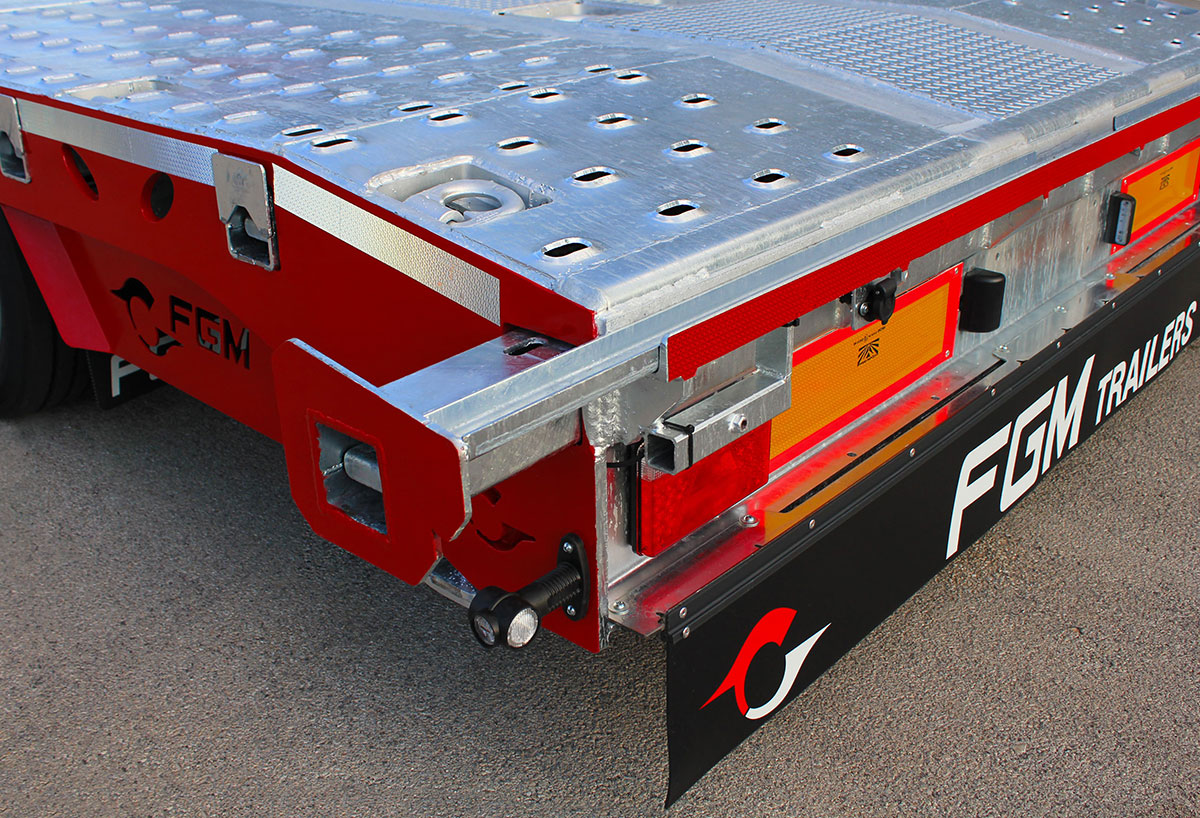

Aluminum rear ramps
Jost, double speed, landing gear
| Available Accessories | Alcoa Dura Bright Aluminum Rims, Certified Lashing rings, payload 8.000 Kg, Excavator boogie, Extra tire Kit, FGM Toolbox, L 1000x H 300 x W 500 mm, LED Working light, N. 4 Certified Ship hooks, N.3 Rows of Bewola Holes, N.4 Wide load signs, 423×423 mm, Orange Flashing Beacon, Semitrailer with customized dimensions, Speedline Aluminum Rims, Twist locks, JOST, VIME Hydraulic winch, 8.000 Kg |
|---|---|
| Axles | 12-ton ROR, drum brakes, SAF 12-ton, drum brakes |
| Ramp type | Manual aluminum ramps, 2.400 x 450 mm, Rear hydraulic ramps, hot-dip galvanized, 4.000 x 800 mm, Rear ramps, hot-dip galvanized, 2.400 x 650 mm |

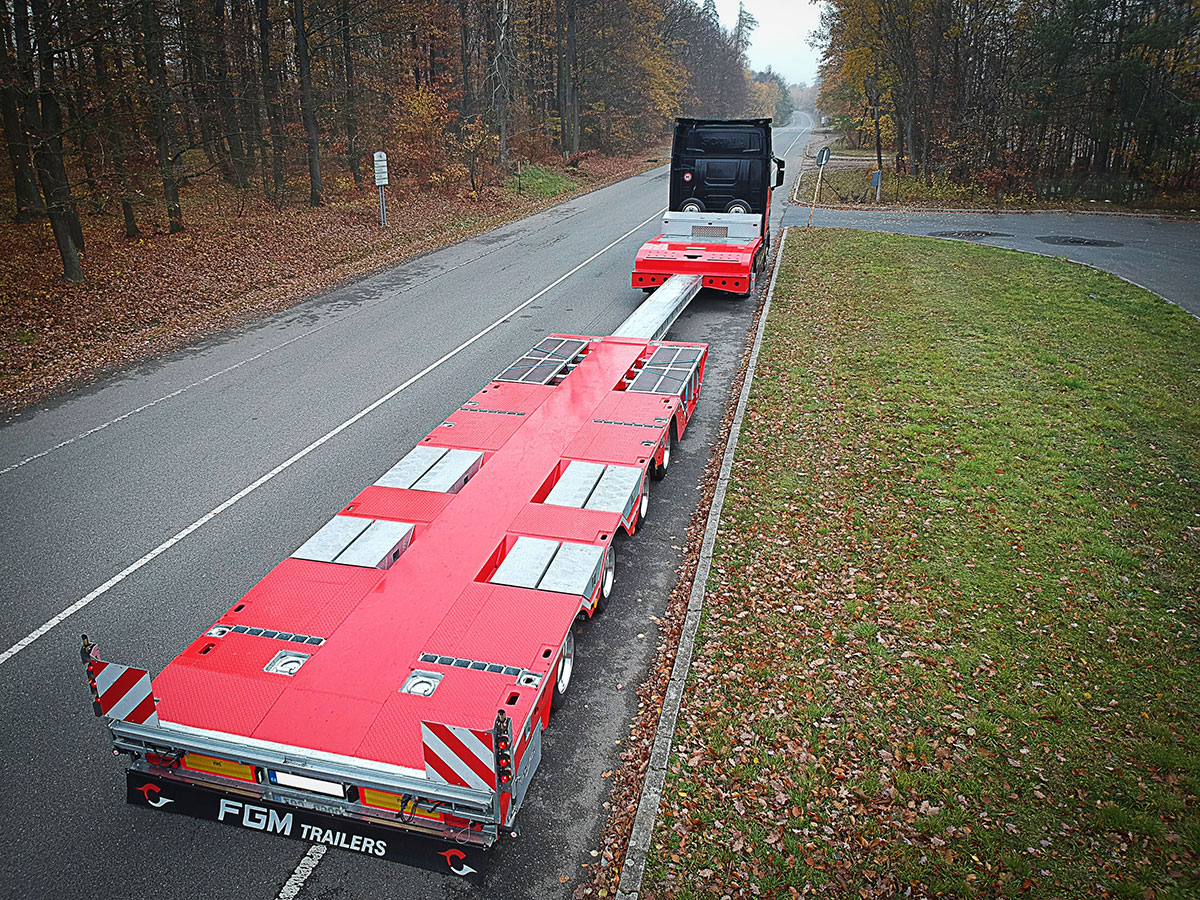

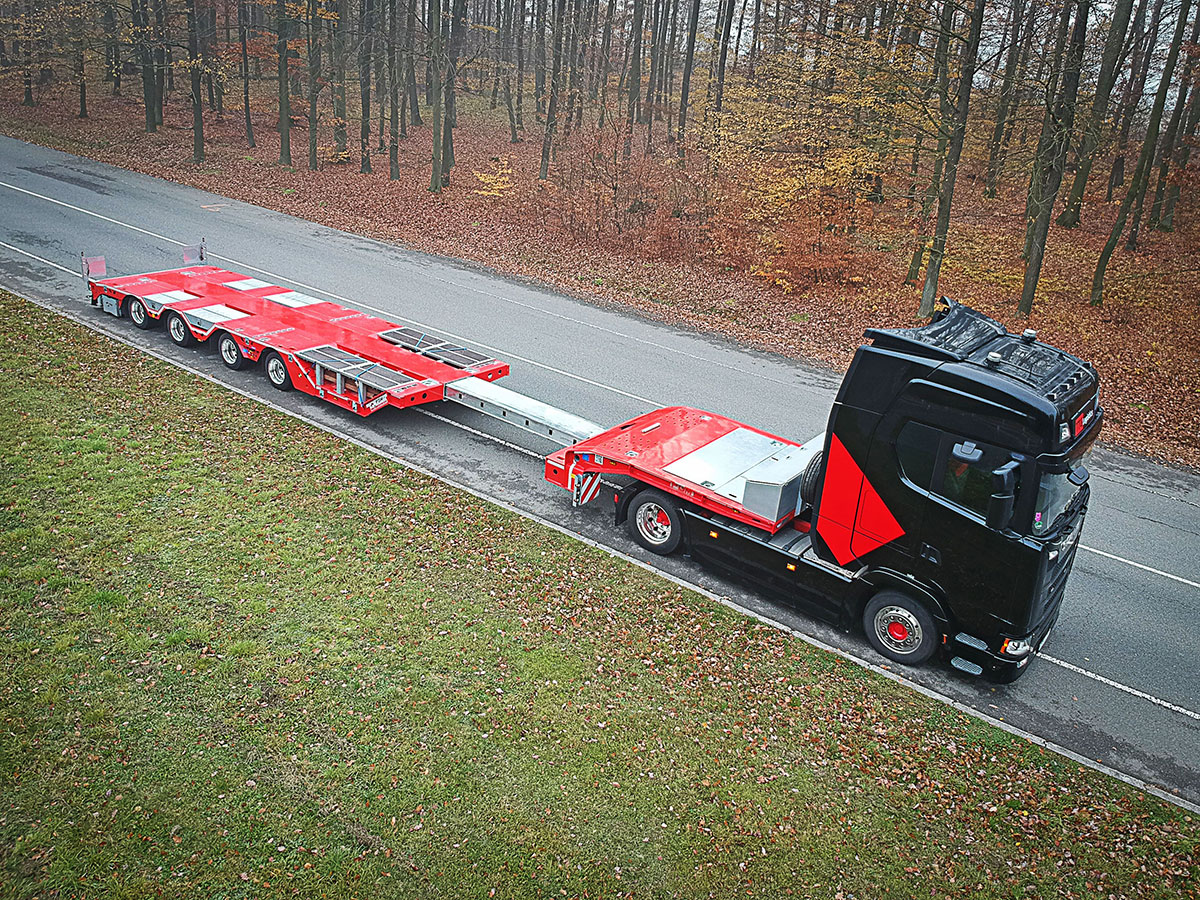

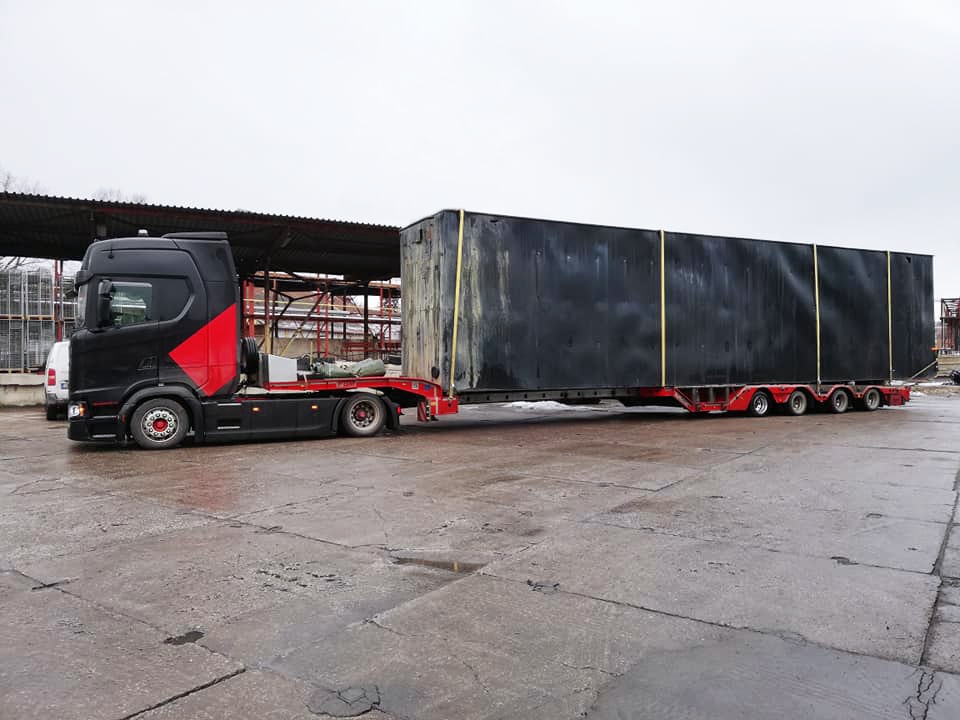

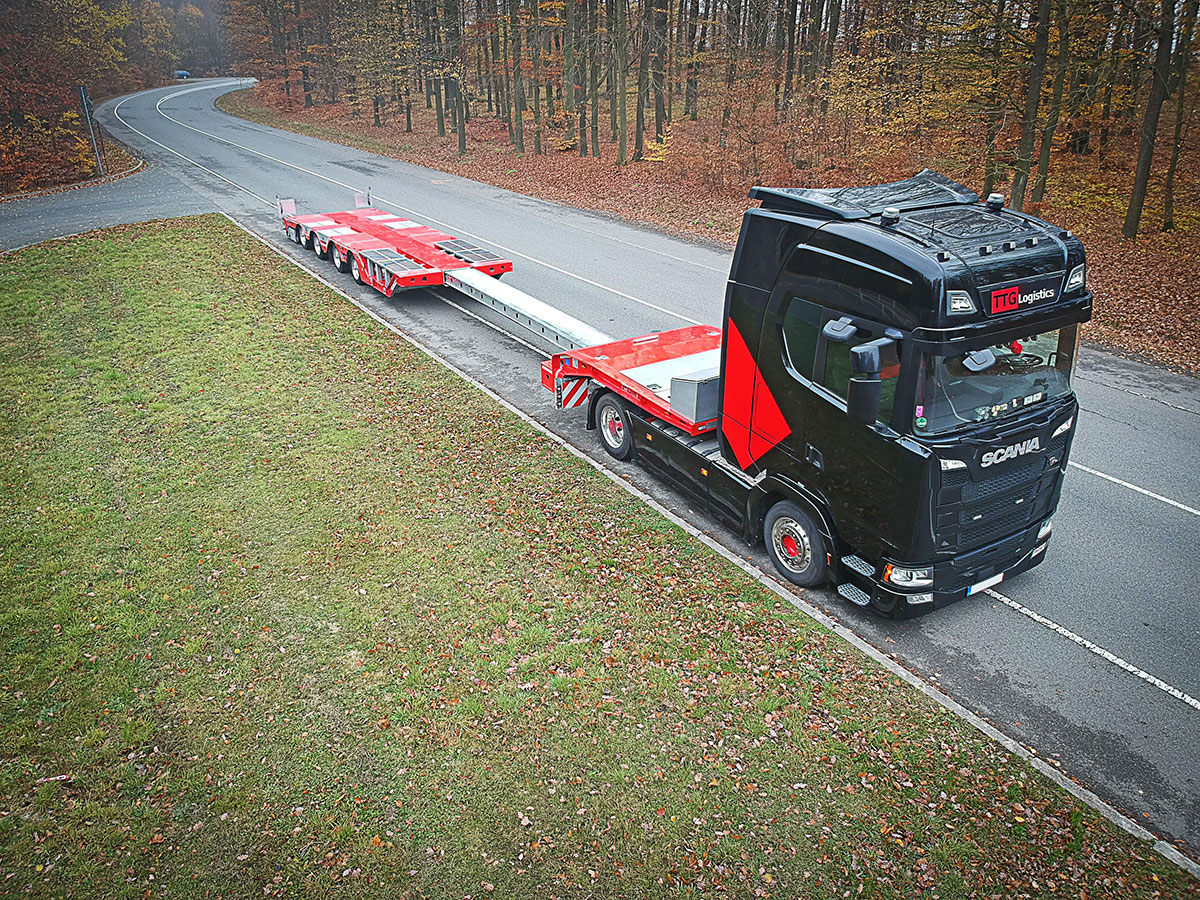

| Chassis | Extendable chassis, Fixed chassis |
| Surface Treatment | Hot-dip galvanized chassis, Painting job in RAL color requested, included |
