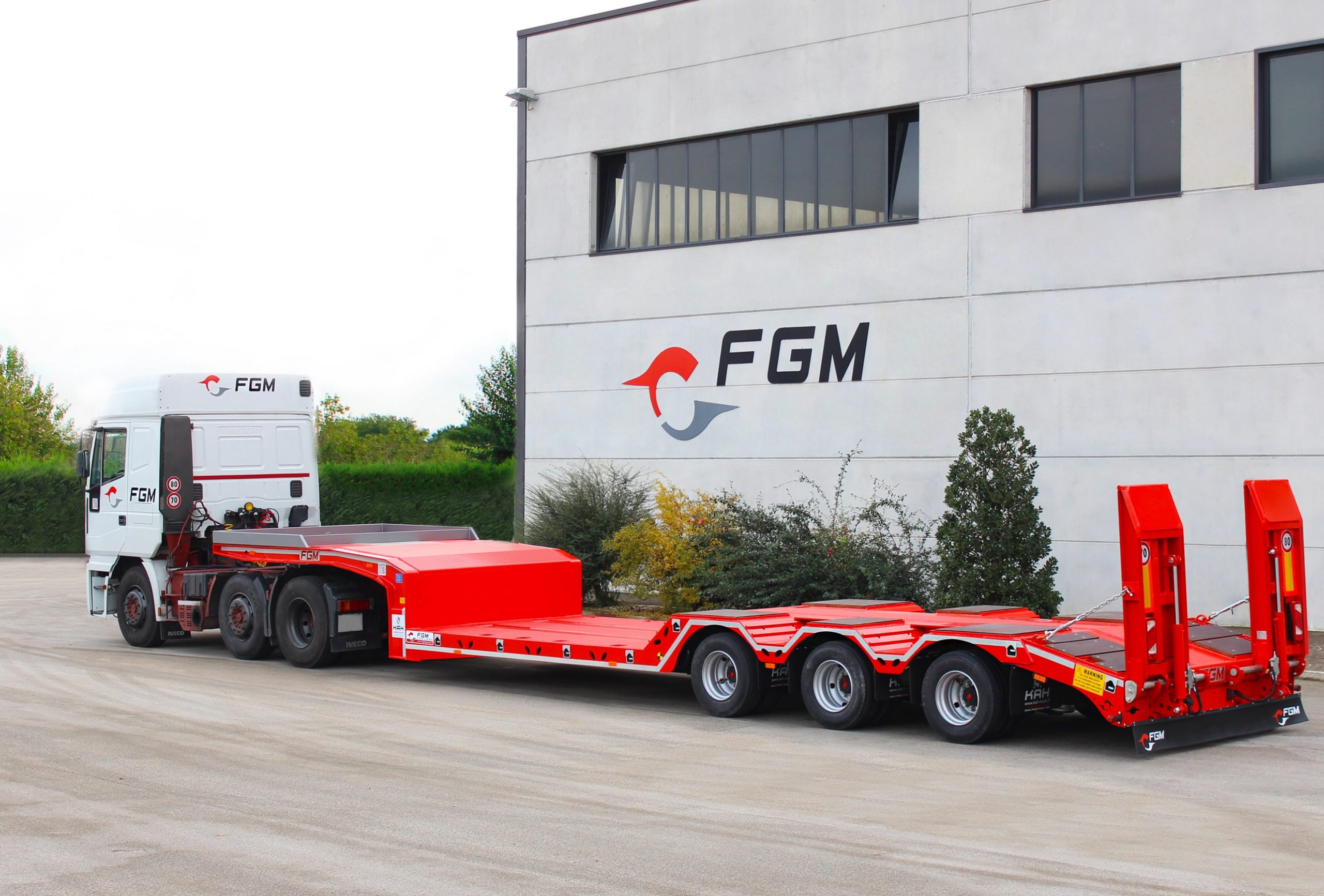

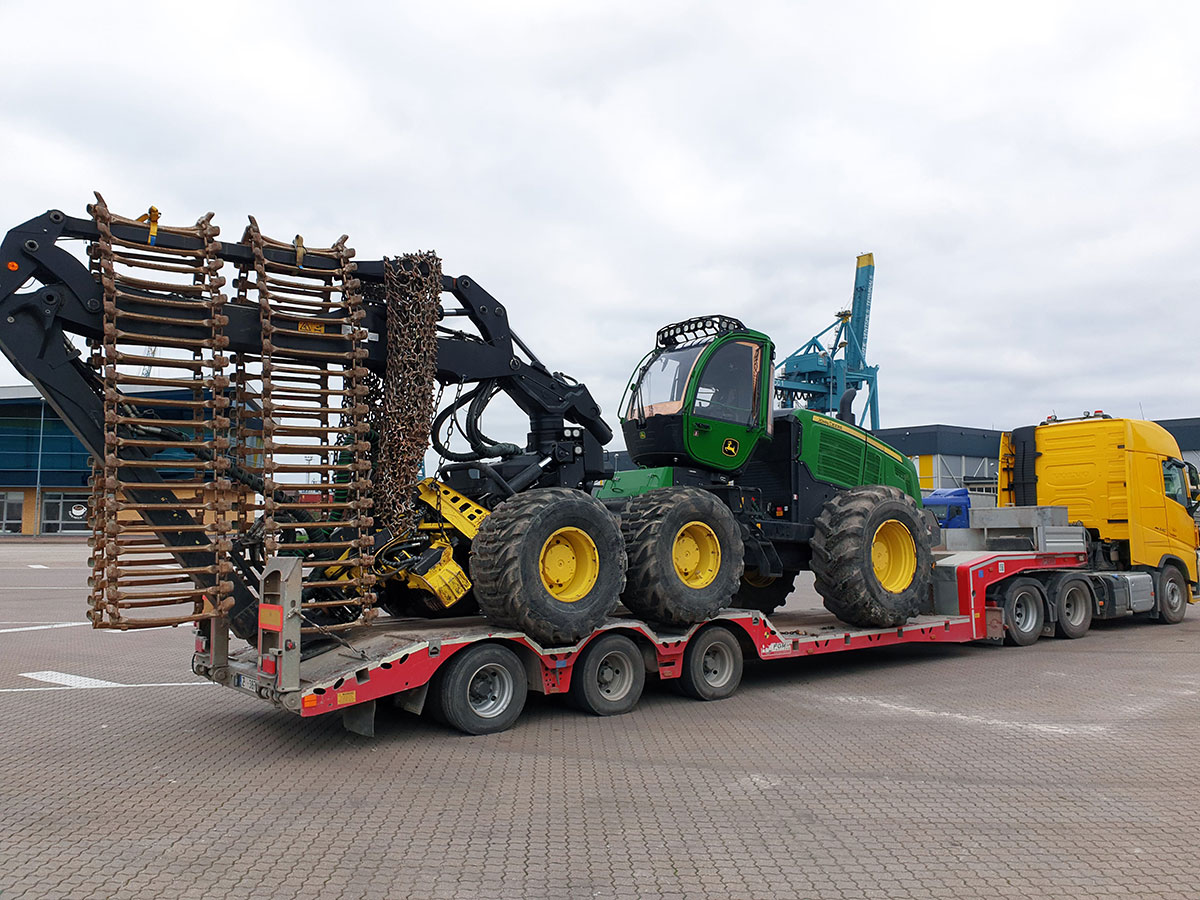

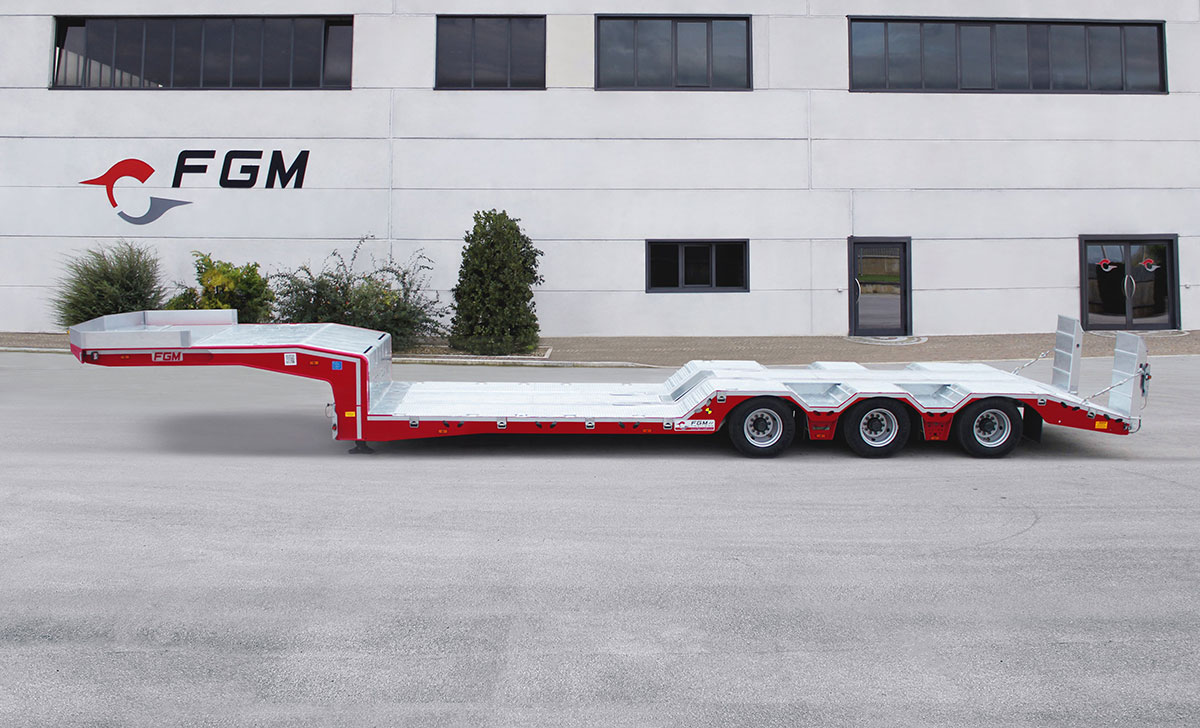

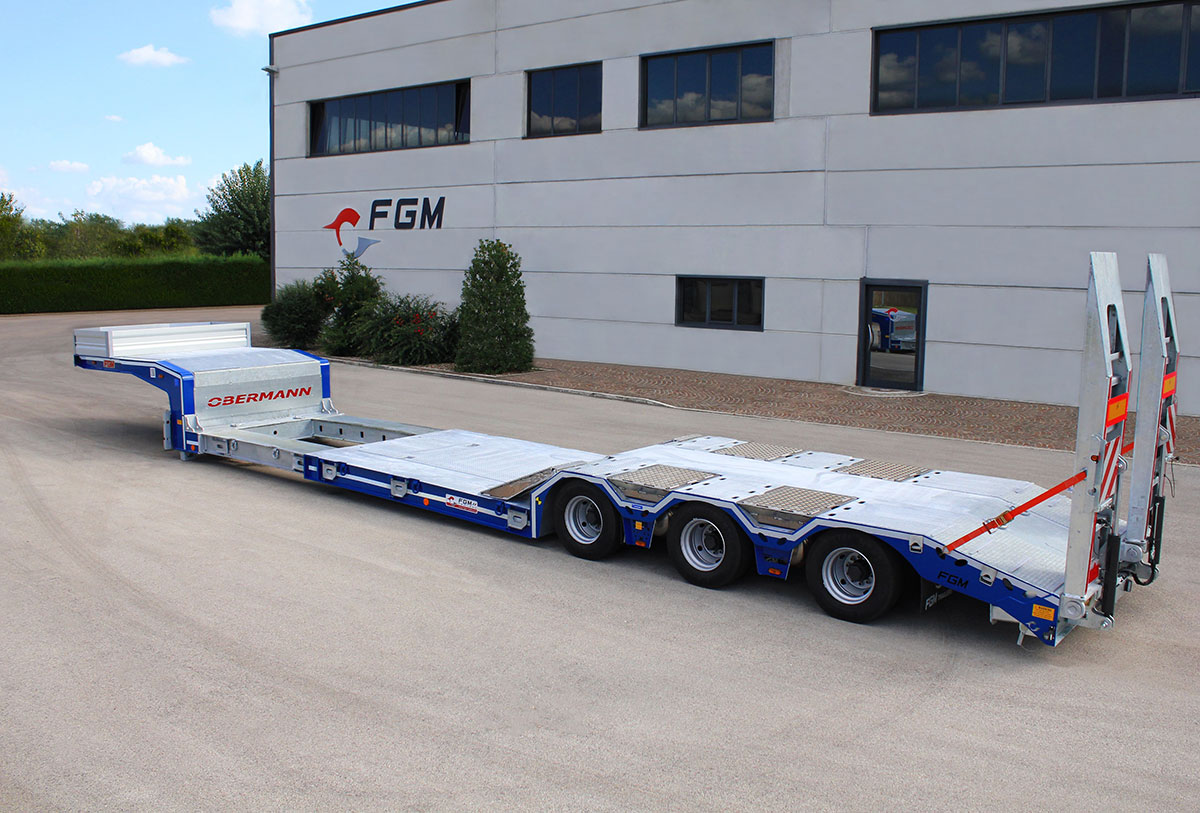

The FGM 37 FT is designed for companies operating in the forestry and logging sector. The distinctive characteristics of the model are: lower loading platform, sets of wheel recesses, retractable outriggers and wooden planks. Thanks to its features and geometry, the trailer is the perfect fit for transporting harvesters, forwarders and skidders.
Maximum fifth wheel load 18.000 kg
Loading height 540 mm
Tires 235/75 r 17.5
Tire load 10.300 kg at 100 km/h
N.3 Axle ROR/SAF, 12-ton, drum brakes
Braking system Knorr Bremse
LED Electric system Aspoek
STENX 700 steel chassis

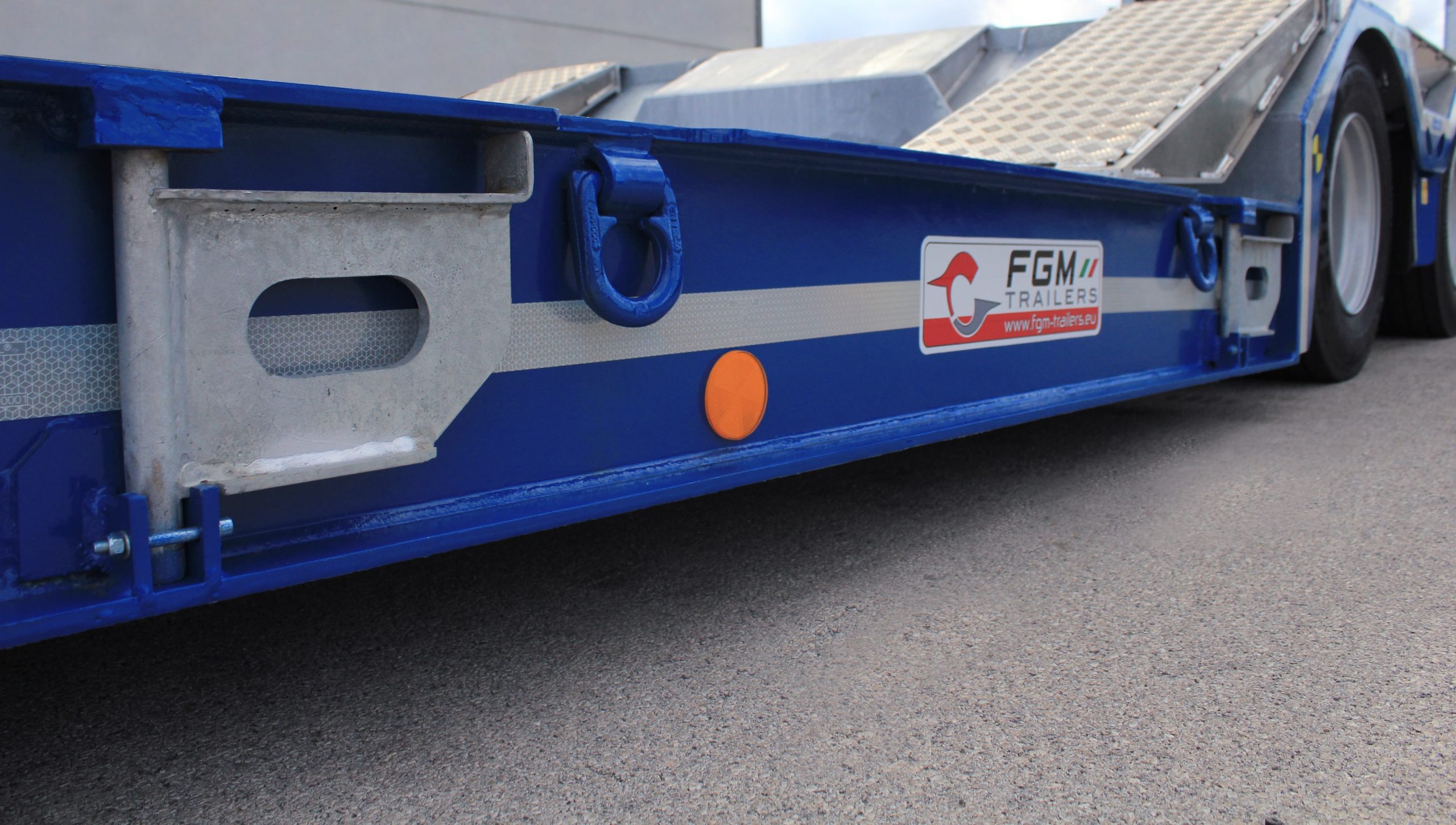

Retractable outriggers

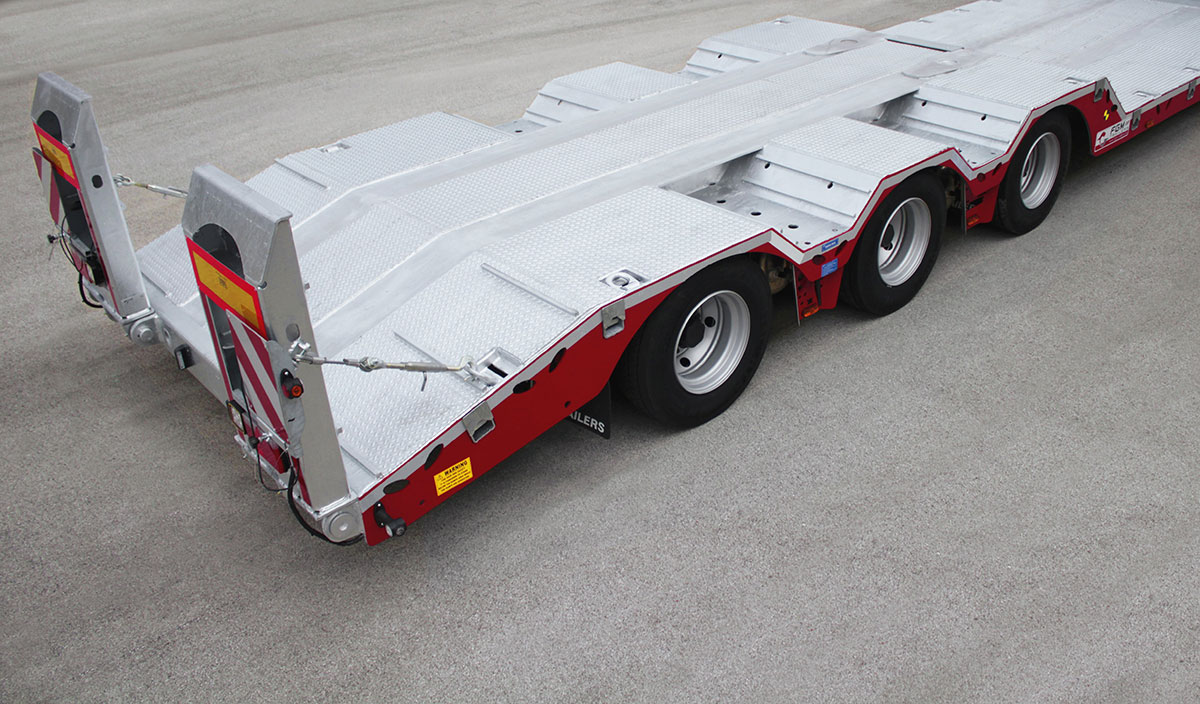

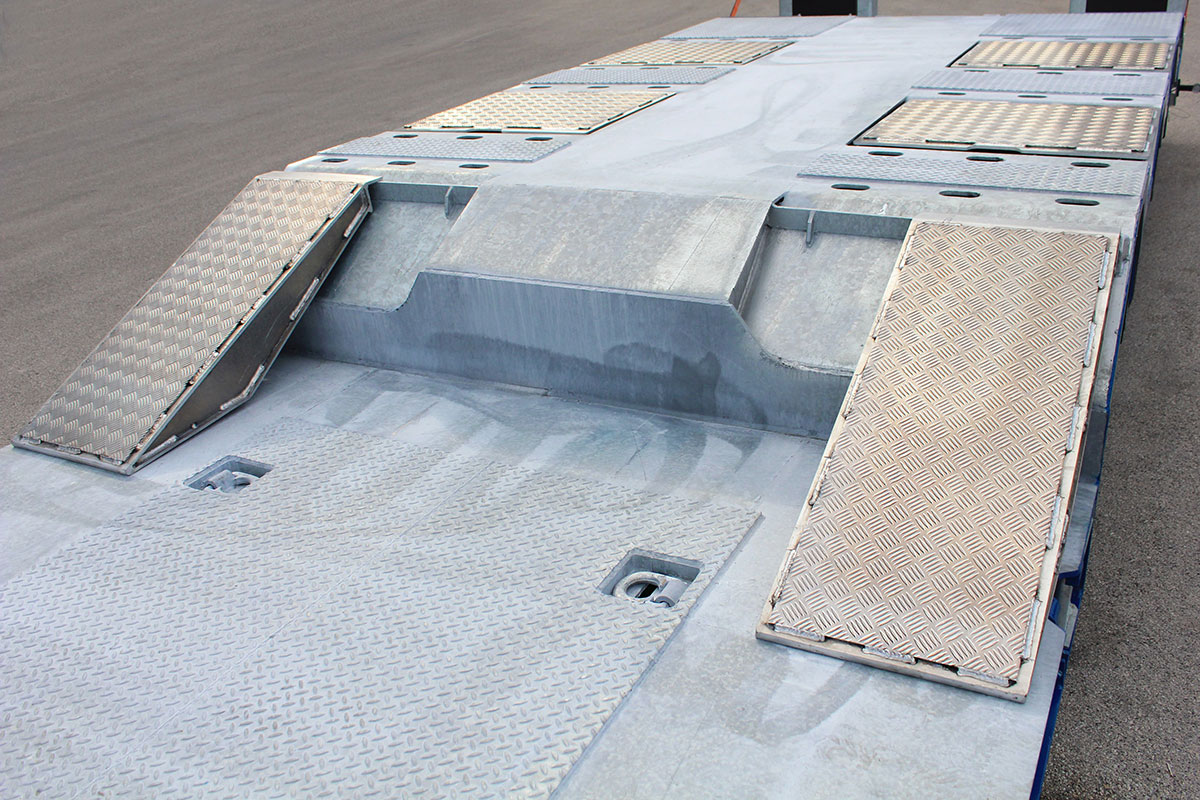

Wheel recess KIT

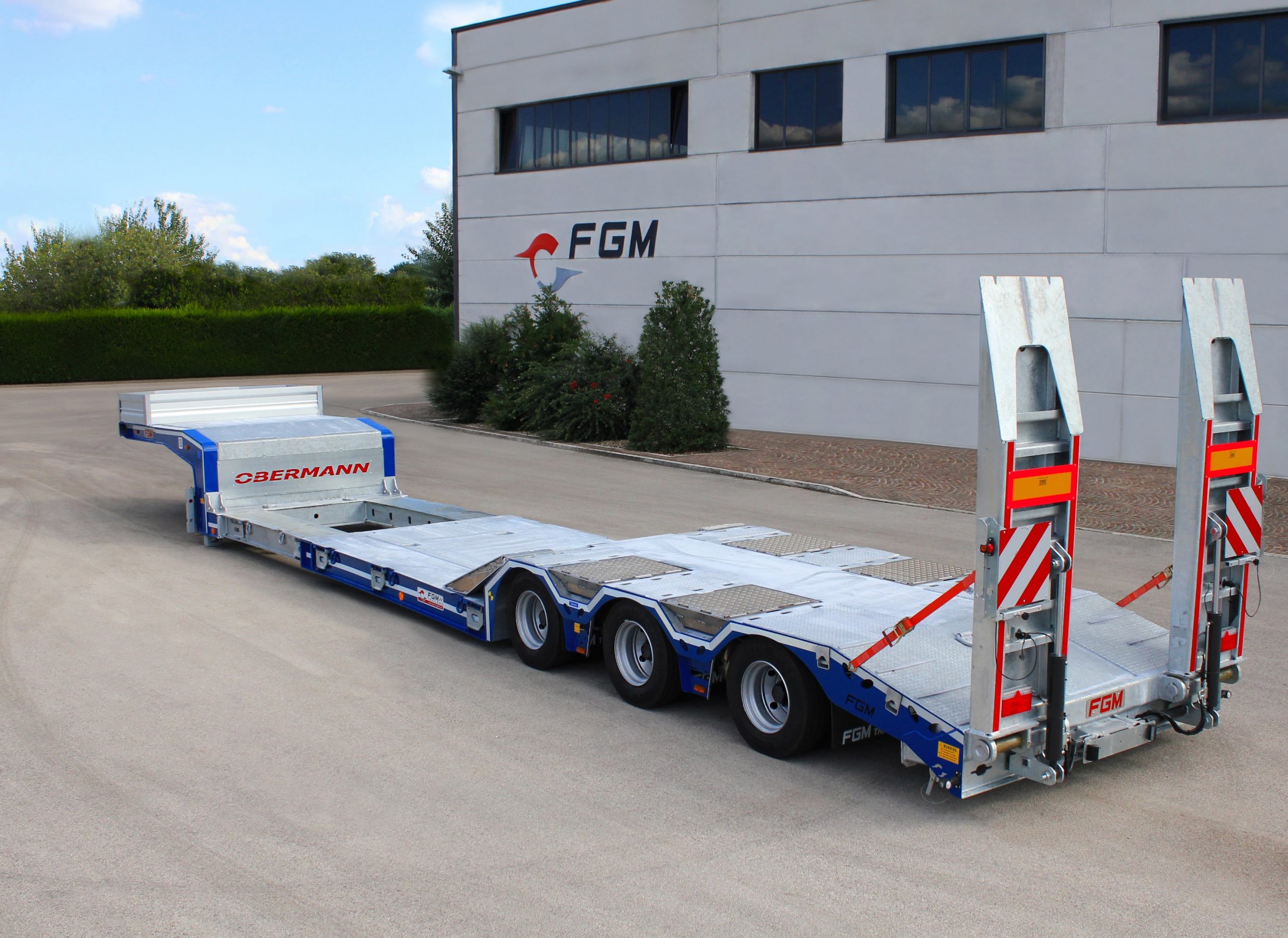

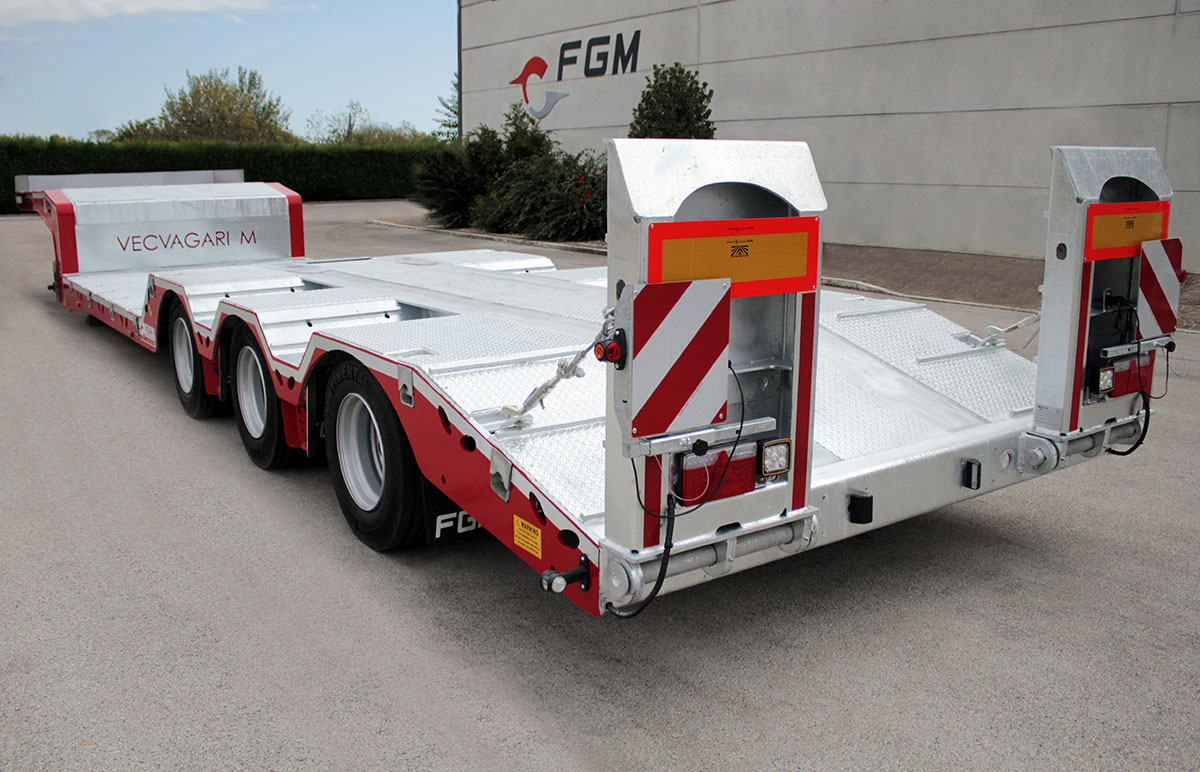

Customized rear ramps
Jost, double speed, landing gear

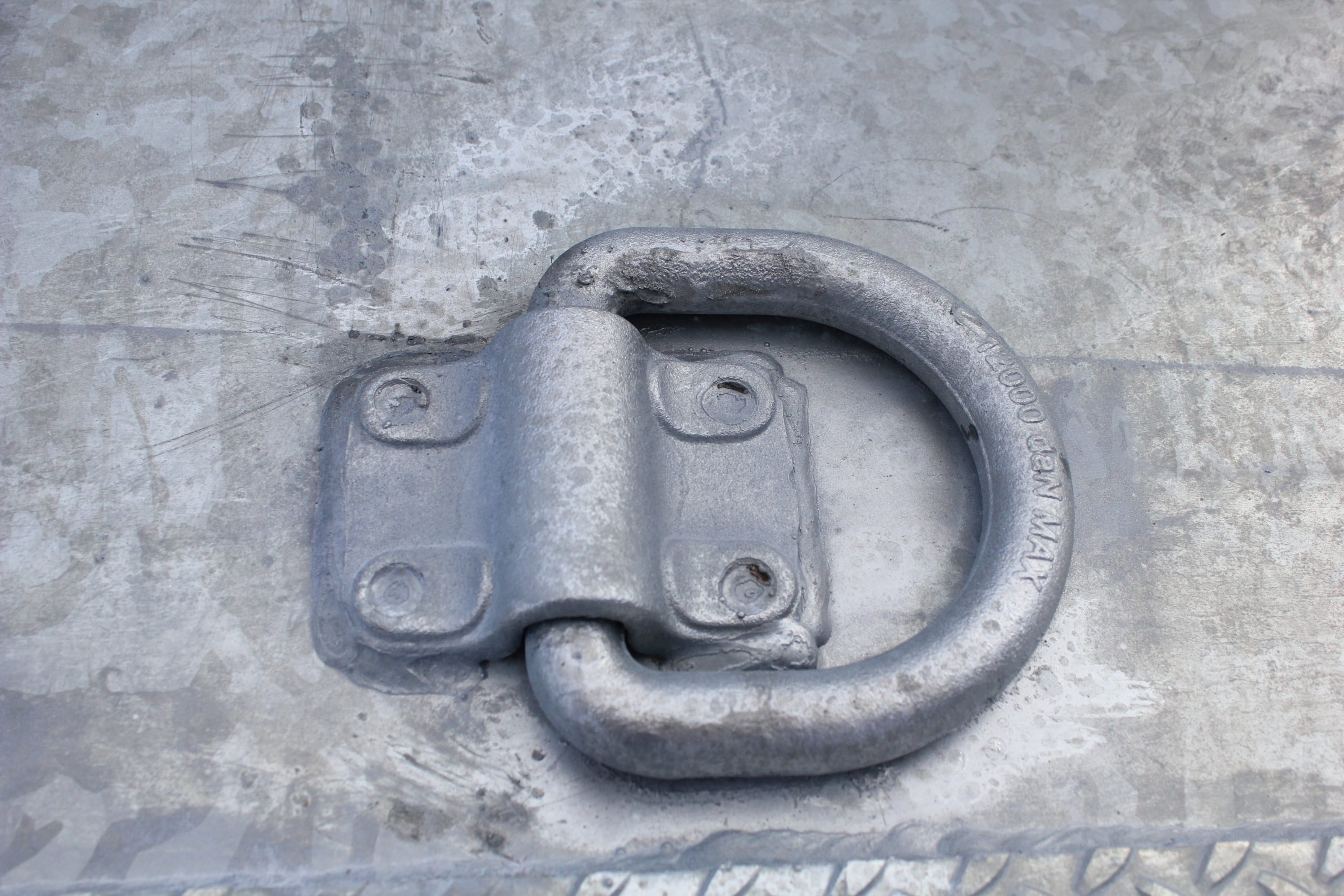

| Available Accessories | Alcoa Dura Bright Aluminum Rims, Certified Lashing rings, payload 8.000 Kg, Excavator boogie, Extra tire Kit, Lateral outriggers Kit, LED Working light, N. 4 Certified Ship hooks, N.3 Rows of Bewola Holes, N.4 Wide load signs, 423×423 mm, Orange Flashing Beacon, Semitrailer with customized dimensions, Speedline Aluminum Rims, VIME Hydraulic winch, 8.000 Kg |
|---|---|
| Axles | 12-ton ROR, drum brakes, SAF 12-ton, drum brakes |
| Ramp type | Rear hydraulic ramps, hot-dip galvanized, 4.000 x 800 mm, Rear manual aluminum ramps, 2.400 x 450 mm, Rear ramps, hot-dip galvanized, mm 2.400 x 650 |

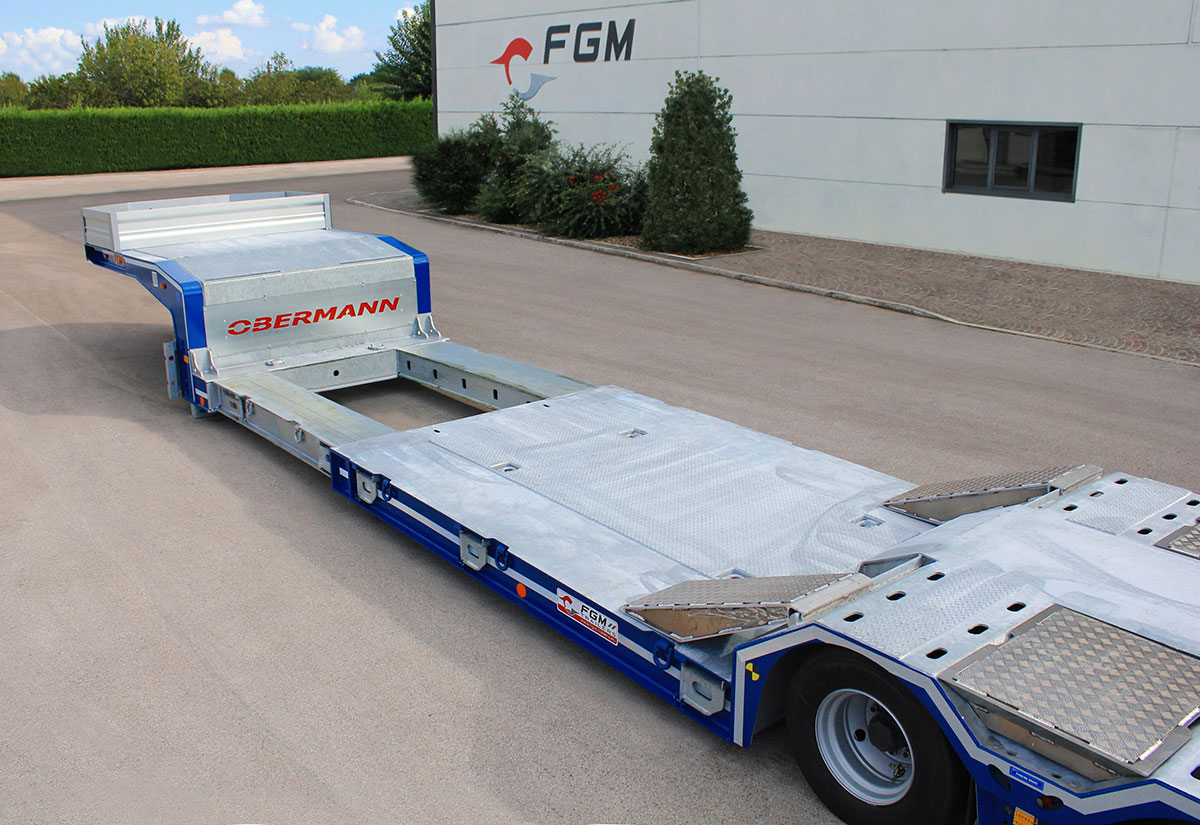

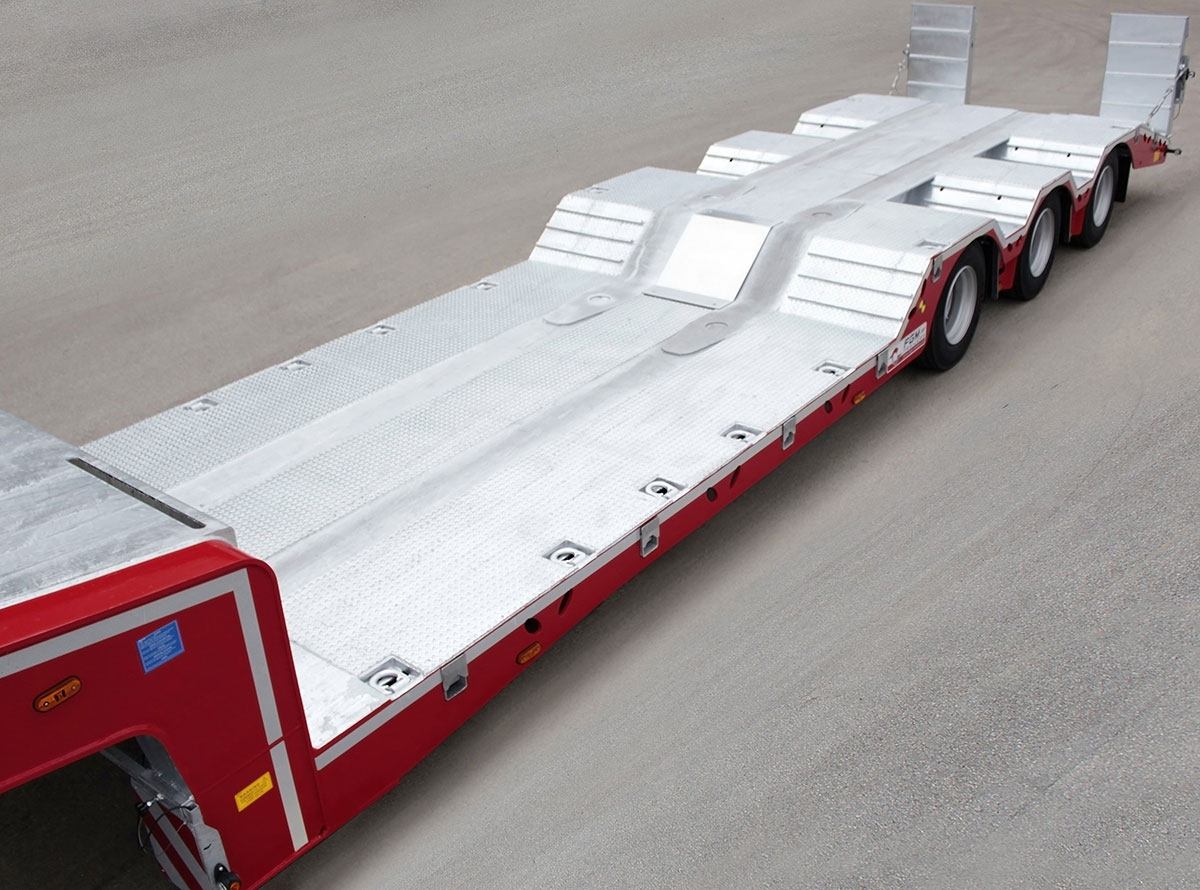

| Chassis | Extendable chassis, Lowered loading section |
| Surface Treatment | Hot-dip galvanized chassis, Painting job in RAL color requested, included |
