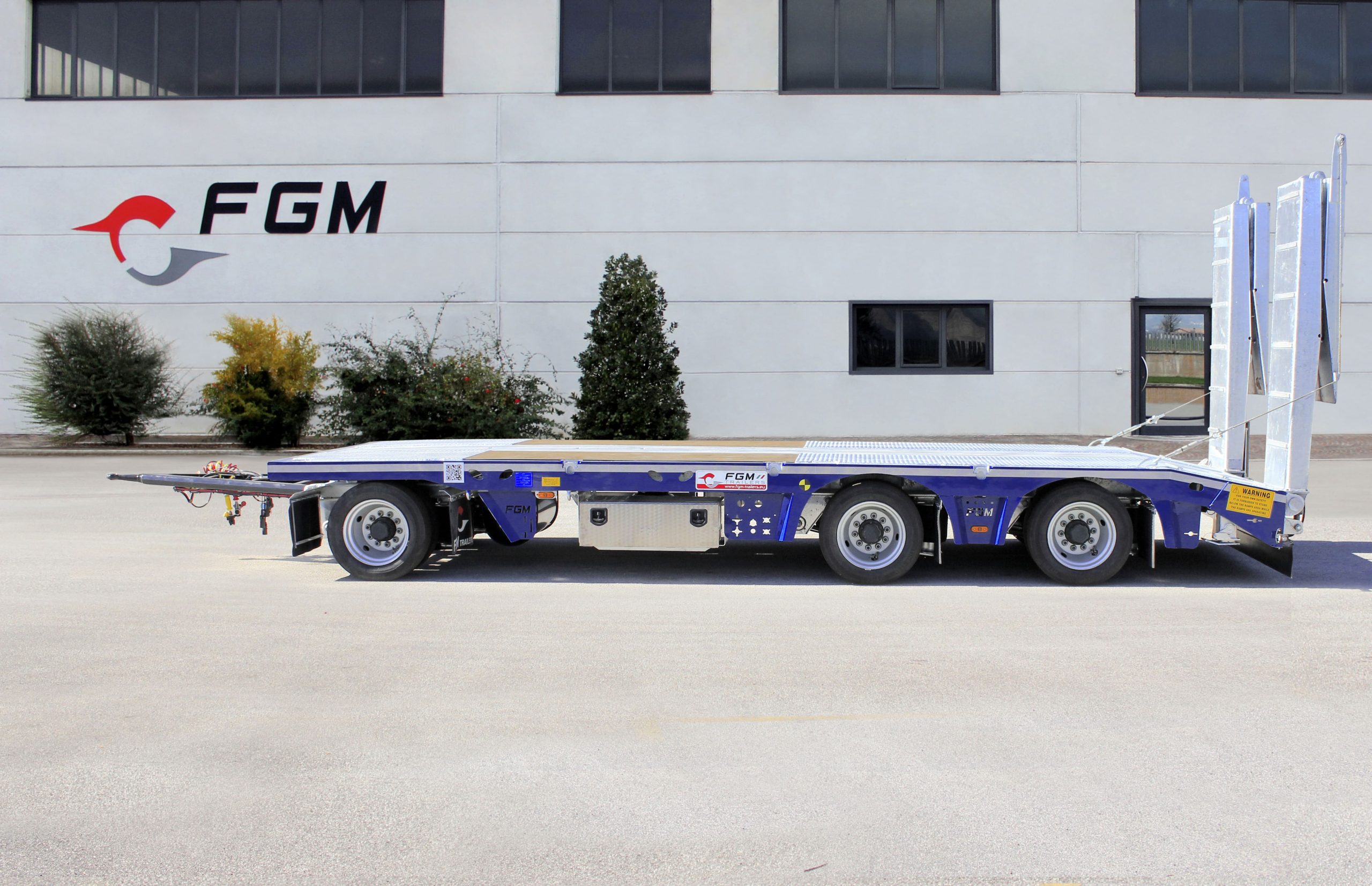

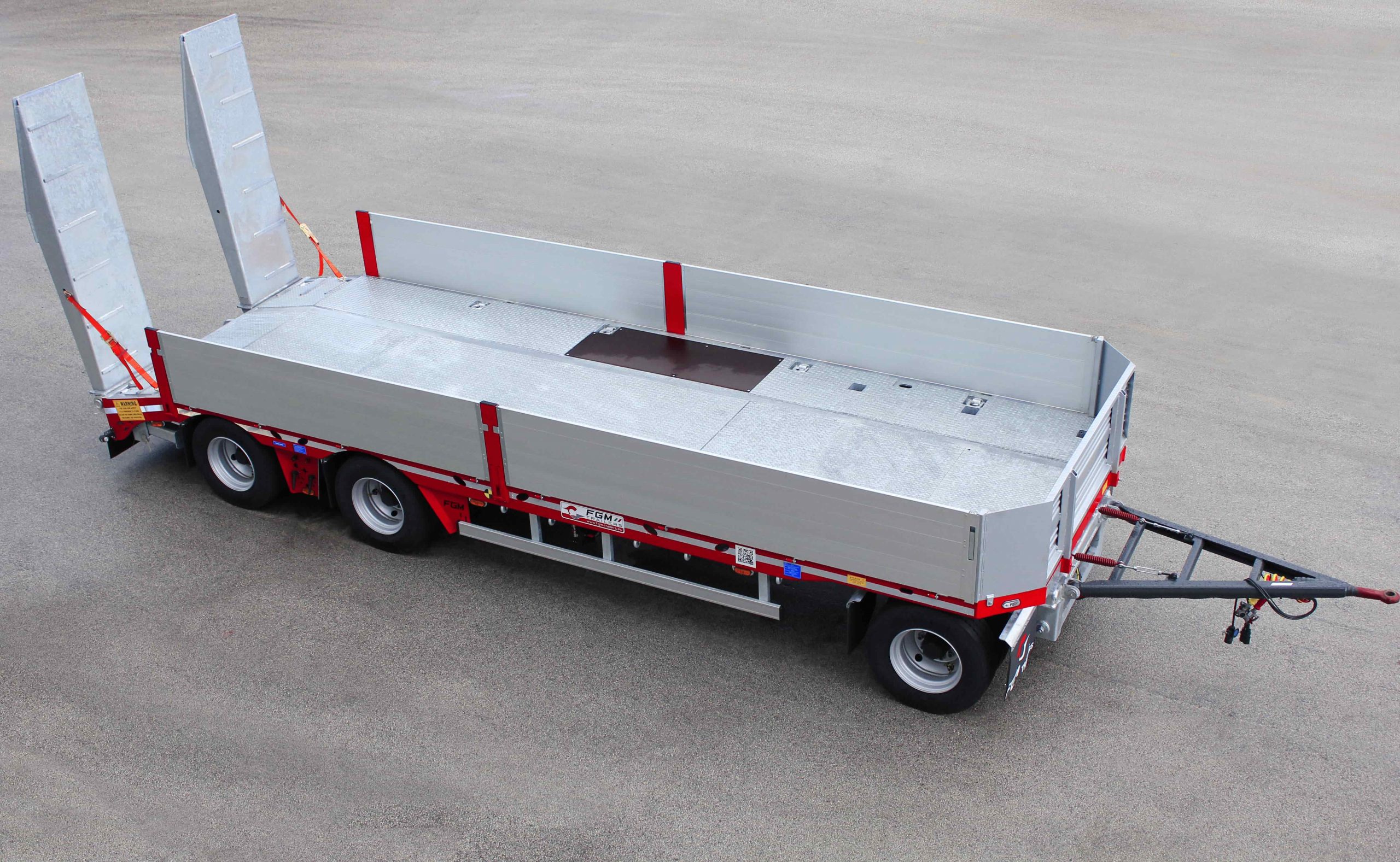

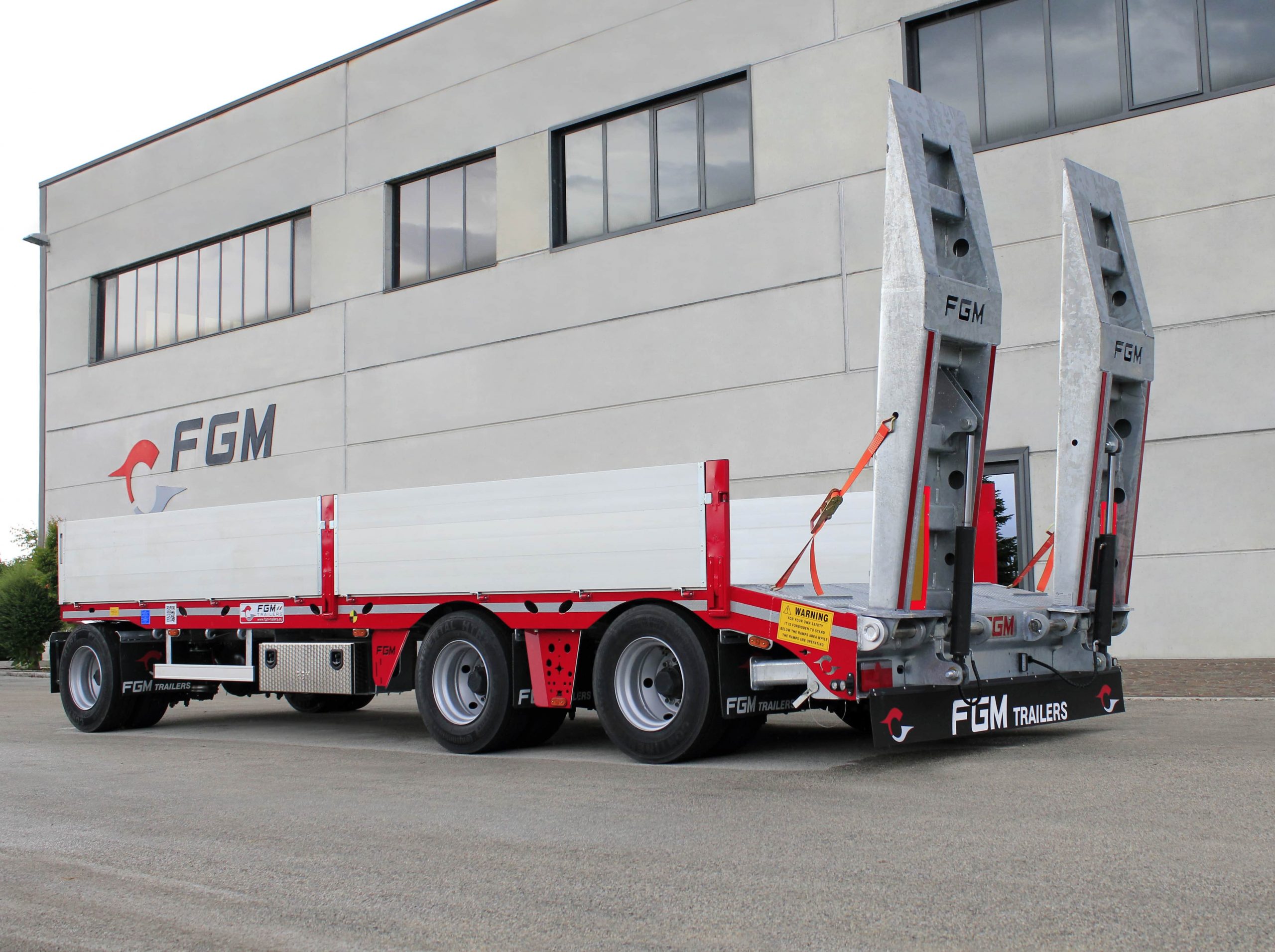

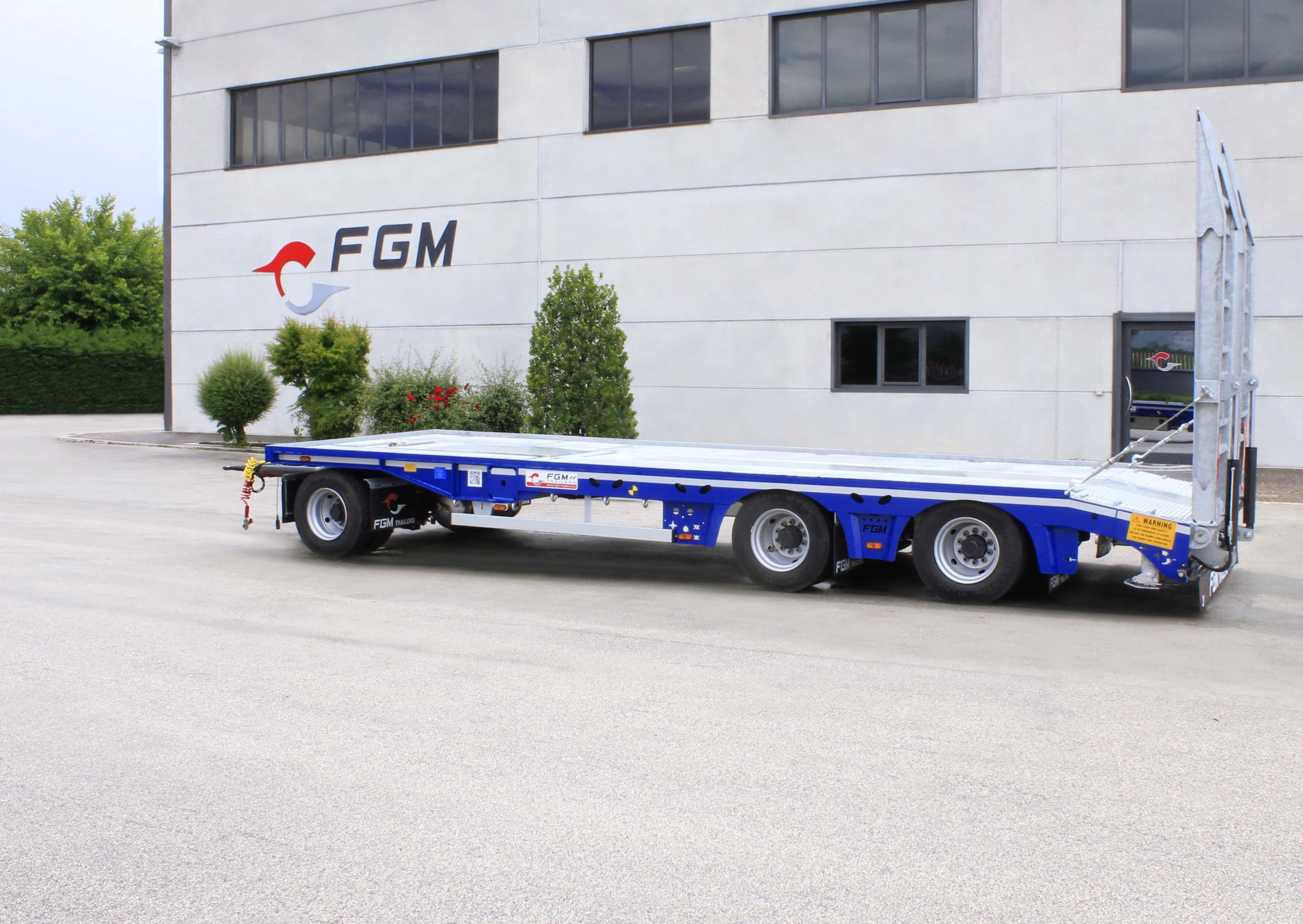

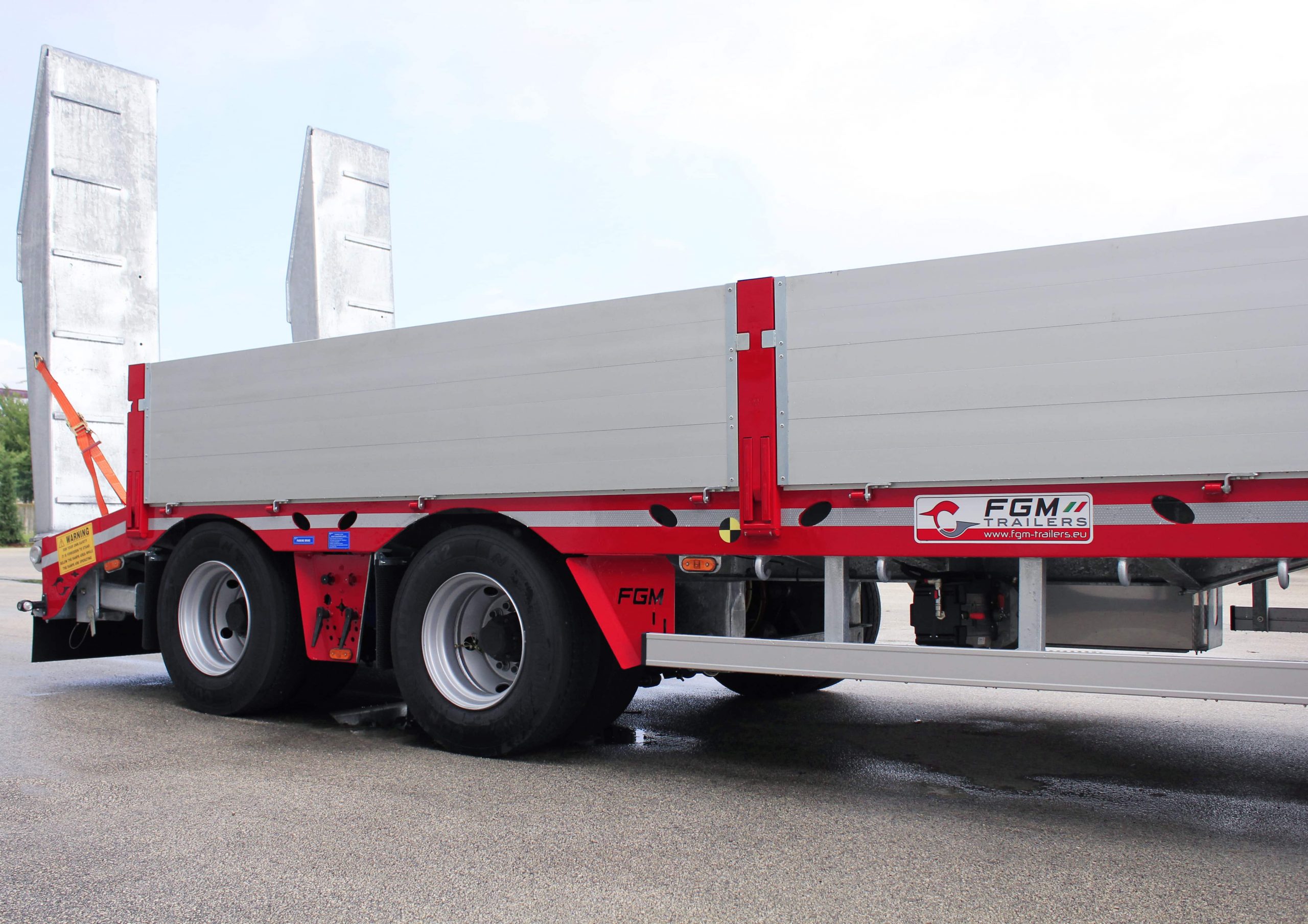

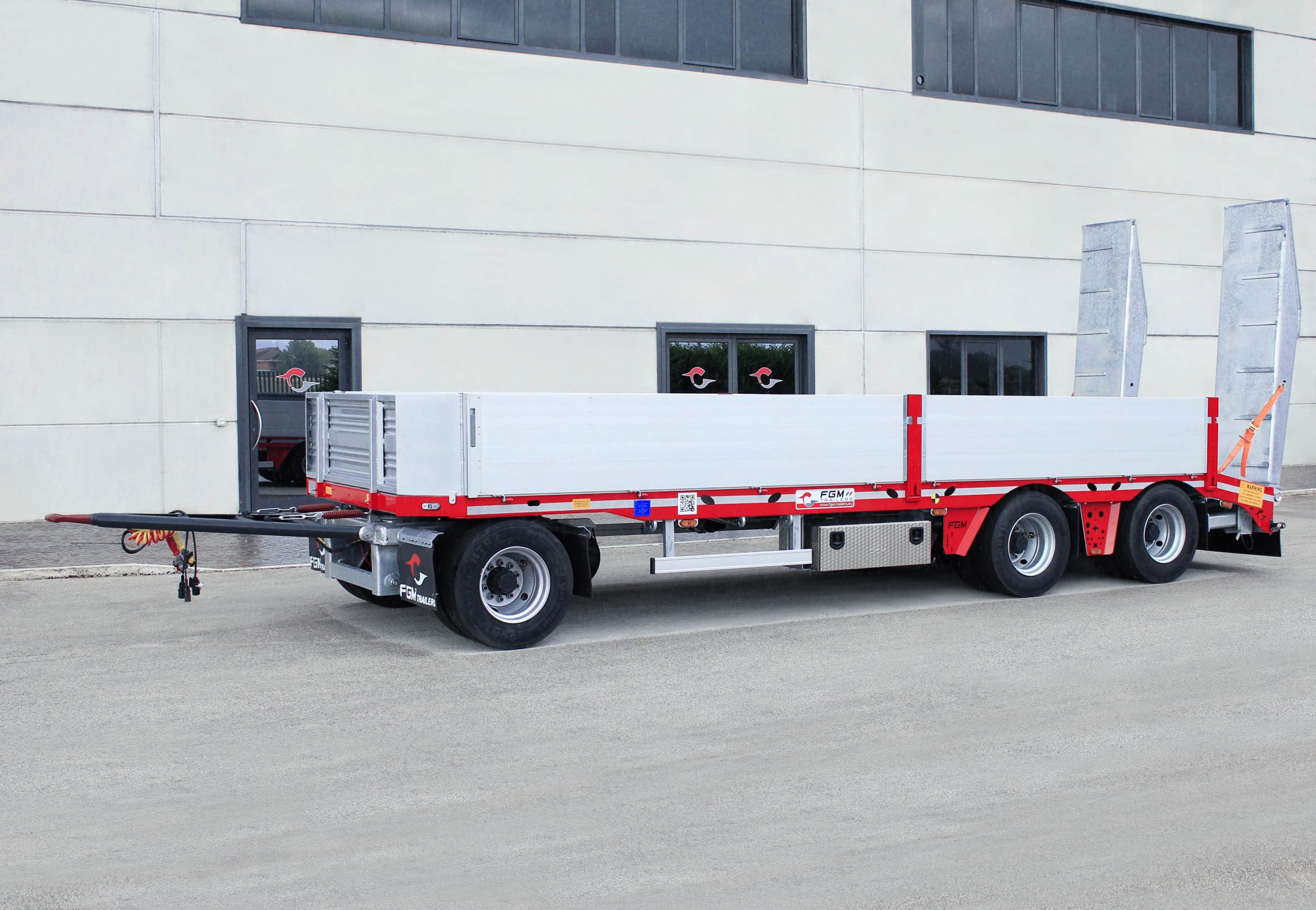

The heavy-duty drawbar trailer FGM 320 is the optimal solution for companies transporting construction equipment, prefabricated parts and earthmoving machinery. The model designed with a straight low loading platform, certified lashing point and hot-dip galvanized rear ramps is available in extensive configurations and accessories.

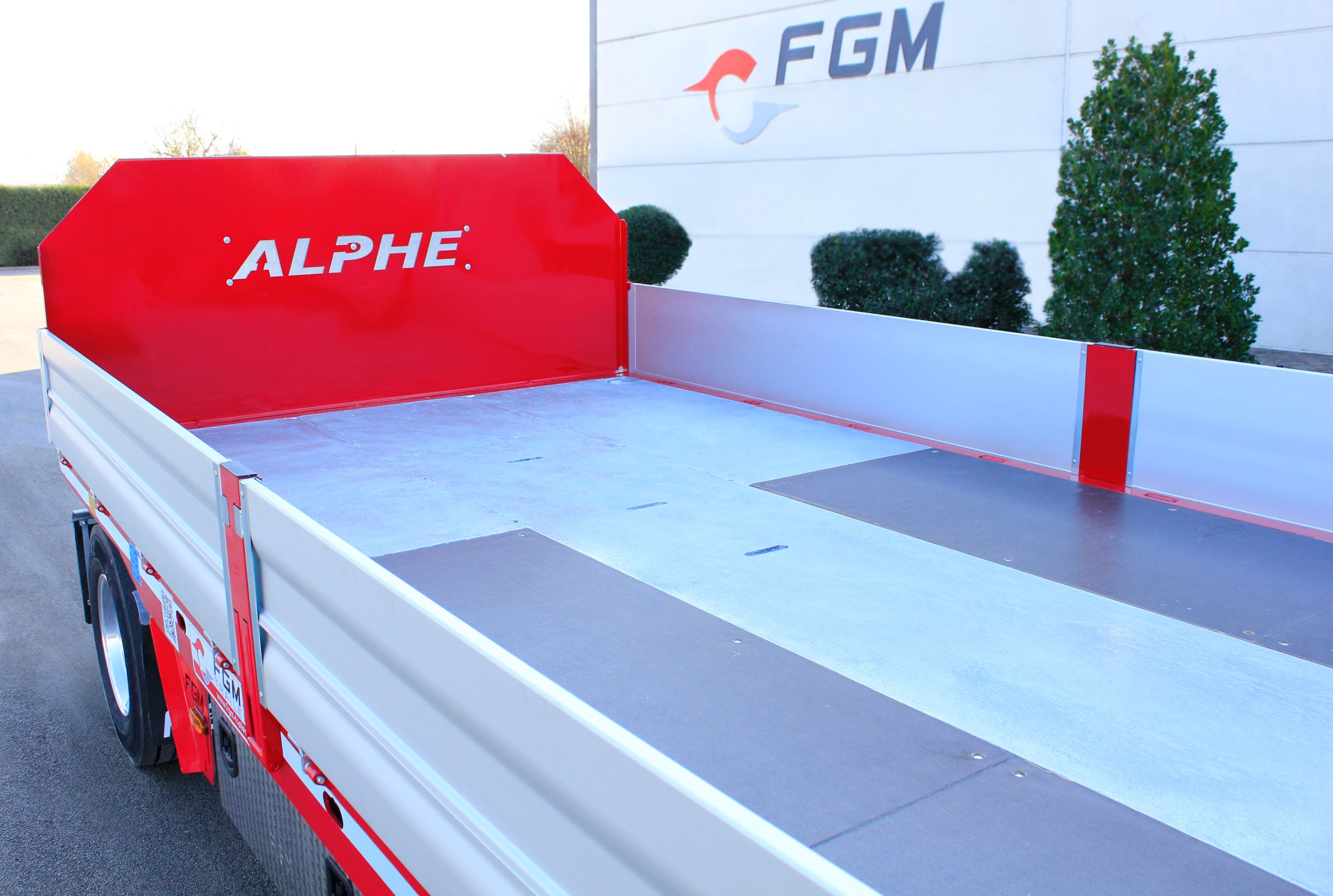

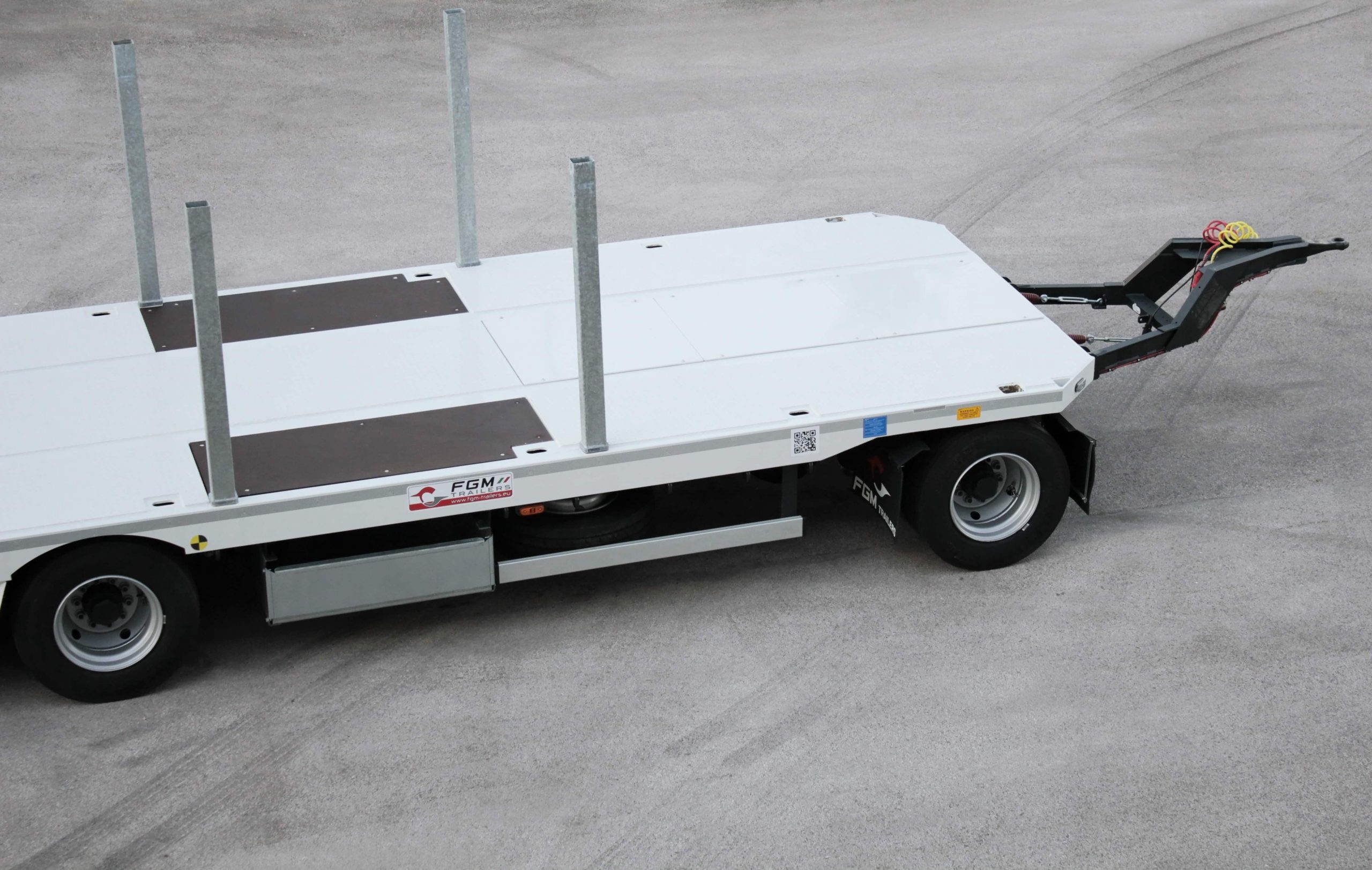

Loading platform 6000-9000 mm
Loading height 870 mm
Tires 235/75 r 17.5
Tire load 10.300 kg at 100 km/h
N.3 Axle ROR/SAF, 12-ton, drum brakes
Braking system Knorr Bremse
LED Electric system Aspoek
Customizable length
Certified lashing rings

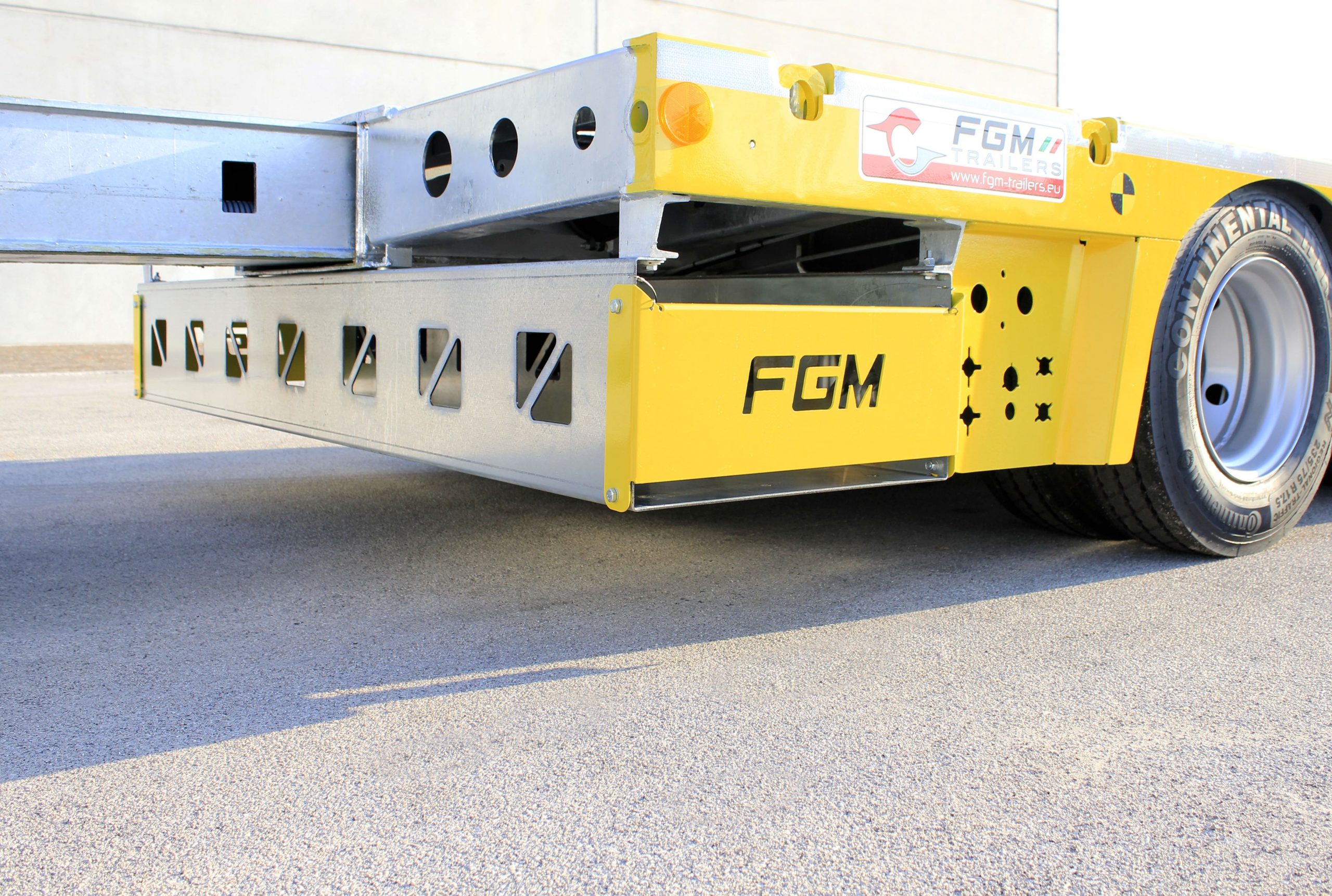

Stainless steel toolbox

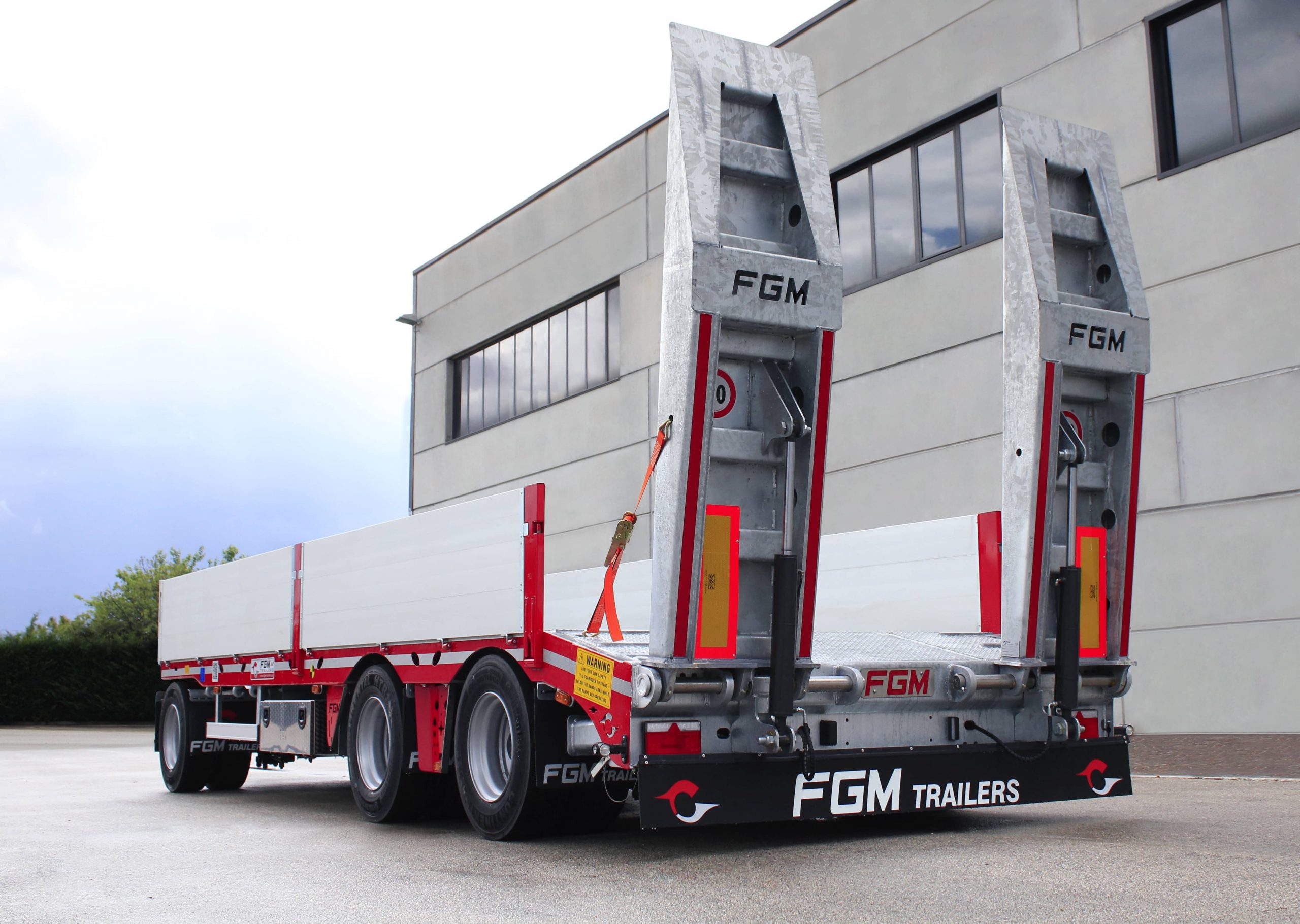

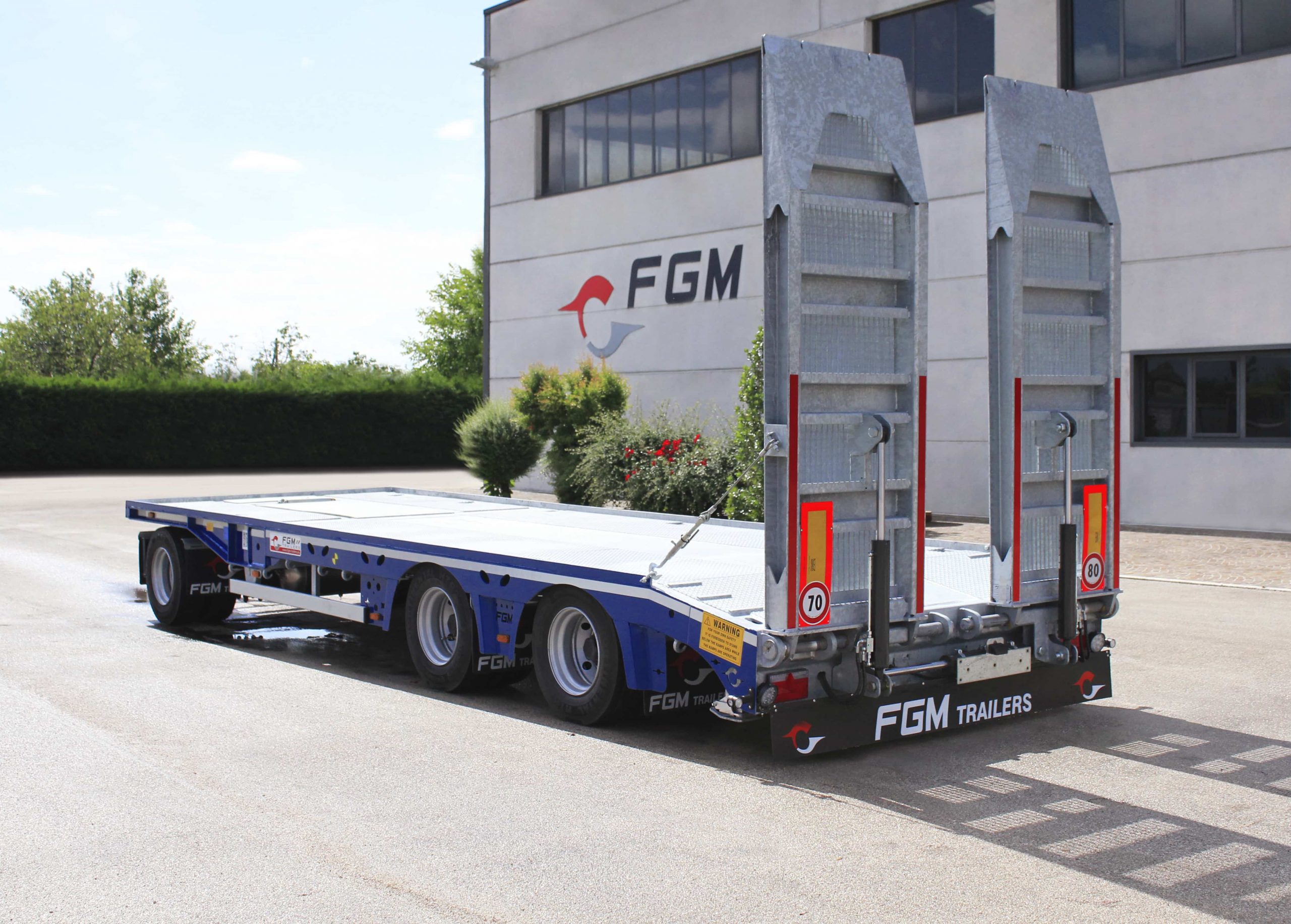

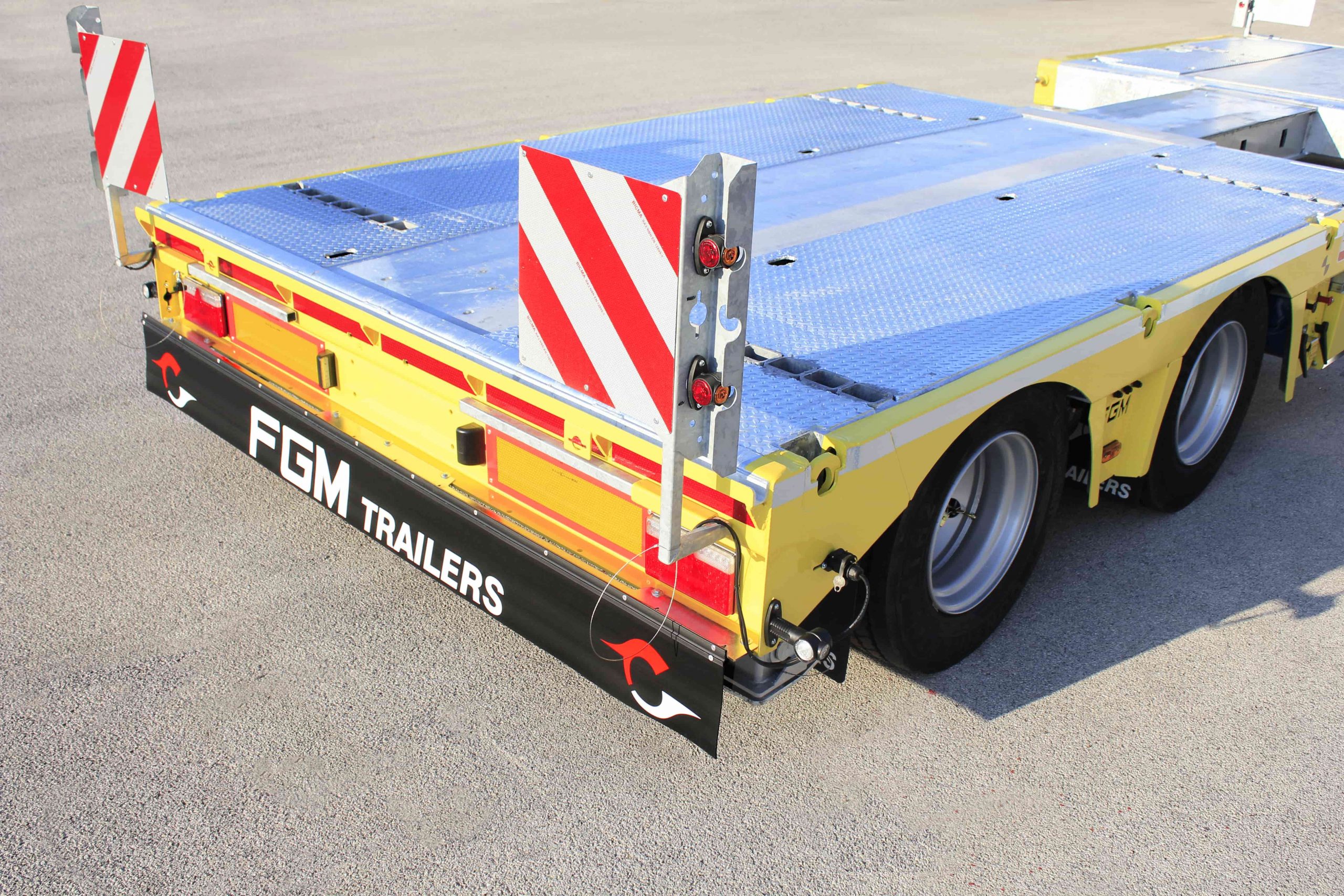

Strenx 700 rear ramps

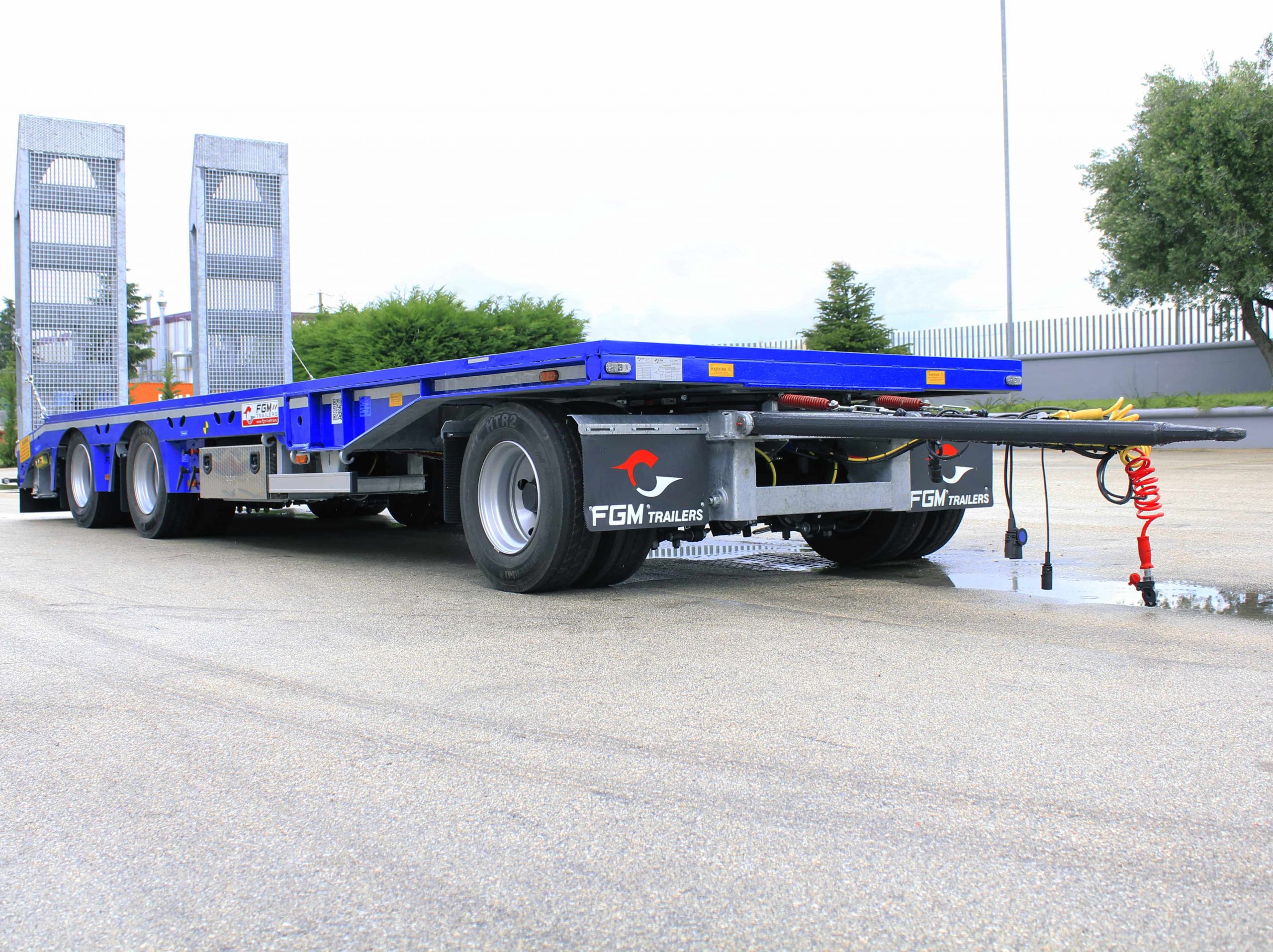

Jost drawbar
| Available Accessories | Alcoa Dura Bright Aluminum Rims, Certified Lashing rings, payload 8.000 Kg, Excavator boogie, Extra tire Kit, FGM Toolbox, L 1000x H 300 x W 500 mm, Lateral outriggers Kit, LED Working light, N. 4 Certified Ship hooks, N.3 Rows of Bewola Holes, N.4 Wide load signs, 423×423 mm, Orange Flashing Beacon, Rubber inserts, Semitrailer with customized dimensions, Speedline Aluminum Rims, Twist locks, JOST, VIME Hydraulic winch, 8.000 Kg, Wheel recess Kit |
|---|---|
| Axles | 12-ton ROR, drum brakes, SAF 12-ton, drum brakes |

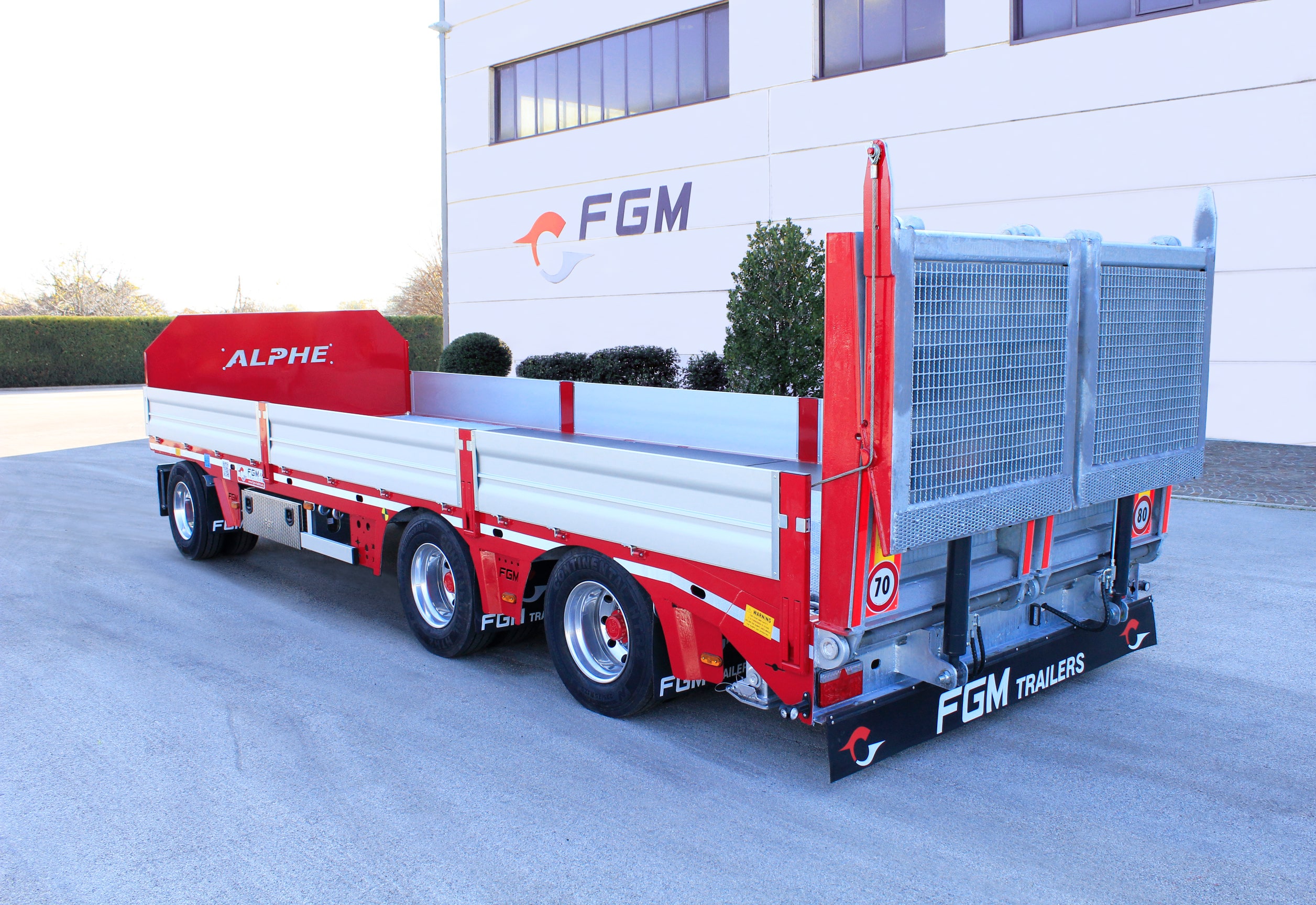

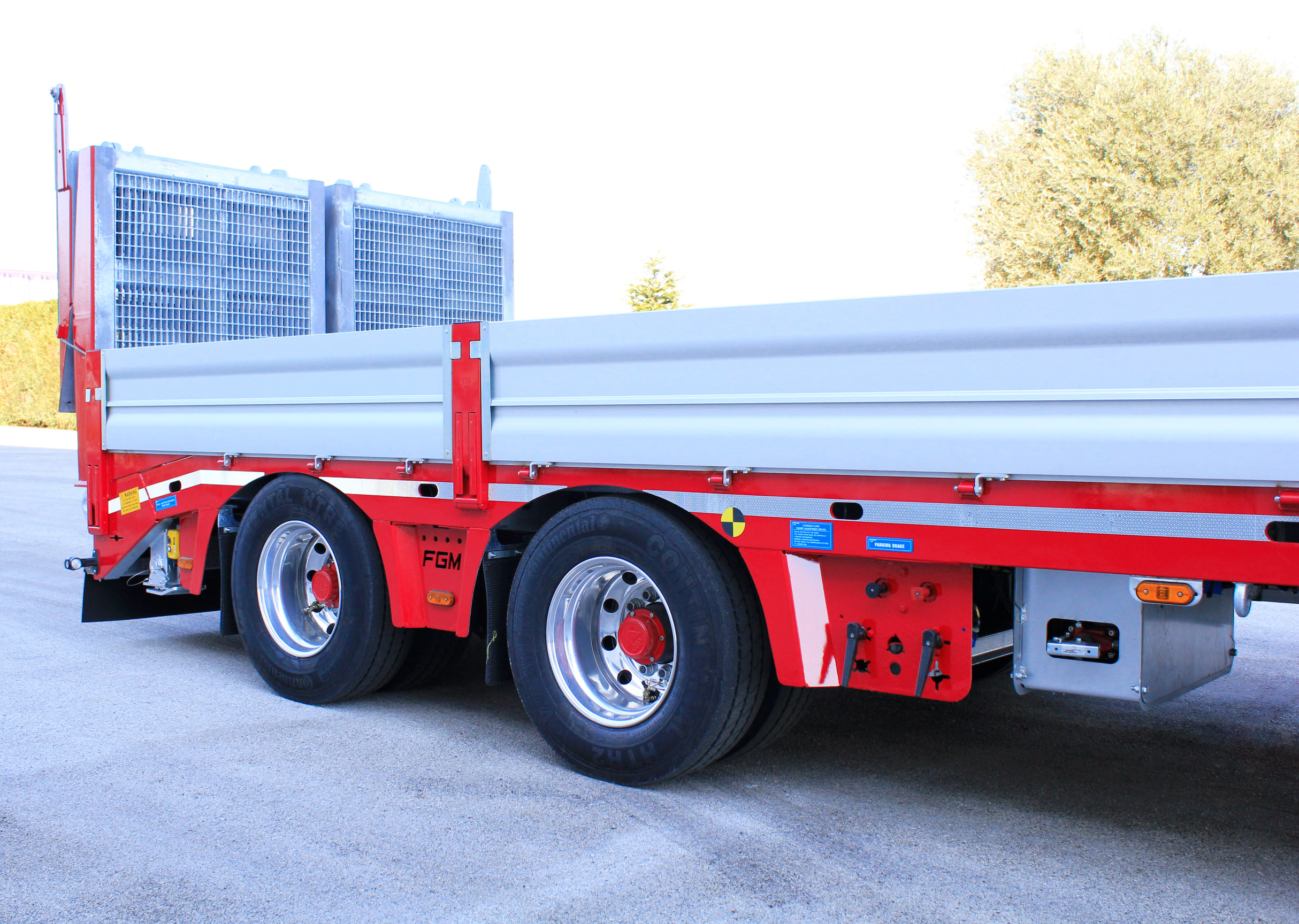

| Ramp type | Rear hydraulic ramps, hot-dip galvanized, 4.000 x 800 mm, Rear KELLER ramps, hot-dip galvanized, 4.000 x 1.230 mm, Rear ramps, hot-dip galvanized, mm 2.400 x 650 |

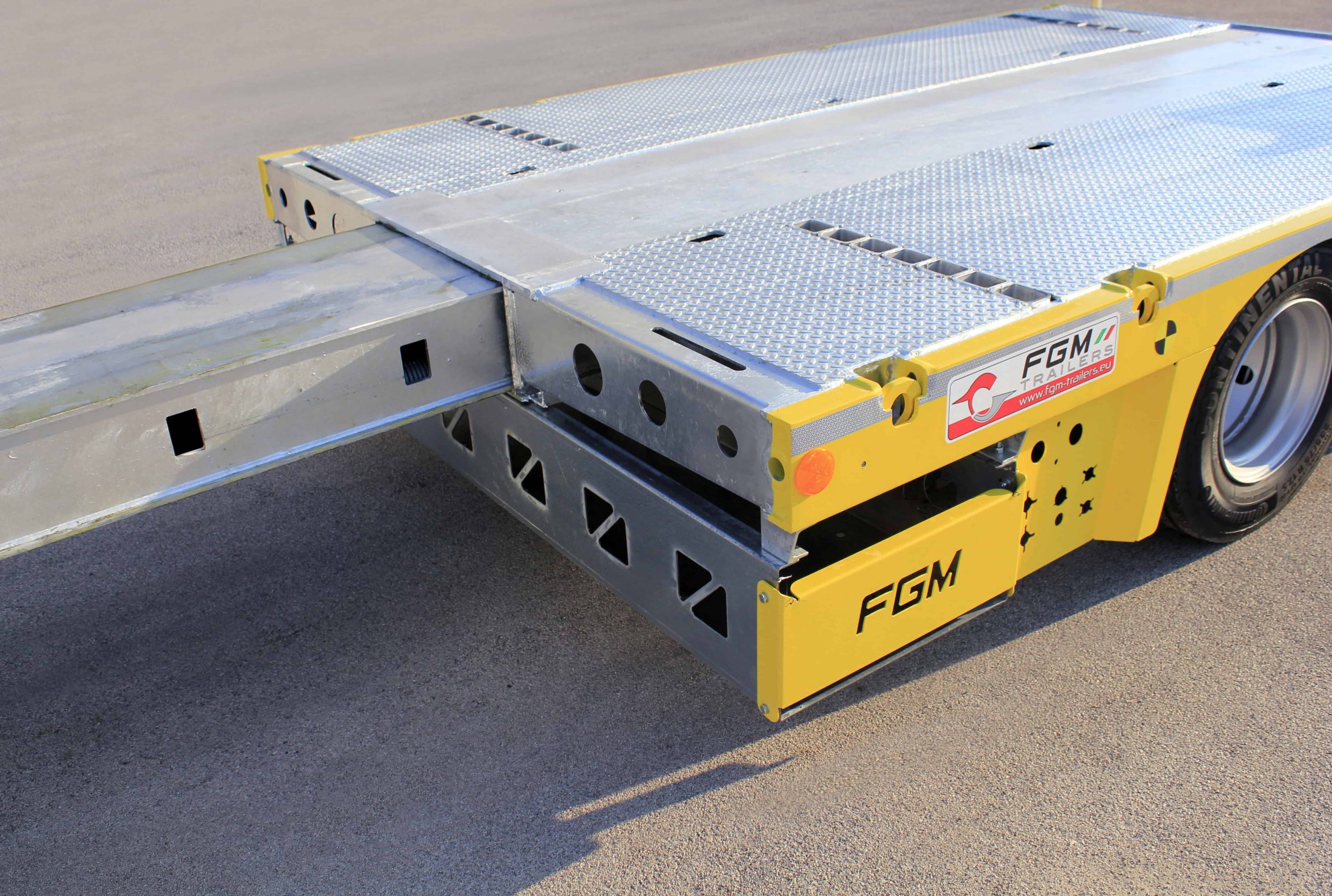

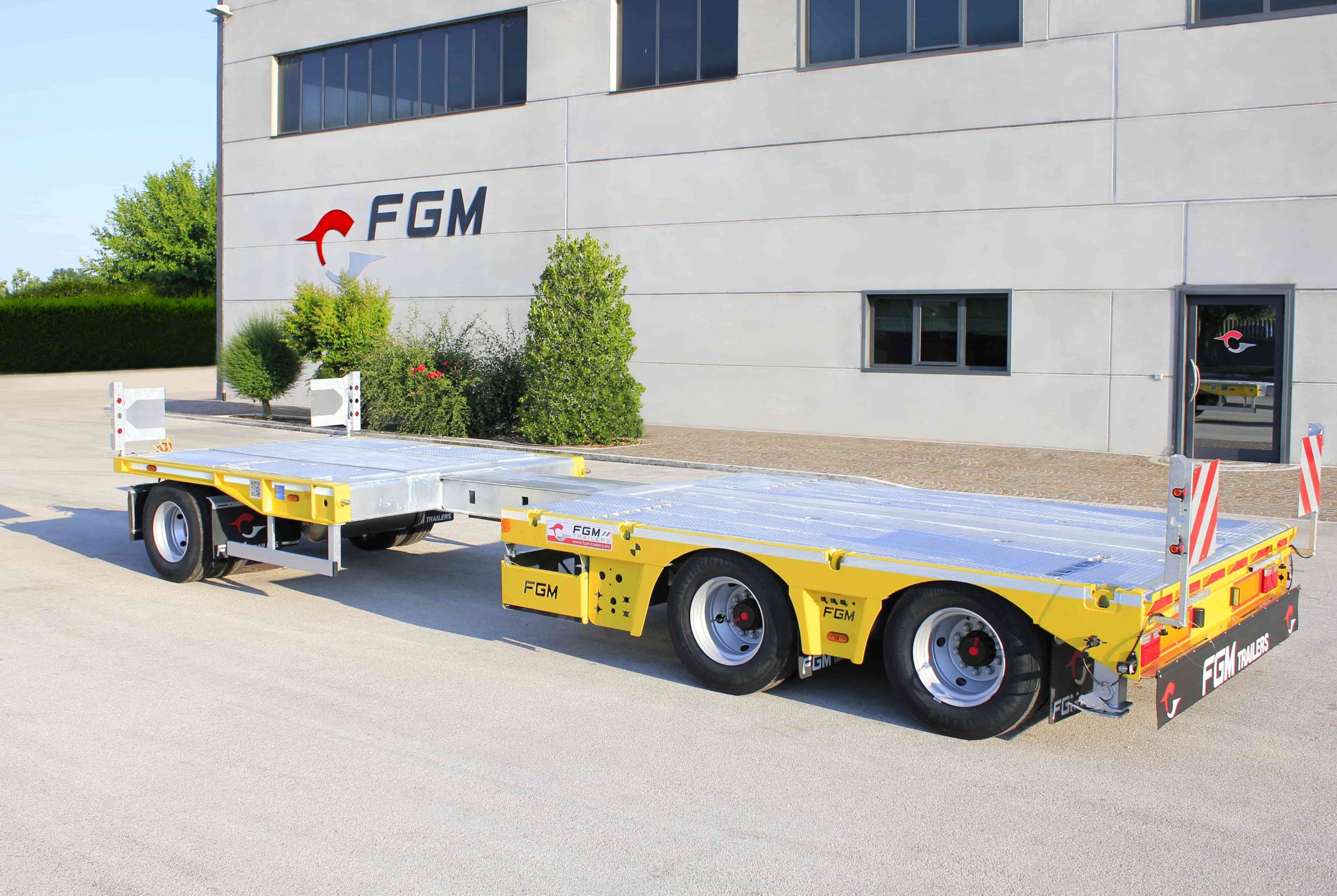

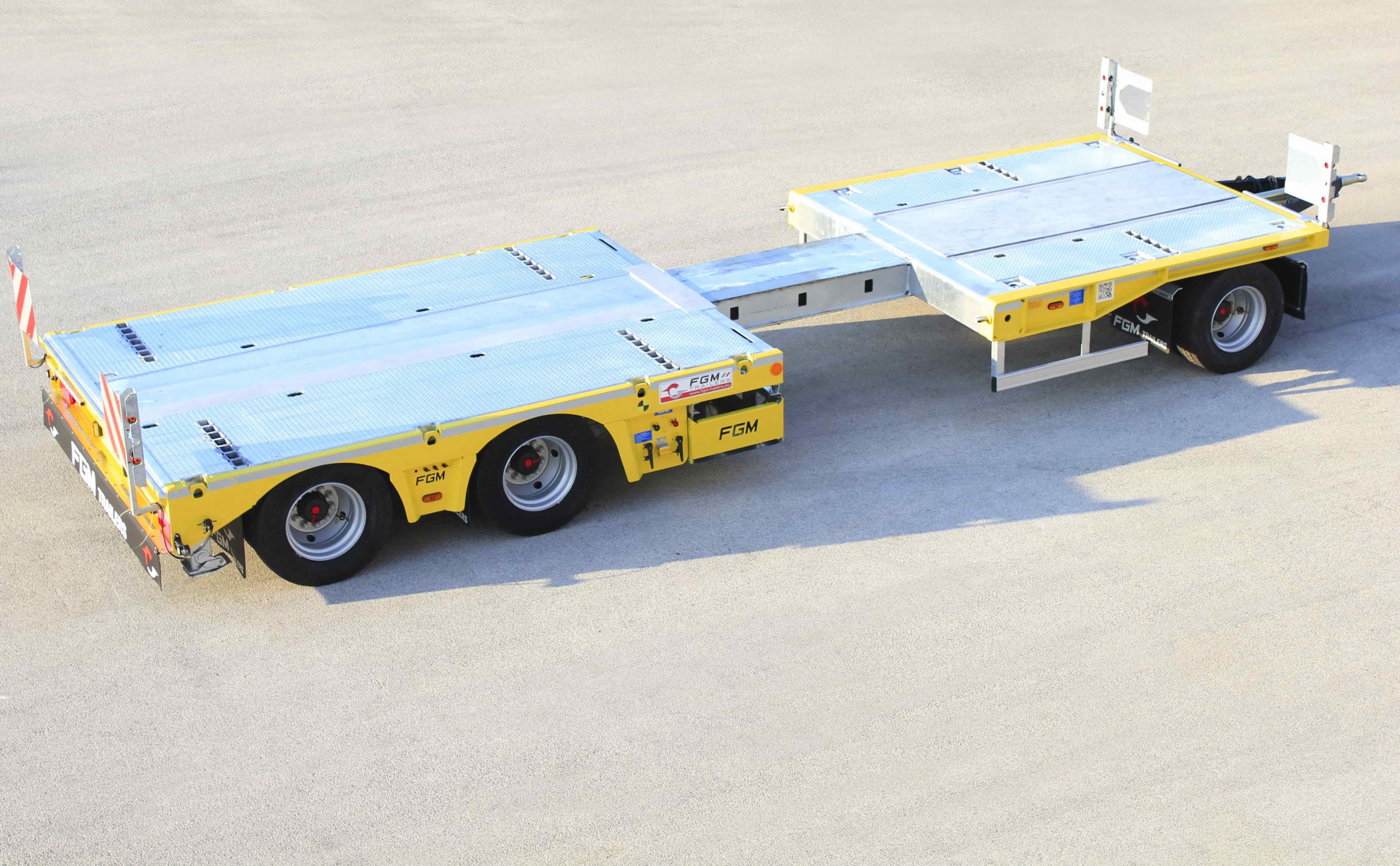

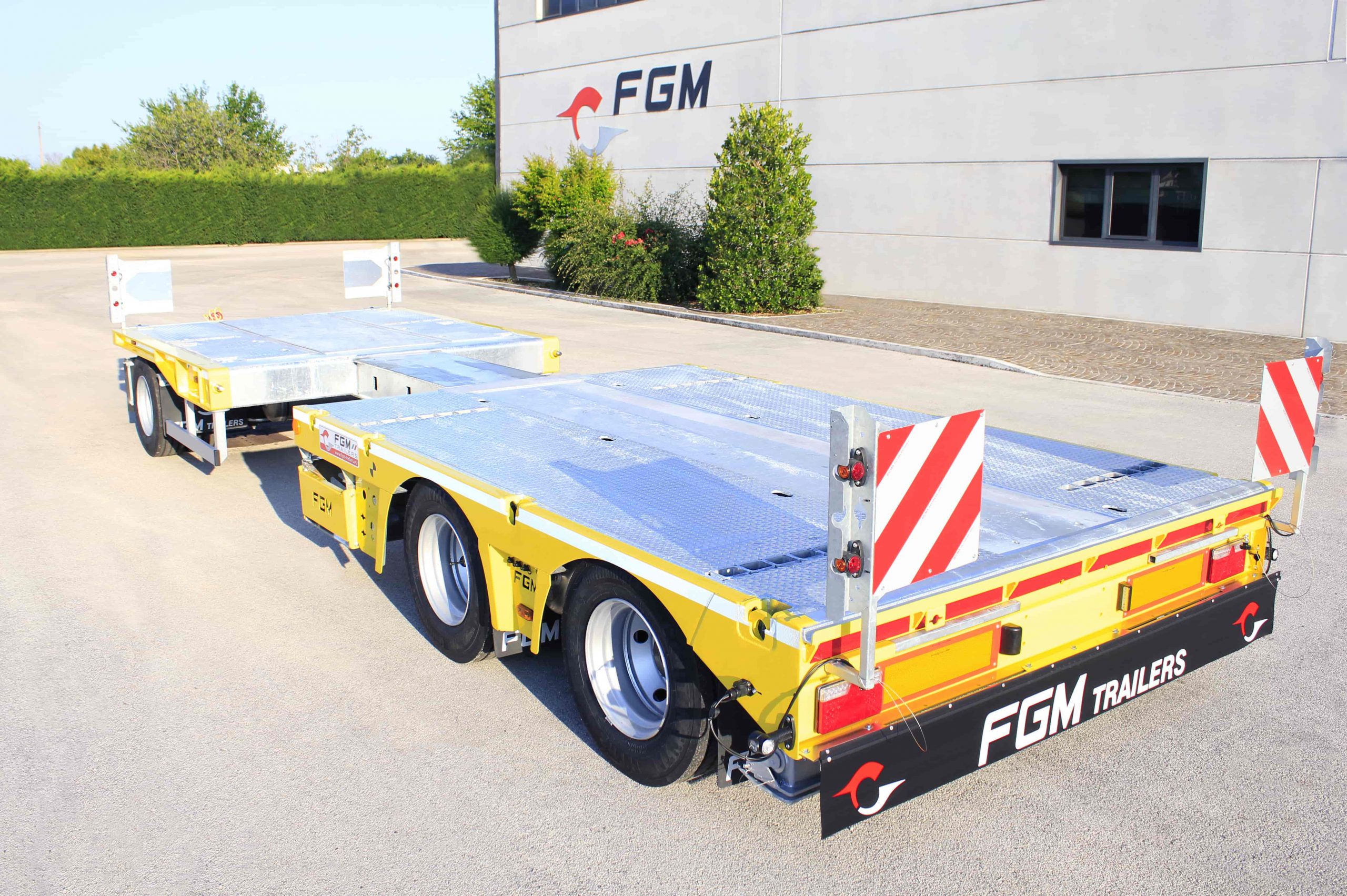

| Chassis | Extendable chassis, Fixed chassis |
| Surface Treatment | Hot-dip galvanized chassis, Painting job in RAL color requested, included |
