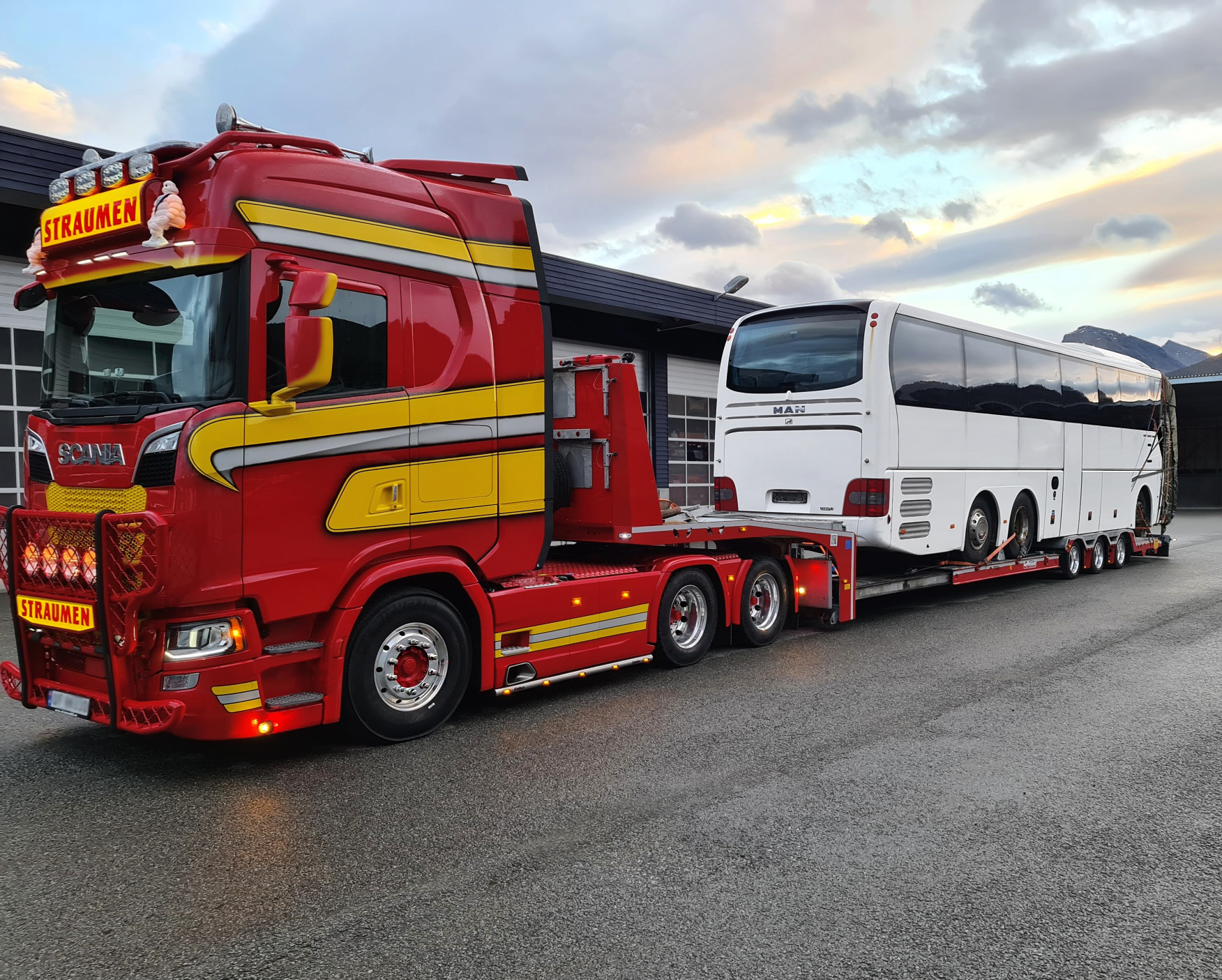

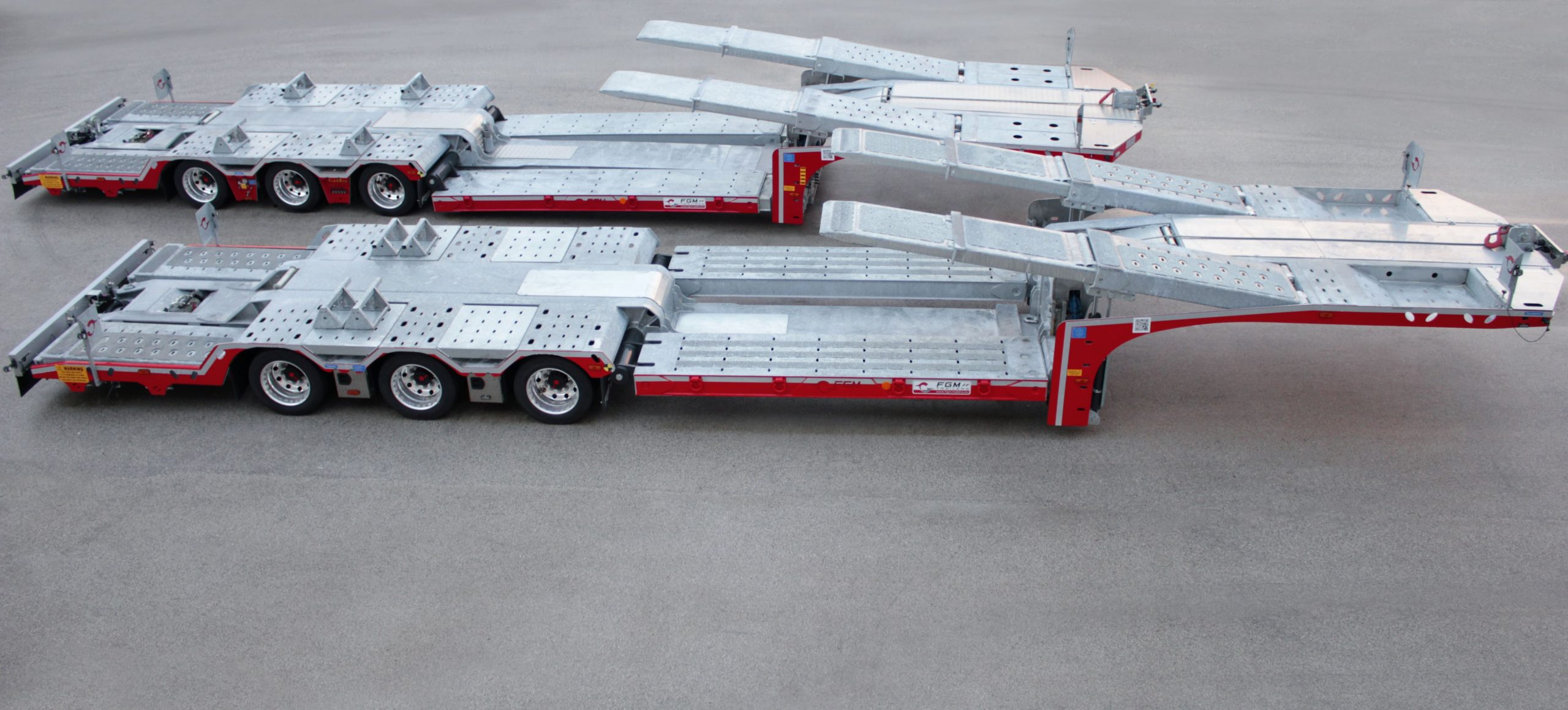

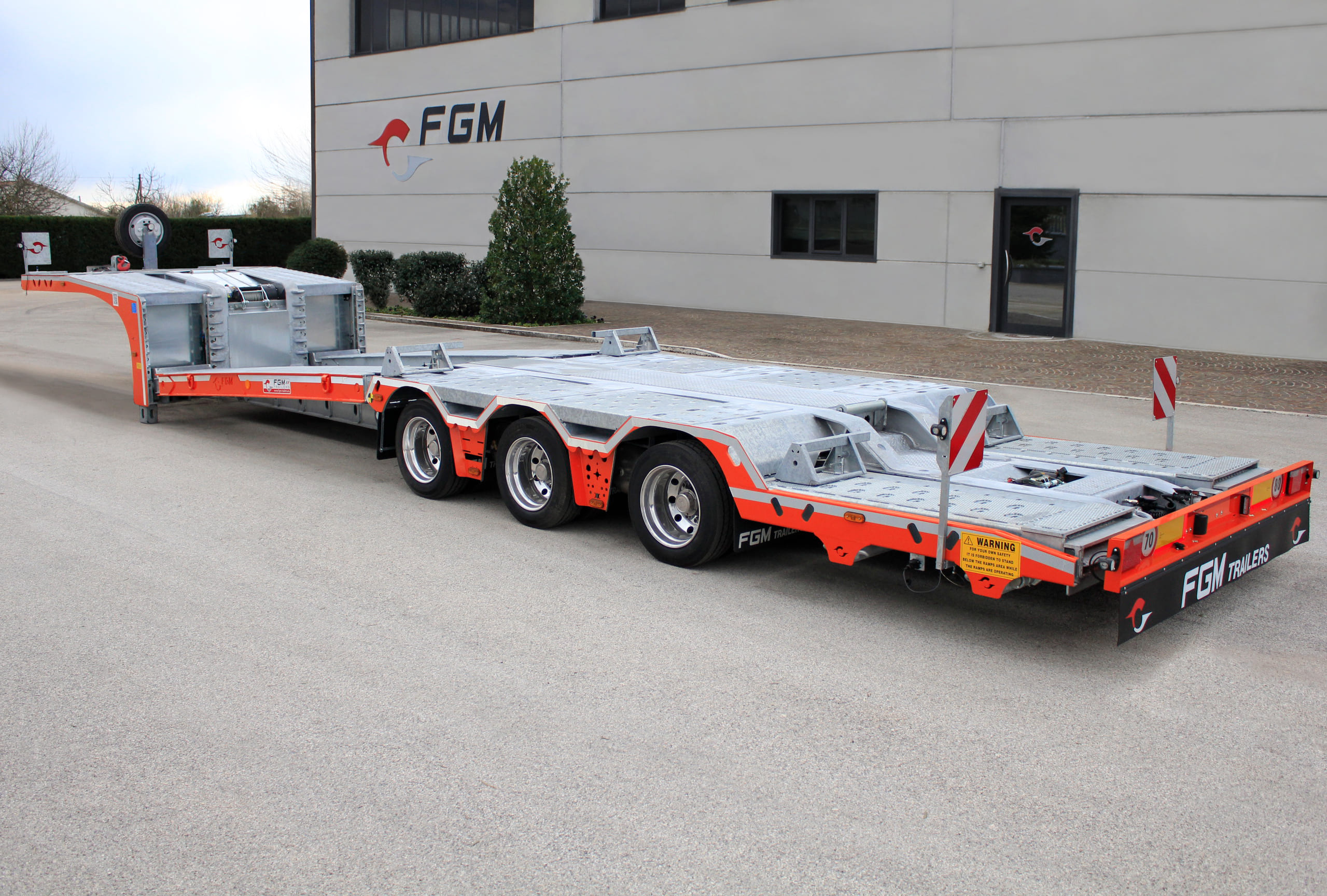

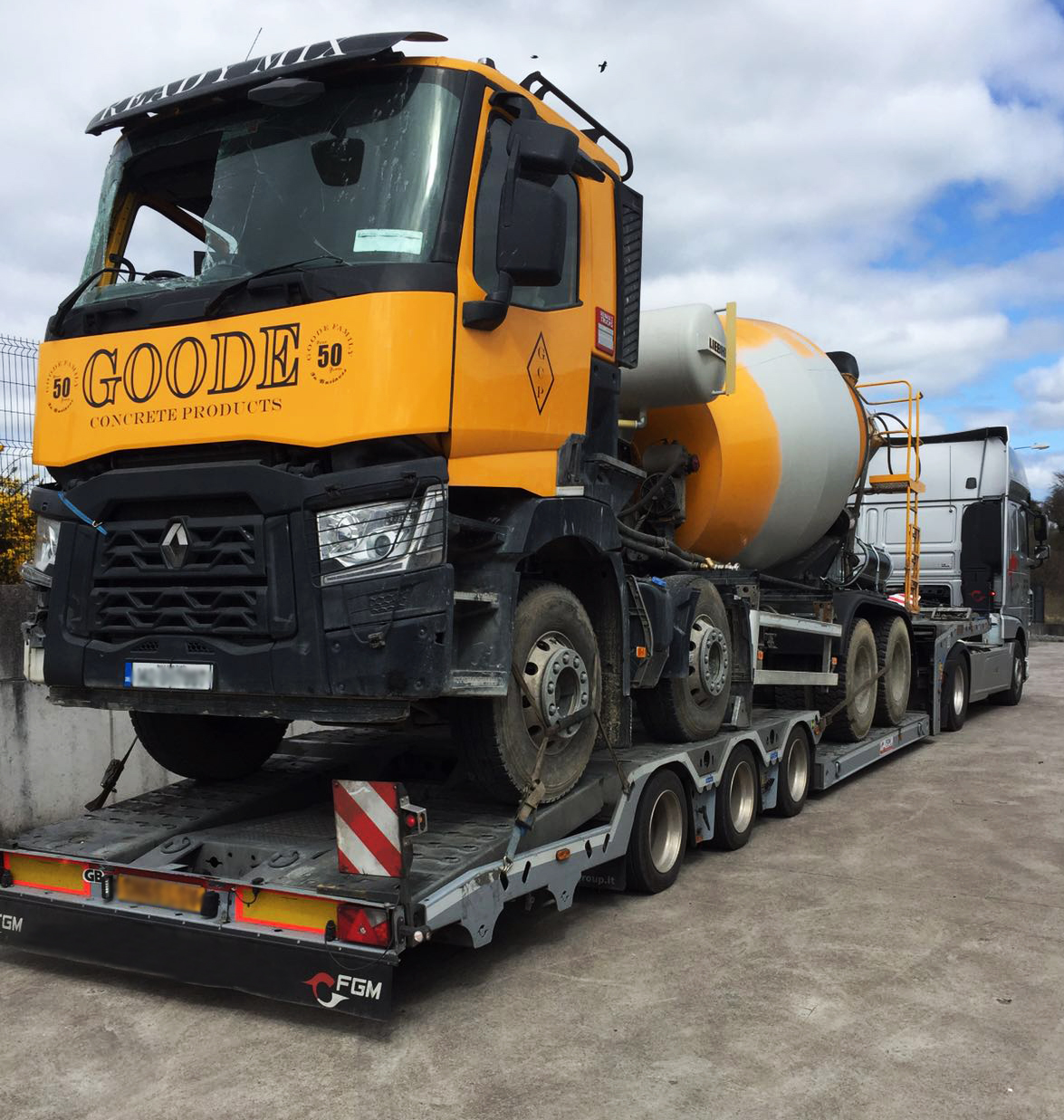

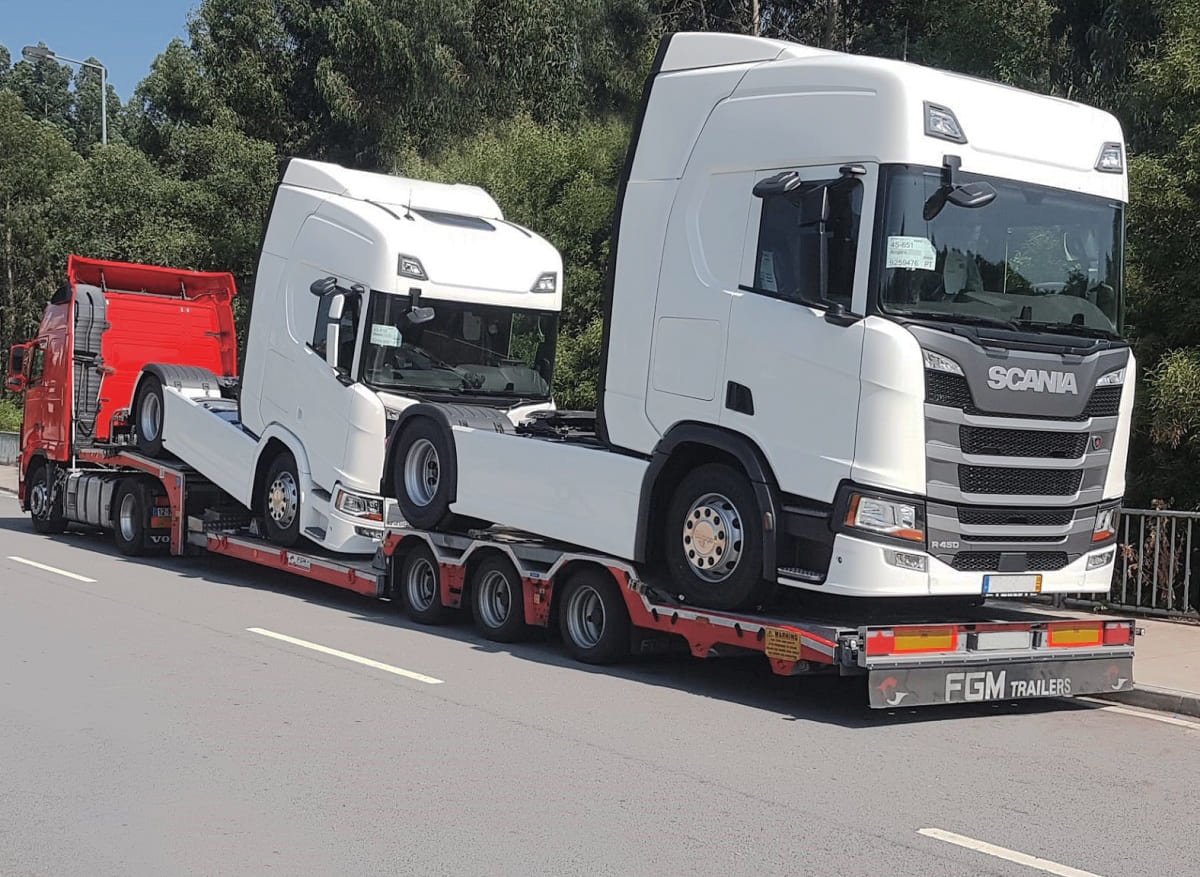

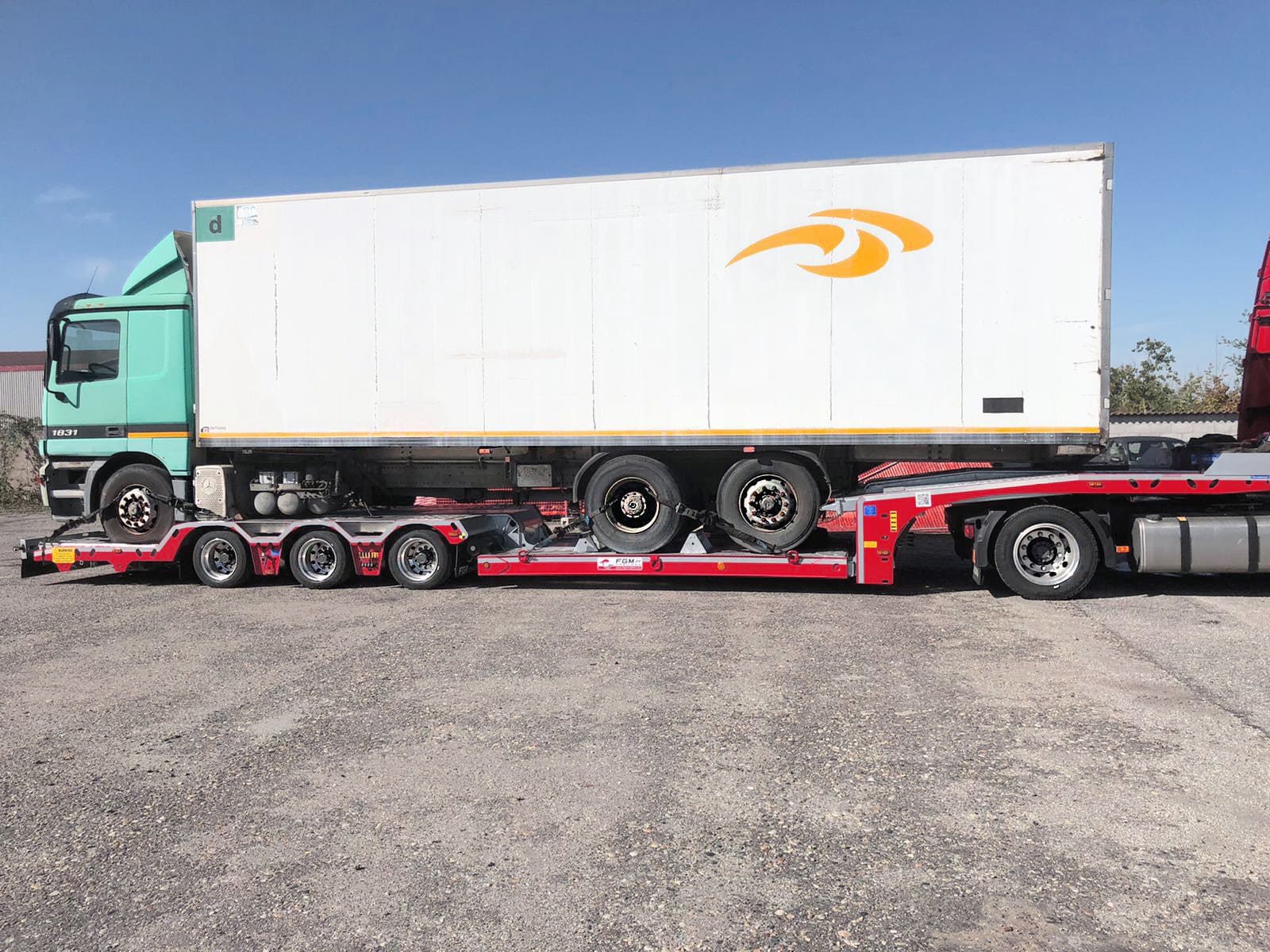

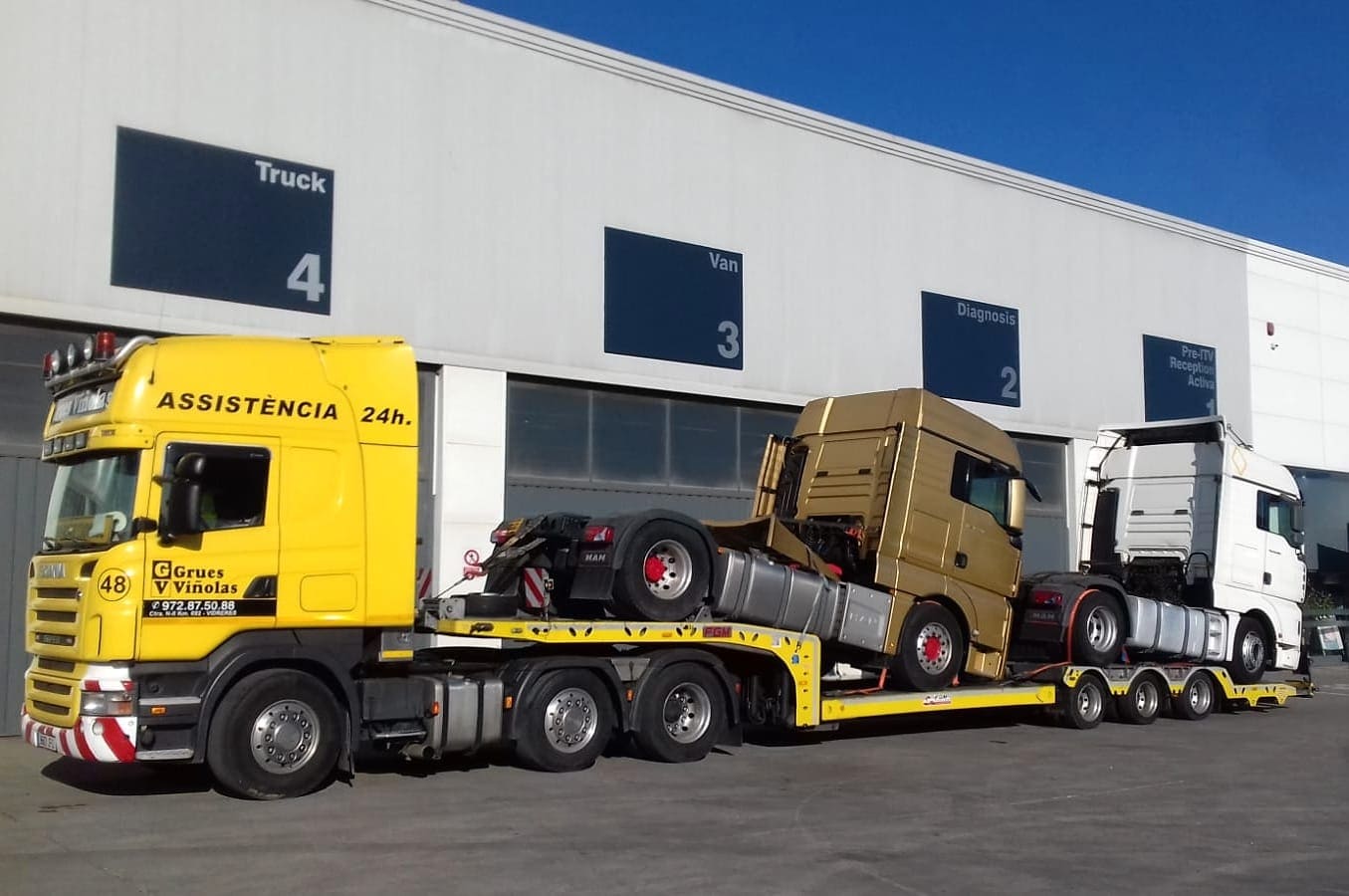

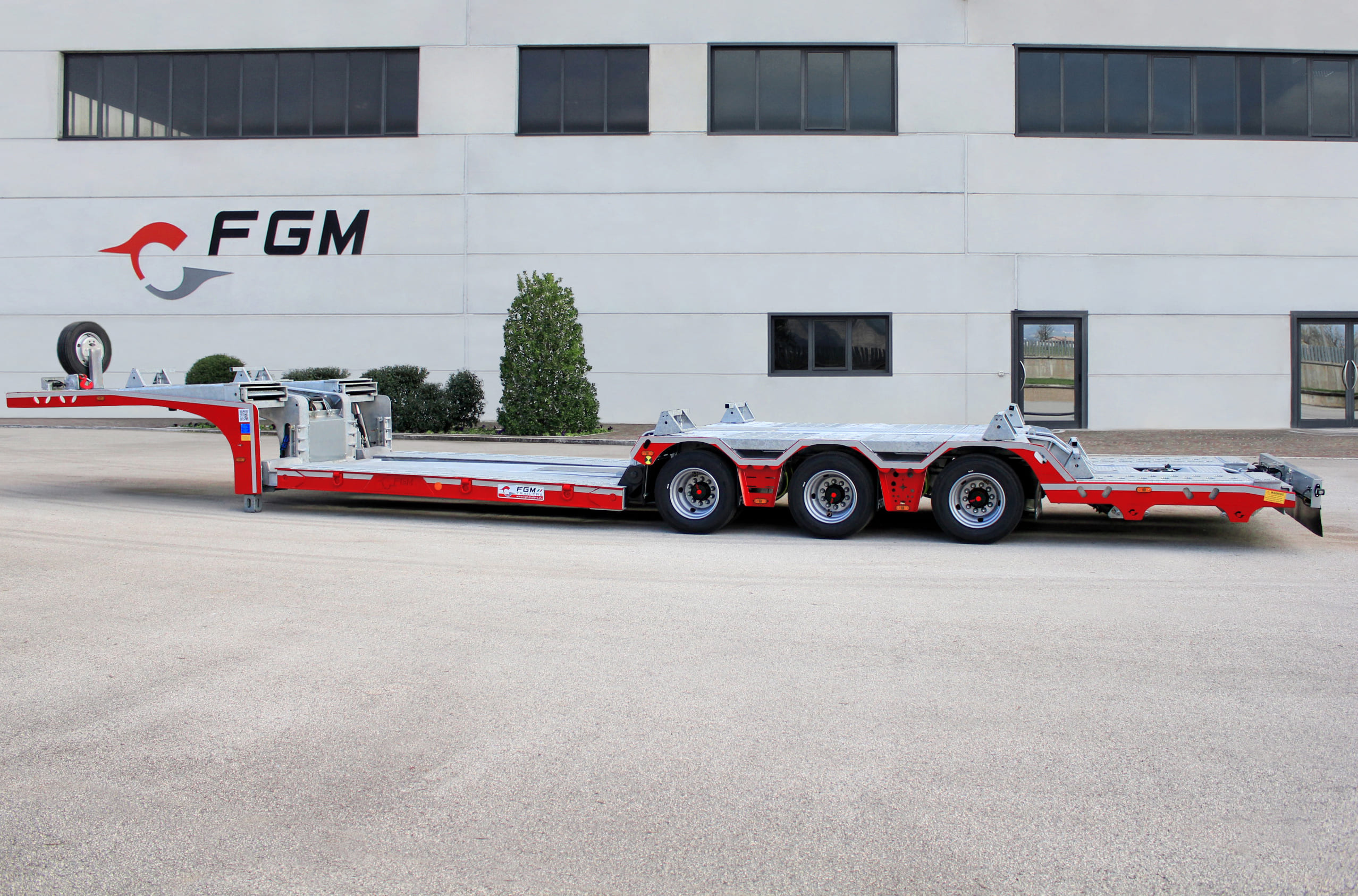

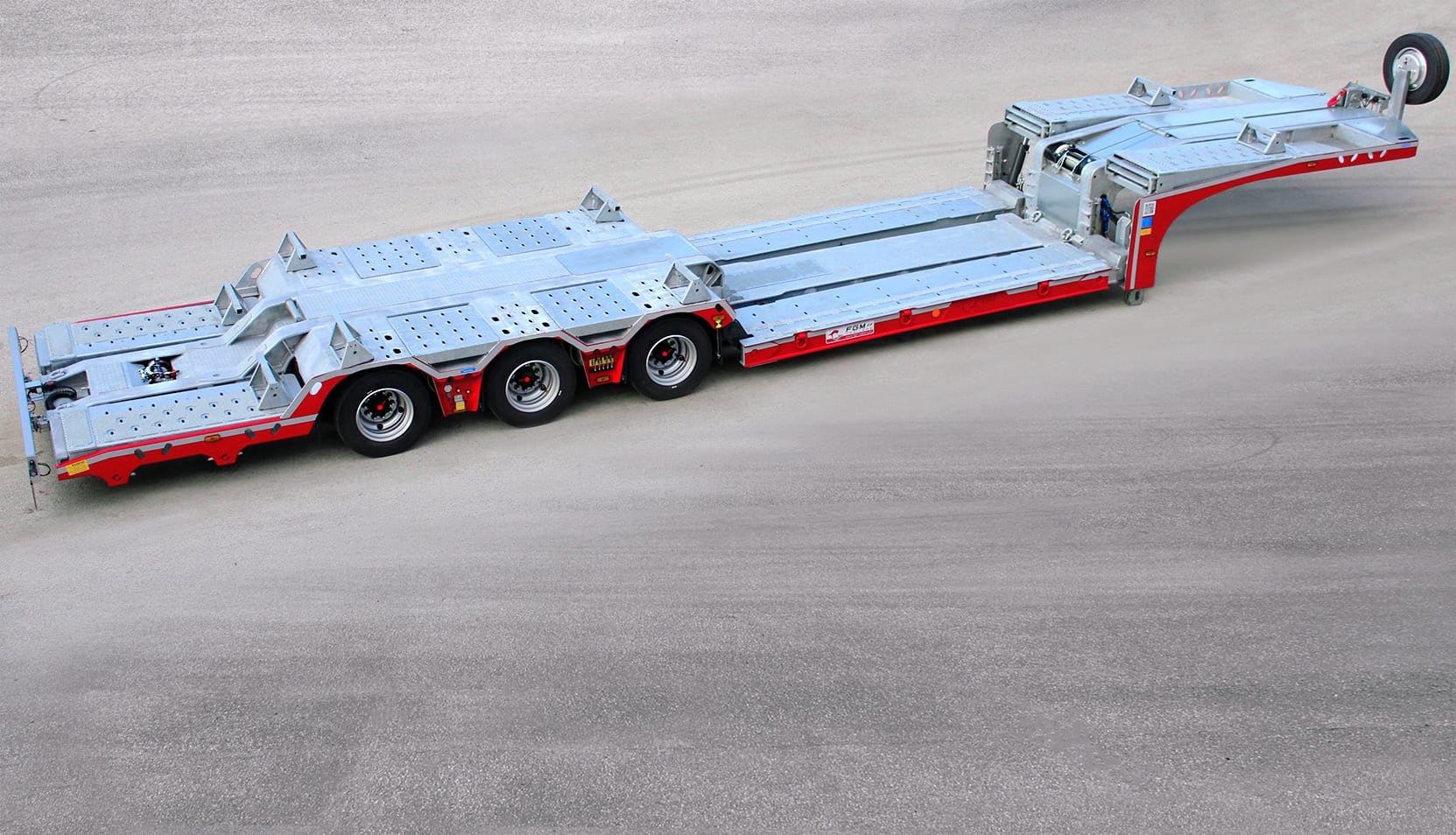

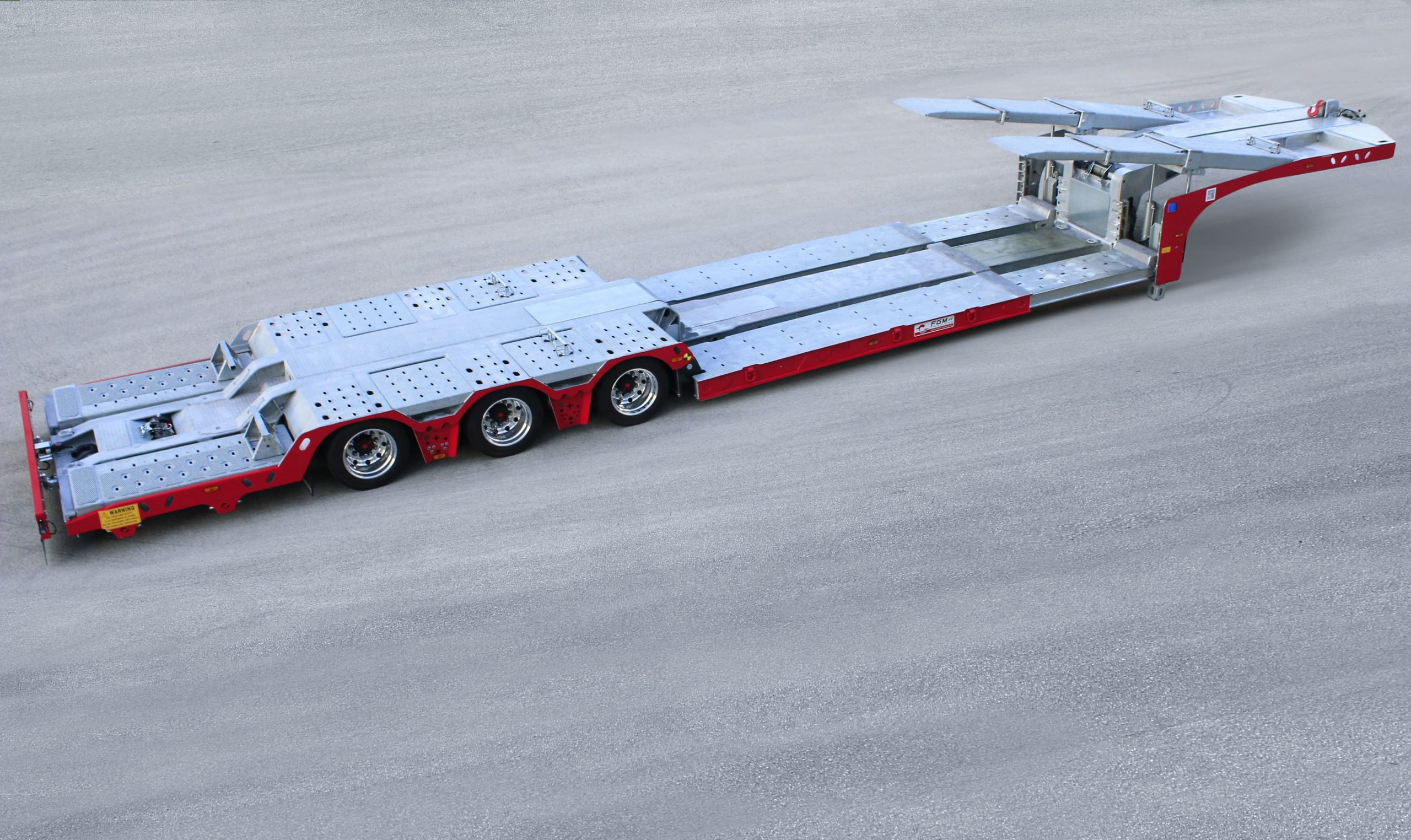

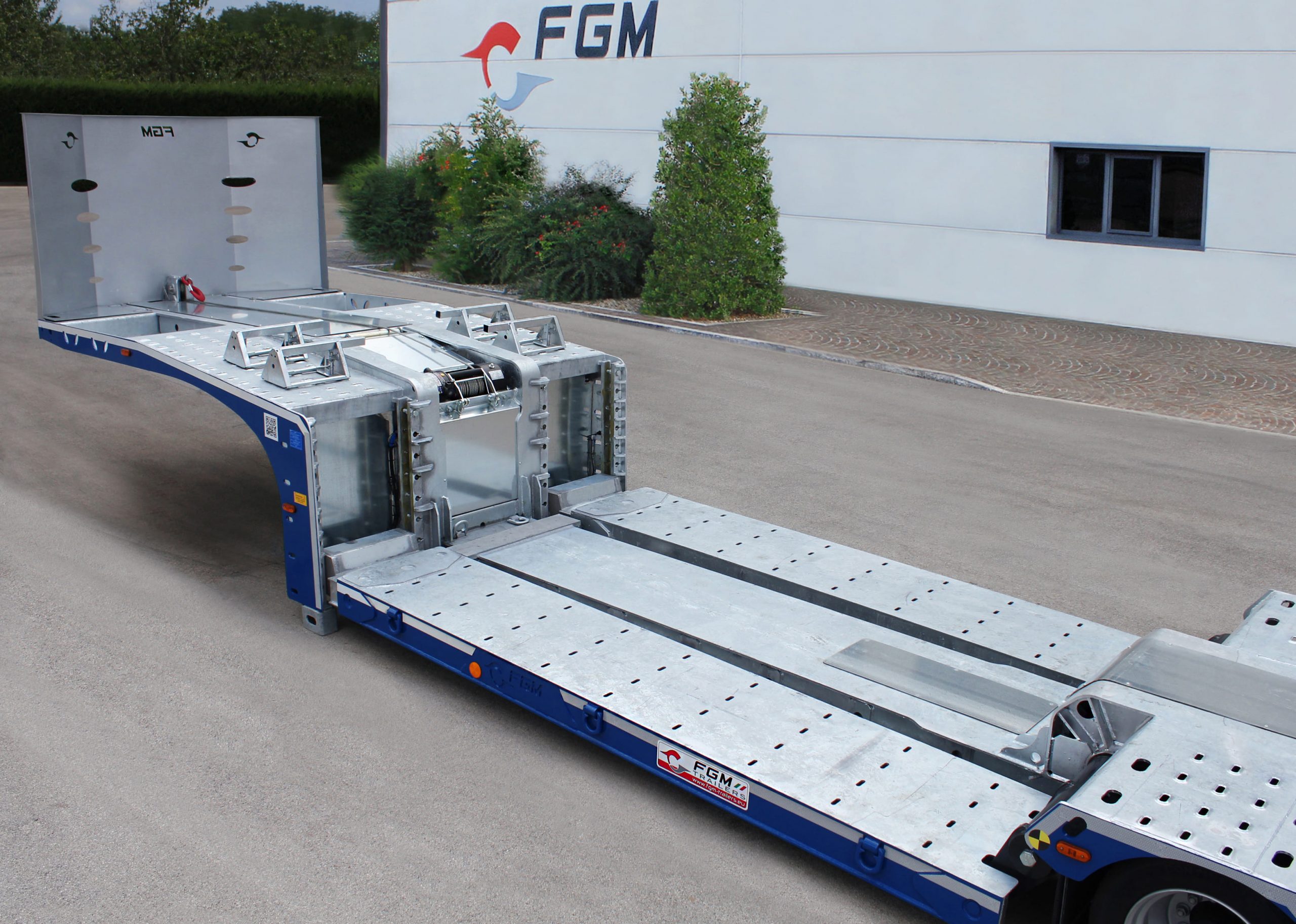

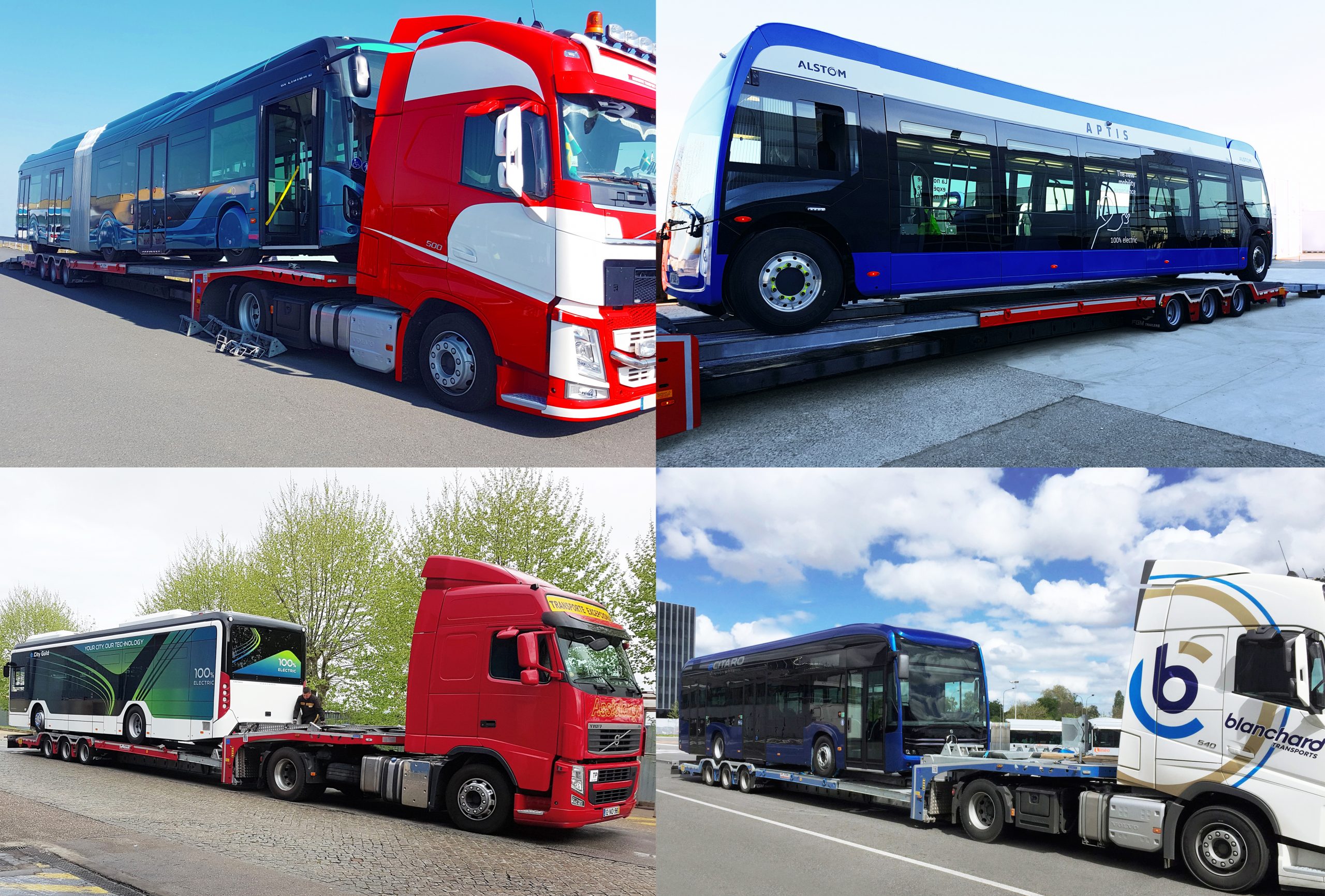

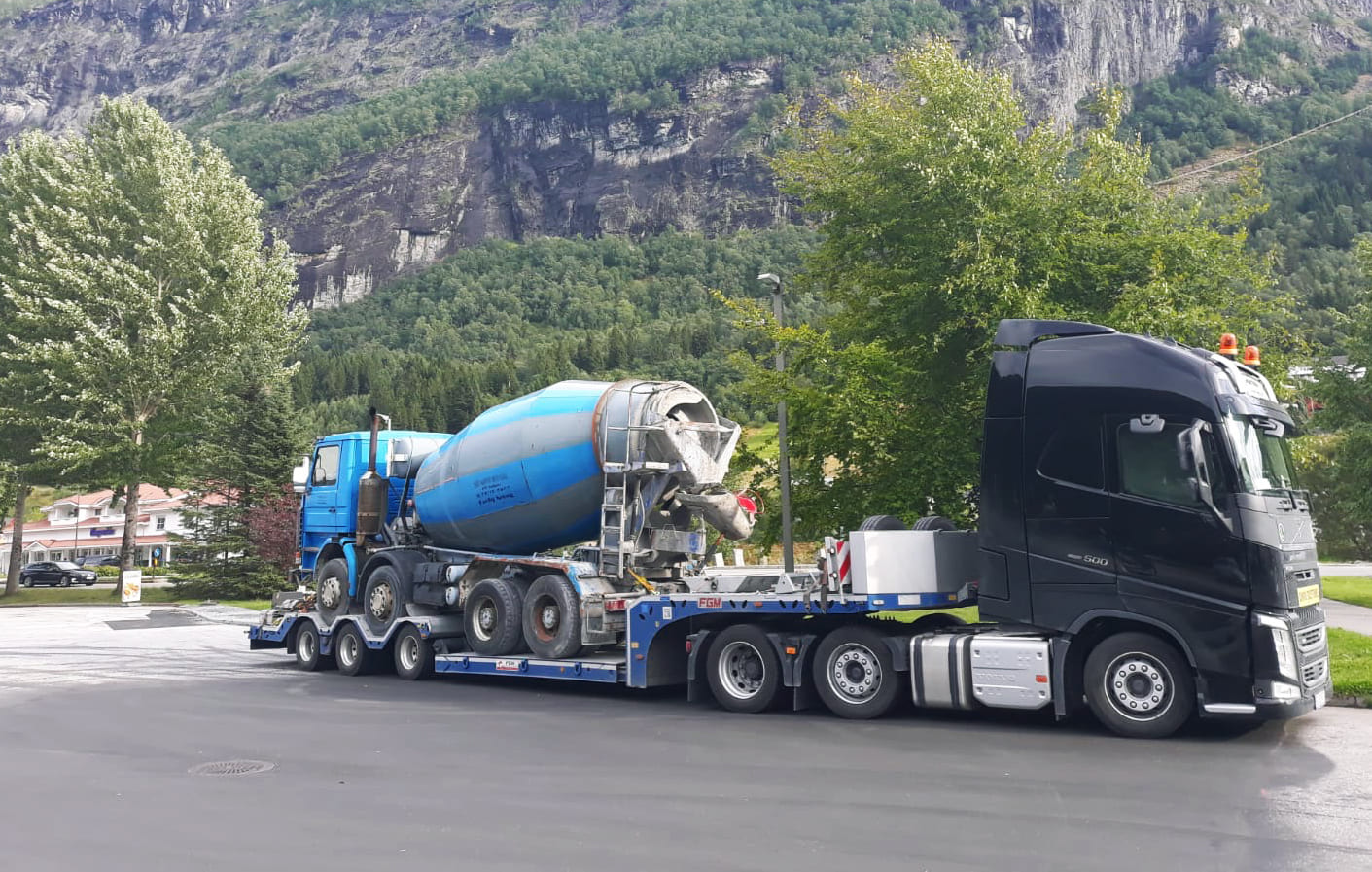

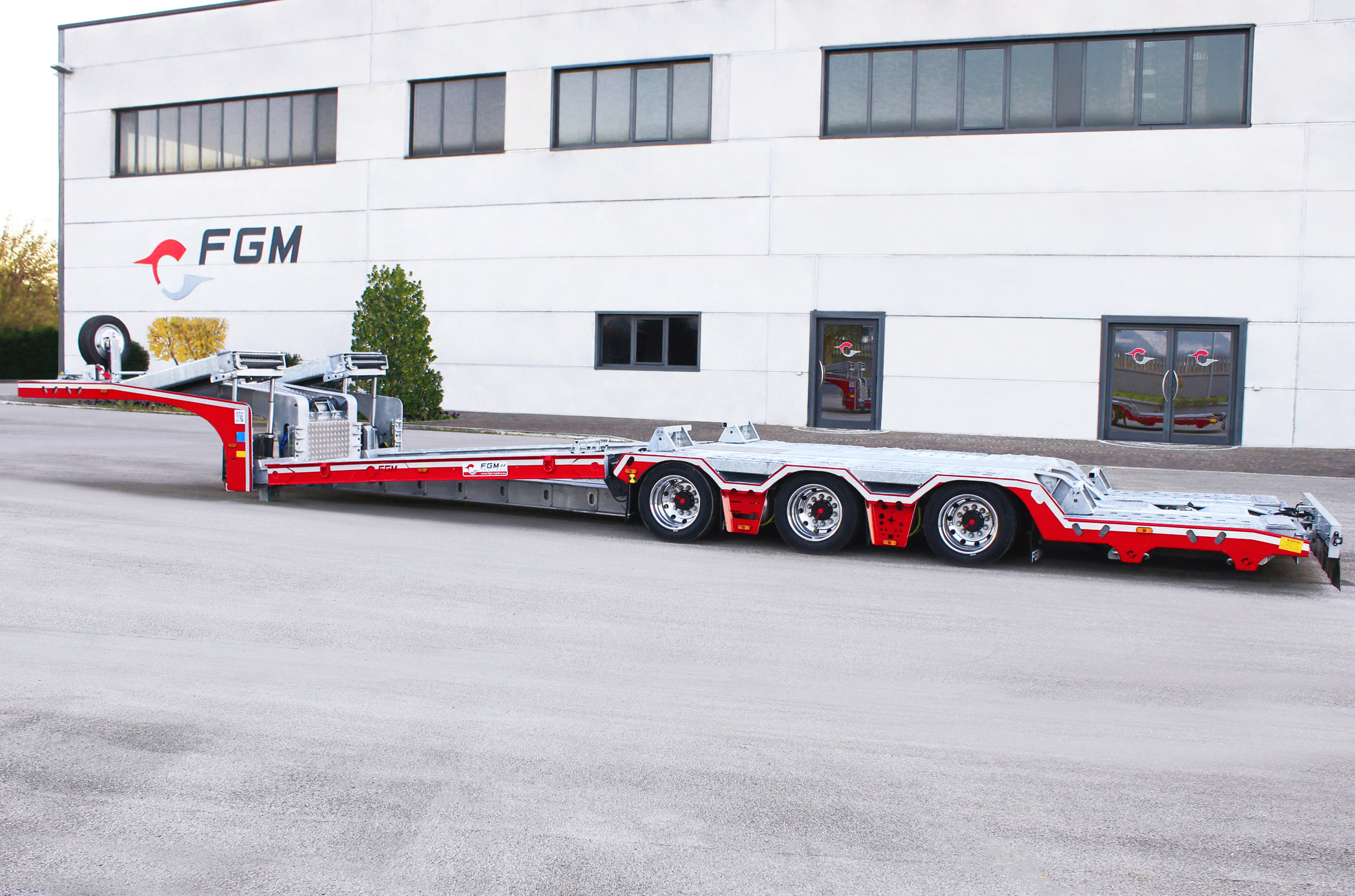

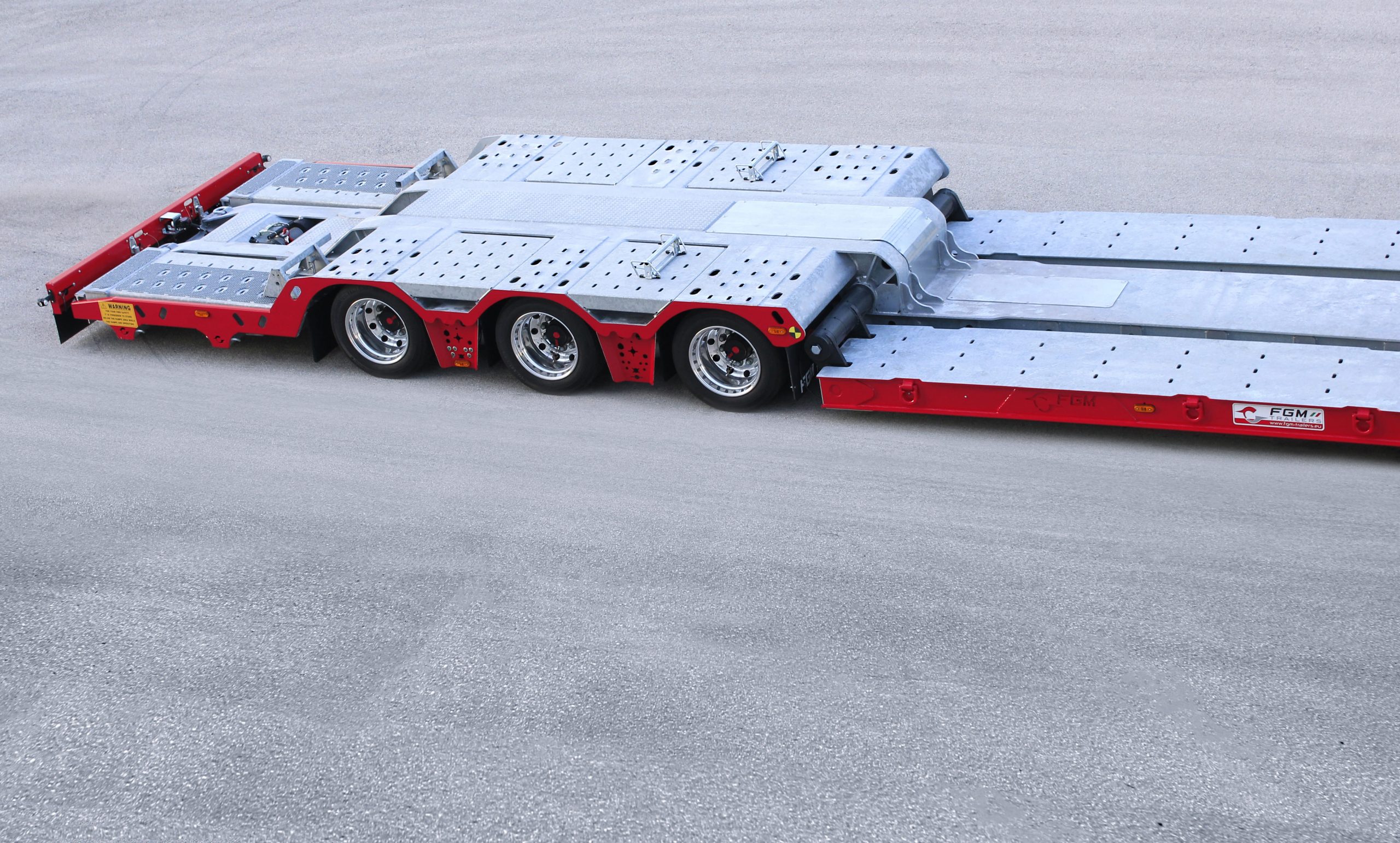

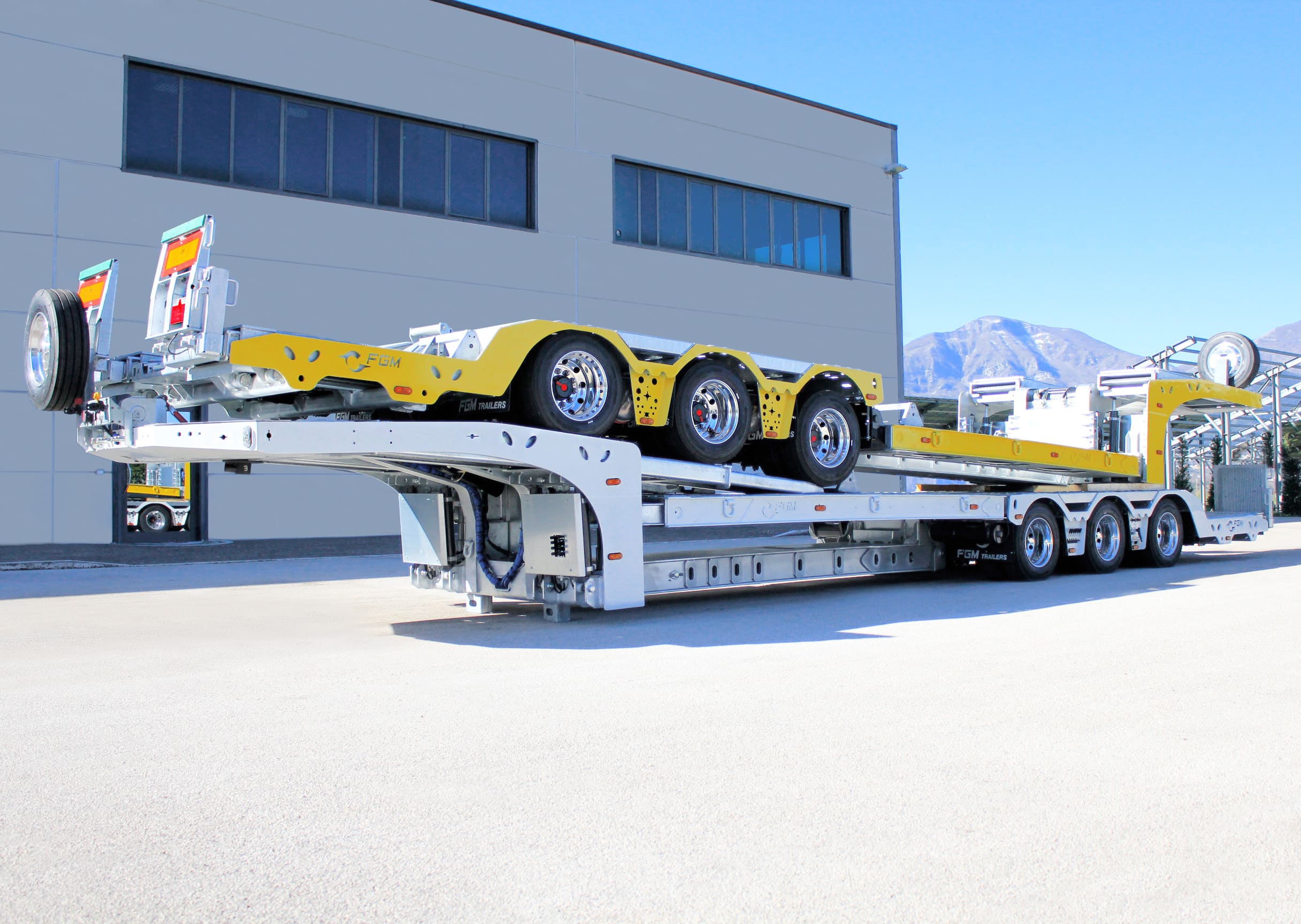

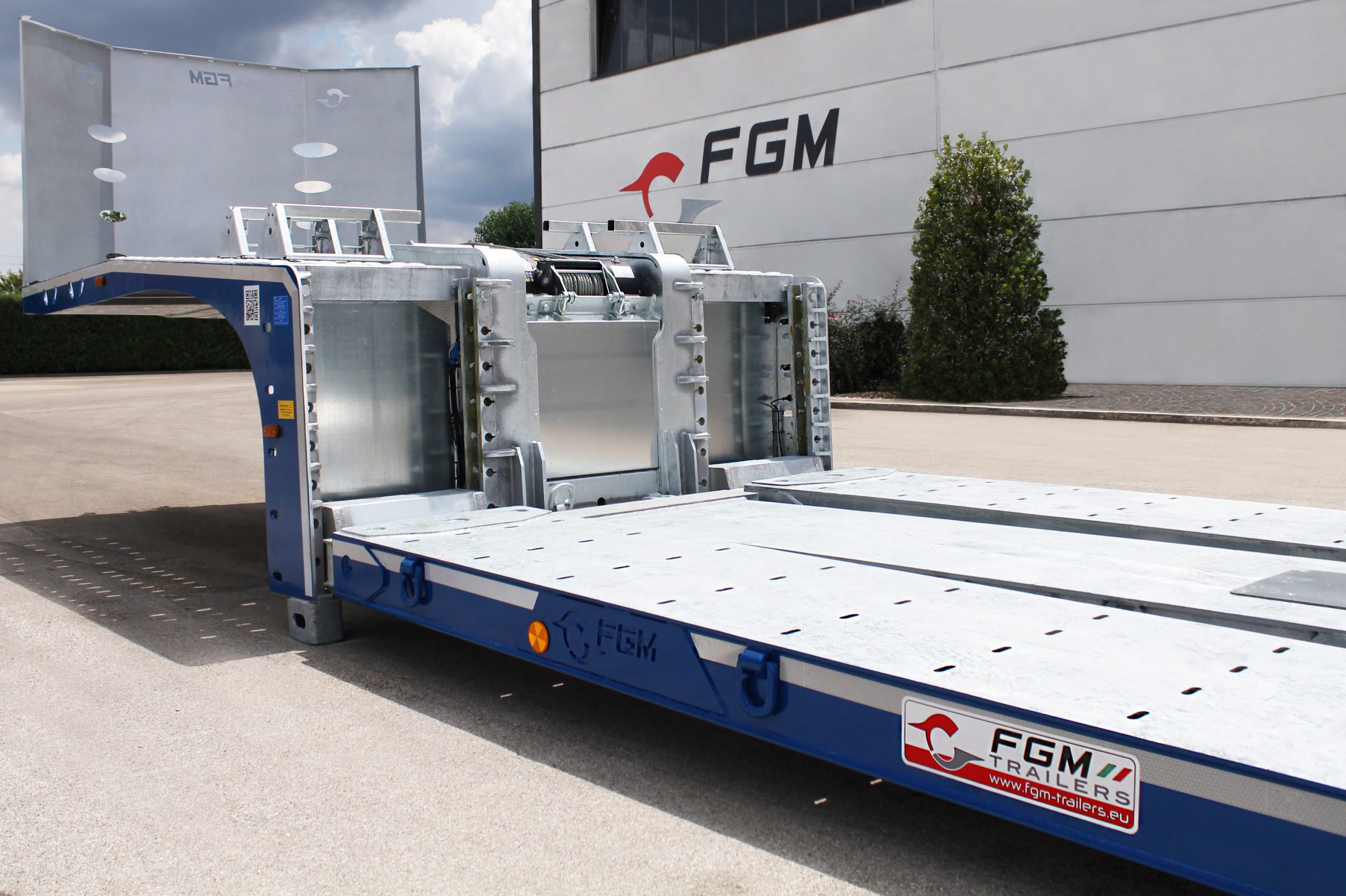

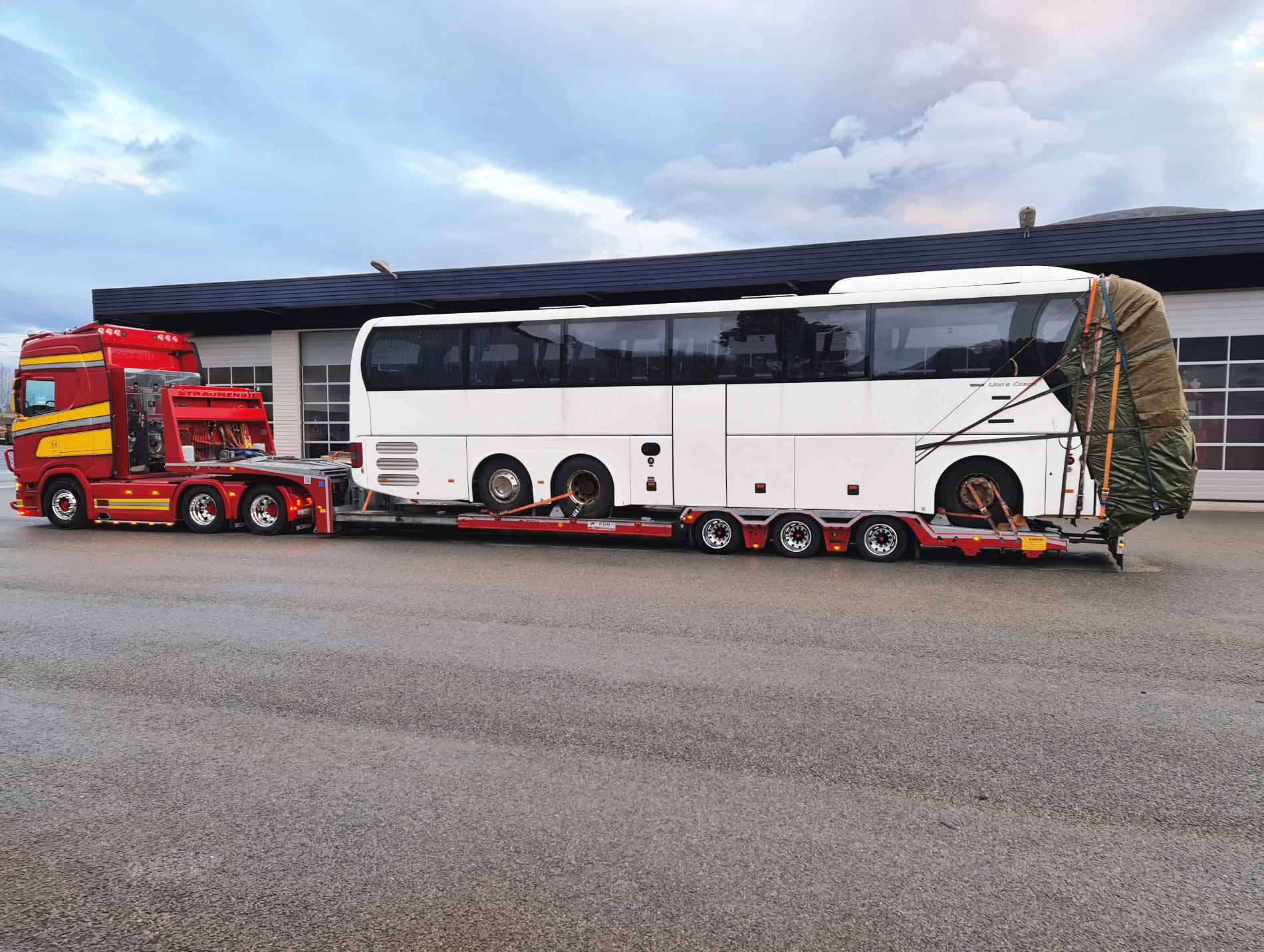

Built for the most demanding tasks, FGM 32 is the new industry benchmark raising the stakes in High and Heavy transport. With loading/ unloading activities carried out in less than 3 minutes, this truck transporter stands for maximum resilience and advanced performance. Configured with a fully drive-over telescopic loading platform, series of wheel recesses, hydraulic winch and rear telescopic ramps, loading activity have never been easier. The model is the perfect solution for the transport and rescue of heavy vehicles: 2 to 3-axle buses/ electric buses, up to 18 m modular buses, up to n.3 tractor units, low deck trucks, combination of truck + semitrailer. Driving a FGM 32 makes a statement of power, functionality and absolute capability.
Maximum fifth wheel load 18.000 kg
Loading height 380 mm
Tires 205/65 R 17.5
Tire load 8.000 kg at 100 km/h
N.3 Axle SAF/ ROR 11-ton, drum brakes

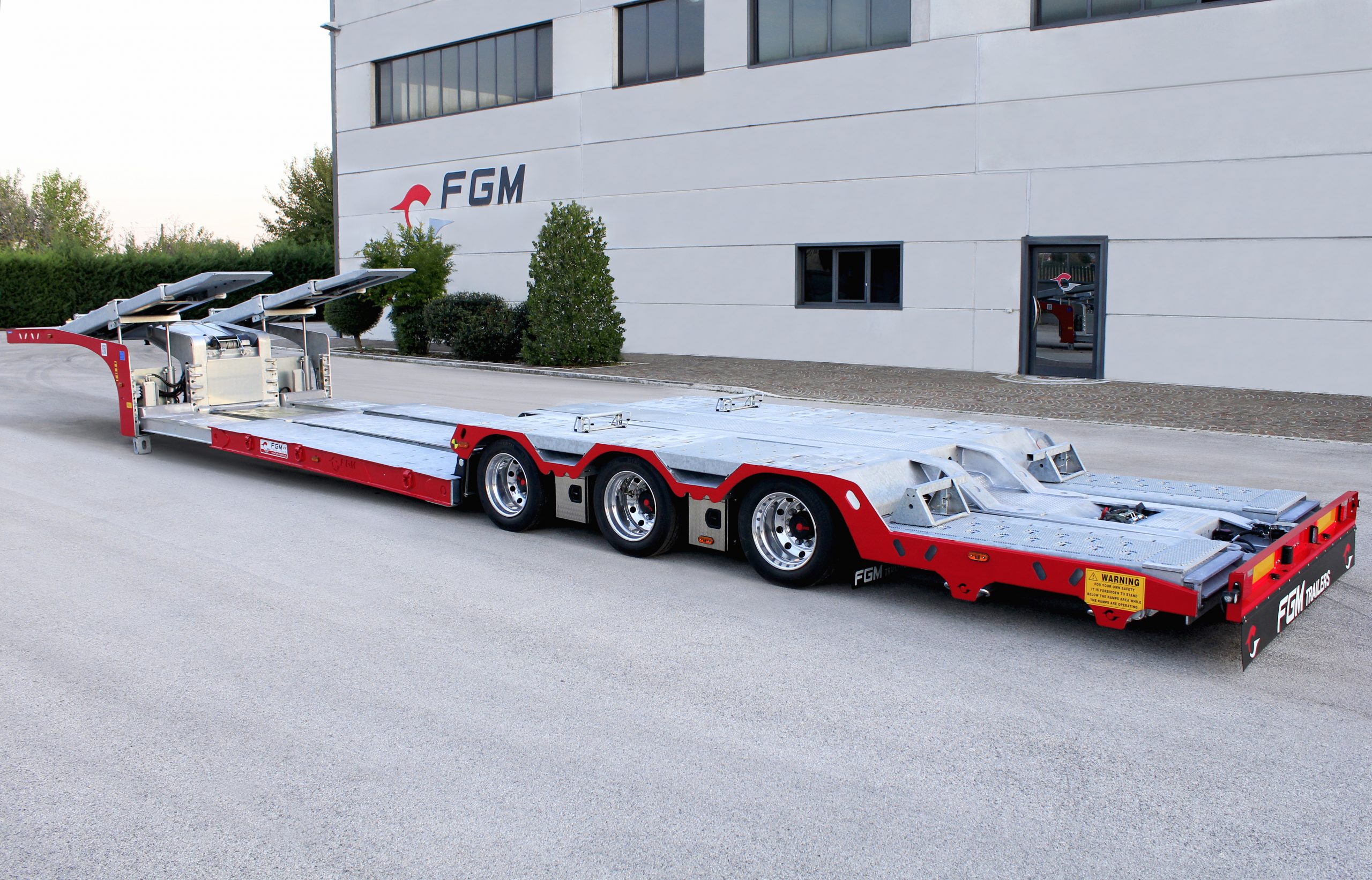

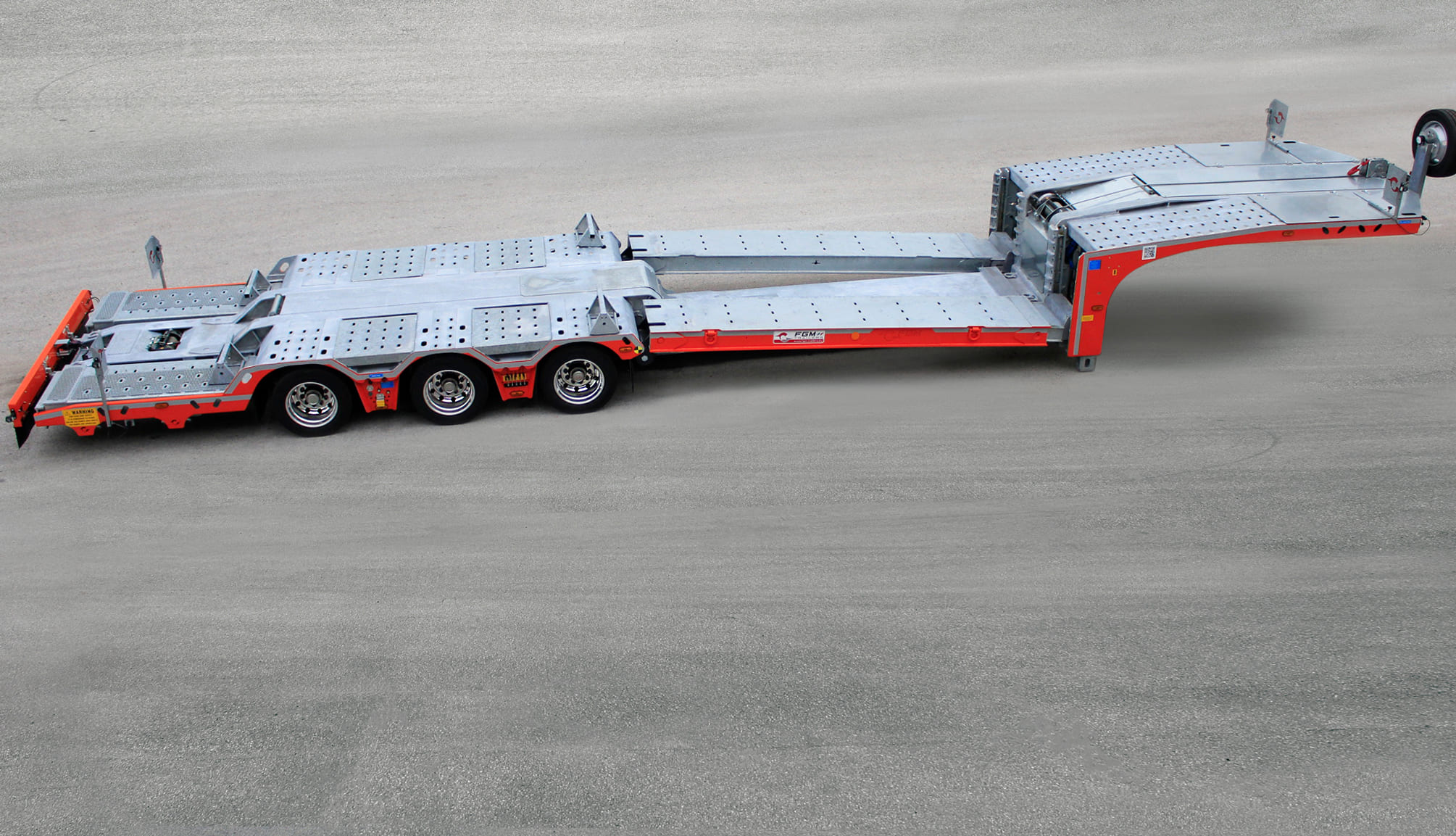

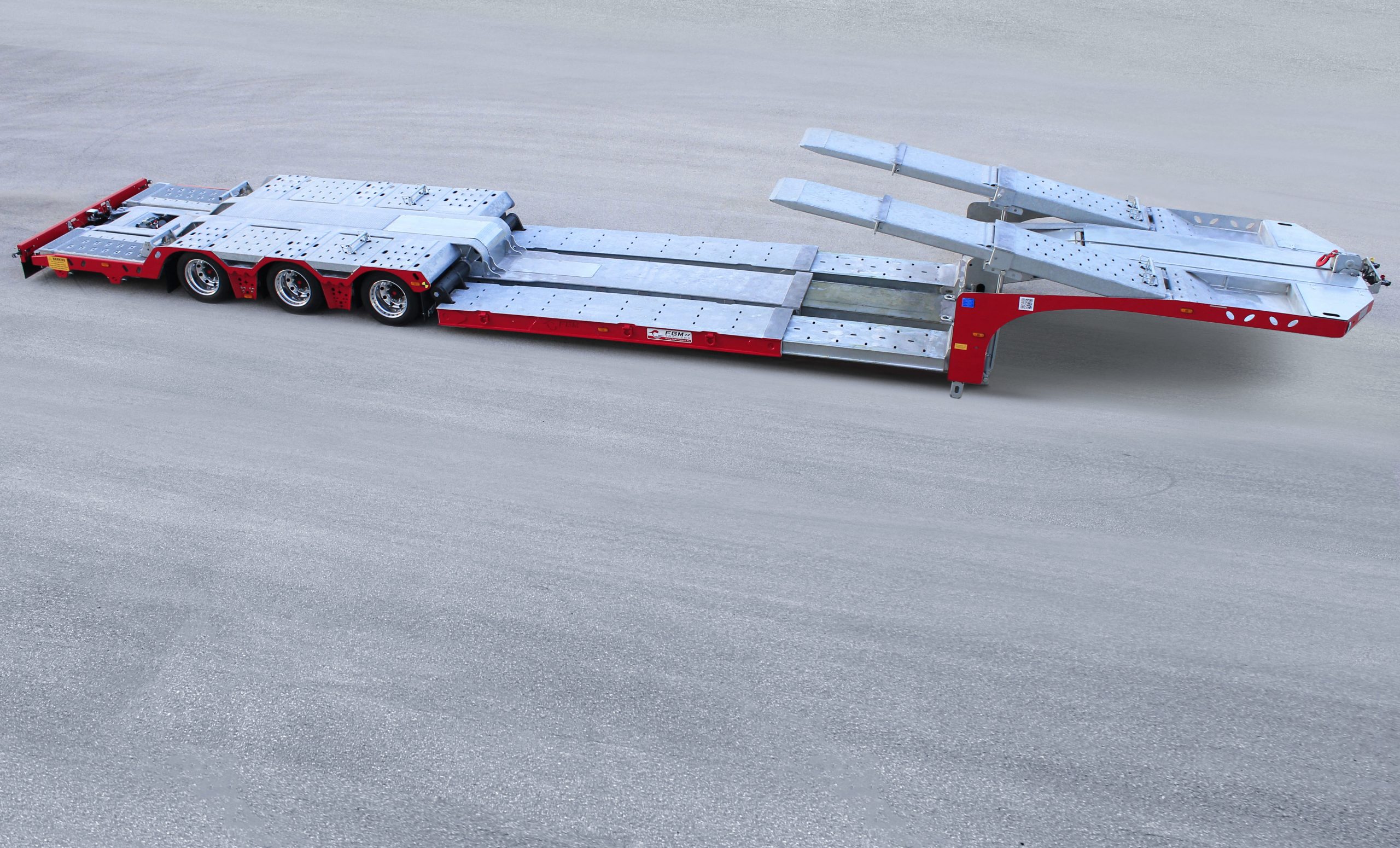

3.000 mm telescopic chassis

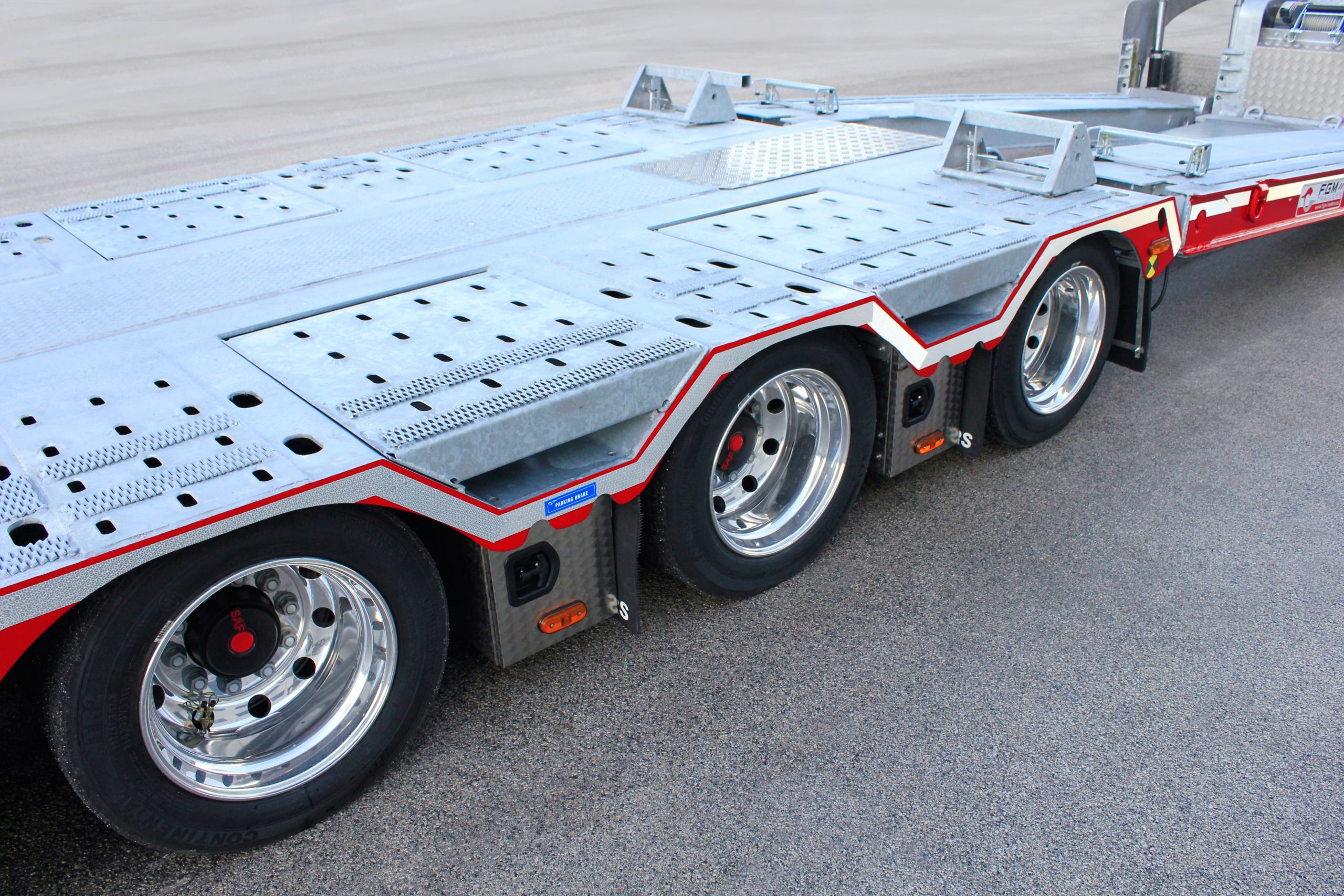

Wheel recesses + covers

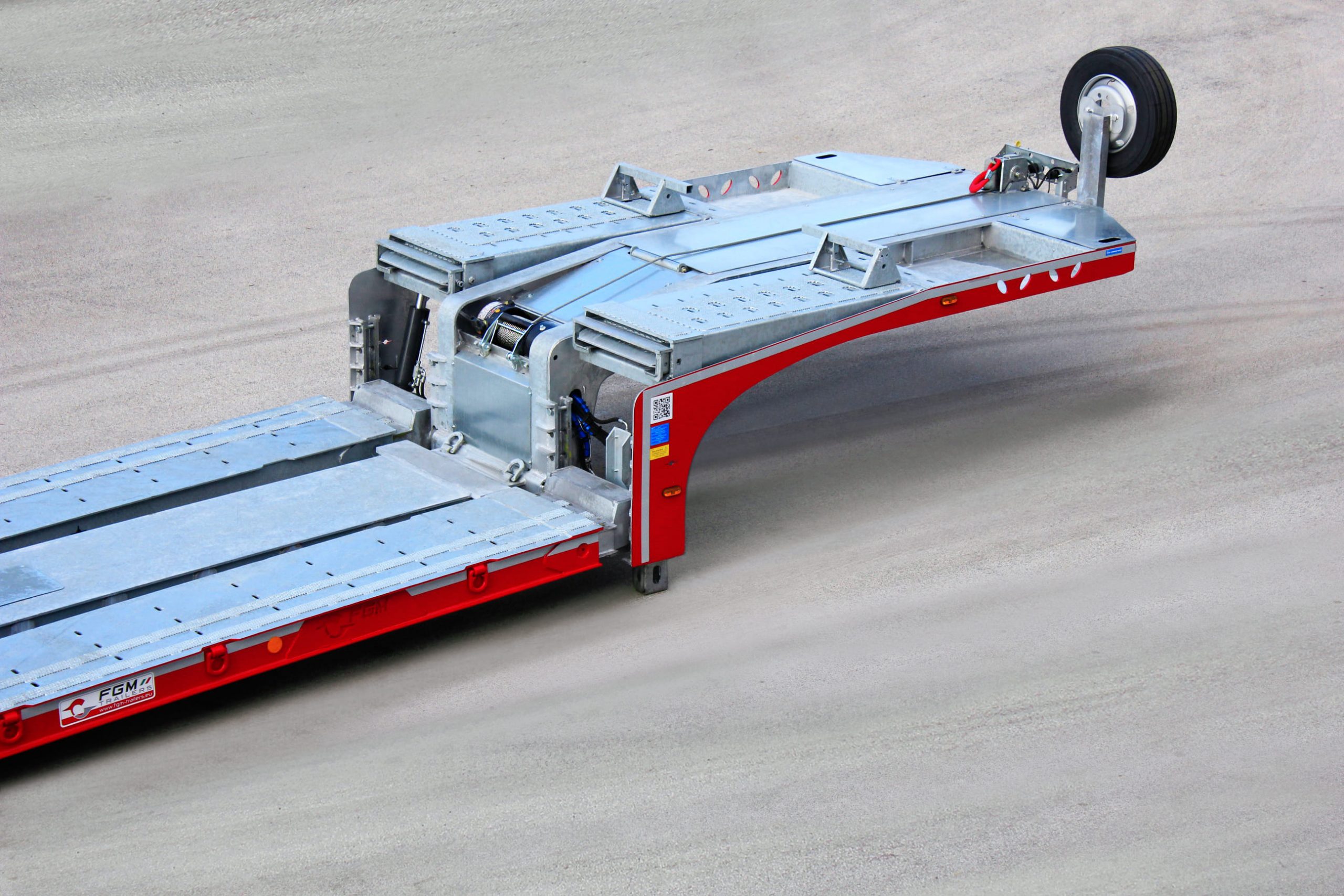

Front hydraulic winch 8-ton, remote control
Extendable rear bumper
Rear telescopic ramps, double extension
Braking system Knorr Bremse
Hot-dip galvanized chassis
| Available Accessories | Accessorized Front sideboard Kit, Alcoa Dura Bright Aluminum Rims, Electric bus transport Kit, Extra tire Kit, LED Working light, N.4 Wide load signs, 423×423 mm, Orange Flashing Beacon, Semitrailer with customized dimensions, Speedline Aluminum Rims, Steering system TRIDEC TRITRONIC, TIM, KNORR BREMSE, VIME Hydraulic winch, 4.400 Kg, Wheel recess Kit, telescopic loading platform |
|---|---|
| Axles | BPW 11-ton, drum brakes, ROR 11-ton, drum brakes, SAF 11-ton, drum brakes |

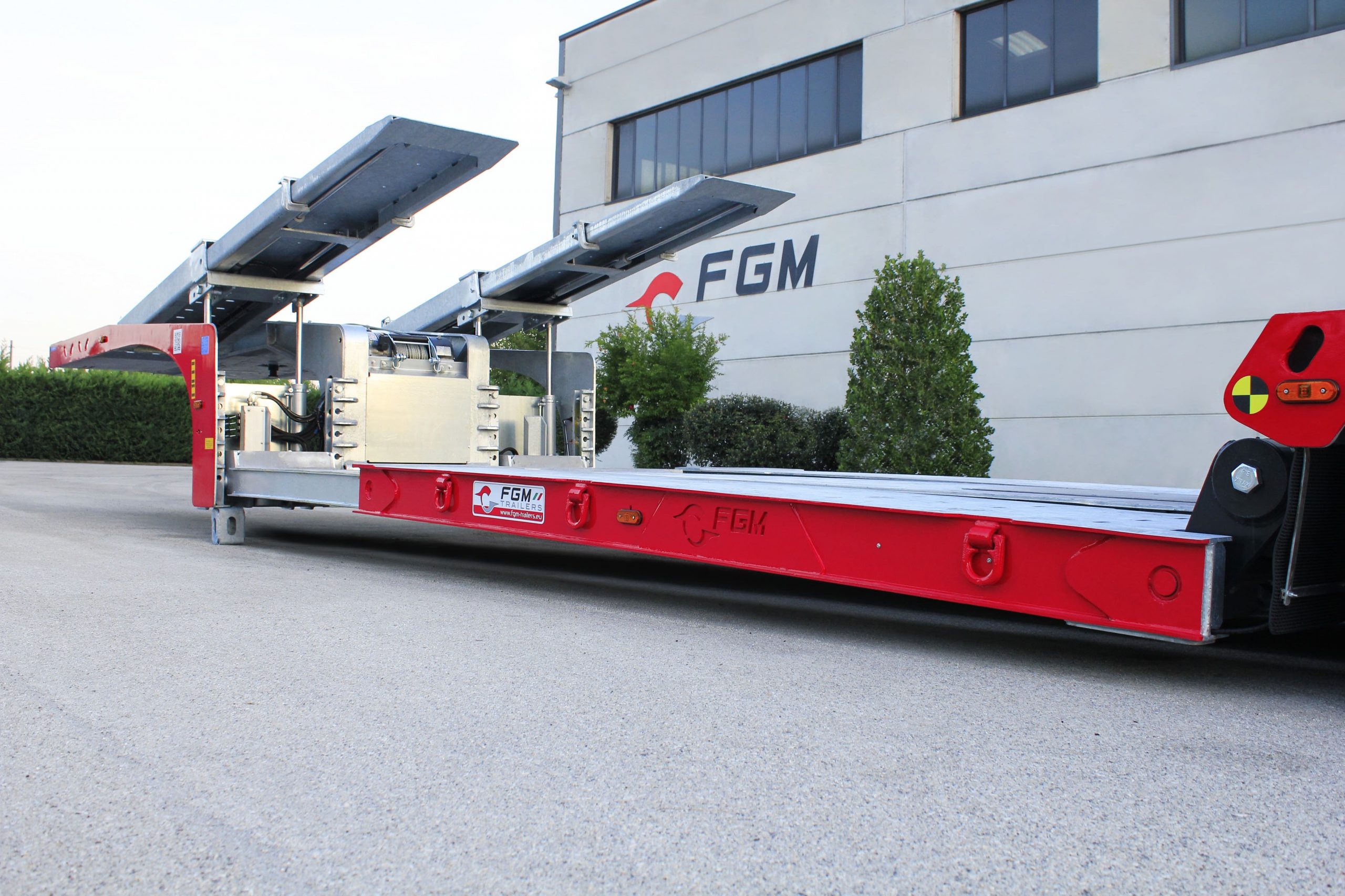

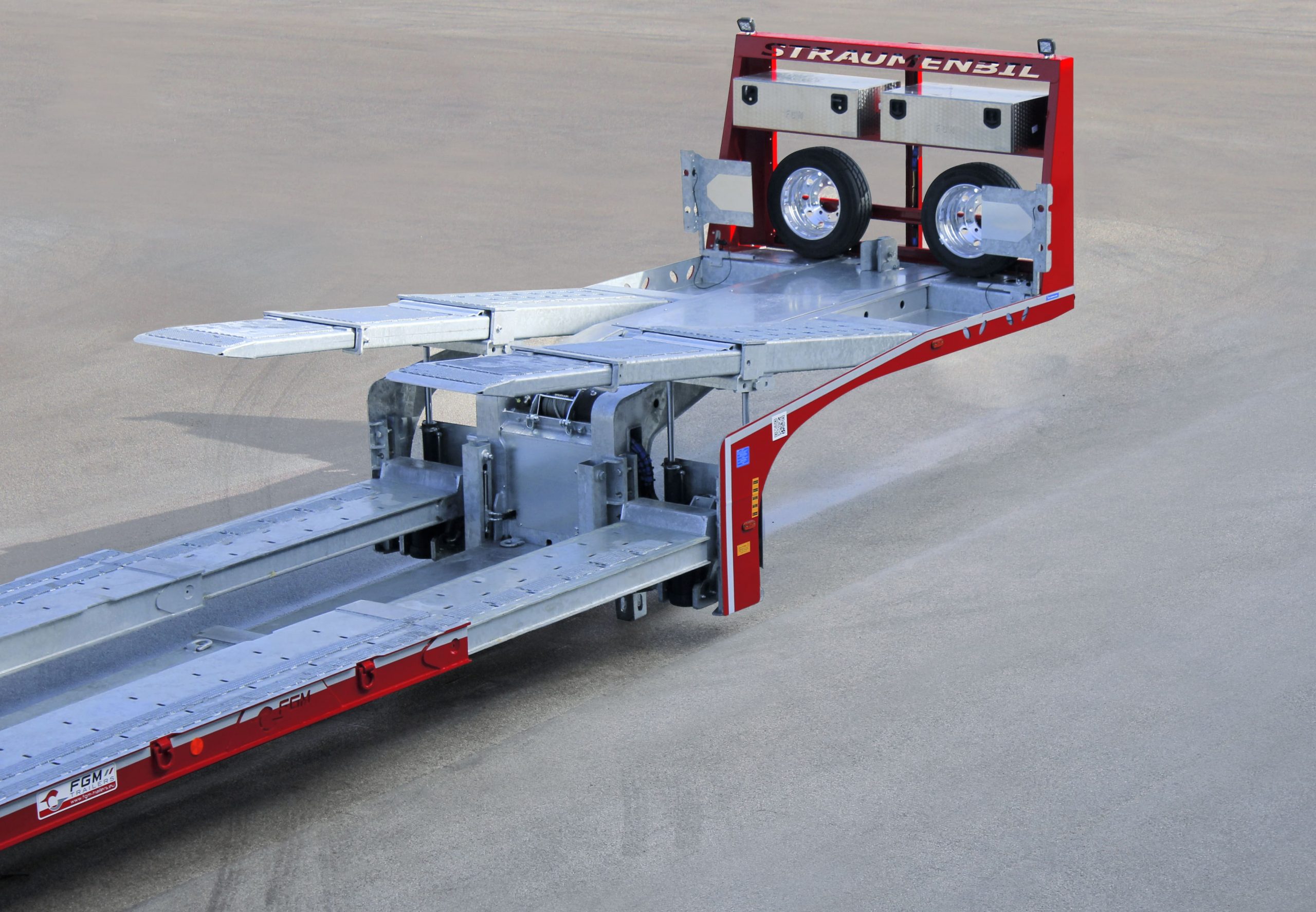

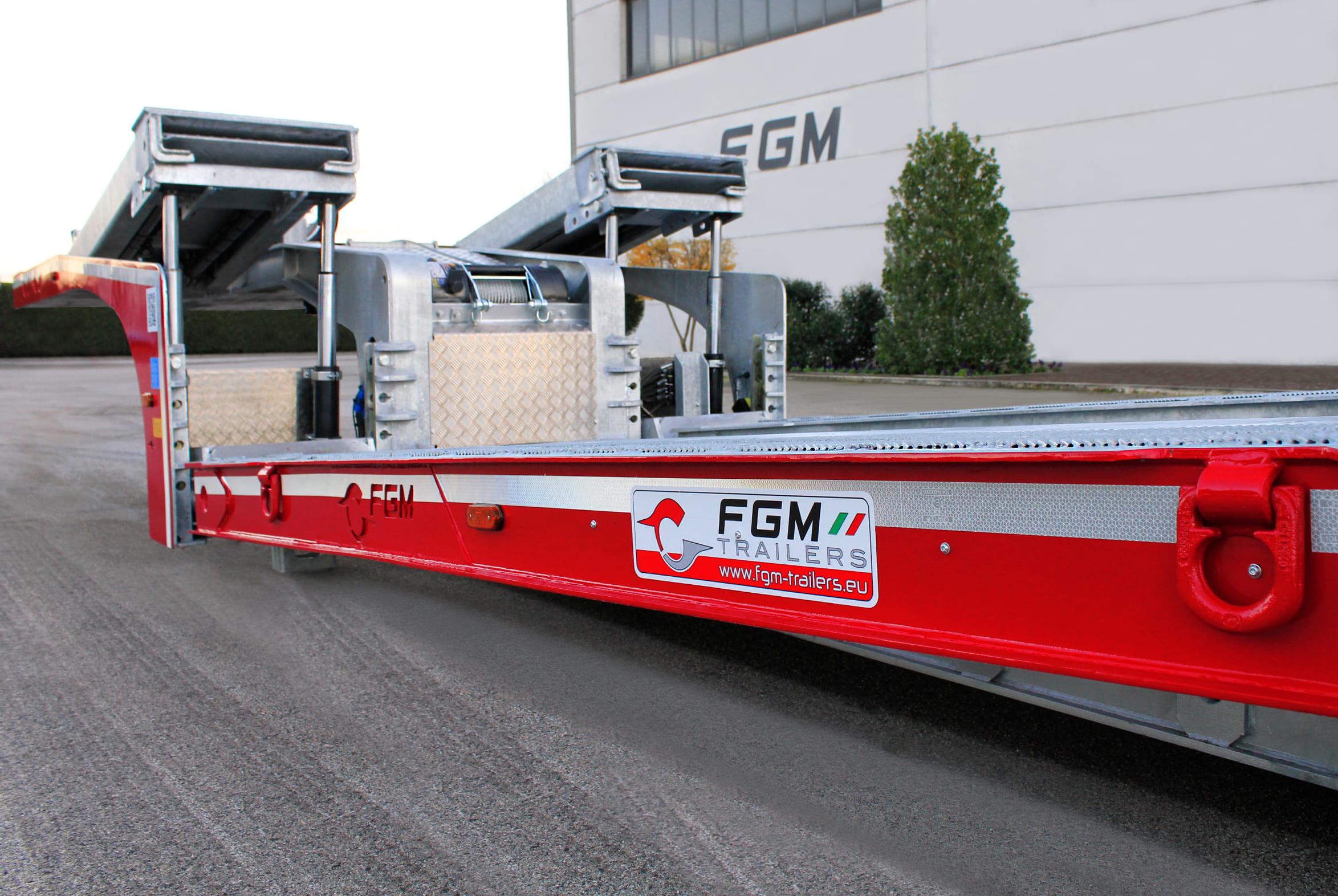

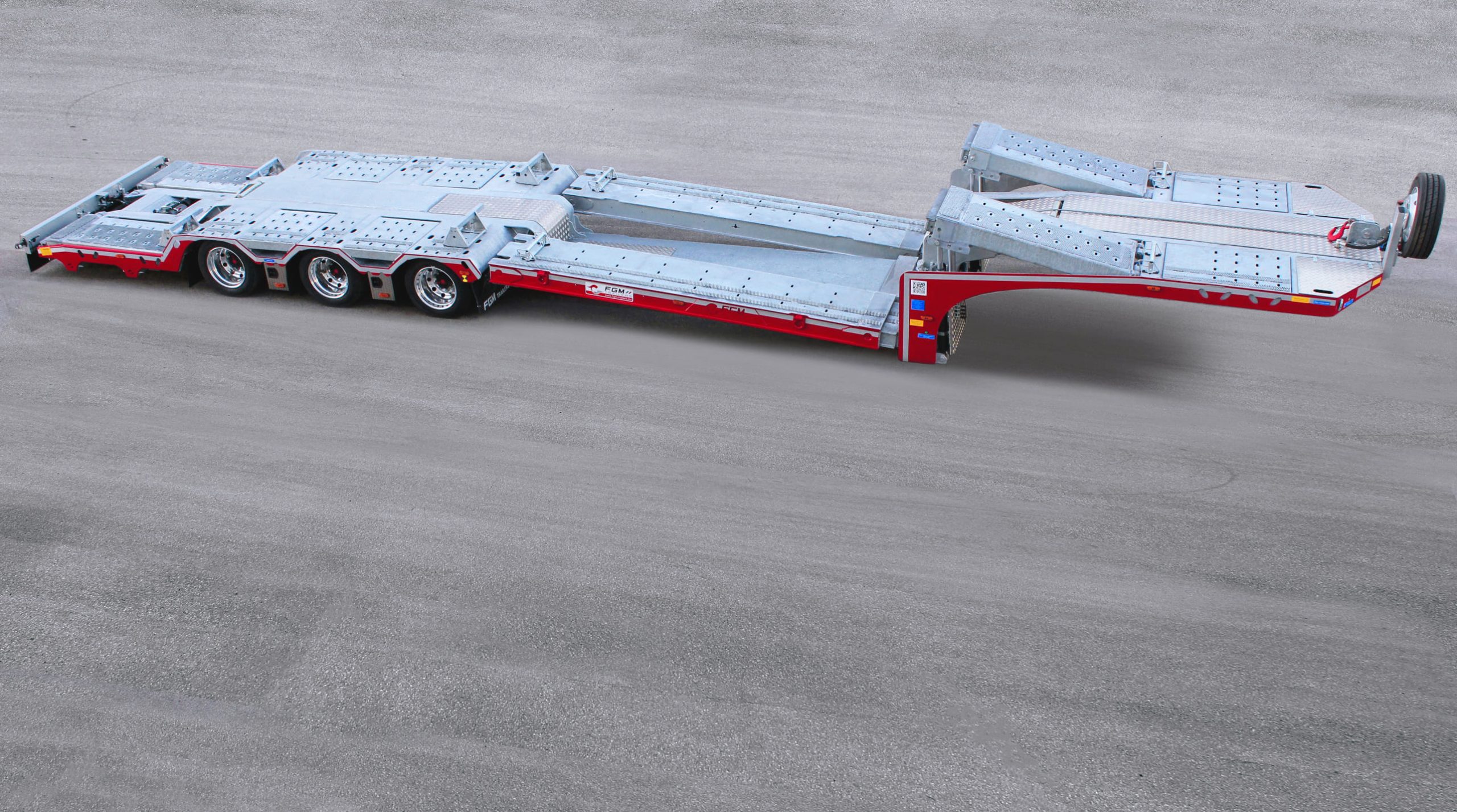

| Ramp type | Front Hydraulic ramps, double telescopic extension, Rear hydraulic ramps, double telescopic extension |
| Chassis | 3.000 mm telescopic chassis |
| Surface Treatment | Hot-dip galvanized chassis treatment, Painting job in RAL color requested, included |
