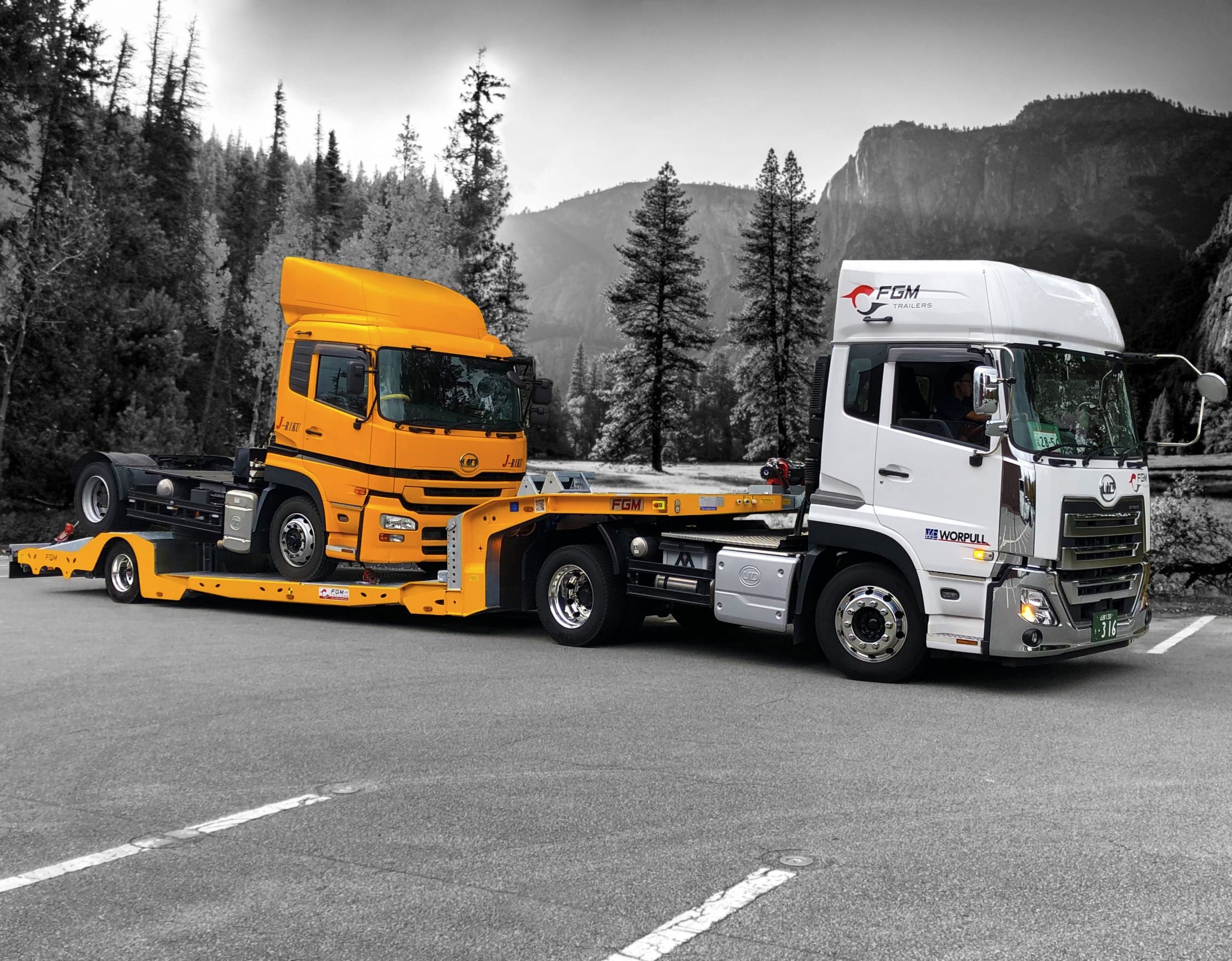

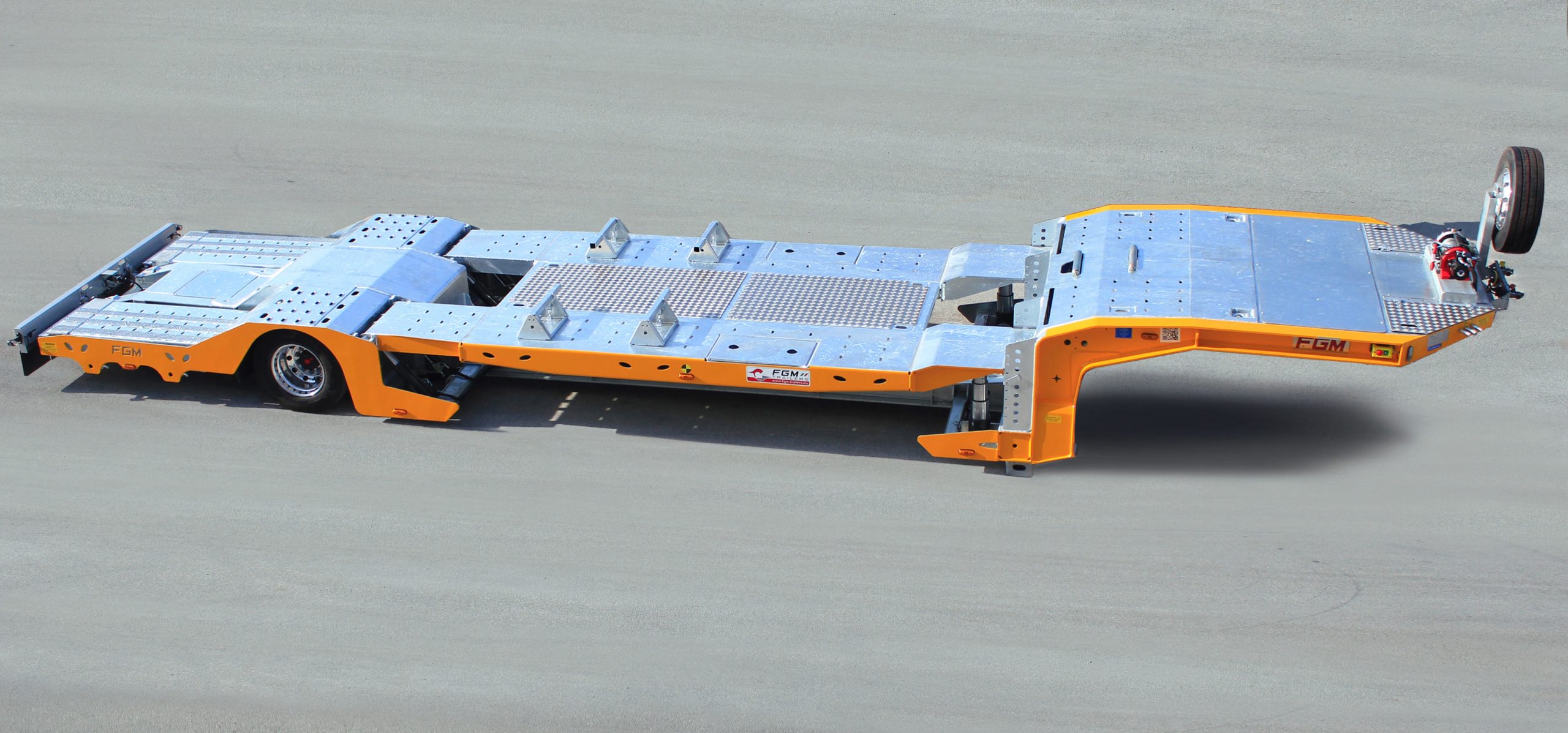

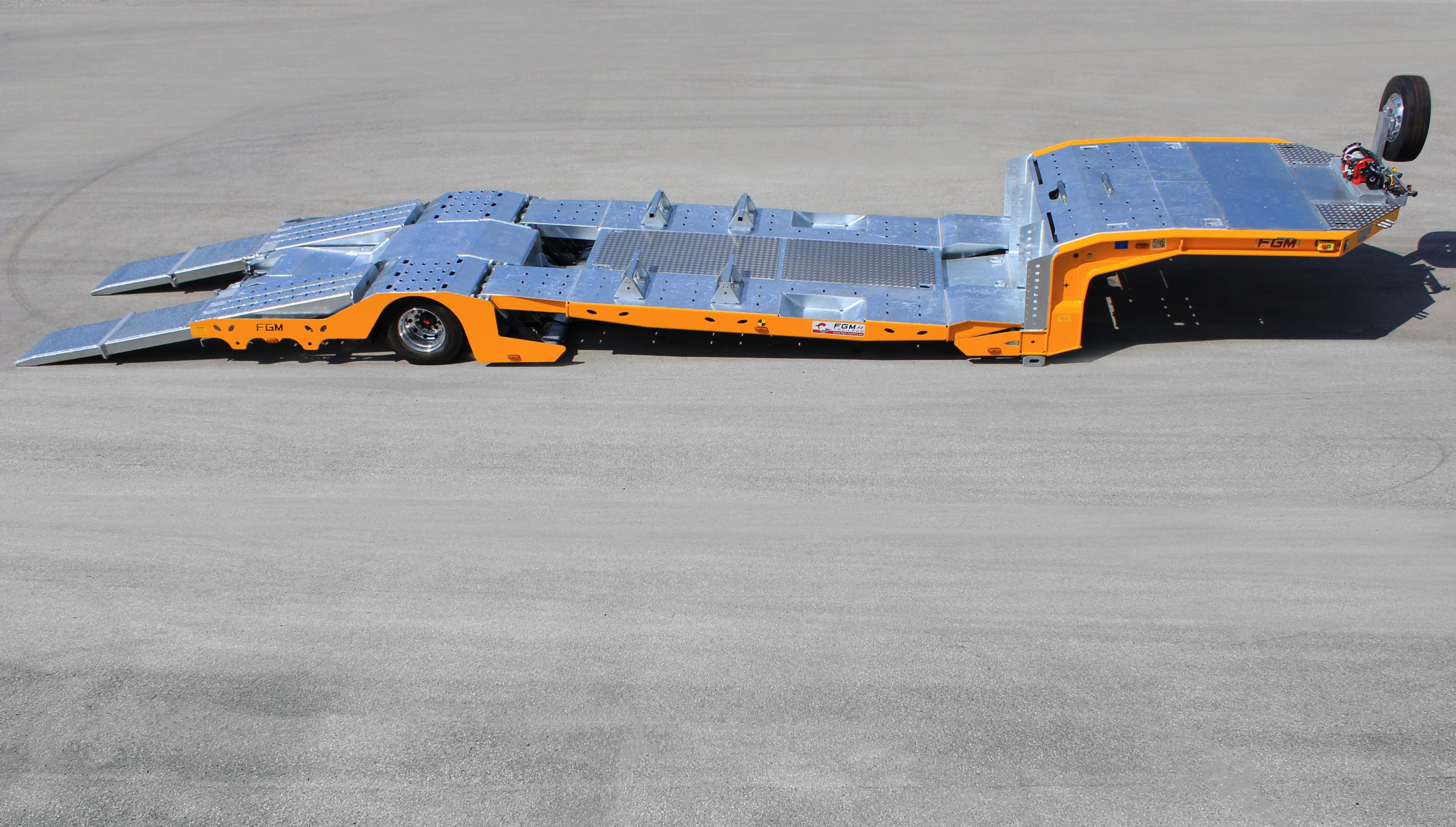

Our commitment to continuous product development and attention to detail has taken us to launch the next generation of FGM 19: the full-option configuration. The new model designed with a hydraulic loading platform, wheel recesses of 190 mm loading height and telescopic hydraulic ramps, offers maximum ease of use for fast and safe loading. The hydraulic platform, adjustable in height and inclination, provides easy access to trailer lowbed while the rear ramps, designed to reduce the ascent angle, ensure the loading of low deck truck units. In an industry where each mm counts, the FGM 19 full-option configuration delivers a greater loading versatility.
Maximum fifth wheel load 12.000 kg
Loading height 190 – 400 mm
Tires 235/75 R 17.5
Tire load 10.300 kg at 100 km/h
N.1 Axle SAF 11-ton, drum brakes

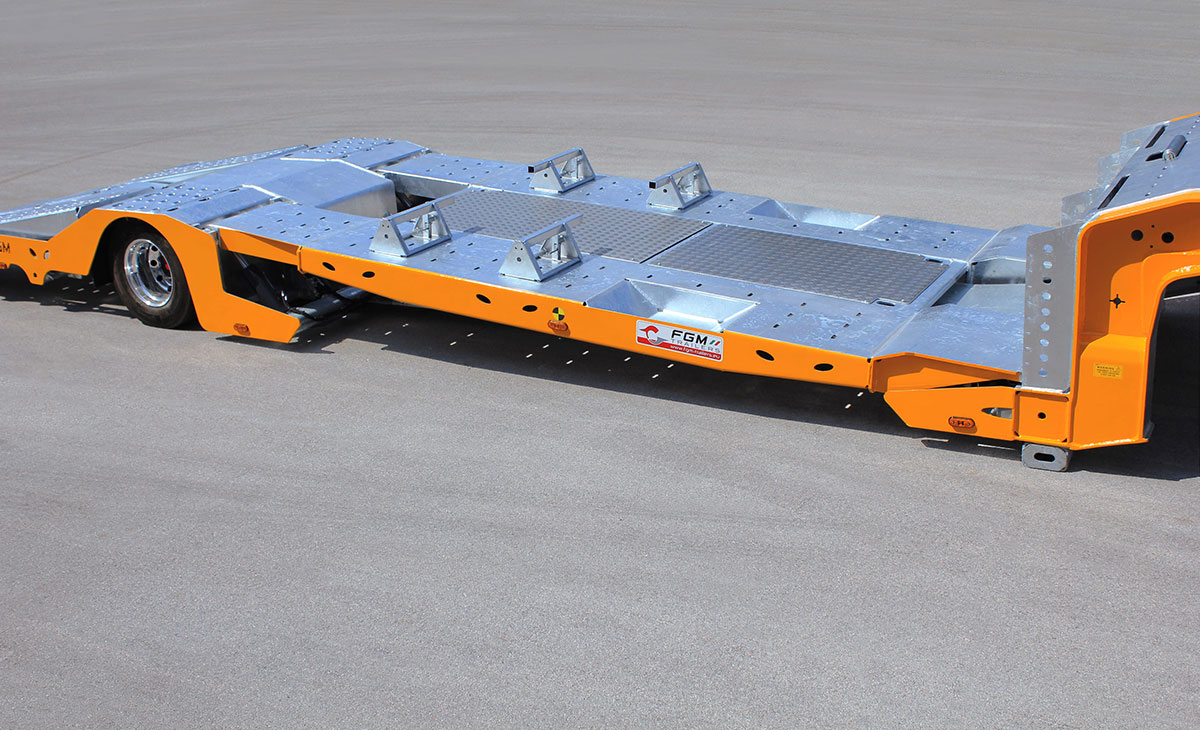

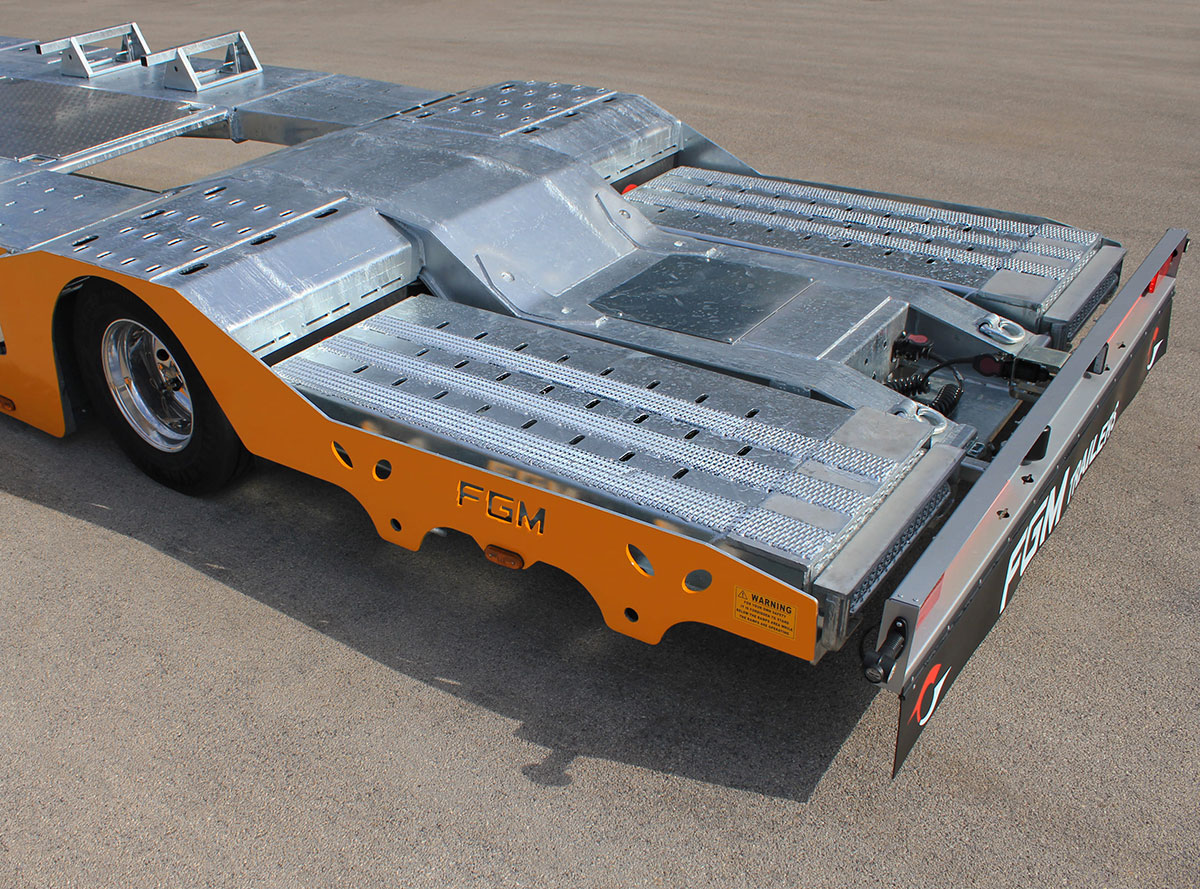

Hydraulic lifting platform

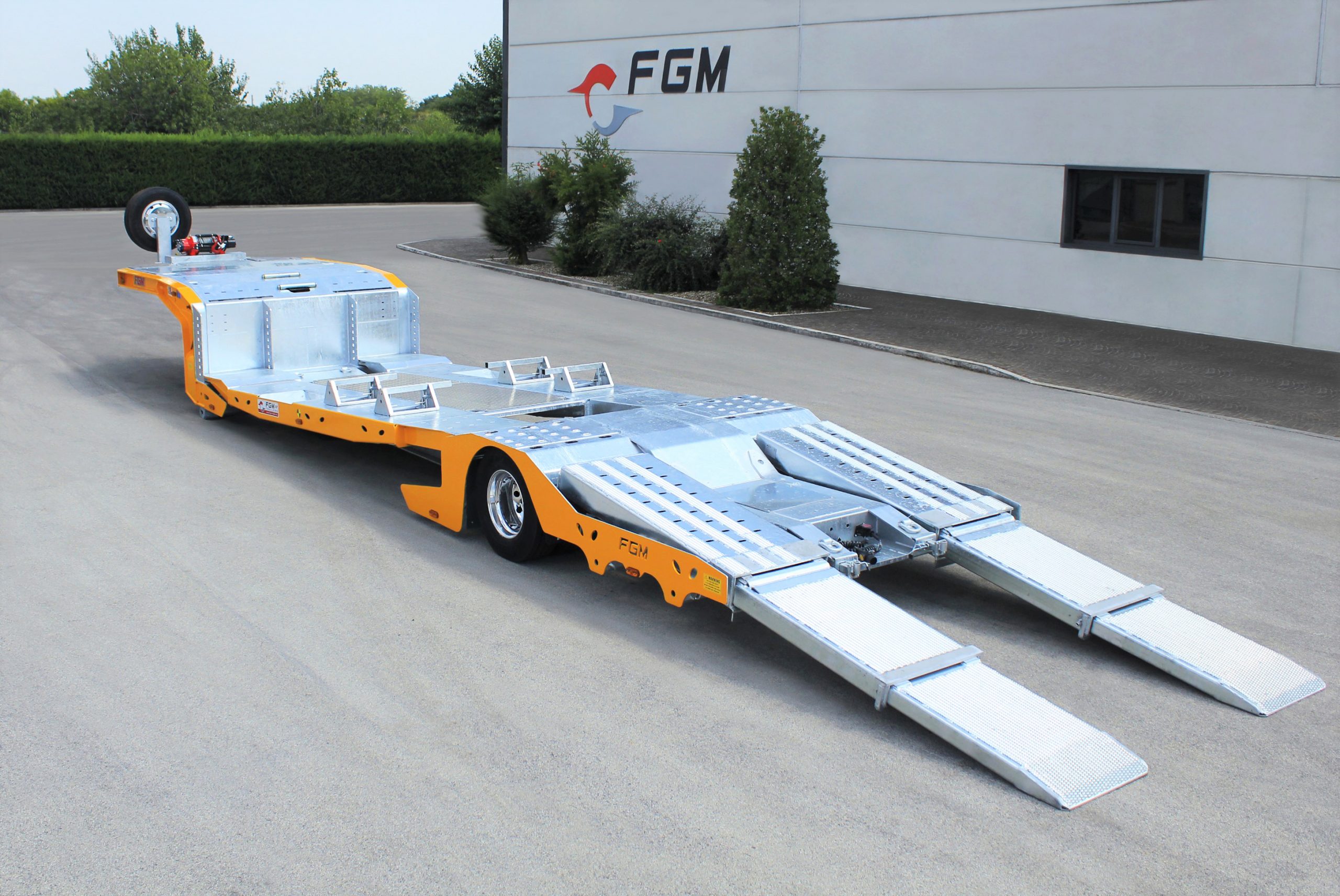

Telescopic rear ramps, double extension
Front hydraulic winch, 6.7-ton, remote control
Wheel recesses series
Braking system Knorr Bremse
LED Electric system Aspoek
Hot-dip galvanizing surface treatment
| Available Accessories | Alcoa Dura Bright Aluminum Rims, Extra tire Kit, Gooseneck Curtainsider Kit, LED Working light, N.1 FGM toolbox, L500 x H 410 x W 2550 mm, Orange Flashing Beacon, Semitrailer with customized dimensions, Speedline Aluminum Rims, TIM, KNORR BREMSE, VIME Hydraulic winch, 4.400 Kg |
|---|---|
| Axles | 11-ton SAF, drum brakes, BPW 11-ton, drum brakes |
| Ramp type | Rear hydraulic ramps, double telescopic extension |
| Chassis | Fixed chassis, Independent hydraulic platform Kit |
| Surface Treatment | Hot-dip galvanized chassis treatment, Painting job in RAL color requested, included |
