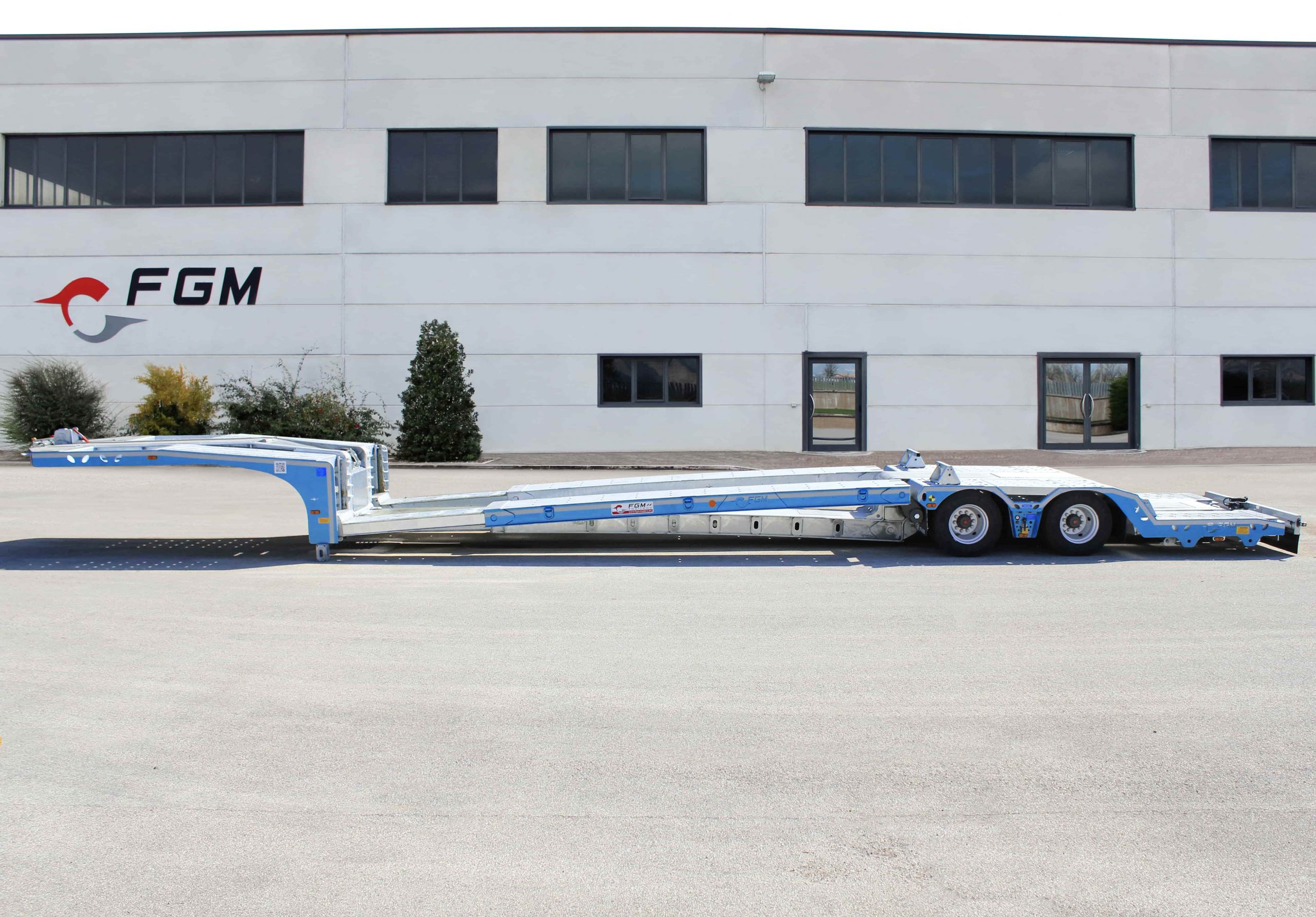

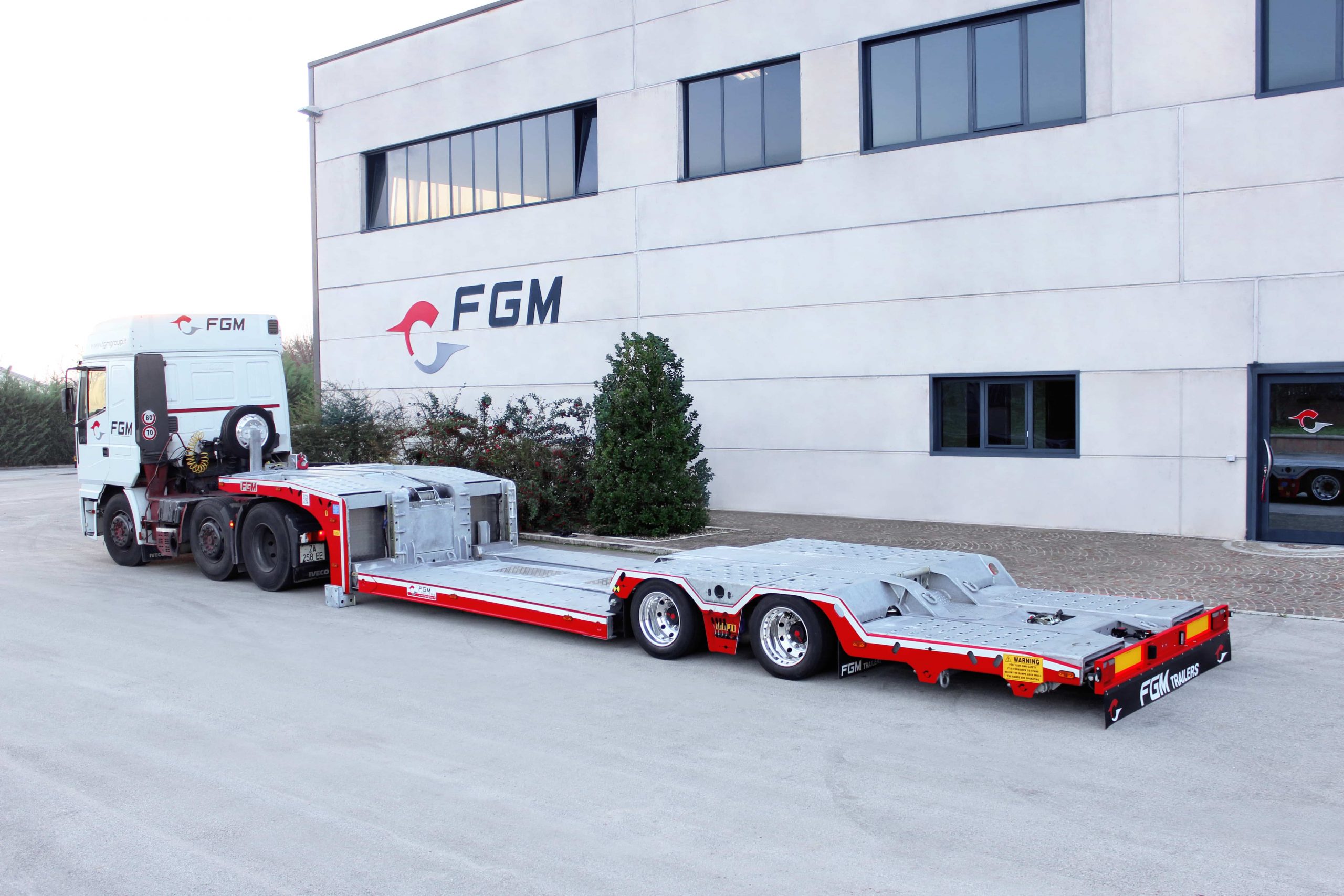

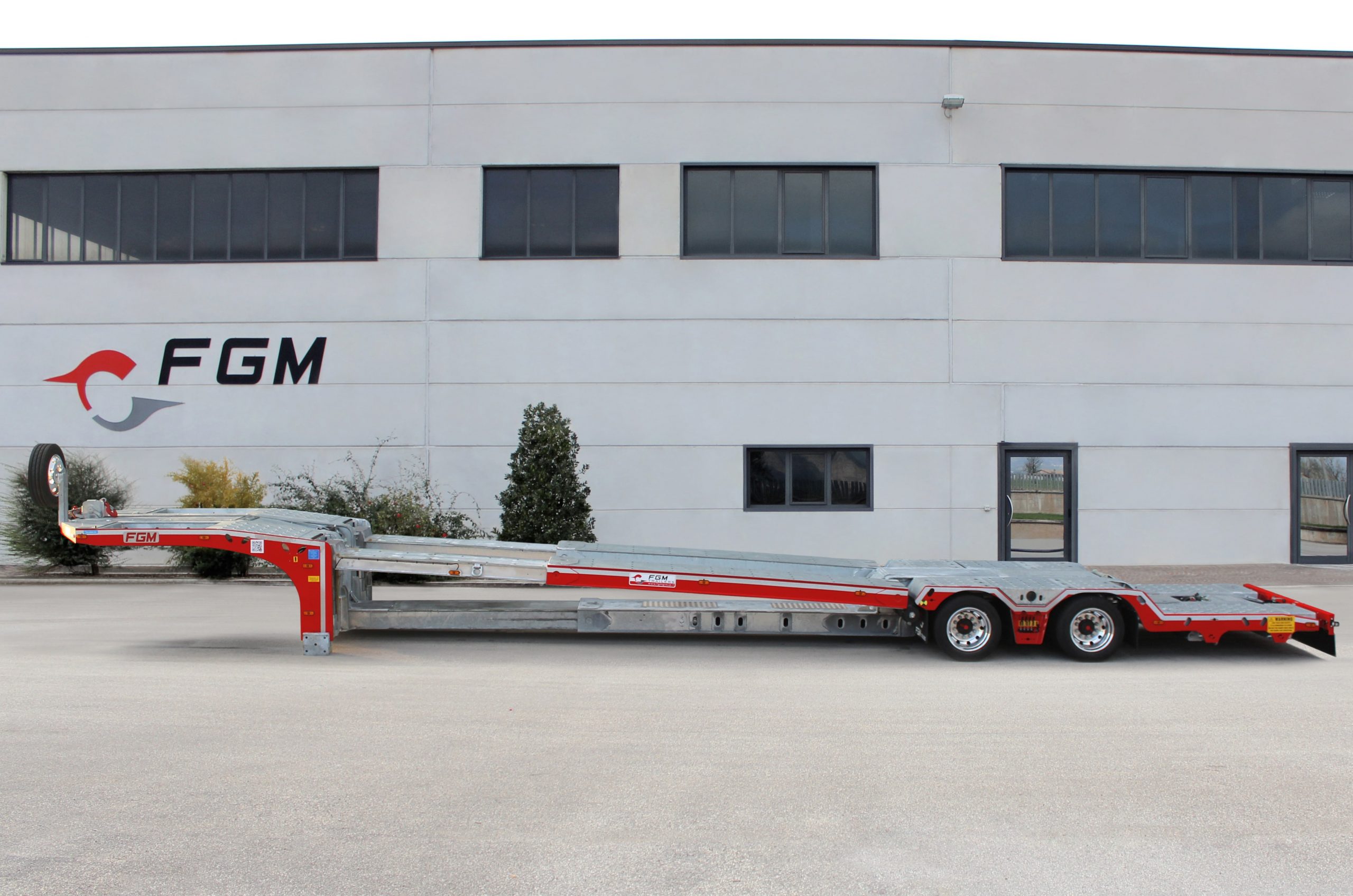

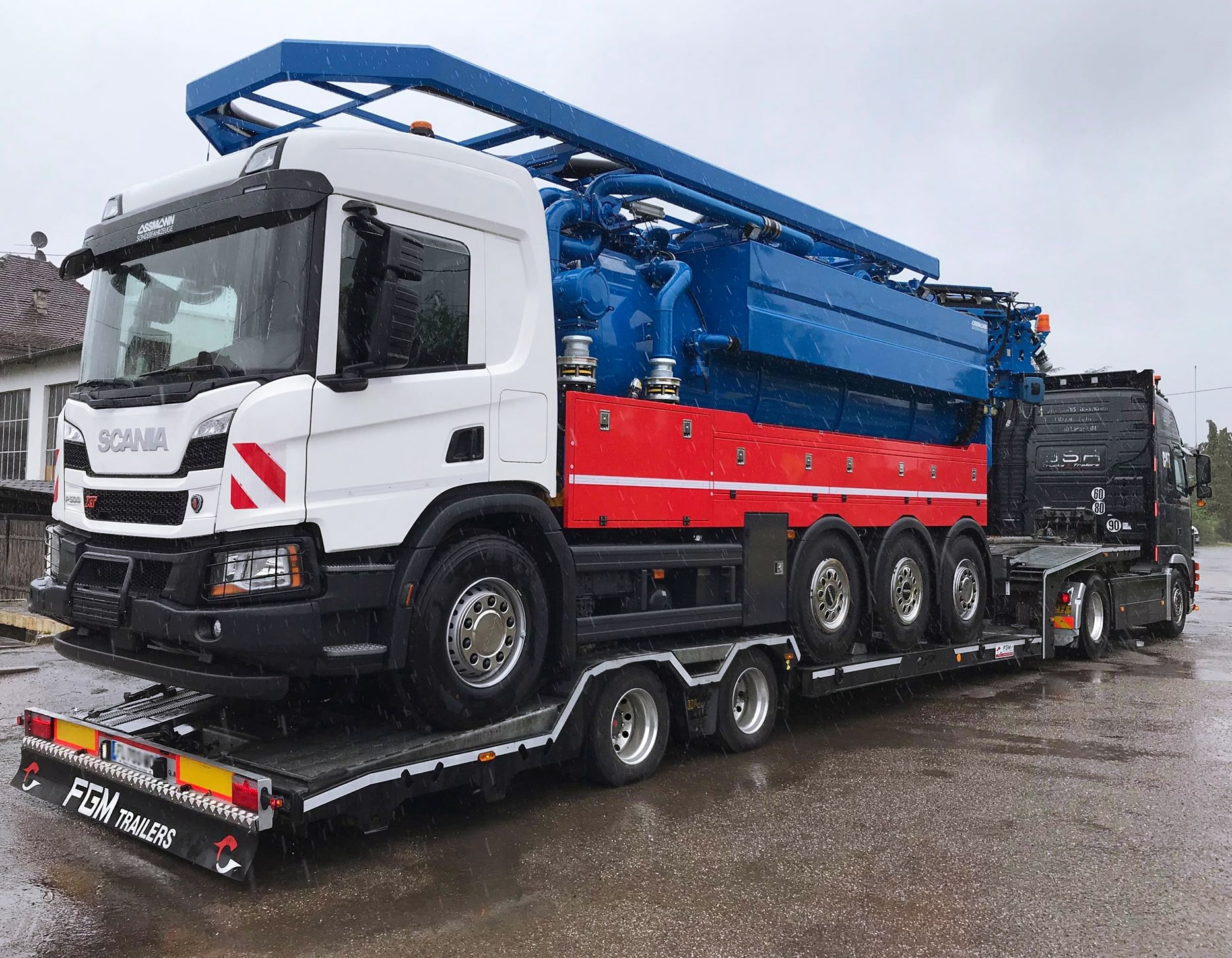

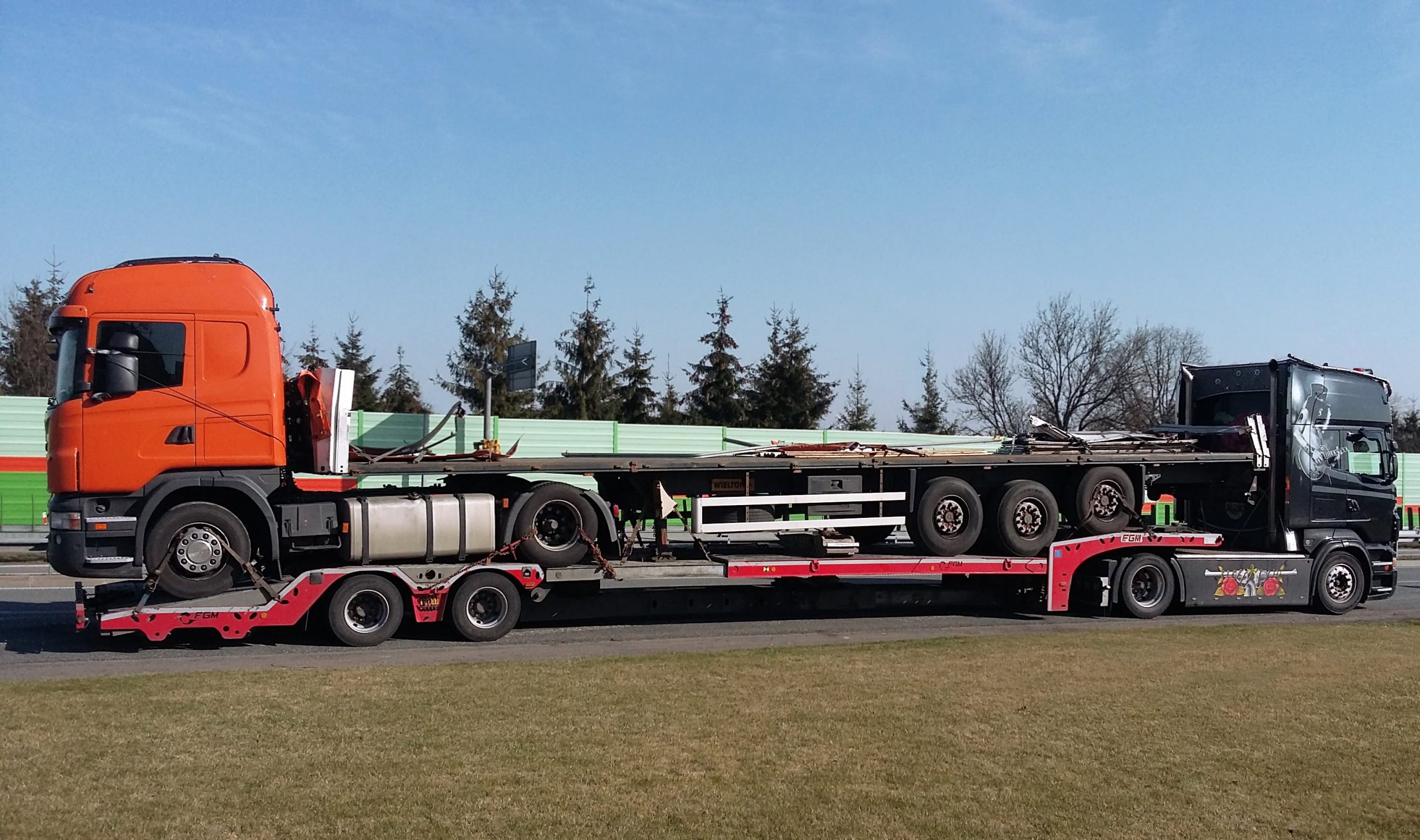

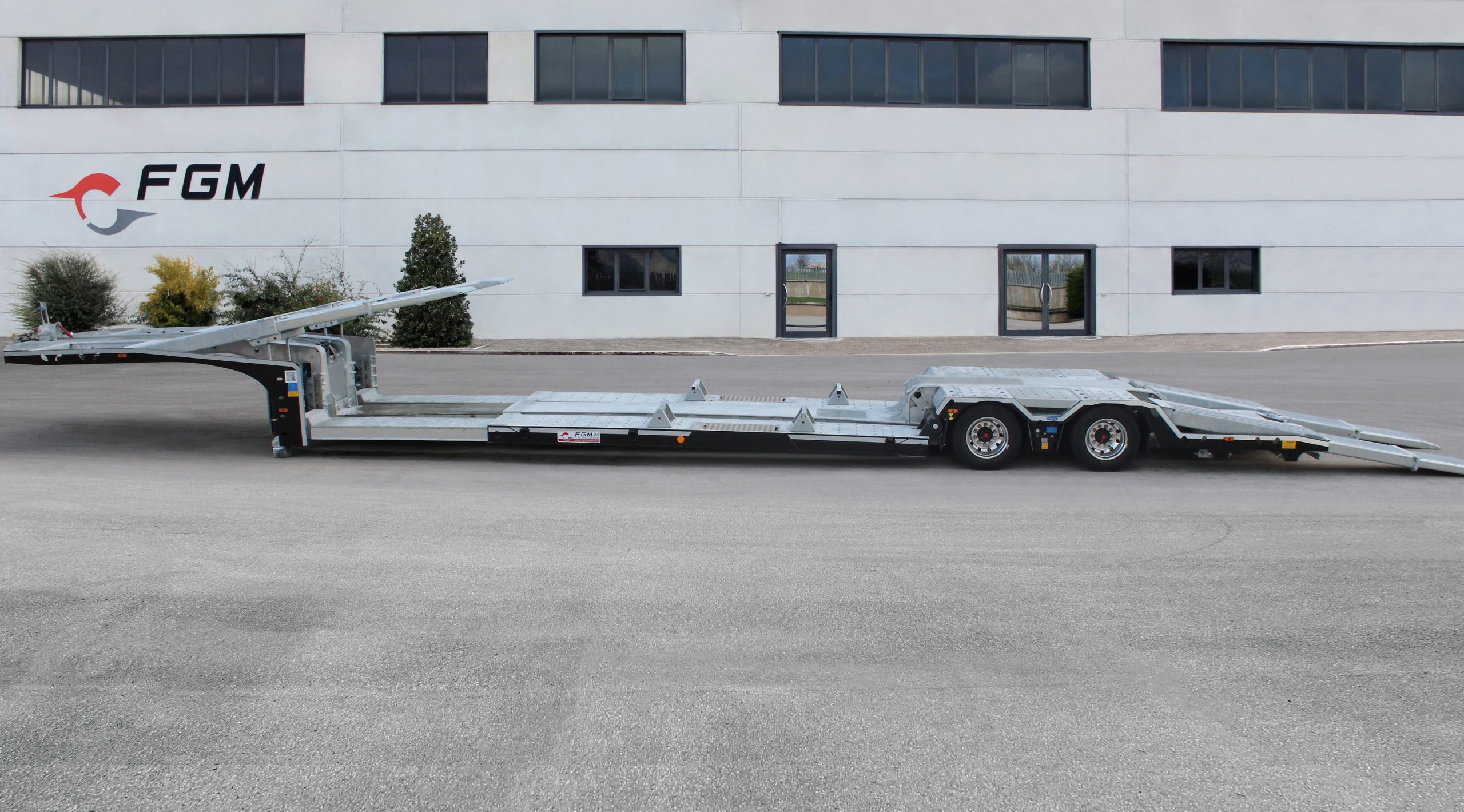

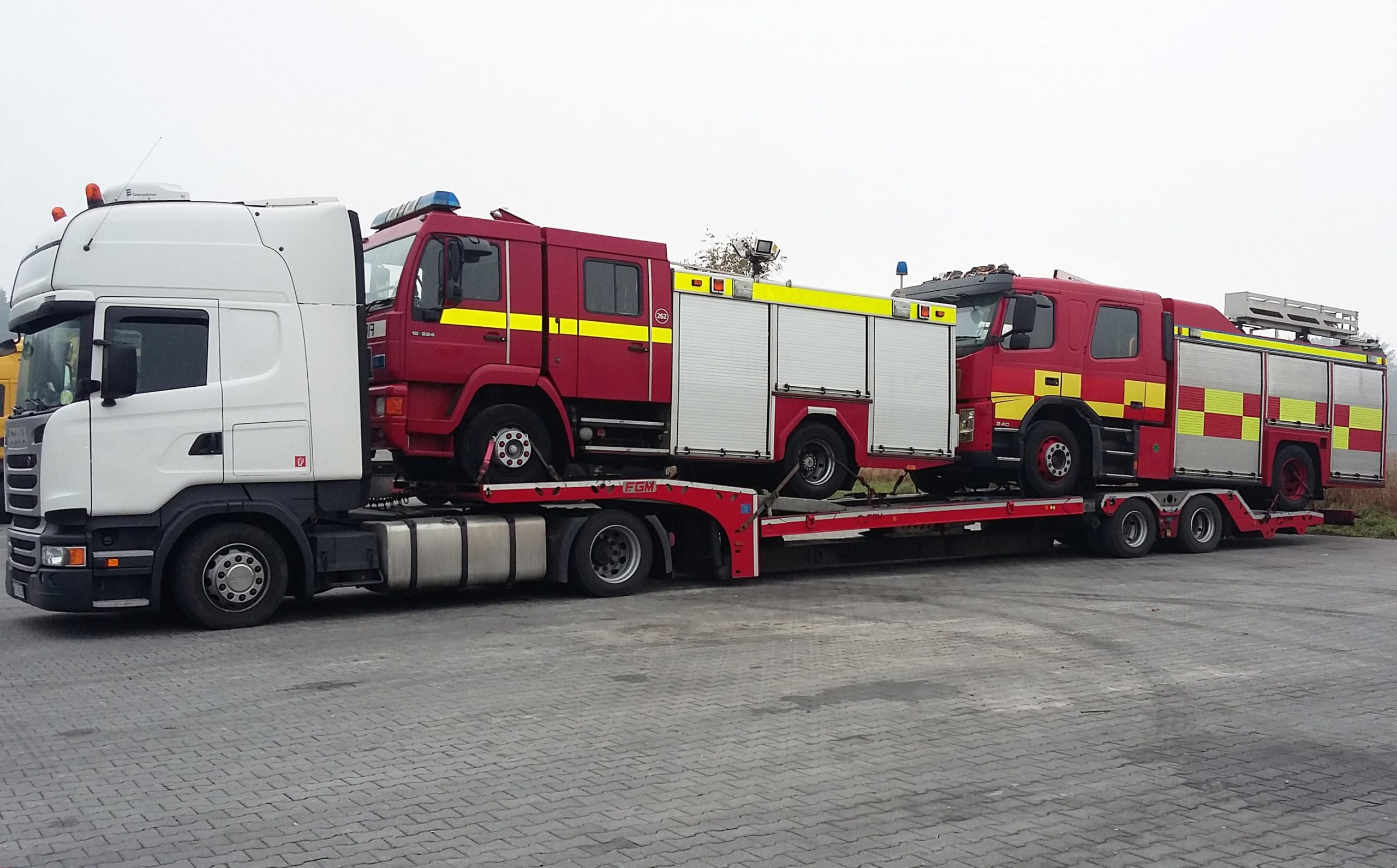

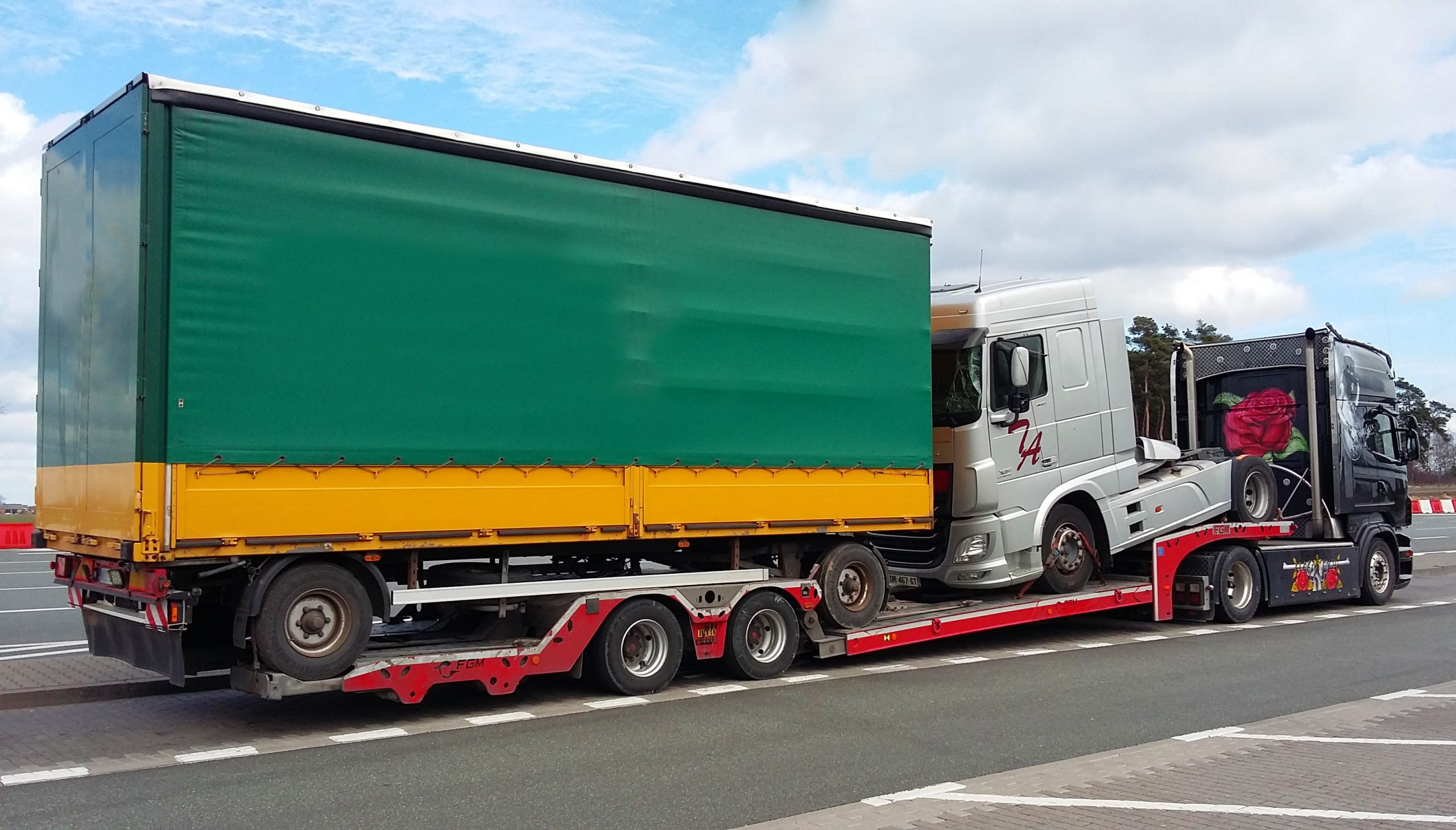

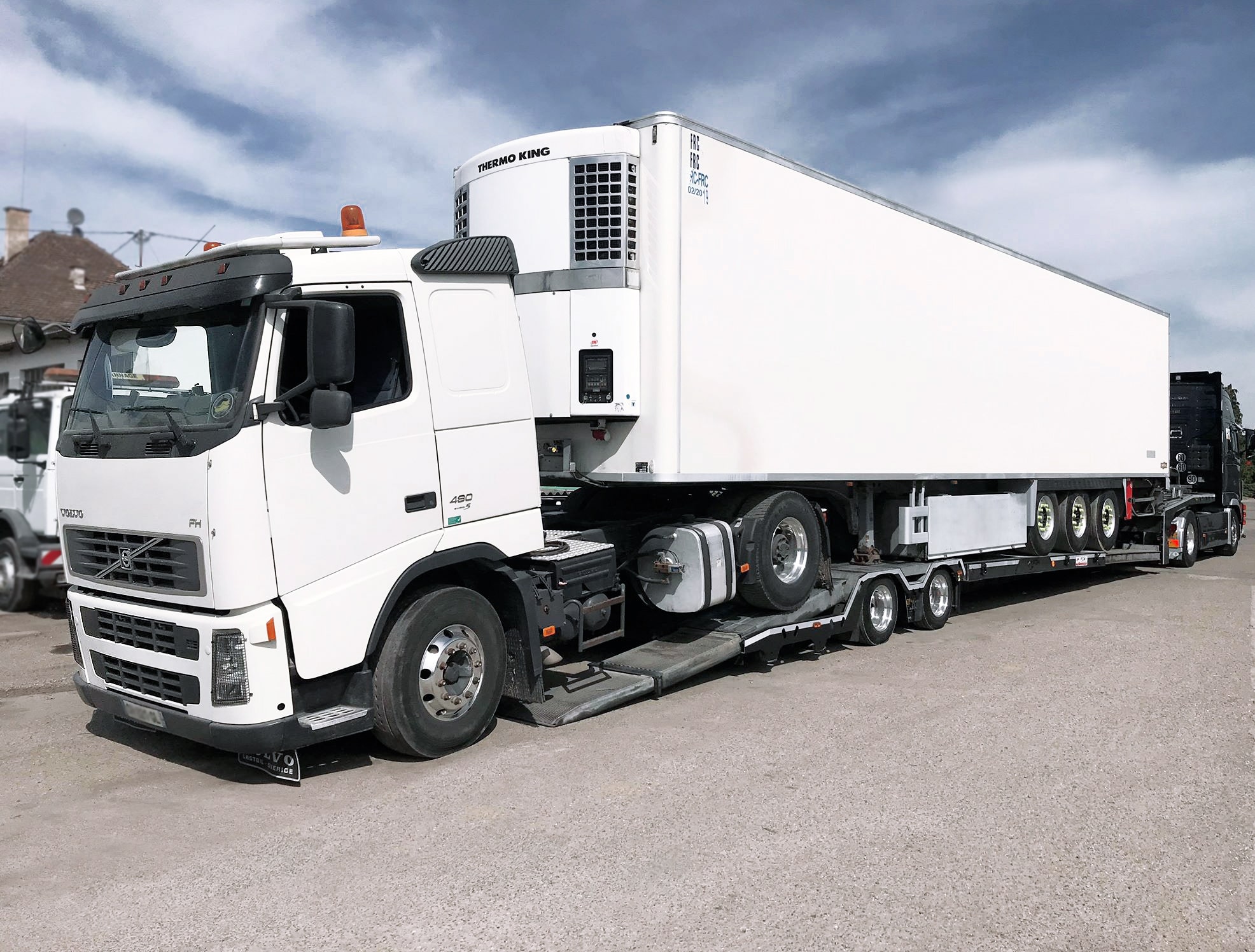

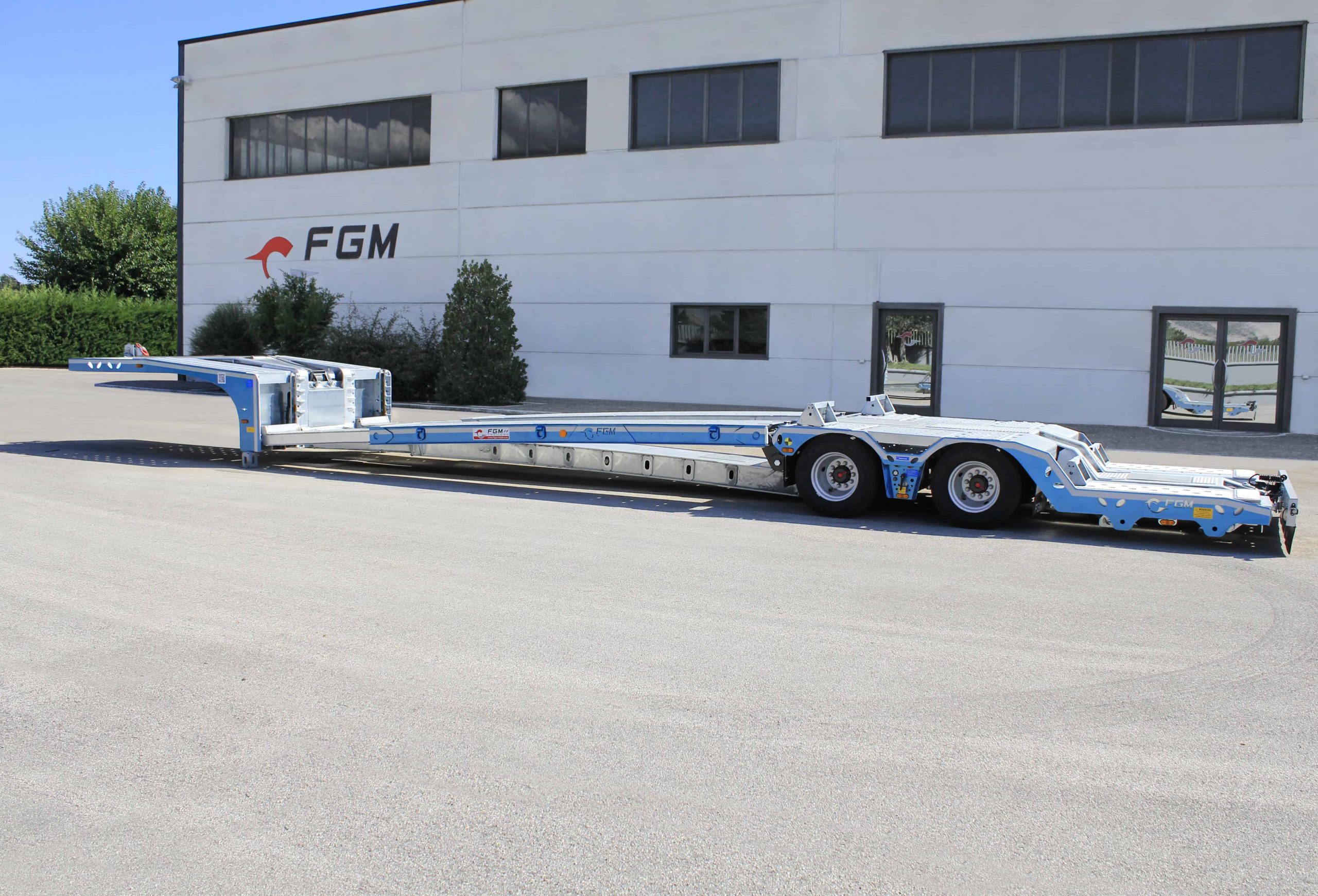

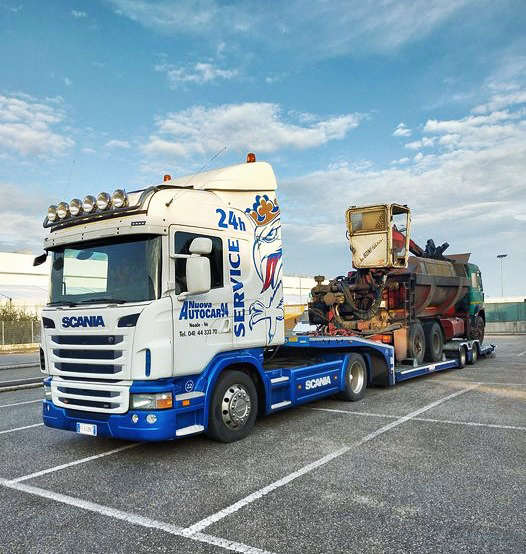

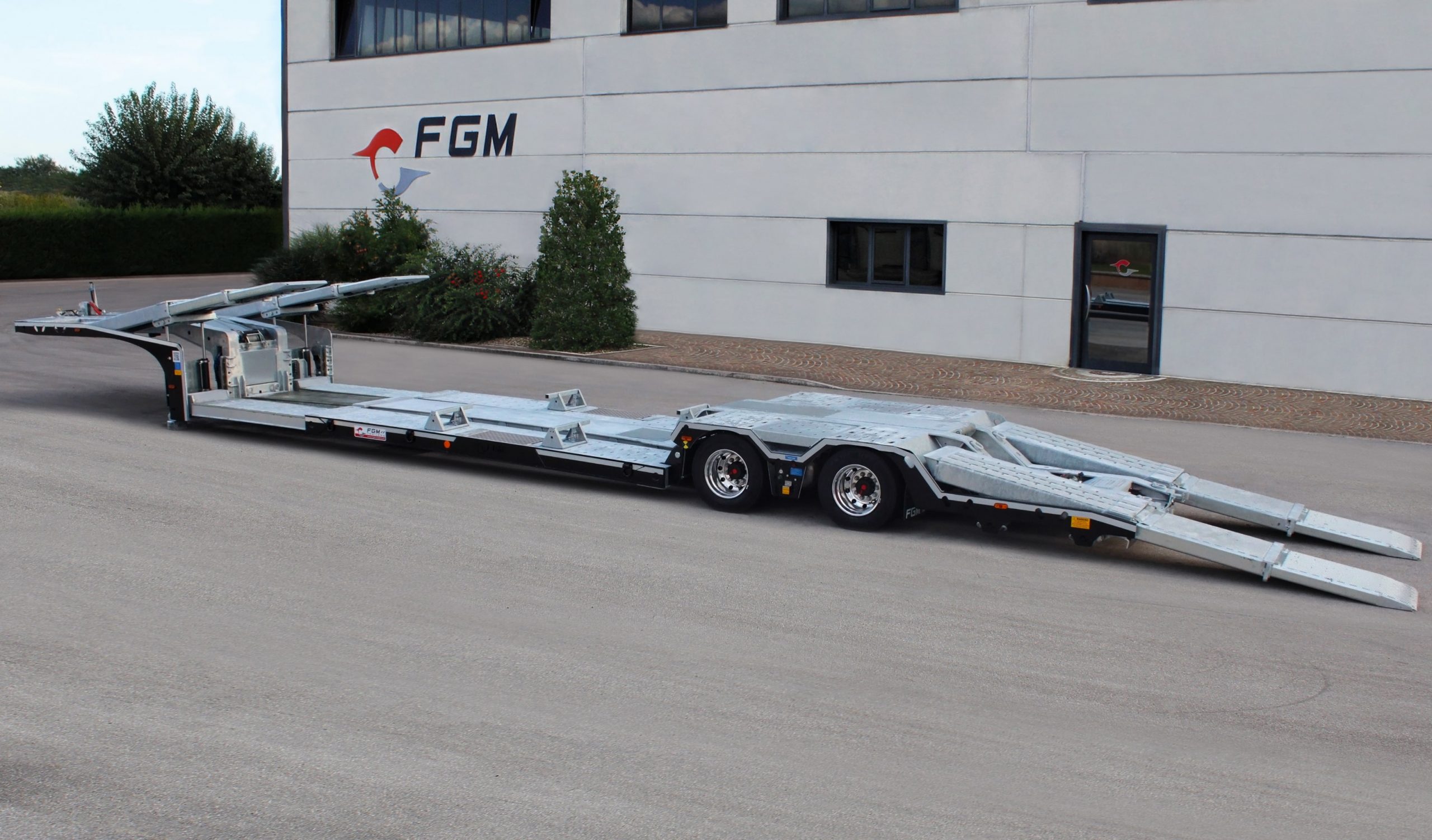

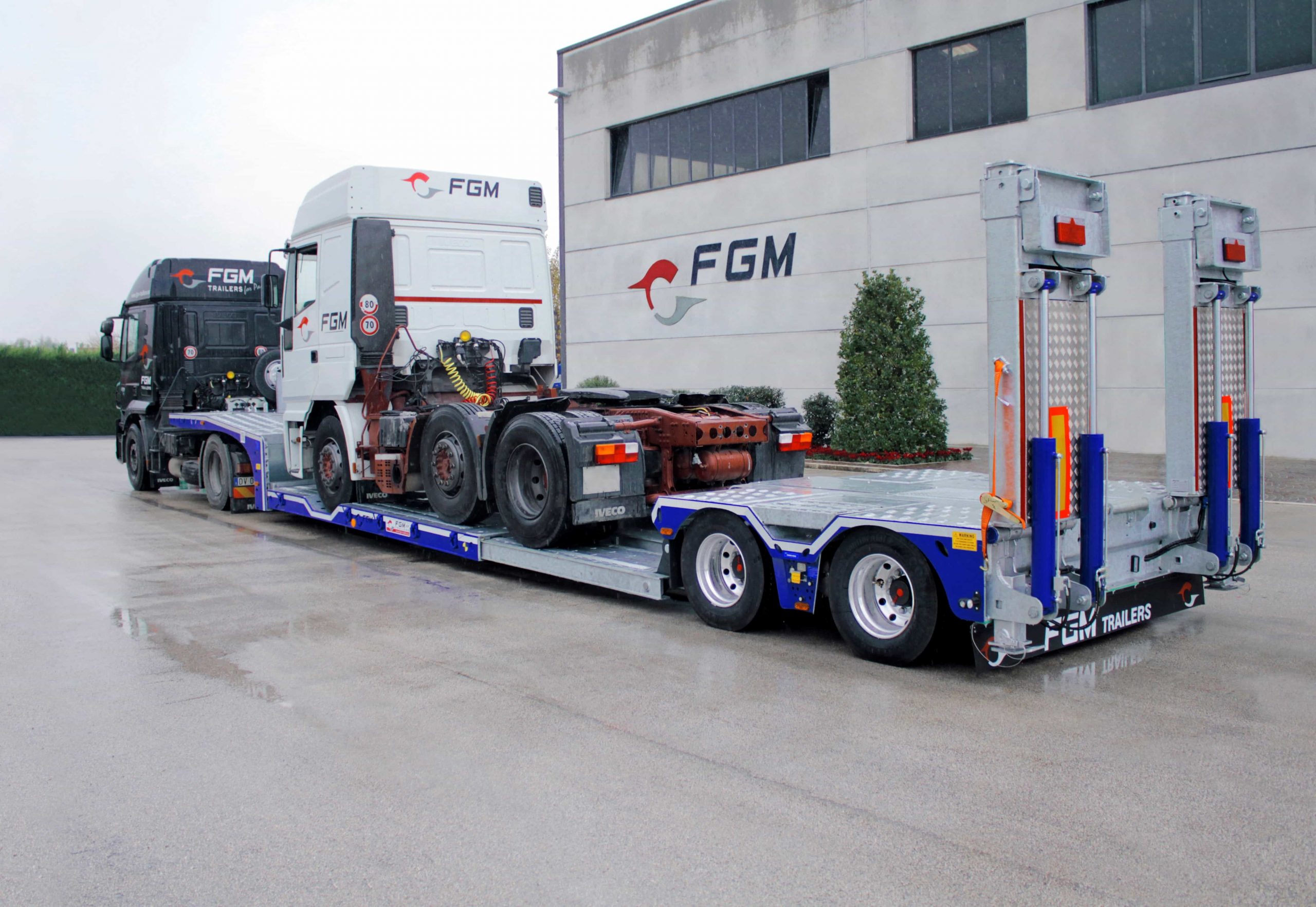

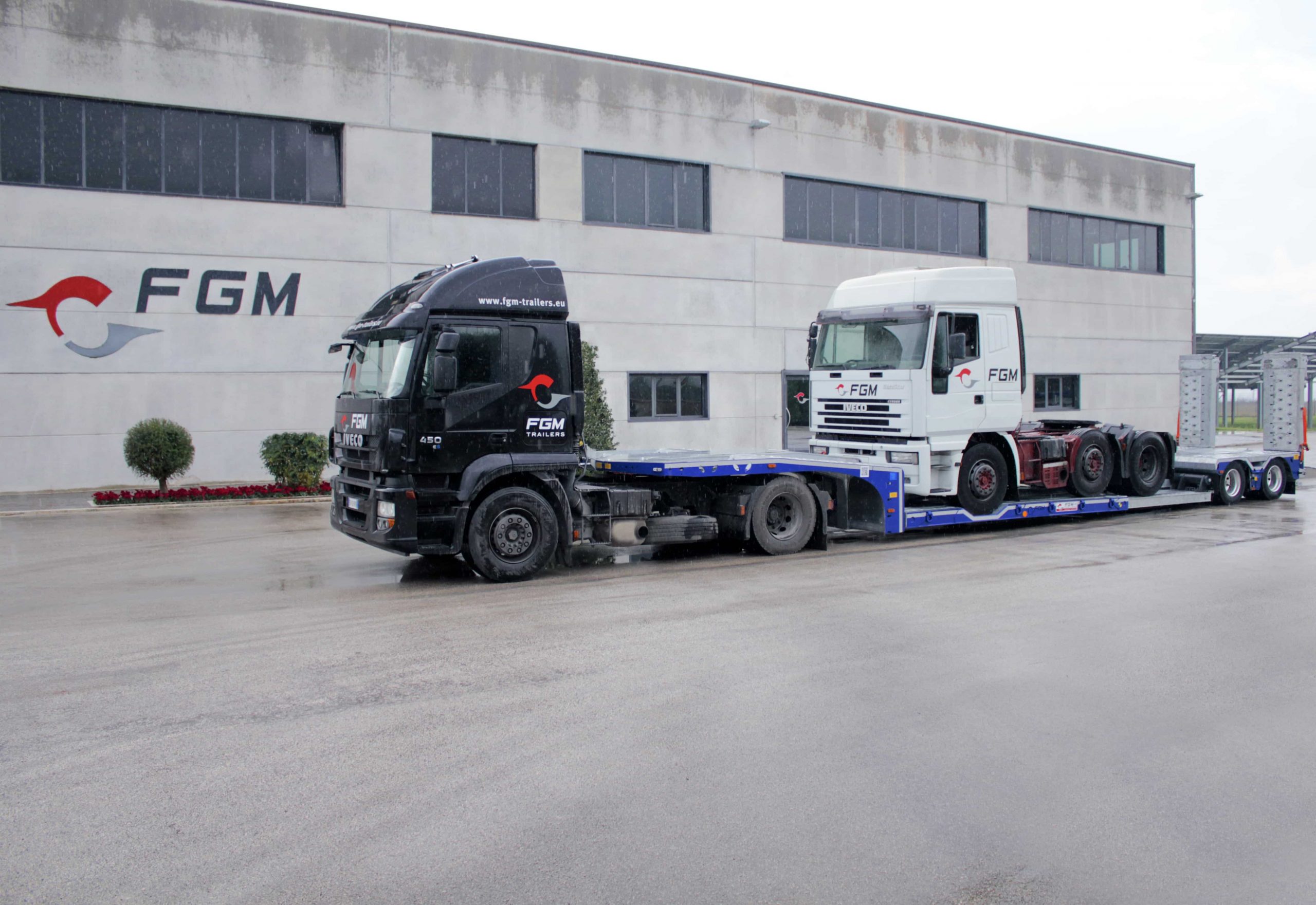

We strive to offer highly versatile solutions because ultimately, we value your investment as such, the trailer must always be able to perform a large variety of tasks to minimize downtime. The FGM 28 with its intelligent design is one of the top performing TT semitrailers. Conceived with a 3.000 mm telescopic chassis consisting of a fully drive-over modular loading platform, adjustable in height and inclination, the model offers extensive versatility. The FGM 28 is the transporter of long damaged vehicles, low deck trucks, up to n.3 truck units, three -axle trailers and much more.
Maximum fifth wheel load 18.000 kg
Loading height 380 mm
Tires 215/75 R 17.5
Tire load 8.240 kg at 100 km/h
N.2 Axle SAF/ ROR 11-ton, drum brakes

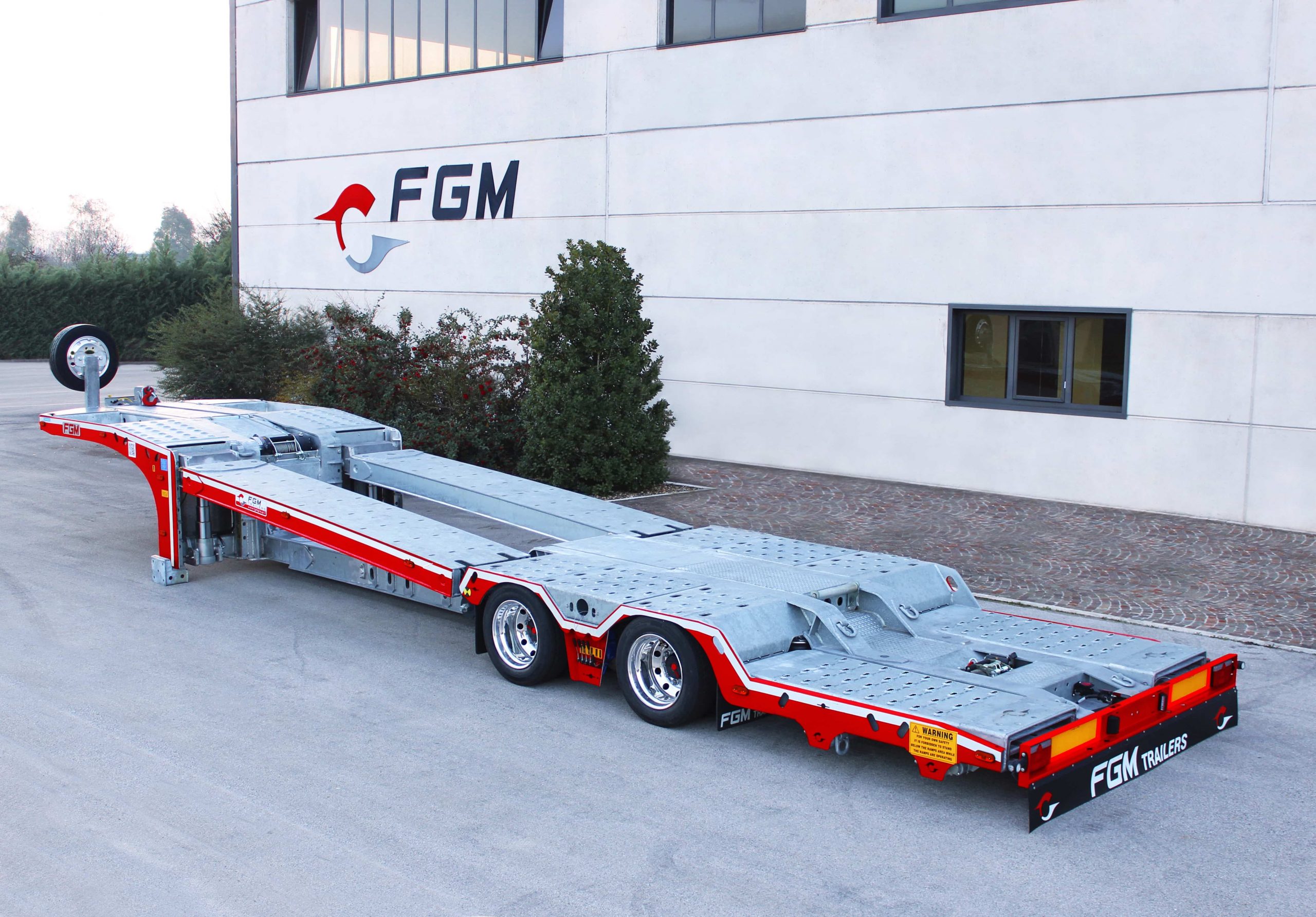

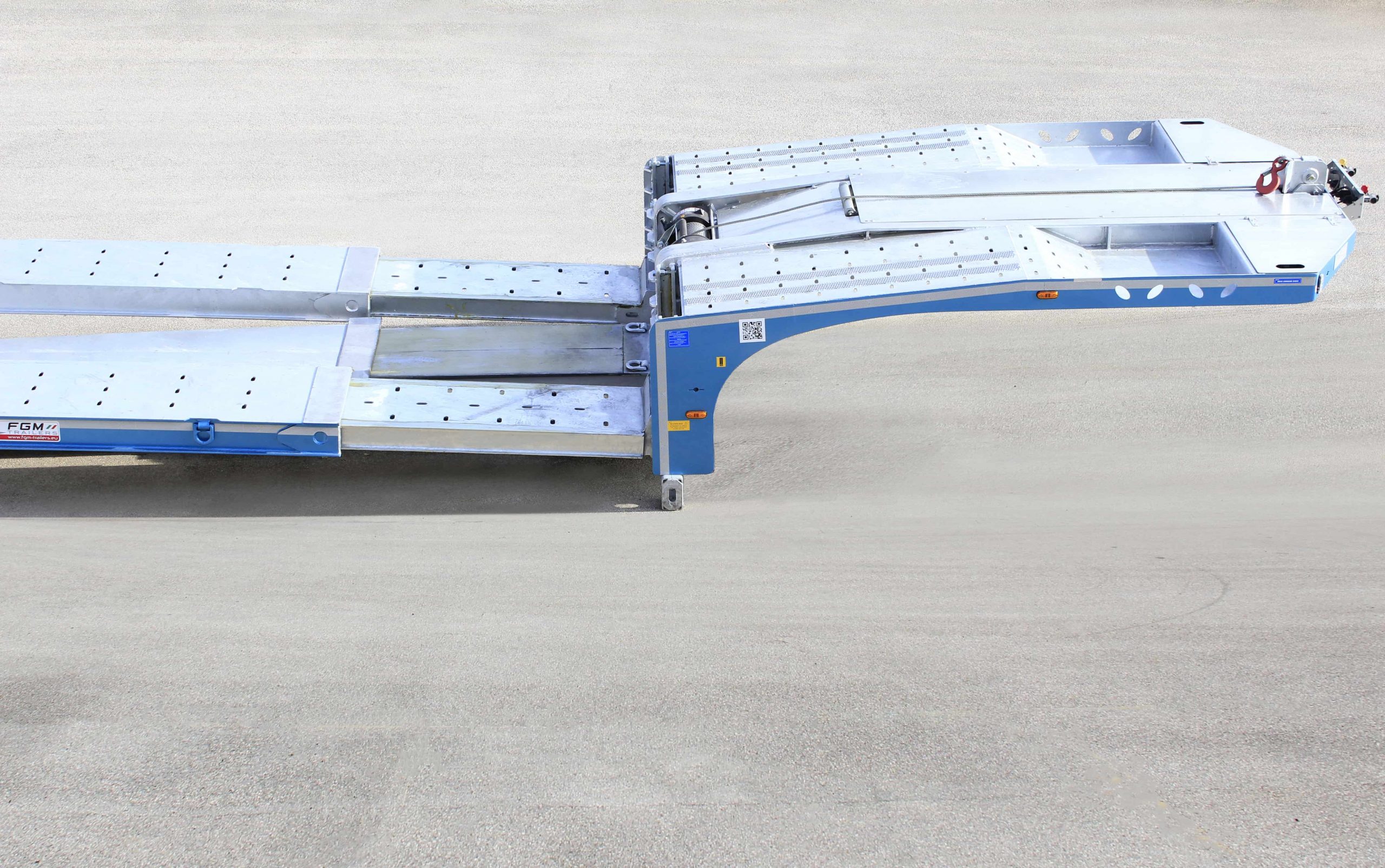

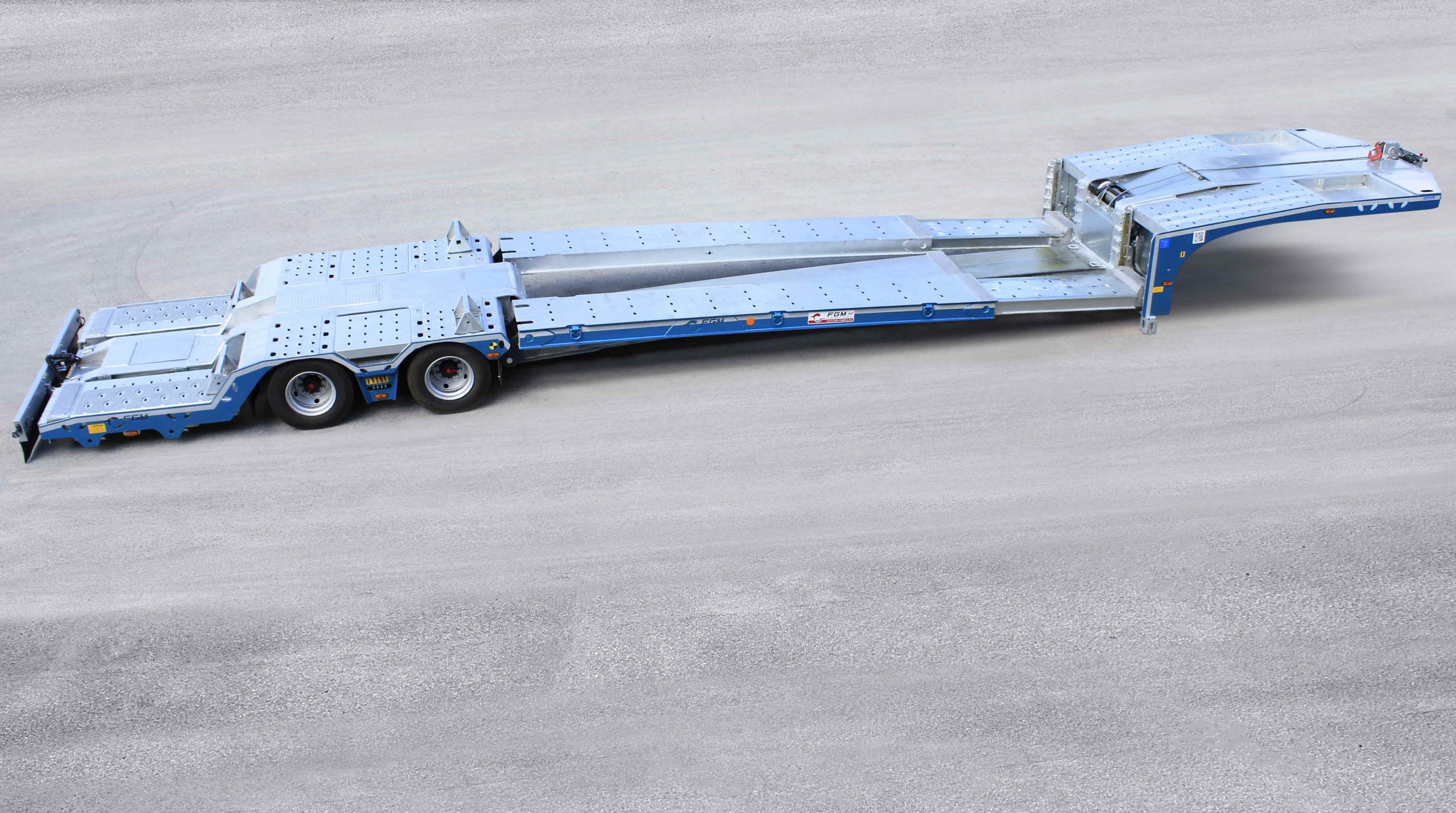

3.000 mm telescopic, drive-over, loading platform

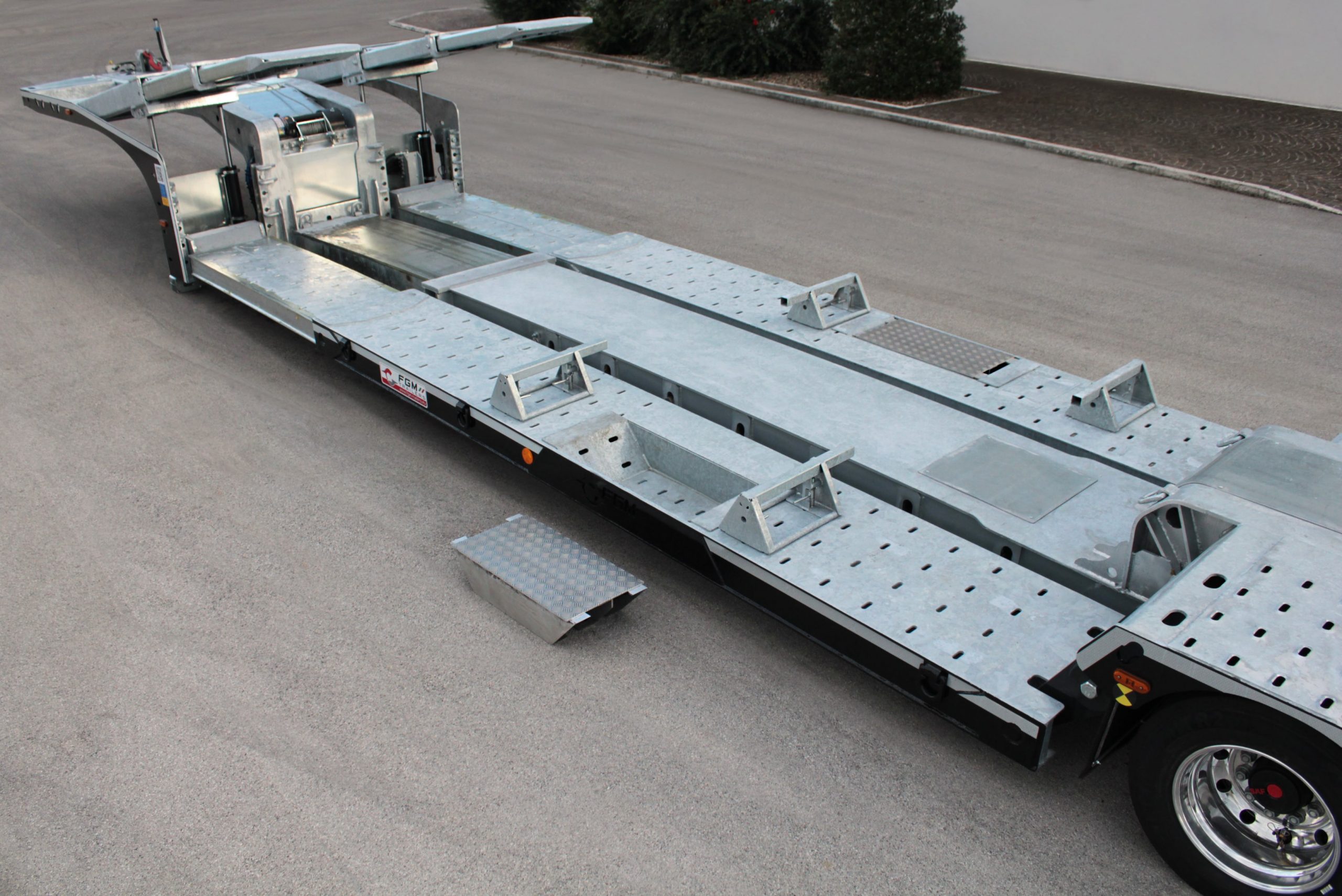

Low loading platform 8.000 mm length
Wheel recesses + covers
Front hydraulic winch 8-ton, remote control

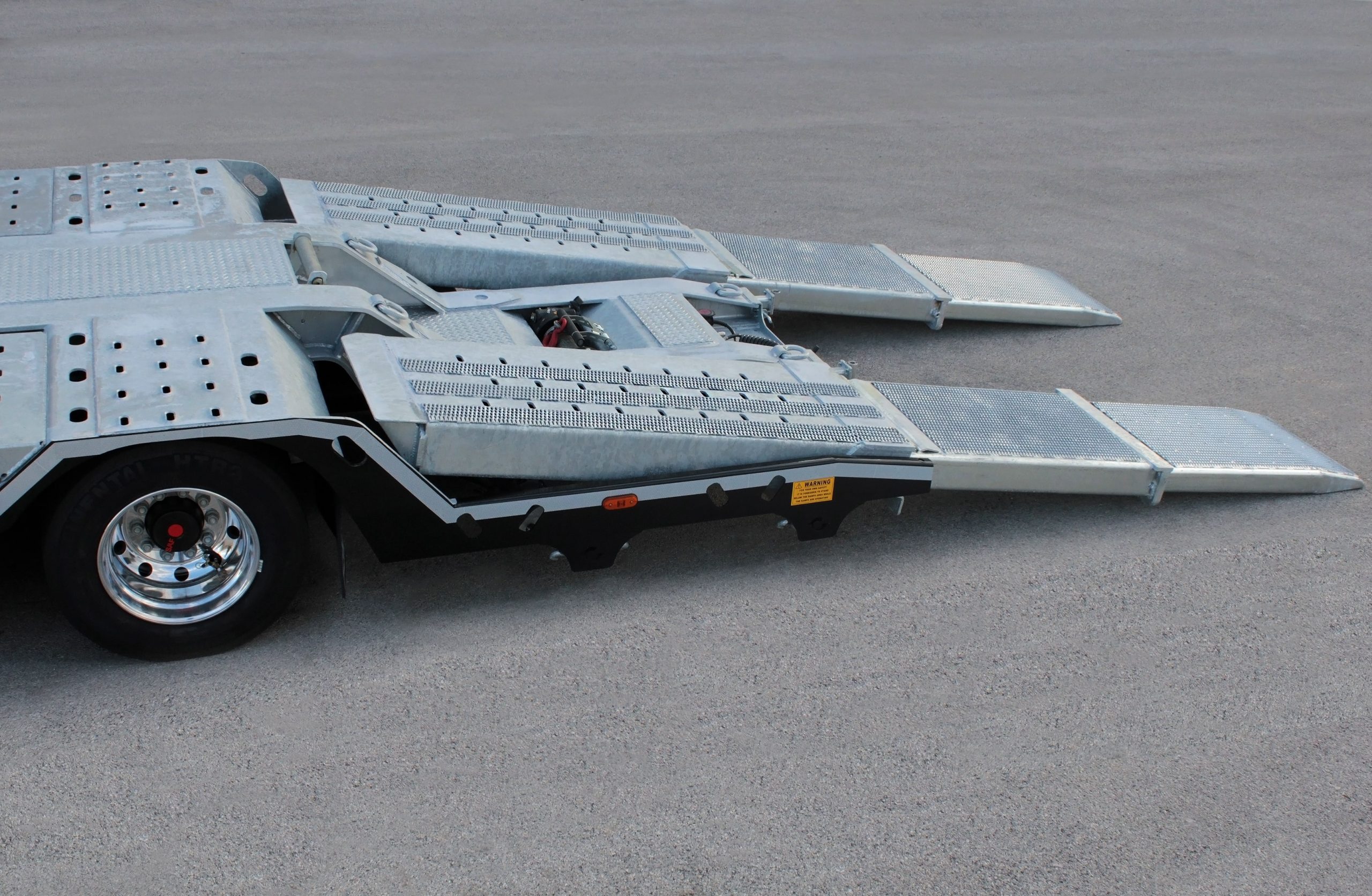

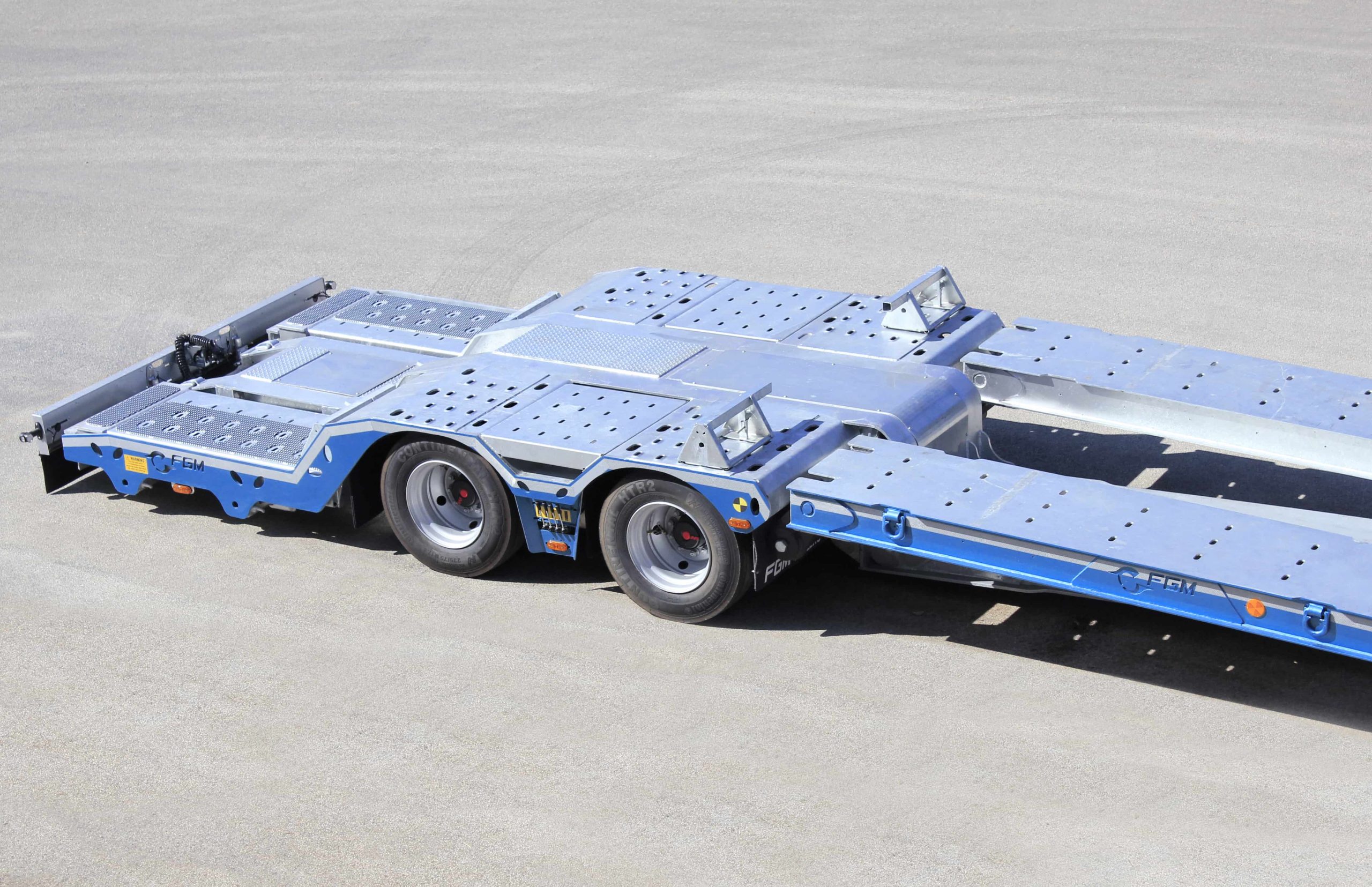

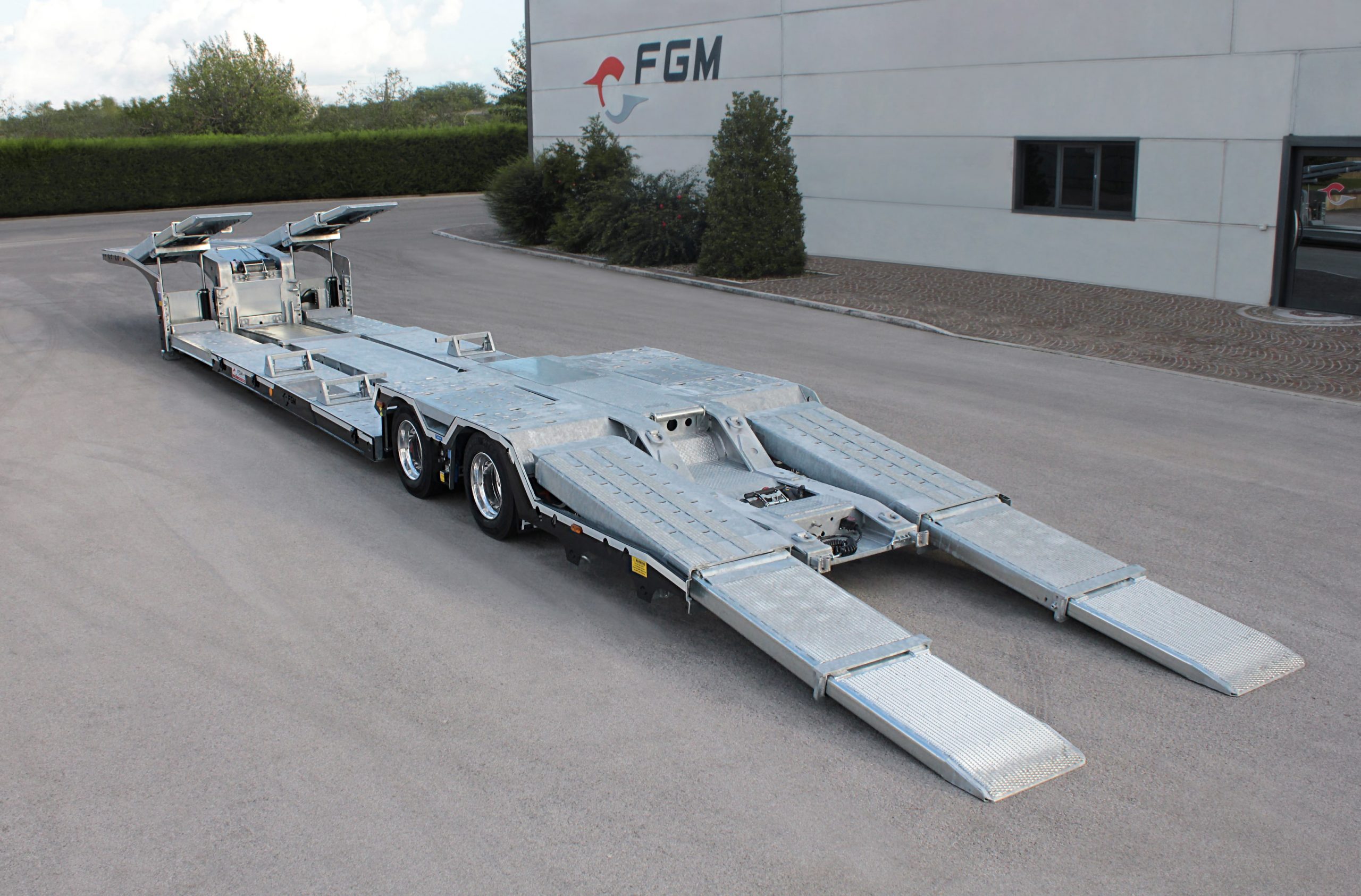

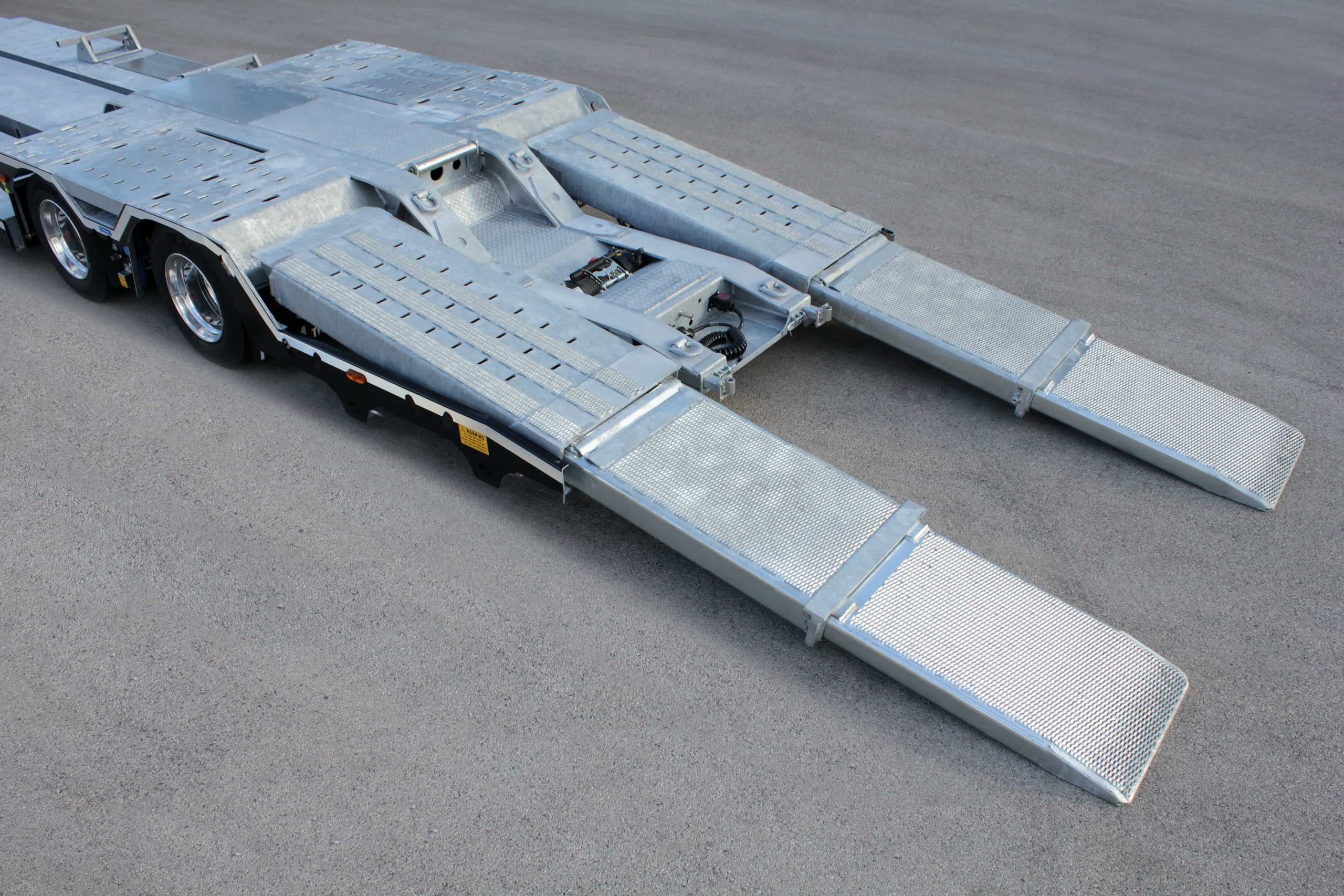

Rear telescopic ramps, double extension
Braking system Knorr Bremse
Hot-dip galvanized chassis

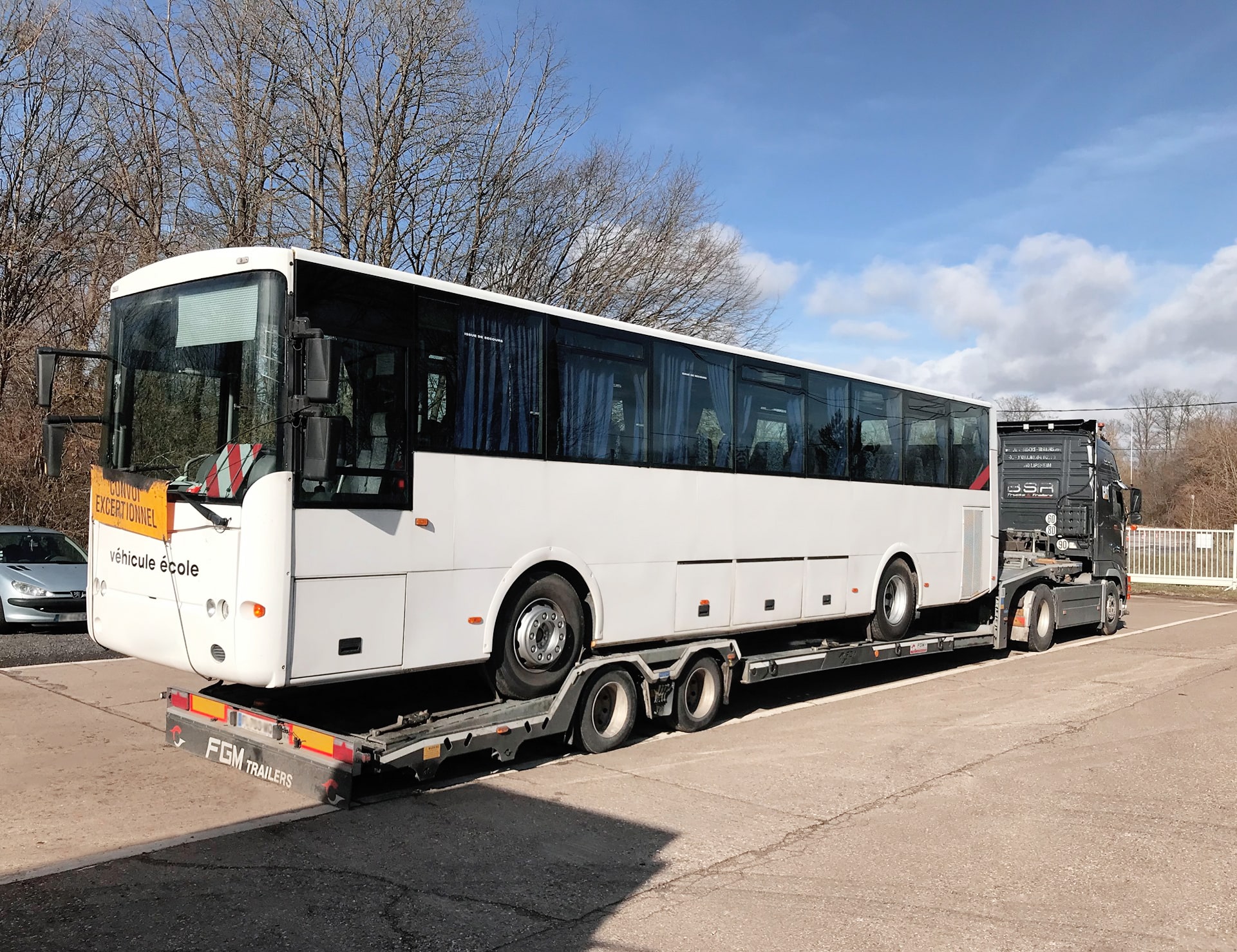

| Available Accessories | Accessorized Front sideboard Kit, Alcoa Dura Bright Aluminum Rims, Electric bus transport Kit, Extra tire Kit, LED Working light, N.4 Wide load signs, 423×423 mm, Orange Flashing Beacon, Semitrailer with customized dimensions, Speedline Aluminum Rims, TIM, KNORR BREMSE, VIME Hydraulic winch, 4.400 Kg, Wheel recess Kit, telescopic loading platform |
|---|---|
| Axles | BPW 11-ton, drum brakes, ROR 11-ton, drum brakes, SAF 12-ton, drum brakes |

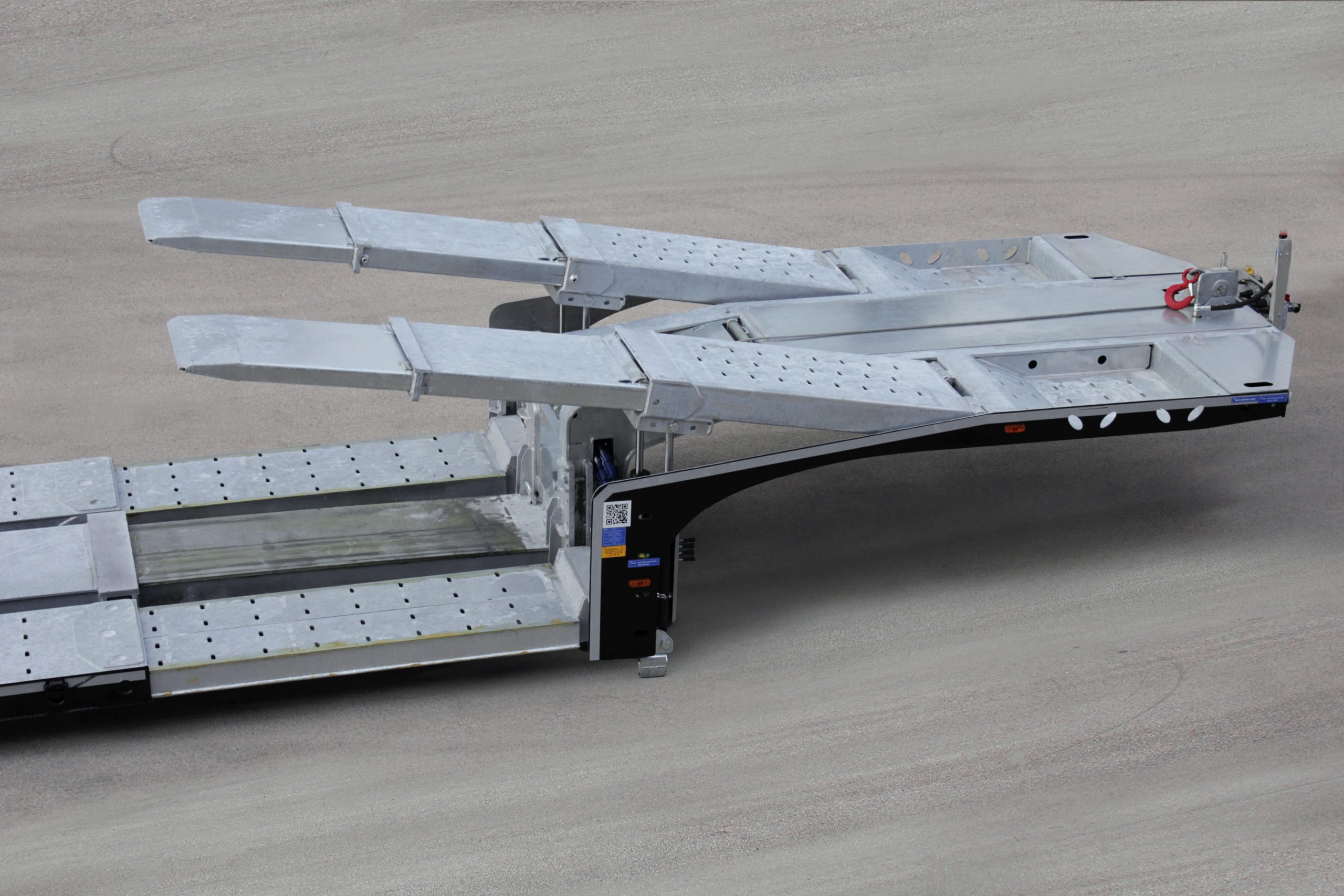

| Ramp type | Front Hydraulic ramps, double telescopic extension, Rear hydraulic ramps, double telescopic extension |
| Chassis | 3.000 mm telescopic chassis |
| Surface Treatment | Hot-dip galvanized chassis treatment, Painting job in RAL color requested, included |
