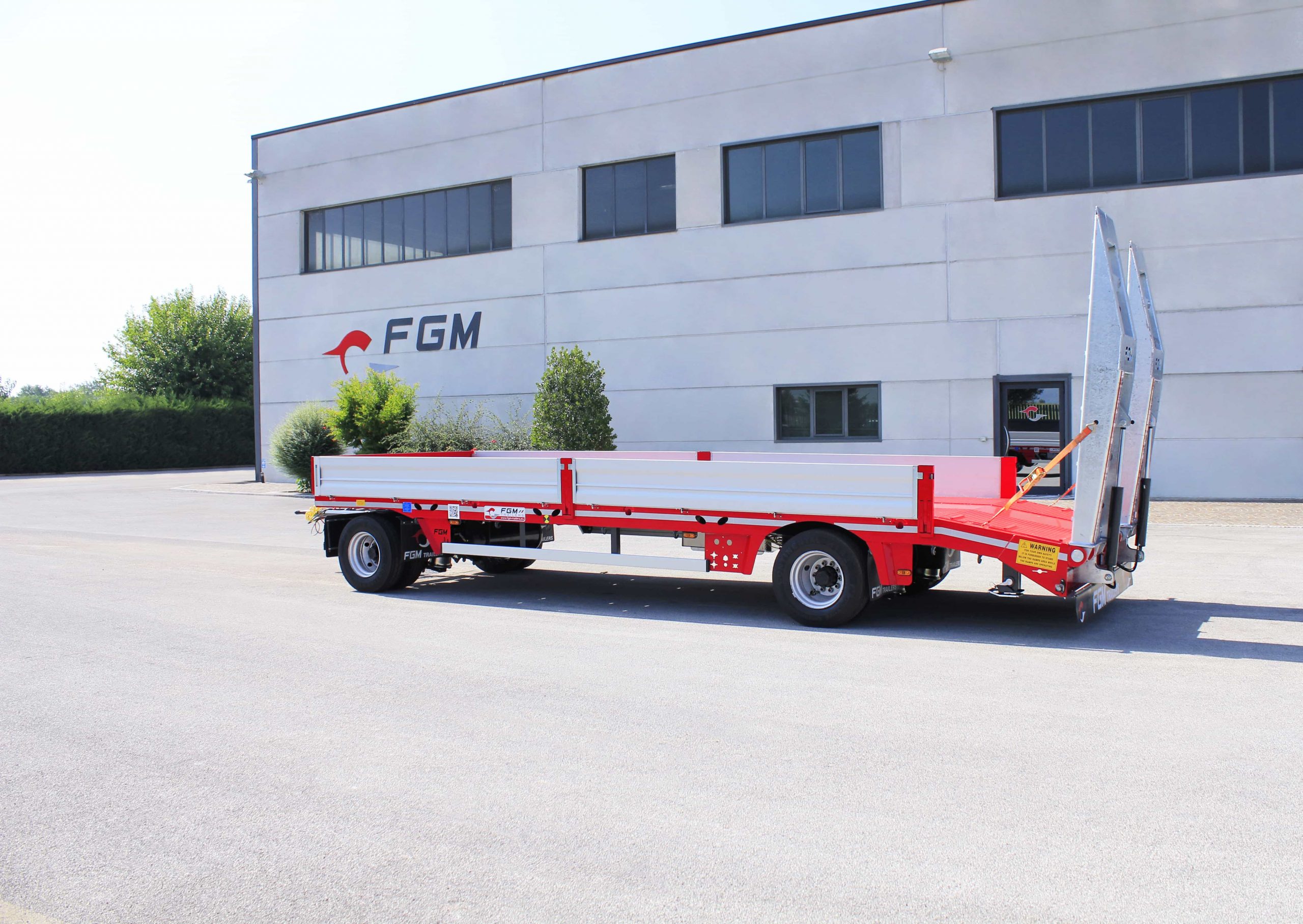

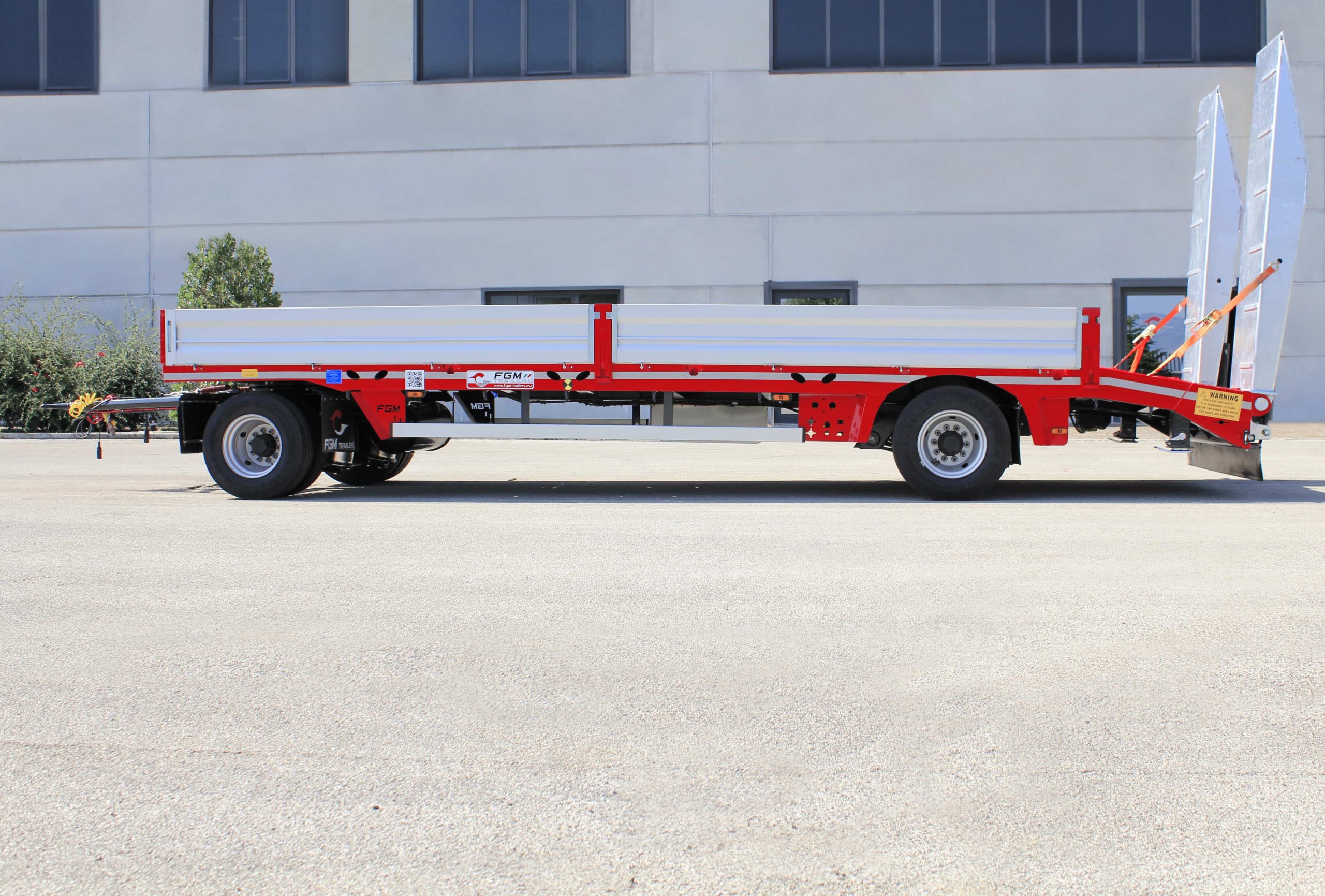

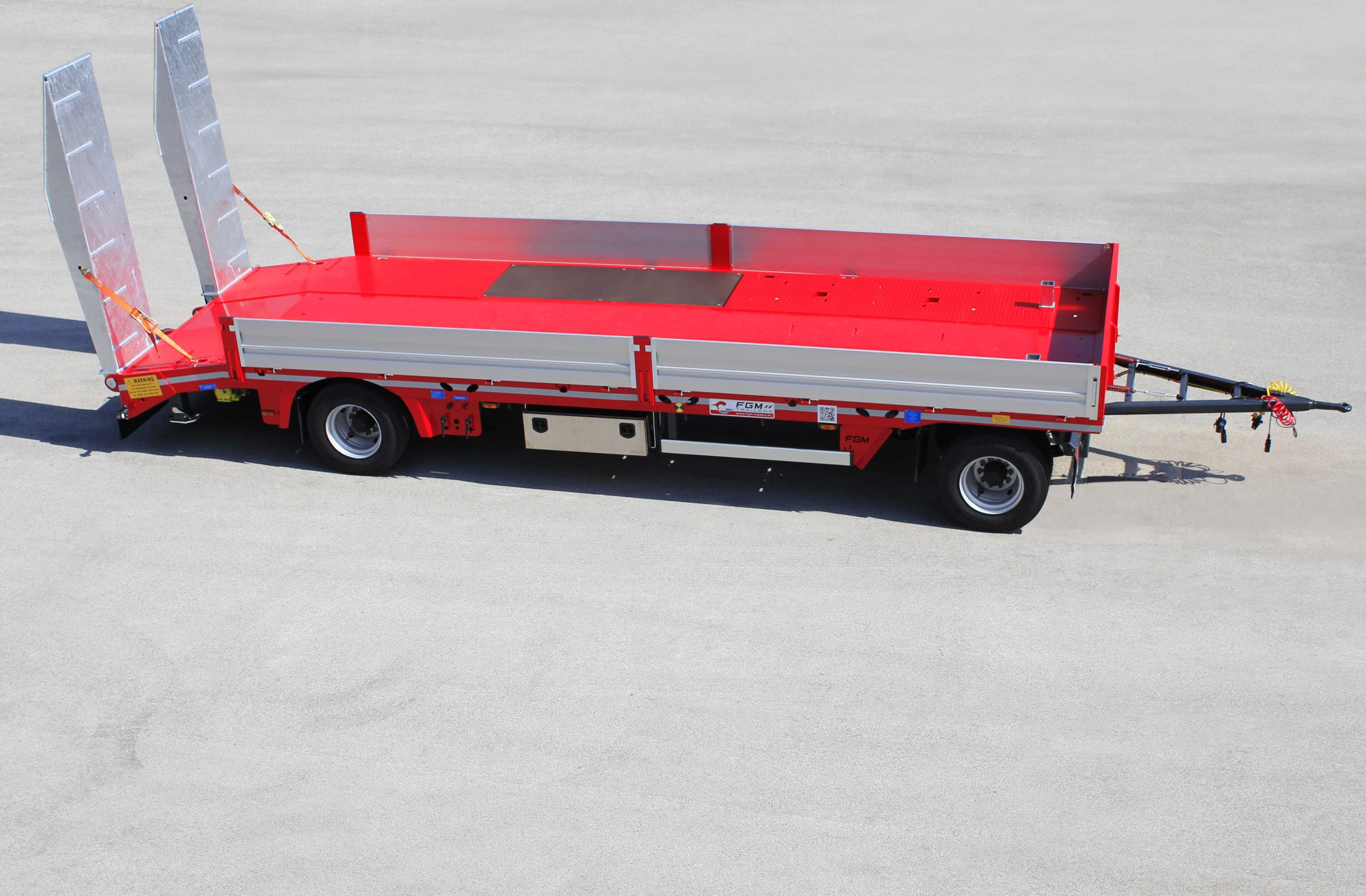

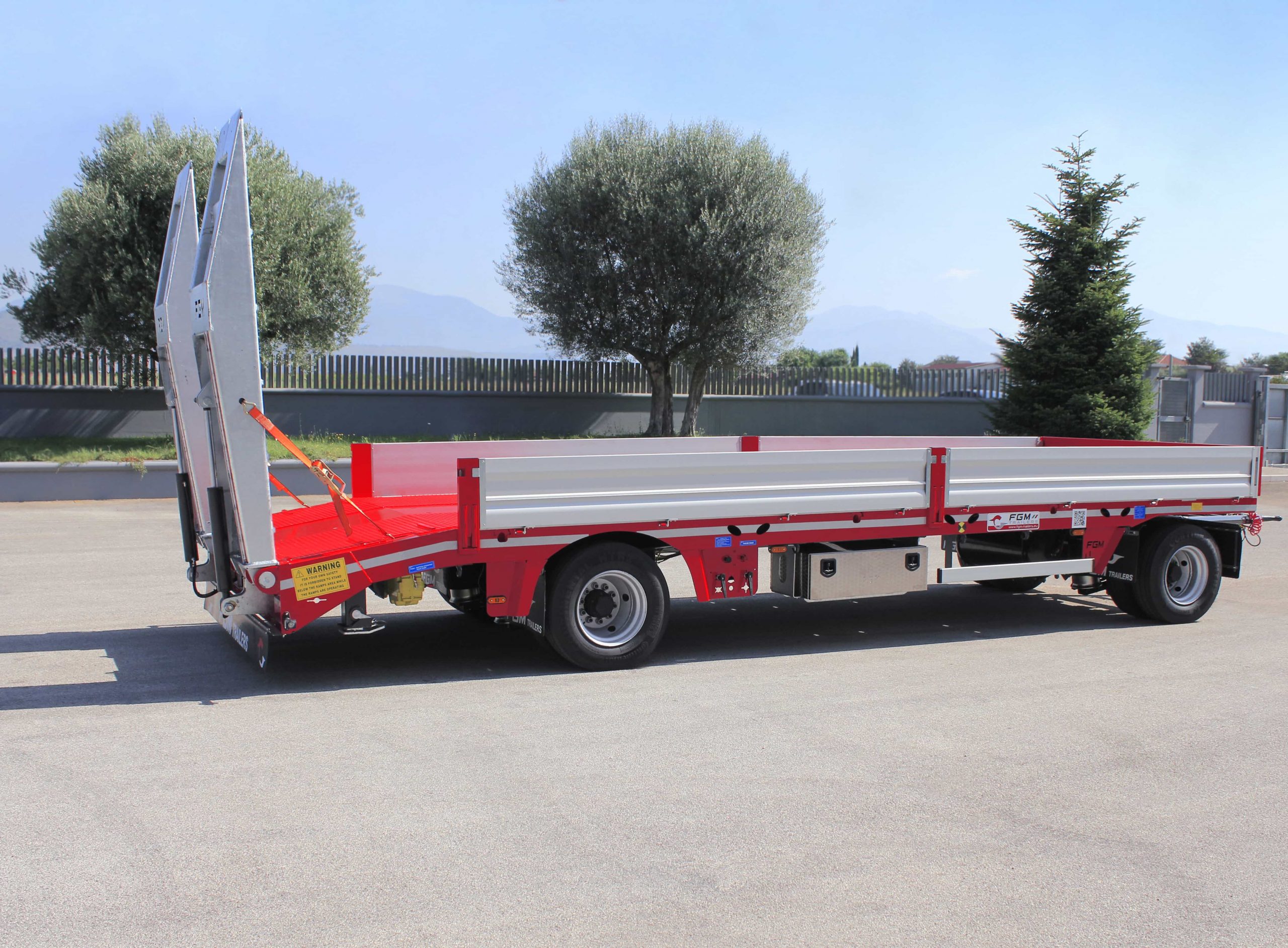

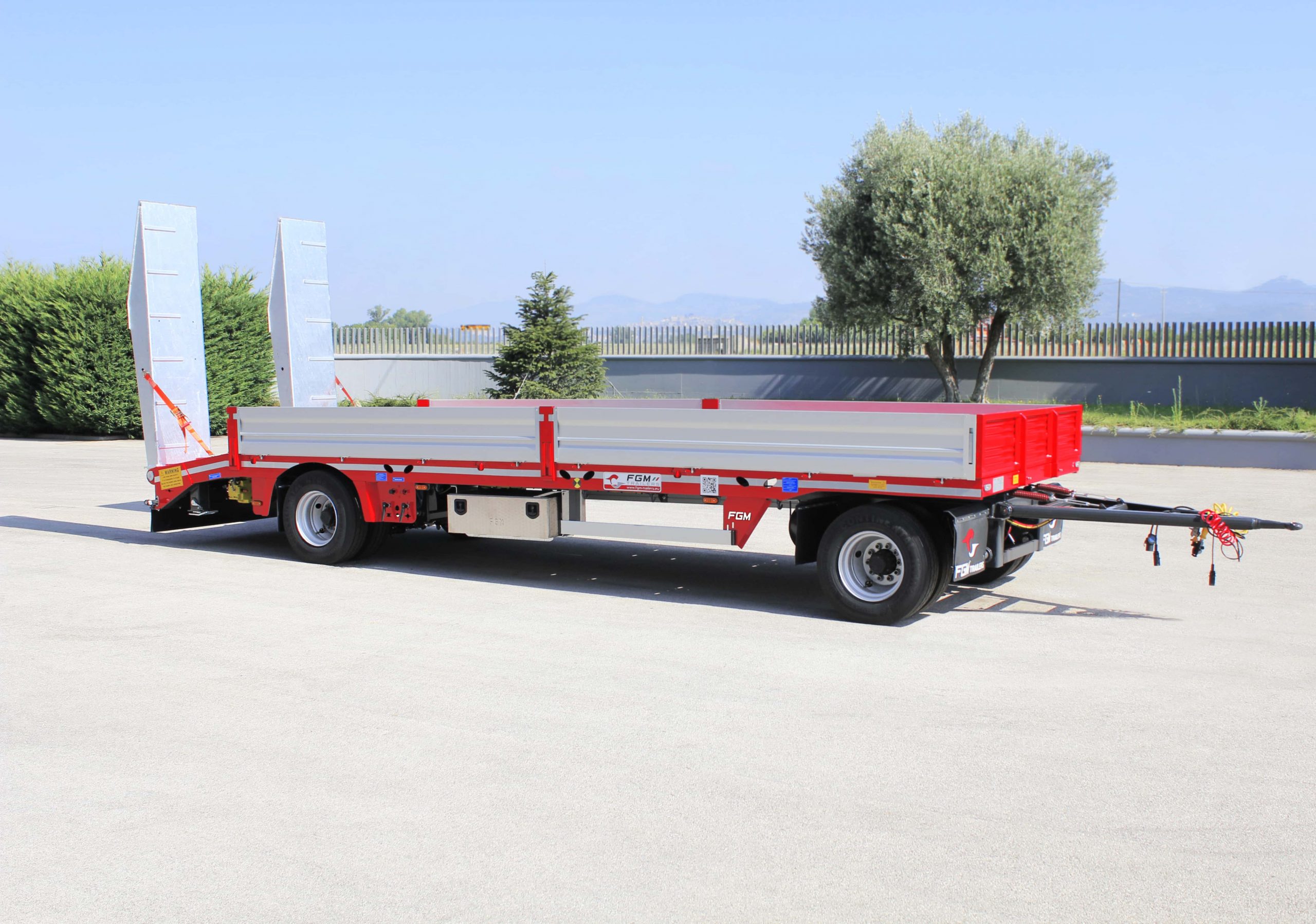

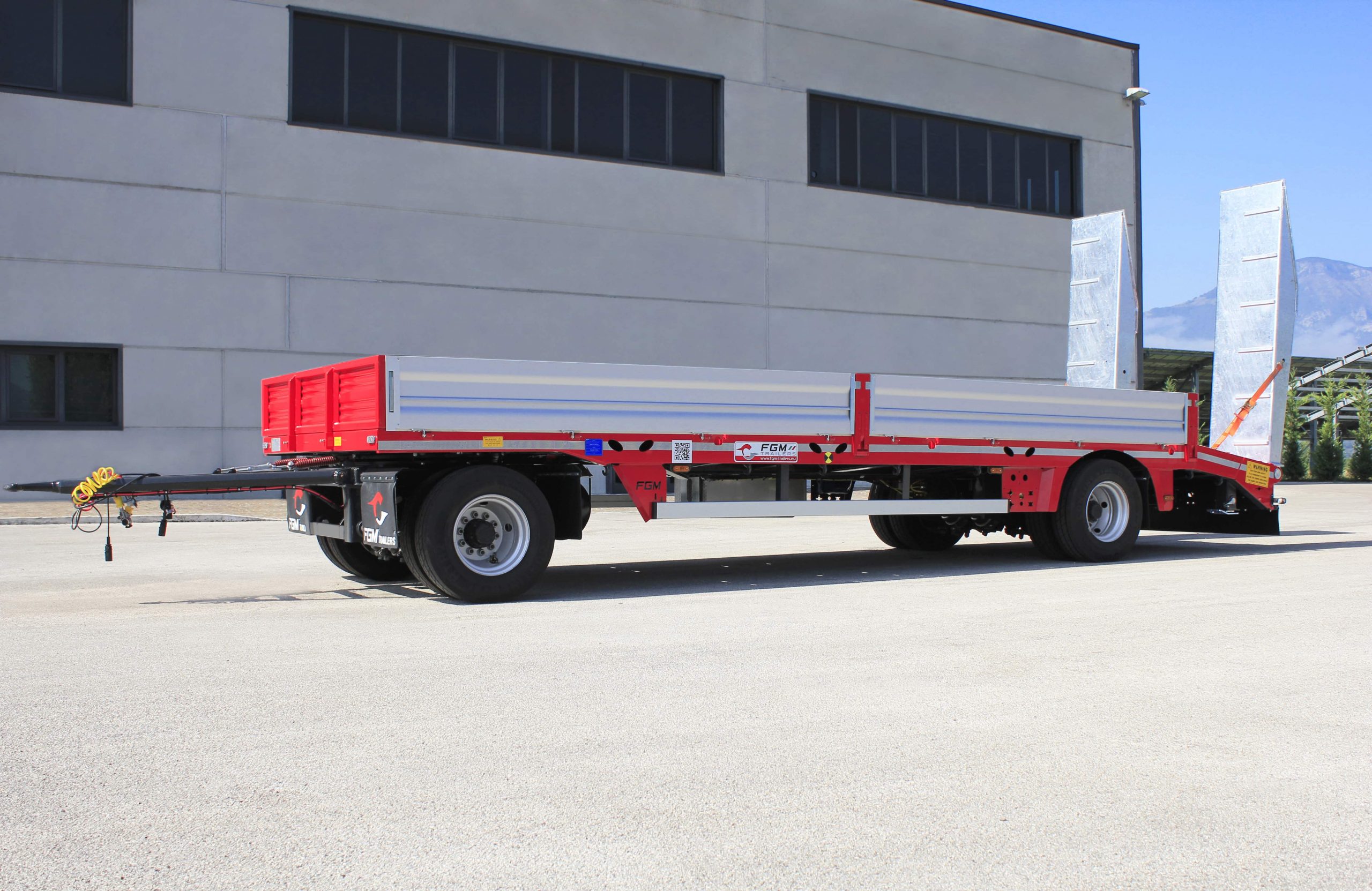

Available in different configurations and accessories, the drawbar trailer FGM 20, is designed to transport construction machines, farming machines, lifting vehicles and industrial parts. The standard configuration of the model is equipped with hot-dip galvanized STRENX 700 rear ramps, lateral toolbox and certified lashing points.
Loading platform 6000-9000 mm
Loading height 870 mm
Tires 235/75 r 17.5
Tire load 10.300 kg at 100 km/h
N.2 Axle ROR, 12-ton, drum brakes
Braking system Knorr Bremse
LED Electric system Aspoek
Customizable length
Certified lashing rings
Stainless steel toolbox

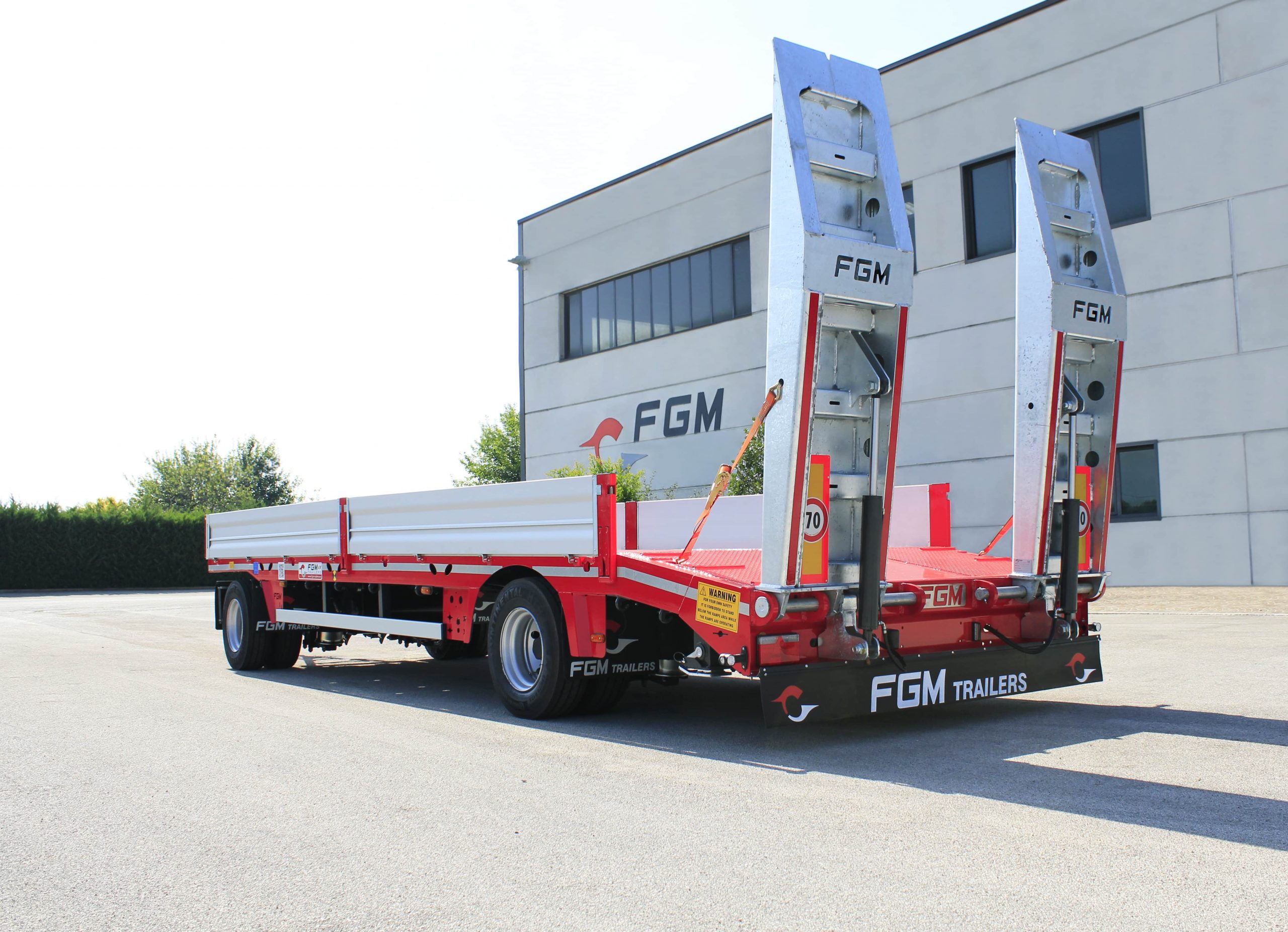

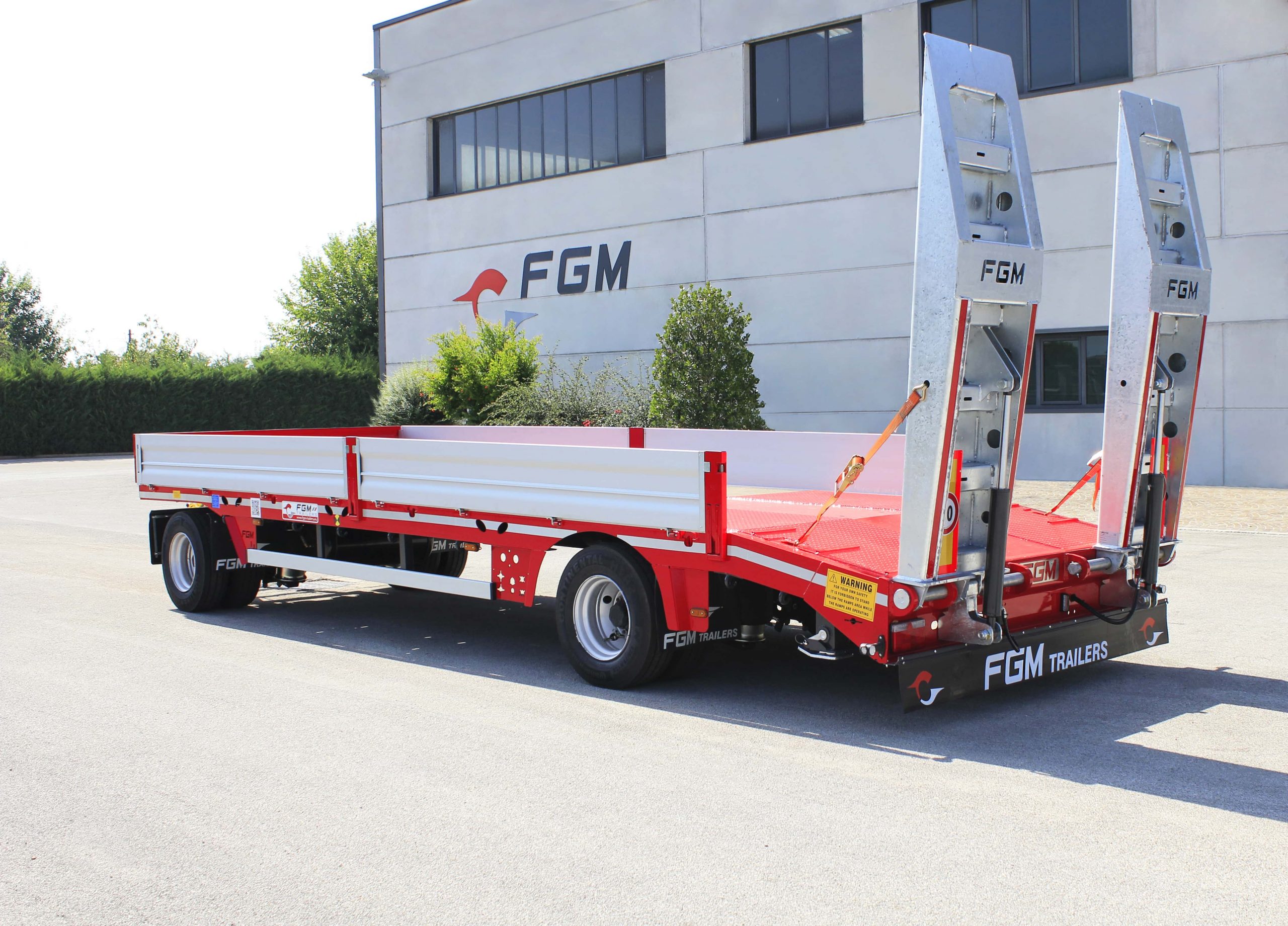

Strenx 700 rear ramps • Jost drawbar

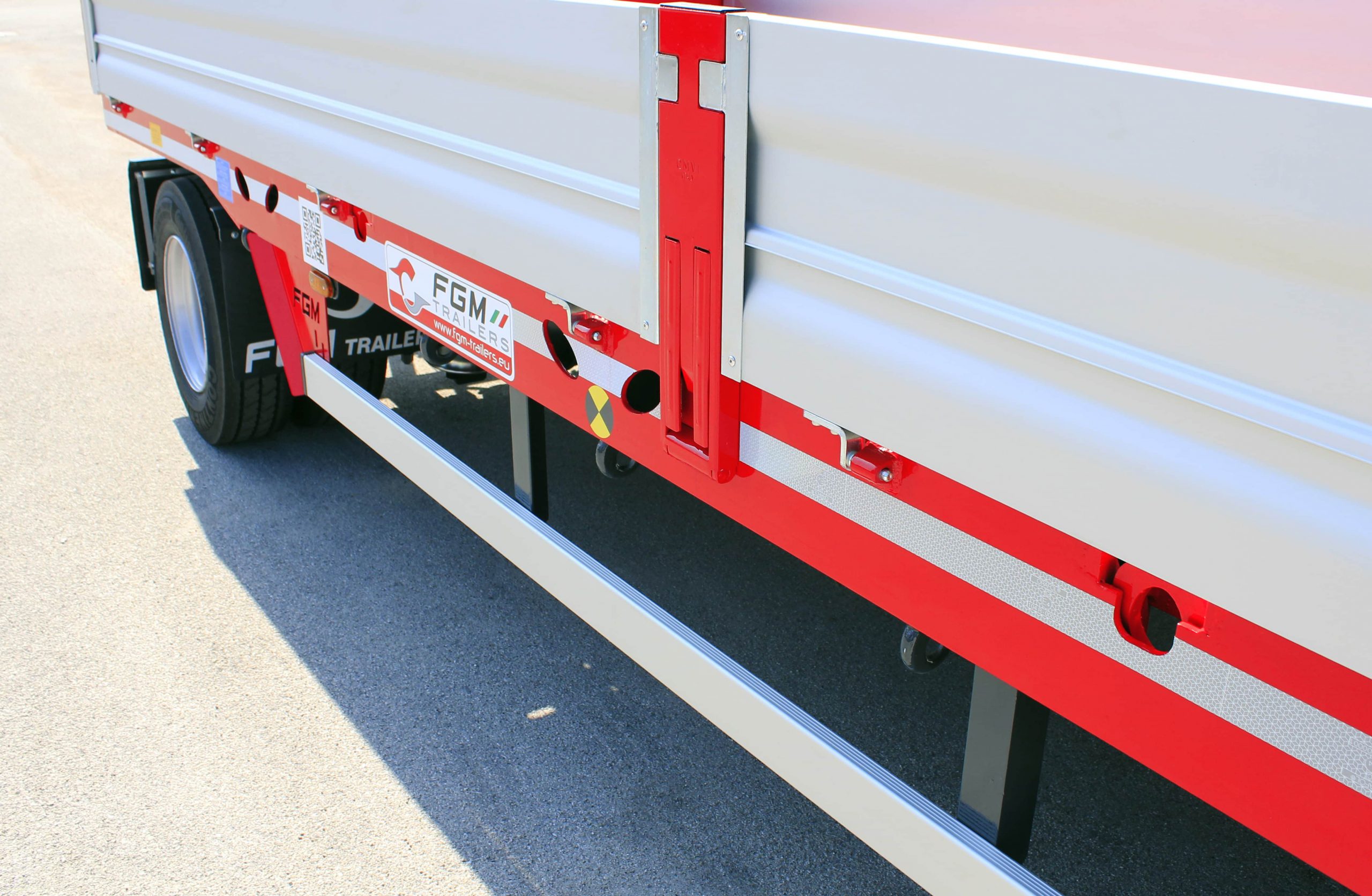

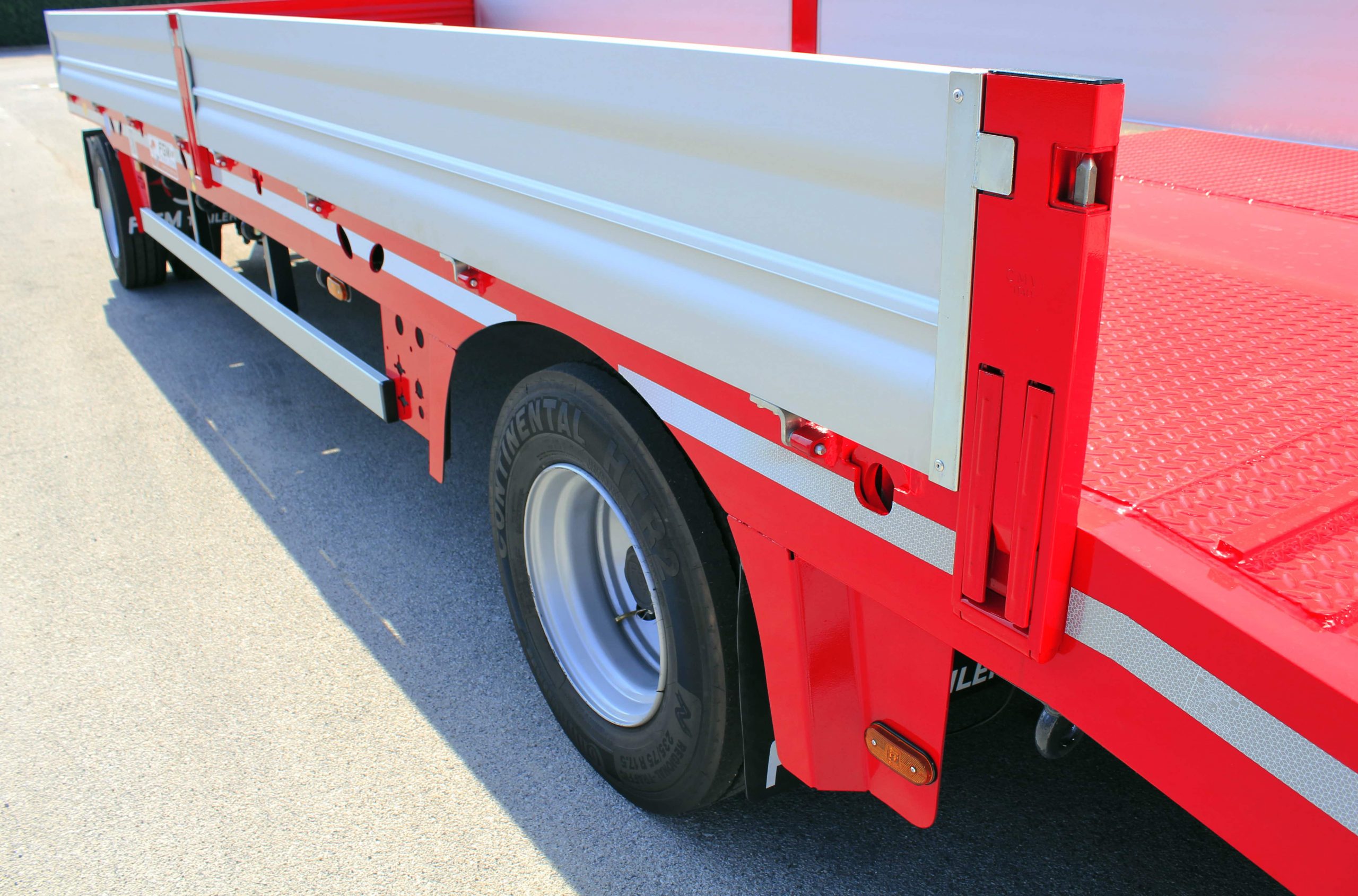

| Available Accessories | 1st lifting axle, Alcoa Dura Bright Aluminum Rims, Aluminum sideboards H 400 mm, Aluminum sideboards H 600 mm, Extendable drawbar, JOST, Extra tire Kit, FGM Toolbox, L 1000x H 300 x W 500 mm, LED Working light, N. 4 Certified Ship hooks, N.3 Rows of Bewola Holes, Orange Flashing Beacon, Semitrailer with customized dimensions, Speedline Aluminum Rims, Twist locks, JOST |
|---|---|
| Axles | 12-ton ROR, drum brakes, SAF 12-ton, drum brakes |
| Ramp type | Rear hydraulic ramps, hot-dip galvanized, 4.000 x 800 mm, Rear ramps, hot-dip galvanized, mm 2.400 x 650 |
| Chassis | Fixed chassis, ROR 12-ton, drum brakes |
| Surface Treatment | Hot-dip galvanized chassis, Painting job in RAL color requested, included |
